Double rifle regulation issue

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
Hello all! Well I took my double out to the field to try it at 50 yards. Long story short I must be doing something really wrong and I dont know what. The closest group I got was 6 inches, 4 inches when I moved to 28 yards. The right barrel seems to shoot far to the right, the left seems a few inches to the right as well, but not as bad. The rifle came with the factory target showing the bullets almost touching at 50, I'm no where close. I checked the front sight and there is no way to adjust it, nor the rear sight. I'm shooting it like I normally shoot my rifles, so maybe there is a trick I am missing with doubles? As the day went on my grouping got worse but I can put that down to muscle fatigue. Does anyone have any tips for double shooting? Should I consider a scope or red dot of some kind so I can adjust that? Really just looking for help because right now I'm pretty darn disappointed. Thanks for your help.


Tanks

AH elite
Joined
Aug 2, 2014
Messages
1,123
Reaction score
1,680
Media
44
Are you using the same factory ammo?

Also, I have been told not to shoot from a bench or a lead sled.

Red dot or a scope is not going to change how each barrel shoots. Sighting in is different than regulation.


spike.t

Sponsor
Since 2013
AH ambassador
Joined
Sep 12, 2010
Messages
9,606
Reaction score
8,601
Website
www.takerireservezambia.com
Media
333
Articles
6
Hunting reports
Africa
3
Member of
sci int, basc,wpaz
Hunted
zambia, tanzania, zimbabwe,Mozambique ,hungary, france, england

CAustin

Bronze supporter
AH ambassador
Joined
May 7, 2013
Messages
14,202
Reaction score
11,319
Media
252
Hunting reports
Africa
7
Member of
Courtney Hunting Club, NRA Life Member, SCI Kansas City Chapter
Hunted
South Africa, KwaZulu Natal, Kalahari, Northwest, Limpopo, Gauteng, APNR Kruger Area. USA Georgia, South Carolina, Arkansas, New Mexico, North Carolina and Texas
It is important that you get use to the sights. You no doubt did that today. What ammo was the rifle regulated with? The picture you posted with the rifle earlier showed a target. Did that target indicate the ammo used?

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
Are you using the same factory ammo?

Also, I have been told not to shoot from a bench or a lead sled.

Red dot or a scope is not going to change how each barrel shoots. Sighting in is different than regulation.

Thanks for the reply! Yes I'm using the same factory ammo that it was regulated with. I didn't shoot from the bench, I set up with a tripod since that's what I would use in the field. I also shot free hand, just to see but no dice. I figured about the red dot but I had to ask.


spike.t

Sponsor
Since 2013
AH ambassador
Joined
Sep 12, 2010
Messages
9,606
Reaction score
8,601
Website
www.takerireservezambia.com
Media
333
Articles
6
Hunting reports
Africa
3
Member of
sci int, basc,wpaz
Hunted
zambia, tanzania, zimbabwe,Mozambique ,hungary, france, england
Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
It is important that you get use to the sights. You no doubt did that today. What ammo was the rifle regulated with? The picture you posted with the rifle earlier showed a target. Did that target indicate the ammo used?

Yes, it was regulated with hornady dgx.


Last edited by a moderator:

spike.t

Sponsor
Since 2013
AH ambassador
Joined
Sep 12, 2010
Messages
9,606
Reaction score
8,601
Website
www.takerireservezambia.com
Media
333
Articles
6
Hunting reports
Africa
3
Member of
sci int, basc,wpaz
Hunted
zambia, tanzania, zimbabwe,Mozambique ,hungary, france, england

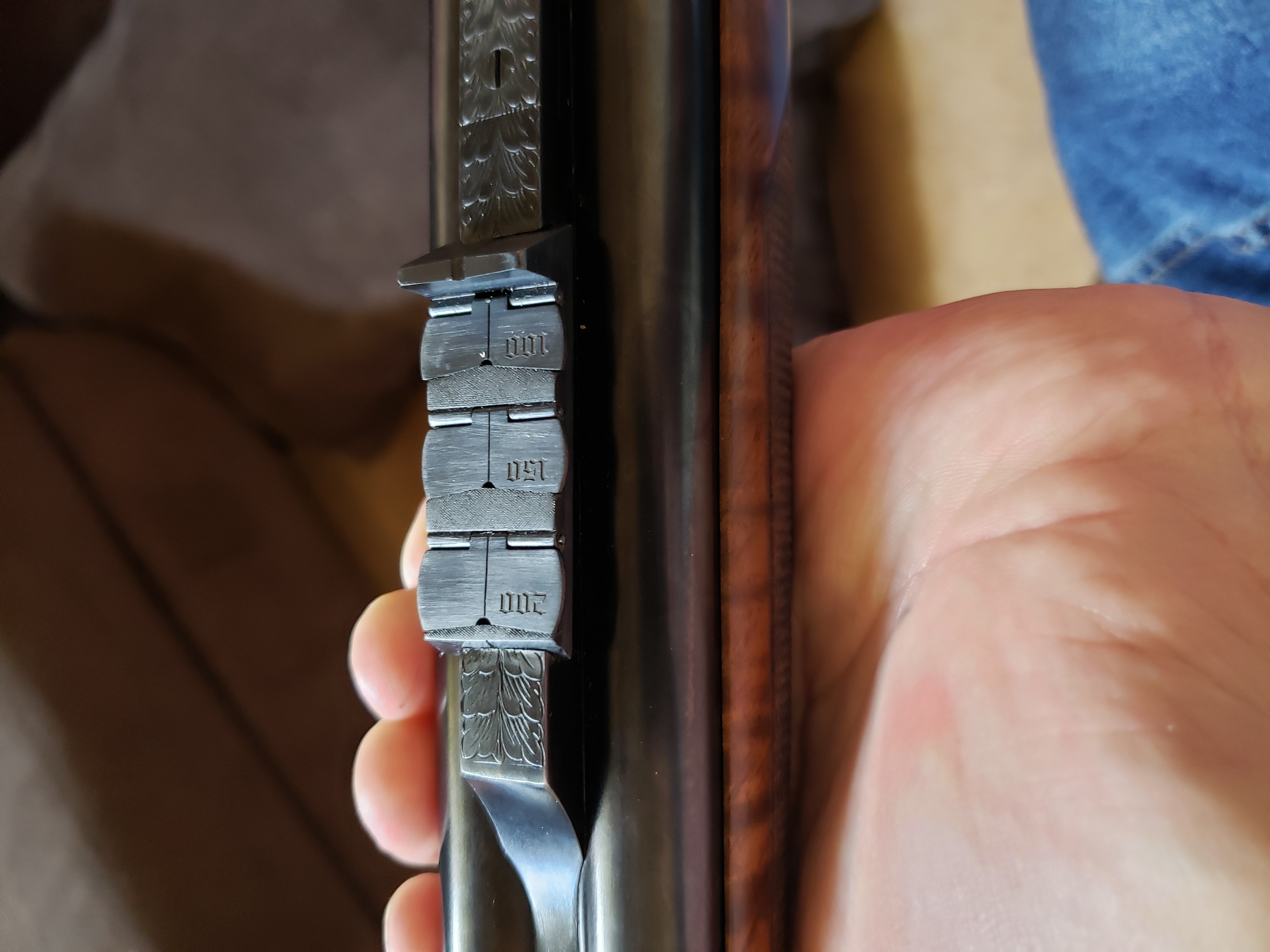

Looking at that screw it looks like if you loosen it tension on the sight block will be relaxed and you can move it.... but long time since I had my chapuis... @AZDAVE you know?


AZDAVE

AH elite
Joined
Jul 26, 2013
Messages
1,821
Reaction score
2,485
Media
166
Hunting reports
Africa
3
Hunted
South Africa, Alaska,lower 48
That is a different rear sight than what i have on my 9.3. But if my memory serves me flip uo the leafs and there is a screw under that you loosen, then drift the sights for windage. When I shoot a double I have my hand between the forestock and the sticks. I also bury the front bead in the rear sight and shot a 6 o'clock hold on the target. are your individual barrel groups together? If you can shoot a 4 shot grouping and take a picture and post it. That will help us diagnose the issues.

Dont forget to consentrate on marksmanship fundementals. I find that when my groups open up I am not following through, or jacking up my trigger pull.


Red Leg

Lifetime bronze benefactor
AH ambassador
Joined
May 19, 2009
Messages
5,817
Reaction score
15,355
Location
Texas Hill Country
Media
264
Articles
5
Hunting reports
Africa
2
USA/Canada
4
Mex/S.Amer
1
Europe
3
Member of
SCI DSC life memberships / NRA Patron Life
Hunted
Mexico, Namibia, RSA, Germany, Austria, Argentina, Canada, Mozambique, Spain, US (15 states)
If I am reading this correctly, and you are getting a 4 - 6" spread at 50 yards, the rear sight is the least of your problems.

As @AZDAVE suggests, a photo of a four shot LxR/LxR would be useful.

Another potential fly in the ointment is that the test target was likely fired with the original DGX, not the new bonded bullet. Normally, usually, most of the time that shouldn't make that much of a difference, but then again, sometimes just a new lot of the same ammunition will move groups inches (particularly if the manufacturer changed powders). I have not compared the old and new bullet in one of my doubles. However, the the new bonded .470 regulates well in my Douglas.

And be very careful tackling any screws on that rifle. You need to use a perfectly sized, flat ground driver or you will leave yourself an ugly reminder on that rib for the remainder of the time you own it.

Last edited:

Tanks

AH elite
Joined
Aug 2, 2014
Messages
1,123
Reaction score
1,680
Media
44
One other thing. What are groups like for individual barrels? If you are not getting decent groups from each individual barrel then there might be other factors in play than just regulation.

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
That is a different rear sight than what i have on my 9.3. But if my memory serves me flip uo the leafs and there is a screw under that you loosen, then drift the sights for windage. When I shoot a double I have my hand between the forestock and the sticks. I also bury the front bead in the rear sight and shot a 6 o'clock hold on the target. are your individual barrel groups together? If you can shoot a 4 shot grouping and take a picture and post it. That will help us diagnose the issues.

Dont forget to consentrate on marksmanship fundementals. I find that when my groups open up I am not following through, or jacking up my trigger pull.

Thank you, I ended up looking under the flip sights and there is an odd screw there that none of my slot heads, even the small glasses ones, will fit. Also I found out that the sight itself is loose, freely wiggling a few cm left and right. Unfortunately I cant lock it dow.

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
If I am reading this correctly, and you are getting a 4 - 6" spread at 50 yards, the rear sight is the least of your problems.

As @AZDAVE suggests, a photo of a four shot LxR/LxR would be useful.

Another potential fly in the ointment is that the test target was likely fired with the original DGX, not the new bonded bullet. Normally, usually, most of the time that shouldn't make that much of a difference, but then again, sometimes just a new lot of the same ammunition will move groups inches (particularly if the manufacturer changed powders). I have not compared the old and new bullet in one of my doubles. However, the the new bonded .470 regulates well in my Douglas.

And be very careful tackling any screws on that rifle. You need to use a perfectly sized, flat ground driver or you will leave yourself an ugly reminder on that rib for the remainder of the time you own it.
Happy to post a 4x4 picture next time I go to the range, probably this weekend...or whenever I can feel my shoulder again, whichever comes first hey. The 450/400 isn't bad mind you, but it's sure not my 270 either!

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
One other thing. What are groups like for individual barrels? If you are not getting decent groups from each individual barrel then there might be other factors in play than just regulation.

The right barrel is far to the right, the left is also to the right but actually on paper at least.


Tanks

AH elite
Joined
Aug 2, 2014
Messages
1,123
Reaction score
1,680
Media
44
The right barrel is far to the right, the left is also to the right but actually on paper at least.

OK. I didn't mean where on paper as the sighting of them is not important at this point. When you fire 3 shots from the left barrel what is the group size, and same for the right barrel. I'd actually set up two separate targets, one for each barrel and test that first.

You can not proceed to regulation if groups per barrel are inconsistent. So, best to eliminate that first.


MMAL

Gold supporter
AH fanatic
Joined
Jan 5, 2016
Messages
567
Reaction score
895
Location
New Jersey
Media
52
Hunting reports
Africa
3
Hunted
New Jersey, New York, Wyoming, Colorado, Mexico, Alberta, Saskatchewan, Zimbabwe, South Africa, Northwest Territories, Newfoundland, Namibia
Welcome to the absolutely wonderful world of double rifles. First, you are not alone. Anyone who has ever own and shot a double rifle knows that can be a fickle as a four year old. Things to consider:

1) Everyone says don't shoot a double off of a shooting bench because it will be different POI than on sticks. I agree with this but understand that they regulated that rifle off a bench vise! Go figure.
2) Because of #1 it is now time to start reloading and work with different velocities until the l/r barrels are as close as you can get them.
3) This is all part of owning a double rifle, but the satisfaction of using one on a large animal in Africa is truly special in my book.


Good Luck.

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
OK. I didn't mean where on paper as the sighting of them is not important at this point. When you fire 3 shots from the left barrel what is the group size, and same for the right barrel. I'd actually set up two separate targets, one for each barrel and test that first.

You can not proceed to regulation if groups per barrel are inconsistent. So, best to eliminate that first.
I'm sorry, that does make a lot more sense than what I was thinking. It's Monday, that's my excuse.

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
Welcome to the absolutely wonderful world of double rifles. First, you are not alone. Anyone who has ever own and shot a double rifle knows that can be a fickle as a four year old. Things to consider:

1) Everyone says don't shoot a double off of a shooting bench because it will be different POI than on sticks. I agree with this but understand that they regulated that rifle off a bench vise! Go figure.
2) Because of #1 it is now time to start reloading and work with different velocities until the l/r barrels are as close as you can get them.
3) This is all part of owning a double rifle, but the satisfaction of using one on a large animal in Africa is truly special in my book.


Good Luck.

Oh this will be a fun adventure I'm sure, thank you! Except the reloading part, I'm not there yet lol.
