Double rifle regulation issue

crs

AH fanatic
Joined
Jun 17, 2009
Messages
988
Reaction score
1,249
Location
Republic of Texas
Website
sheltontechnologies.com
Media
6
Hunting reports
Africa
1
USA/Canada
1
Member of
CRS, NRA Patron Member, TSRA, DWWC, DRSS
Hunted
RSA
My apologies for the rather drab photo of the rifle as the combination of surroundings and lighting do not do it justice; it actually has attractive metal and exhibition grade wood. Pic taken when it arrived in full length metal case:


Attachments

  • 54676_600x400.jpg
    62.5 KB · Views: 38

rookhawk

AH legend
Joined
Mar 4, 2015
Messages
3,184
Reaction score
4,289
Location
North America
Media
138
Articles
2
Member of
NRA Life Benefactor, Trout Unlimited, Safari Club International
Things that came up in this thread that are important diagnostic points:

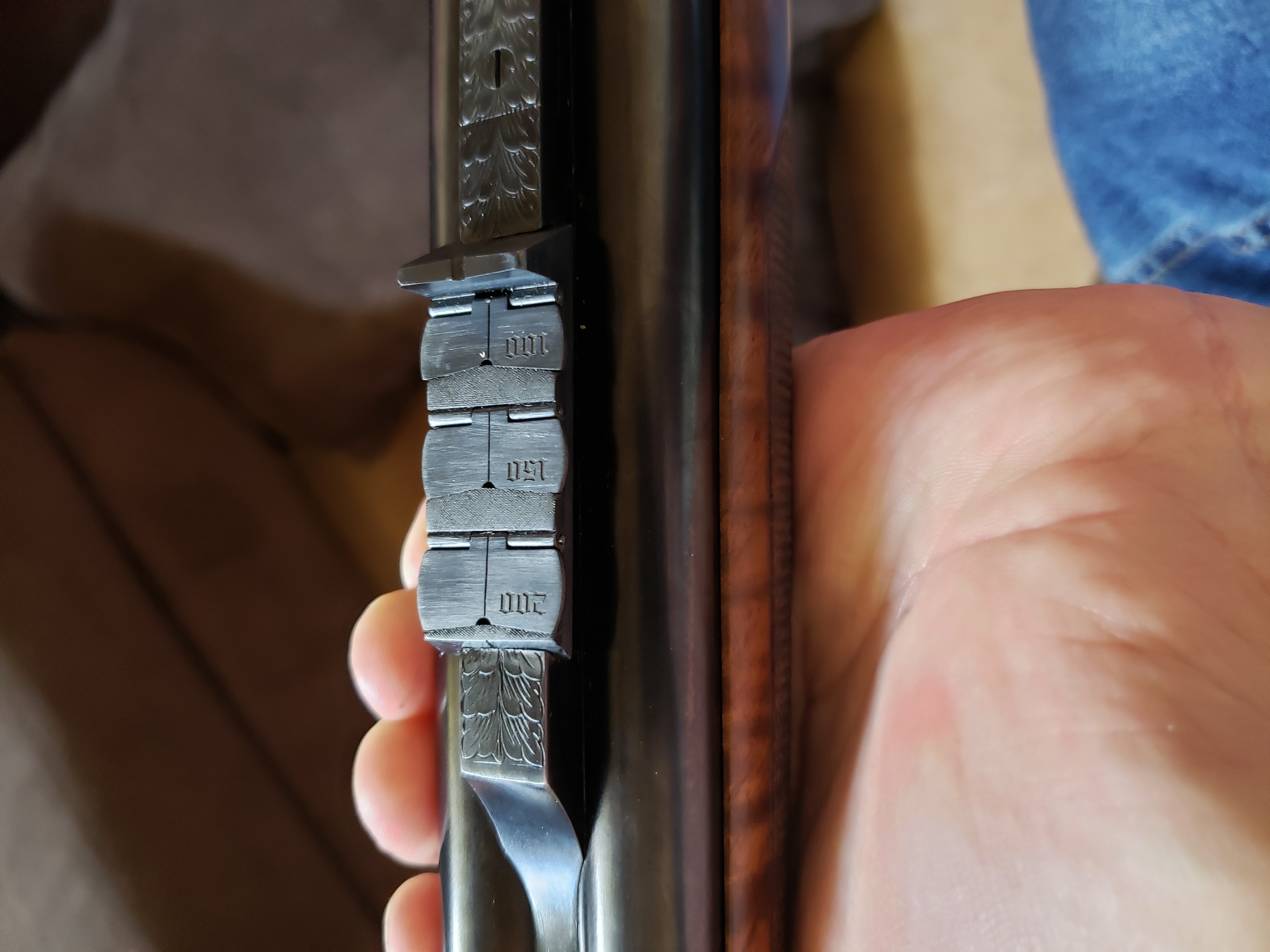

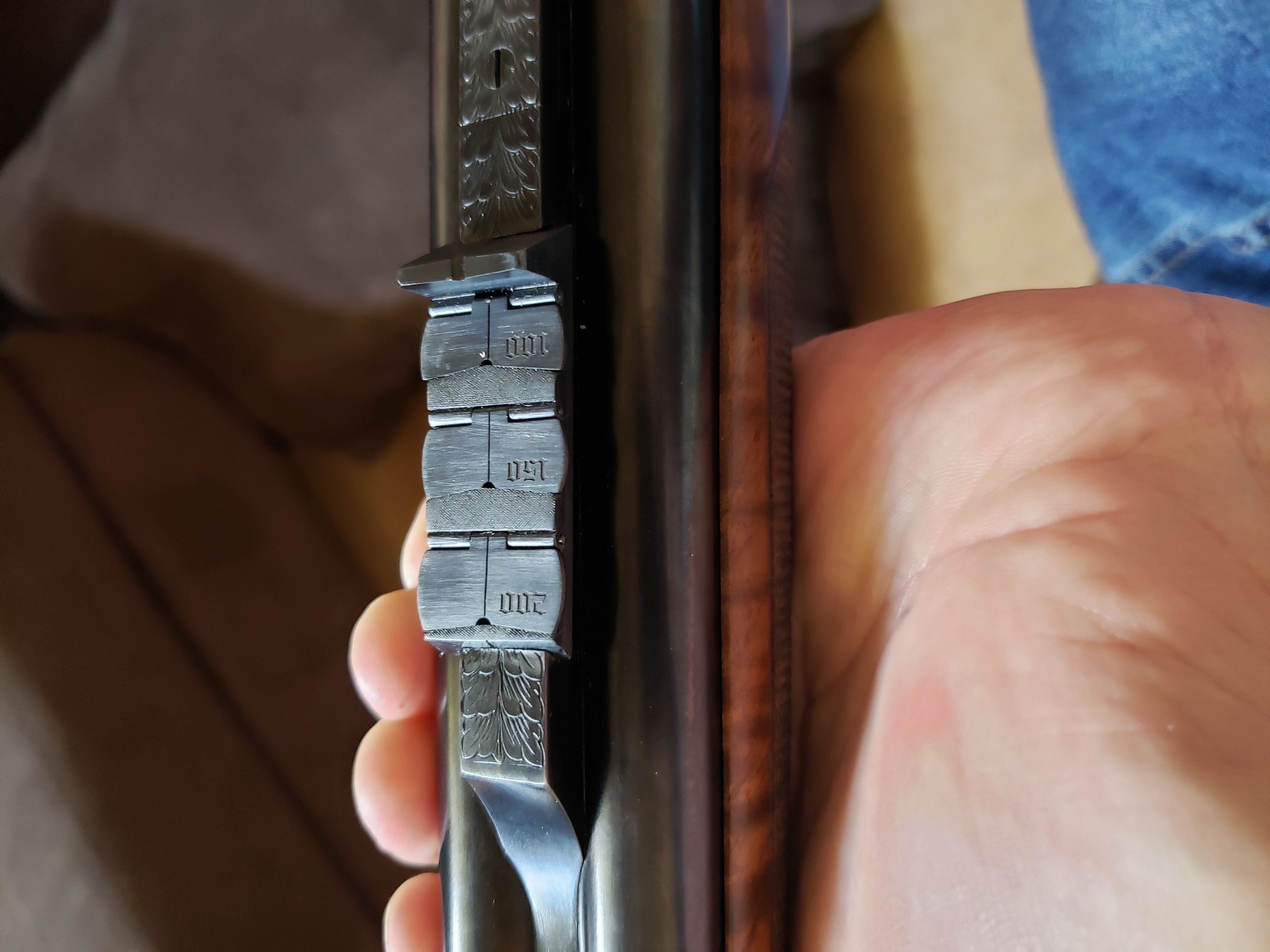

1.) the pic looks like the rear sight witness Mark is off
2.) you also said it’s loose.
3.) hornady changed bullets while calling them dgx
4.) you may have a different load recipe from hornady
5.) they might have regulated with custom loads using dgx bullets
6.) it could be a 450/400 3-1/4” chamber
7.) how you hold the gun on sticks could alter regulation
8.) excessive or insufficient pressure on the forend can change point of aim
9.) a recoil pad was changed to a significantly longer/shorter heavier/lighter one

this clearly looks like loose sight issues, but just rattling off some of the scenarios we’d check to troubleshoot.

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
Allright, so I went back to the range and I put some shots through her. Here are the results.


I know it's shooting the right, which I think I can fix. All of those were at 50 yards except the last one when I got frustrated and moved it to 25 yards. I also calmed down, took my time etc so that might have something to do with it. I also replaced the 1/2 inch butt pad with a 1 inch butt pad and let me tell you it's a dream to shoot!


bill73

AH member
Joined
Jul 1, 2011
Messages
16
Reaction score
10
Allright, so I went back to the range and I put some shots through her. Here are the results. View attachment 370002View attachment 370003View attachment 370004View attachment 370005

I know it's shooting the right, which I think I can fix. All of those were at 50 yards except the last one when I got frustrated and moved it to 25 yards. I also calmed down, took my time etc so that might have something to do with it. I also replaced the 1/2 inch butt pad with a 1 inch butt pad and let me tell you it's a dream to shoot!
Allright, so I went back to the range and I put some shots through her. Here are the results. View attachment 370002View attachment 370003View attachment 370004View attachment 370005

I know it's shooting the right, which I think I can fix. All of those were at 50 yards except the last one when I got frustrated and moved it to 25 yards. I also calmed down, took my time etc so that might have something to do with it. I also replaced the 1/2 inch butt pad with a 1 inch butt pad and let me tell you it's a dream to shoot!

I have experienced problems with two new DR's that were regulated with Hornady ammo,a Heym 450-400 & a Westley Richards 470NE,this is what I discovered,Hornady initially used any which powder to attain a specific speed for a caliber,when your rifle was regulated? it was probably with a batch of powder different than the batch that you are shooting now,hopefully I am not confusing anyone here,different powders will shoot differently in a DR,both guns in this case shot ok with different batches of ammo,reloading for both guns with loads obtained from Hornady also fixed the problem.

Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
I have experienced problems with two new DR's that were regulated with Hornady ammo,a Heym 450-400 & a Westley Richards 470NE,this is what I discovered,Hornady initially used any which powder to attain a specific speed for a caliber,when your rifle was regulated? it was probably with a batch of powder different than the batch that you are shooting now,hopefully I am not confusing anyone here,different powders will shoot differently in a DR,both guns in this case shot ok with different batches of ammo,reloading for both guns with loads obtained from Hornady also fixed the problem.

Yea, I do wonder. It's a brand new rifle, I'm the first owner so I think it should have been regulated with the newer ammo.


RayAtkinson

AH fanatic
Joined
Mar 17, 2009
Messages
655
Reaction score
511
Location
Filer,
Media
25
Articles
1
Member of
SCI Dallas
Hunted
RSA, Botswana, CAR, Tanzania, Zimbabwe, Zambia, Mozambique, Kenya way back when, and a few others that I can't remember.
The first thing you need to do with a double rifle is understand that the gun will only shoot as well as the worst barrel shoots!!!. So fire a 4 shot 2x2 group with each barrel, your goal should be to duplicate the worst barrel as a ruld..If as your post indicates your gun is shooting 6 to 8 inch groups right left, right left..you need to send it off to be re-regulated in that case, as that is a lot of inaccuracy in any rifle...I wouldl expect my double to shoot at least 2 inch groups at 75 yards, the old "minute of grapefruit" is just BS...one might need to shoot something big and mean in the eyeball or ear hole.

First are you shooting off a bench rest? and you need to be doing that..Is the recoil causing you to flinch, in other words we must determine if it s you or the gun..If its the gun, Then by adjusting the powder charge a grain or two at a time you many be able to close the group up so shoot the worst barrel. and at this point you can determine if more powder moves bullet impact to the left or right. u
Usually less will move it to the right or visa versa in rare cases, your playing with barrel vibes..Once you get the rifle grouping then its time TO SIGHT IT IN, don't get regulation confused with sighting in, that is two different processes..The world of the double gun has nothing to do with pops mod 94 or Jack Oconners .270, its a whole nuther nut to crack..

Last edited by a moderator:
Joined
May 3, 2016
Messages
519
Reaction score
574
Location
New Mexico
Media
40
Hunting reports
Africa
2
The first thing you need to do with a double rifle is understand that the gun will only shoot as well as the worst barrel shoots!!!. So fire a 4 shot 2x2 group with each barrel, your goal should be to duplicate the worst barrel as a ruld..If as your post indicates your gun is shooting 6 to 8 inch groups right left, right left..you need to send it off to be re-regulated in that case, as that is a lot of inaccuracy in any rifle...I wouldl expect my double to shoot at least 2 inch groups at 75 yards, the old "minute of grapefruit" is just BS...one might need to shoot something big and mean in the eyeball or ear hole.

First are you shooting off a bench rest? and you need to be doing that..Is the recoil causing you to flinch, in other words we must determine if it s you or the gun..If its the gun, Then by adjusting the powder charge a grain or two at a time you many be able to close the group up so shoot the worst barrel. and at this point you can determine if more powder moves bullet impact to the left or right. u
Usually less will move it to the right or visa versa in rare cases, your playing with barrel vibes..Once you get the rifle grouping then its time TO SIGHT IT IN, don't get regulation confused with sighting in, that is two different processes..The world of the double gun has nothing to do with pops mod 94 or Jack Oconners .270, its a whole nuther nut to crack..


So I ended up taking the rifle out to the field to test the "worst barrel" and your right,t he first barrel is shooting just a little to the right, the left barrel is shooting about 4 inches low. I've ended up sending it back for re-regulation because at that point I think it's beyond the power of a change in powder to cure!
