Ill dig the rifle out of the safe and take some pics this evening after work..

The guy that did the engraving for me used a very high end, industrial laser engraver (he told me he paid $25K for it).. He used a tall and narrow font.. so the words dont crowded or tight.. but.. it is a little "long" across the barrel and takes up a good bit of space..

He basically started about 1/4" higher than the line of the stock, and about 1/2" in front of the action... the engraving is roughly 2 1/2" in length (I'm guessing on these dimensions since I dont have it in front of me right now).. and the letters are just a hair taller than 1/8"...

If he had used metal stamps or tried to hand engrave it, I think it would have been a mess.. but the industrial laser engraver seems to have done the trick just fine..

I'll also post his contact information when I get back online tonight if anyone is interested.. the guy is a knife maker by trade (among other things) and bought the engraver so that he do very fancy engraving on his knives as well as on pistol slides, magazines, etc.. his machine can not only engrave metal, he can also engrave wood, plastic, kydex, etc.. and will "burn" images into leather as well (he is putting images on leather holsters, knife sheaths, etc. also.. if you want something like that, all you have to do is provide him with a high quality image.. he can feed it into his engraver, and then burn it onto your sheath or holster)..

He is just getting started with all of the engraving services.. so he is very affordable.. it cost me more to box up and ship my guns (he did 2 for me) and ship them back than what he charged to actually do the engraving..


AZDAVE

AH elite
Joined
Jul 26, 2013
Messages
1,871
Reaction score
2,605
Media
167
Hunting reports
Africa
3
Hunted
South Africa, Alaska,lower 48
@mdwest Dave can you Pm me the contact info for the lazer engraver


mdwest

AH elite
Joined
Mar 20, 2016
Messages
1,965
Reaction score
3,740
Location
DFW
Media
36
Articles
1
Hunting reports
Africa
2
Mex/S.Amer
1
Member of
DSC Life Member, NRA Life Member
Hunted
USA, South Africa, Argentina, Peru
absolutely..

I have 2 engraving options now.. although I havent seen the results from the second guy just yet..

McClelland Gun Shop in Dallas has an engraver local to the DFW area that they claim does very good work that they use for all of their needs.. I gave them my 416 Taylor last week to have the barrel engraved for me.. I should have it back the first of next week.. once I see how things look I'll report back here..

Even though my other guy has proven himself to do good work I thought I'd give the local option a try.. if for no other reason, just avoiding the pain of boxing up a barreled action and shipping it across the country and back (as well as the expense)..


Tintin

AH senior member
Joined
Oct 13, 2017
Messages
50
Reaction score
42
Location
Australia
Media
13
Member of
SSAA, ADA
Hunted
Australia
Hi All,

An update on this project. It has taken time but is moving along and I thought some may be interested.

Barrel has been fitted to action - it was profiled pretty much as mentioned earlier in this thread - not quite exactly what I wanted on the Nocks form - due to some detail I left out in my instructions - but I'm happy with it.

Recknagel sights fitted - 1 standing / 2 folding rear - I'm thinking I'll regulate (and engrave) for 65 / 150 / 200 yds - would welcome any input on that. Front was re-shaped and set back in the Rigby style.

Recknagel trigger fitted - very happy with that - extremely crisp. It was only about $20 more than a Timney in the end.

Custom made front sling eyelet by the smith came up really well.

Dakota 3 position safety - that was a bit of hiccup - had it for a while - got around to checking it ... pin missing. They wouldn't post it to me being an international alien and all ;-) - so that took a bit of time and effort to get - but it's fitted up and looks good and functions well.

Talley bases fitted - I had a pair of Talley 'blank' gunsmith bases just in case the M98 small rings didn't work out - but they were fine.

Scope I had was too short ;-( so went to plan B on that but rings (Talley lows) are not giving enough bolt clearance - so need to consider a) slight bolt bend b) taller rings or c) a bit of both.

The bottom metal I've had sitting there was a bit rough - new but quite a few casting marks that I've dome an initial clean up on and the smith will do final finish on.

The timber is still sitting my cupboard ageing gracefully ;-) - I met with the stockmaker last week - he's expecting to be 6 months or so once he gets it.

Finally tracked down some .275 Rigby headstamped brass (Hornady) that is sitting here now.

'Rigby' factory ammo (Hornady in a blue box from what I've heard) is available at a LGS - $120 for 20 - might get a packet for fun - but at that rate I could be running a 50 BMG!! I suppose the nice blue Rigby box is worth something ;-).

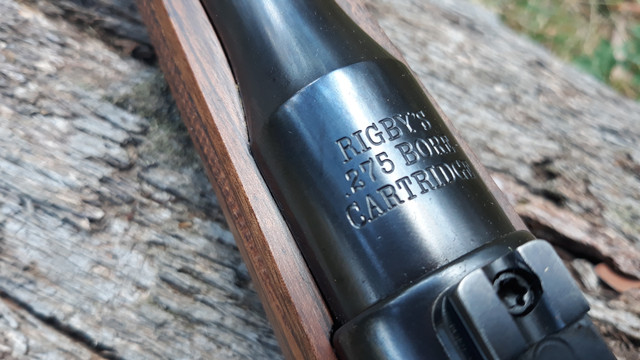

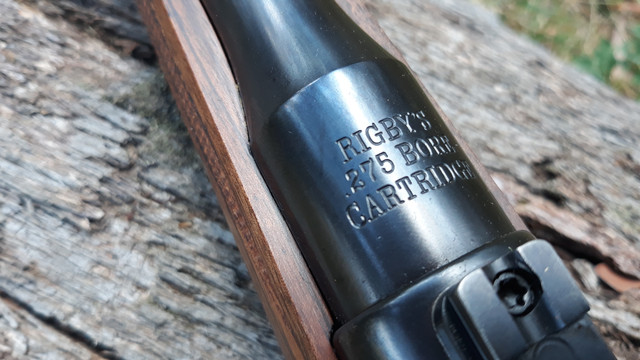

Finally tracked down an engraver who does great work and has quick turnarounds. Pretty sure I have settled on

RIGBY'S
.275 BORE
CARTRIDGE
across the Nocks form

and serial number on front ring and trigger bow

So, still a few more things to work through - but getting closer.

Pics to follow.


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,868
Reaction score
5,658
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,601
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia

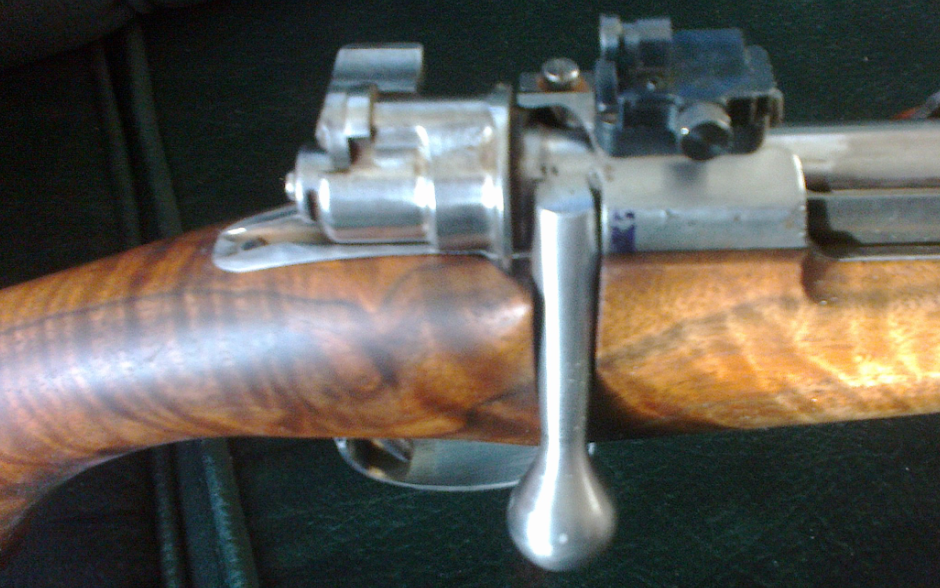

If you shorten the bolt root so that the start of the handle shaft junction is at the edge of the receiver then the low talleys give clearance even with a scope cover on. No bend needed
bolt handle.png


Tintin

AH senior member
Joined
Oct 13, 2017
Messages
50
Reaction score
42
Location
Australia
Media
13
Member of
SSAA, ADA
Hunted
Australia
Thanks a lot VG - will check that out. Your rear sight looks interesting, what is that?


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,868
Reaction score
5,658
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,601
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia

Attachments

  • Screen Shot 2020-02-15 at 10.59.24 AM.png
    Screen Shot 2020-02-15 at 10.59.24 AM.png
    622.5 KB · Views: 29
  • Screen Shot 2020-02-15 at 10.59.27 AM.png
    Screen Shot 2020-02-15 at 10.59.27 AM.png
    1,024 KB · Views: 28
  • Screen Shot 2020-02-15 at 10.59.29 AM.png
    Screen Shot 2020-02-15 at 10.59.29 AM.png
    840.2 KB · Views: 28

WAB

AH legend
Joined
Oct 8, 2015
Messages
2,600
Reaction score
5,510
Location
Alabama
Media
90
Hunting reports
Africa
5
USA/Canada
1
Member of
DSC, NRA, SCI
Hunted
Zambia, Botswana, Mozambique, South Africa, Zimbabwe, Namibia, Scotland, England, Canada, Alaska, Ireland

Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,868
Reaction score
5,658
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,601
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia

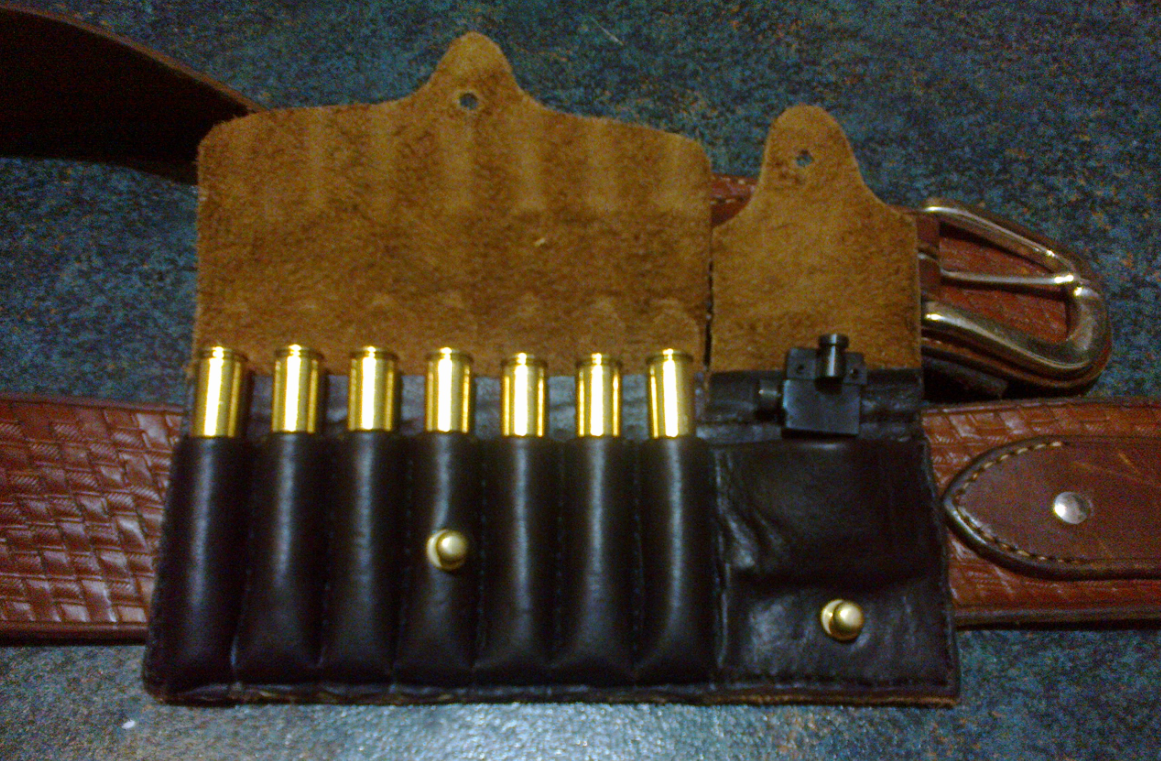

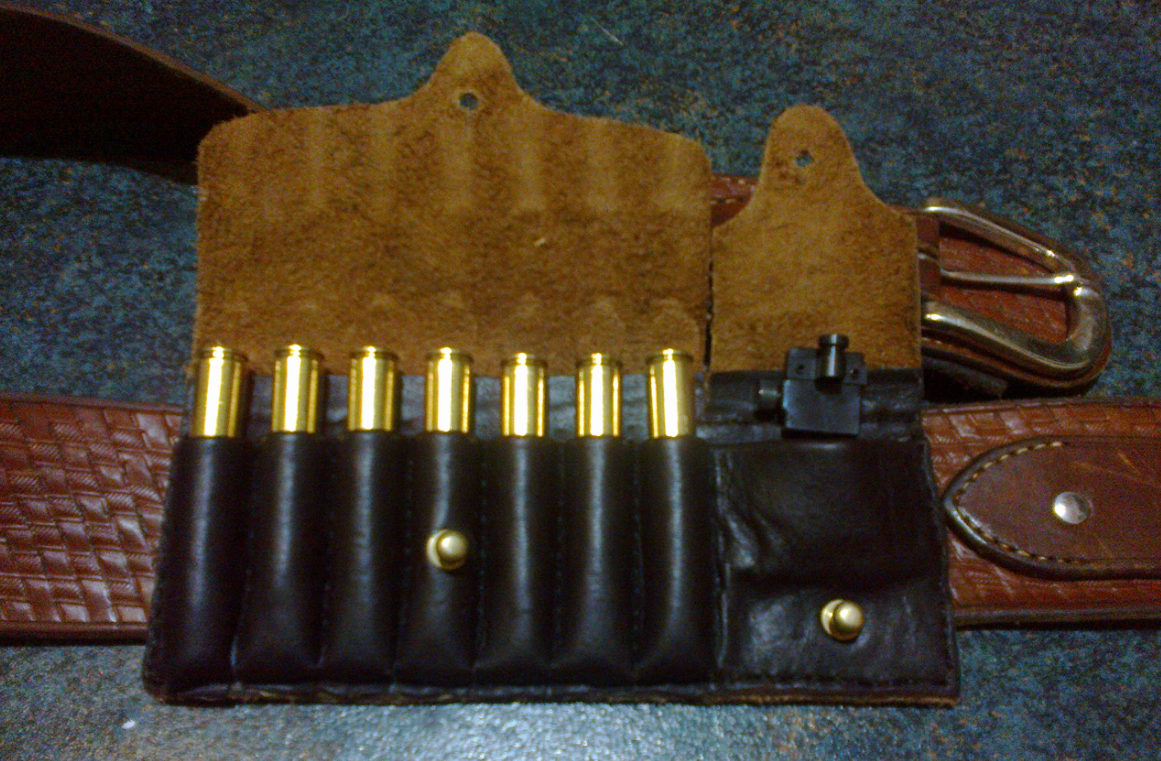

Did you make your own custom ammo slide with the sight pouch or are they available
Somewhere?
I made that one but they are simple to make


Bullthrower338

AH legend
Joined
Sep 20, 2014
Messages
4,438
Reaction score
10,140
Location
Houston, Texas and Alder, MT
Media
179
Hunting reports
Africa
2
USA/Canada
1
Australia/NZ
2
Member of
Life Member Rocky Mountain Elk Foundation, NRA, Huntin' Fool, DSC and Pope and Young Club
Hunted
USA, Mexico, Canada, RSA, Australia NT, Zimbabwe
I made that one but they are simple to make
Von Gruff, you would be handier to have around than a pocket on a shirt! Wish I had a bit of your skill set, I have to build things out of heavy steel so I can build it square and then beat it round with a big hammer!


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,868
Reaction score
5,658
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,601
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
Von Gruff, you would be handier to have around than a pocket on a shirt! Wish I had a bit of your skill set, I have to build things out of heavy steel so I can build it square and then beat it round with a big hammer!
:):)


Tintin

AH senior member
Joined
Oct 13, 2017
Messages
50
Reaction score
42
Location
Australia
Media
13
Member of
SSAA, ADA
Hunted
Australia

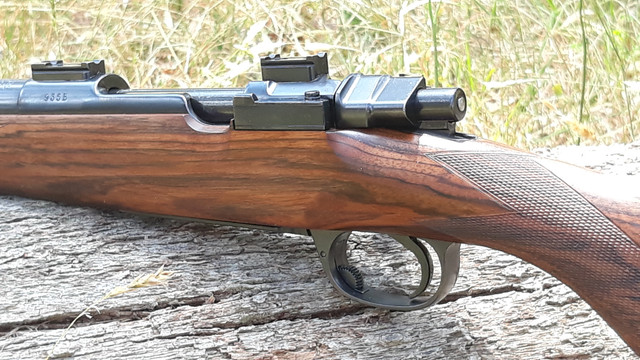

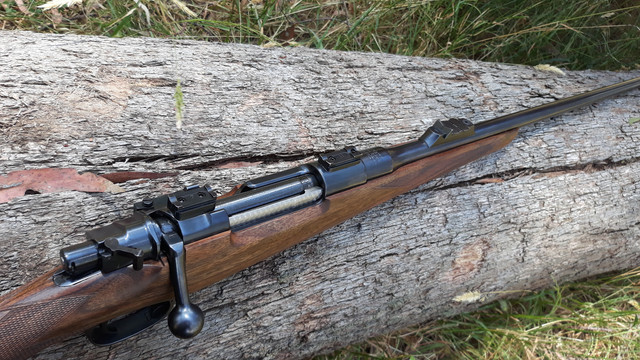

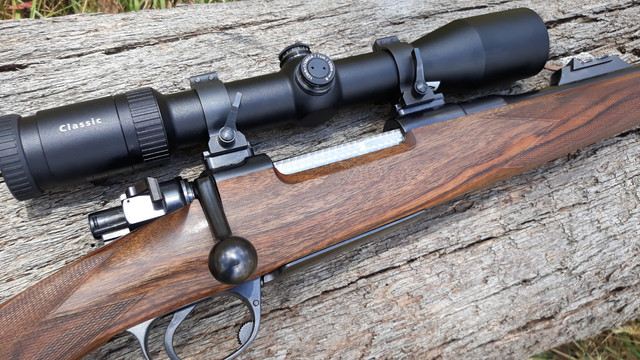

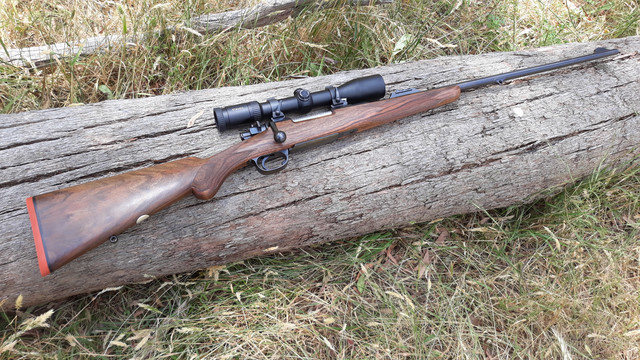

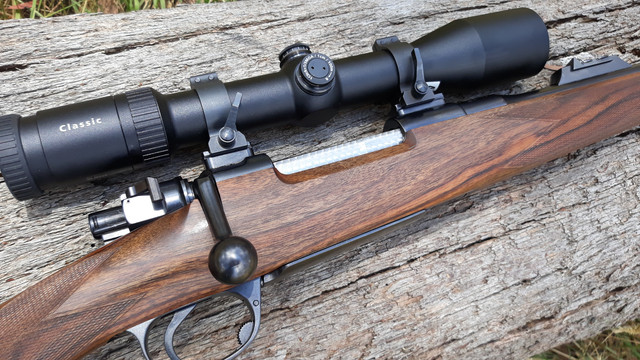

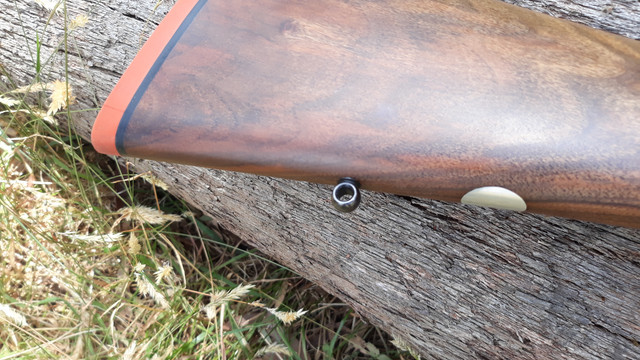

A belated Merry Christmas to one and all.

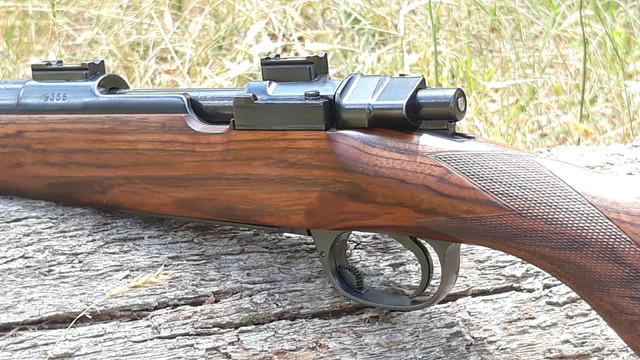

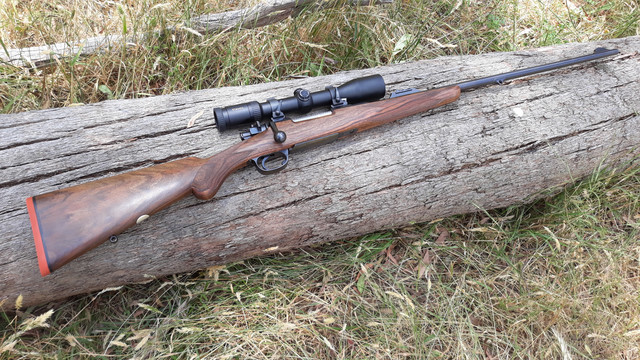

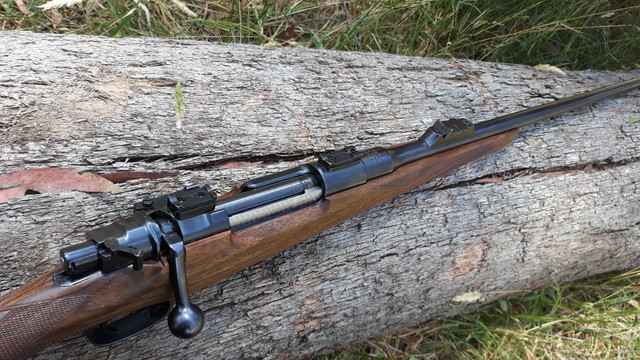

Santa delivered my 275.




(some idiot forgot to put the turret caps back on for the pic)









Pretty happy with how it turned out.
