Source for classic style sling studs

Tintin

AH senior member
Joined
Oct 13, 2017
Messages
50
Reaction score
43
Location
Australia
Media
13
Member of
SSAA, ADA
Hunted
Australia
Hi All,

I thought I'd consult the AH brains trust and see if anyone has ideas for a source for classic style sling 'studs' - as per the image below.

http://**NOT**PERMITTED**.info/ezine/CptCurlFiles/Rigby/HighlandStalker/Original1900Rigy275NE1000.jpg

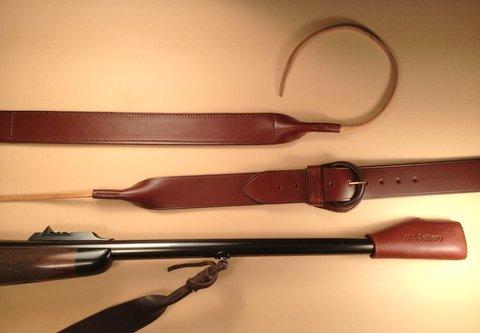

ie with openings large enough to accommodate an old style sling with leather leader - eg like the one Trader Keith does



any leads would be appreciated

thanks in advance


Attachments

  • Original1900Rigy275NE1000.jpg
    17.2 KB · Views: 158
  • 480_2013-04-05_15.57.51.jpg
    17.9 KB · Views: 192
Last edited by a moderator:

ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,039
Reaction score
1,209
Location
Adirondack Park, NY, USA
Media
44
Articles
1
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada

Attachments

  • Screenshot (35).png
    Screenshot (35).png
    421.8 KB · Views: 105
Last edited by a moderator:

Red Leg

Lifetime bronze benefactor
AH ambassador
Joined
May 19, 2009
Messages
6,583
Reaction score
18,969
Location
Texas Hill Country
Media
285
Articles
5
Hunting reports
Africa
2
USA/Canada
4
Mex/S.Amer
1
Europe
3
Member of
SCI DSC life memberships / NRA Patron Life
Hunted
Mexico, Namibia, RSA, Germany, Austria, Argentina, Canada, Mozambique, Spain, US (15 states)
NECG makes classic English STYLE studs, from there I would think you would just need to drill them out if you didn't want to use modern swivels. The NECG ones are fairly robust and if you wanted to shape them and reblue them it wouldn't be that hard. Nitre bluing is fairly straight forward if you have a propane torch.

https://www.newenglandcustomgun.com/Gun_Services/search.asp?CI=296&ST=Slings & Swivels
The NECG product is indeed classic, but it is continental - not English. The classic English style studs to which he refers are found on all bolt actions and many doubles from the golden age of English rifles. They have oversized loops to accommodate either leather ties are the large metal sling hooks of the period. The only two sources I could think of were Jeff’s Outfitters and Connecticut Shotgun, but neither have them. An email to Westley Richards might be an option.


Tintin

AH senior member
Joined
Oct 13, 2017
Messages
50
Reaction score
43
Location
Australia
Media
13
Member of
SSAA, ADA
Hunted
Australia
Thanks a lot Chris - yes I've seen the Recknagel parts that NECG sell - but as Red Leg says - not quite what I'm after.

Red Leg - Thanks - will try that - I'd also considered contacting Rigby.

Might be an opportunity for someone here with machining superpowers to start making these as 'genuine re-creation' parts ;)

Shaun54 ;)

Thanks a lot


Dewald

AH enthusiast
Joined
Aug 16, 2012
Messages
328
Reaction score
570
Location
Empangeni, Zululand
Media
98
Member of
KZN Hunters/ SAHGCA/
Hunted
South Africa, Namibia
The rear stud could be salvaged of an old ZG47 by the looks of things, but would be an eazy job on a lathe.

Is the front one on your first picture silver soldered to the barrel? Again, a good toolmaker can make that for you.


Tintin

AH senior member
Joined
Oct 13, 2017
Messages
50
Reaction score
43
Location
Australia
Media
13
Member of
SSAA, ADA
Hunted
Australia
Thanks Dewald - yes I think the front one is soldered on.

Was hoping to source a pair ready made - might end up trying to go the toolmaker path


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,039
Reaction score
1,209
Location
Adirondack Park, NY, USA
Media
44
Articles
1
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Thanks Dewald - yes I think the front one is soldered on.

Was hoping to source a pair ready made - might end up trying to go the toolmaker path

The only thing I would be wary of when having someone attach these is the Silver Solder method. If the barrel is cut-rifled, it isn't as big of a deal. However, under the heat required to silver solder, a button rifled barrel may decrease in internal diameter and a hammer forged barrel will usually increase right at the spot where the silver solder (really just brazing) is applied. This is due to the heat from the torch warming the barrel up beyond its annealing temperature. I almost universally have my gunsmith (I used to work for him) soft solder sights and sling swivels on using a good lead free solder. Tin solder is very strong and the temperature isn't high enough to cause any stress relief inside the barrel metal. A lot of older rifles were soft soldered for this reason, as well as cost effectiveness. (you don't burn nearly as much gas to melt lead as you do copper/silver alloy). Old military Mausers had the sights simply lead soldered to the barrel in most cases. Commercially made firearms can use silver solder because they have very sophisticated methods of locally heating the part to get it to bond, without heating the entire barrel too high. I have to imagine they are using induction heating or something similar.
