The Slack Belt Grinder

Discussion in 'Gunsmithing' started by John P., Jan 22, 2018.

  1. John P.

    John P. AH Veteran

    Joined:
    Feb 4, 2016
    Messages:
    126
    Video/Photo:
    40
    Likes Received:
    99
    Location:
    USA Pacific NW
    I was polishing a barrel today in preparation for rust bluing. Thought some of you would be interested in the process.

    [​IMG]

    I built this handy lathe accessory many years ago. It has other uses: Below, fitting a barrel band front ramp. I grind the barrel a few thousandths under the ramp bore size in preparation for silver soldering.

    [​IMG]

    Here I am grinding the front ring of a M98 receiver to remove the markings. The chuck, and receiver, are rotated by hand back and forth.

    [​IMG]


    Attached Files:


  2. Tokoloshe Safaris

    Tokoloshe Safaris SPONSOR Since 2017 AH Fanatic

    Joined:
    Apr 8, 2016
    Messages:
    542
    Video/Photo:
    74
    Likes Received:
    718
    Location:
    Milibizi, Zimbabwe
    Member of:
    Life Member Safari International
    Hunted:
    Zimbabwe, South Africa, Tanzania
    Looks like it works great, but in one of my old english lathe books, it stated that it was not recommended to grind metal over a lathe due to metal grinding contaminating lathe parts?


  3. Dr Ray

    Dr Ray AH Legend

    Joined:
    Apr 1, 2017
    Messages:
    2,134
    Video/Photo:
    27
    Likes Received:
    1,569
    Location:
    Cairns, Australia
    Interesting project!


  4. GuttormG

    GuttormG AH Enthusiast

    Joined:
    Mar 27, 2016
    Messages:
    264
    Video/Photo:
    6
    Likes Received:
    211
    Its like your new oak flooring, you start off hysterical, banning shoes, cuts your dogs claws short, until you have the first scratch. After that its ok.

    Love this kind of posts and pictures!!

    Rob404 and Rick Cox like this.

  5. Shootist43

    Shootist43 AH ENABLER GOLD SUPPORTER AH Legend

    Joined:
    Apr 25, 2015
    Messages:
    4,826
    Video/Photo:
    22
    Likes Received:
    3,975
    Location:
    Grosse Ile, Michigan
    Member of:
    NRA
    Hunted:
    Michigan, Texas, Missouri, Limpopo Province South Africa
    John, I've seen your Belt Sanding Jig in previous photos of your shop and wondered where you got it. I think it is a very good idea. You can vary the "grit" of the belt and subsequent degree of polish relatively easily. As they say, "necessity is the mother of invention." Thanks for sharing.


  6. Ridgewalker

    Ridgewalker AH ENABLER LIFETIME BRONZE BENEFACTOR AH Ambassador

    Joined:
    Aug 8, 2016
    Messages:
    5,220
    Video/Photo:
    208
    Likes Received:
    5,154
    Location:
    Colorado
    Hunted:
    South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
    Once a belt is worn out, you can put jewelers rouge on it for a high polish. At least that’s what we came up with many years ago when I was in the knife industry. Also it put an exceptional final finish when sharpening knives.


  7. CAustin

    CAustin AH ENABLER BRONZE SUPPORTER AH Ambassador

    Joined:
    May 7, 2013
    Messages:
    13,409
    Video/Photo:
    220
    Likes Received:
    9,615
    Member of:
    Courtney Hunting Club, NRA Life Member, SCI Kansas City Chapter
    Hunted:
    South Africa, KwaZulu Natal, Kalahari, Northwest, Limpopo, Gauteng, APNR Kruger Area. USA Georgia, South Carolina, Arkansas, New Mexico, North Carolina and Texas
    Amazed at folks who have real skills. Thanks for sharing


  8. John P.

    John P. AH Veteran

    Joined:
    Feb 4, 2016
    Messages:
    126
    Video/Photo:
    40
    Likes Received:
    99
    Location:
    USA Pacific NW

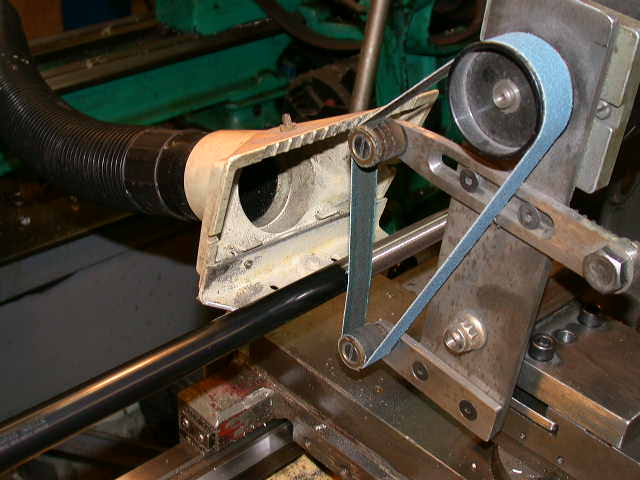

    Ah an old machinist like me knows this. Photo is staged. When I am grinding the ways are covered and I have a vacuum hose just behind the grinding area.


    The way covering not shown in this photo, I use several layers of newspaper. The barrel is rotating in reverse, the belt is rotating "up" at the contact point. The plume goes straight up and the vacuum grabs all of it. Grinder is powered by a DC motor with a reversible variable speed DC power supply.

    [​IMG]


    Attached Files:

    Bullthrower338 and Ridgewalker like this.

  9. John P.

    John P. AH Veteran

    Joined:
    Feb 4, 2016
    Messages:
    126
    Video/Photo:
    40
    Likes Received:
    99
    Location:
    USA Pacific NW

    I made it in the shop, everything from the junk boxes. Happiness in a machine shop is having many boxes full of salvaged materials and parts. The belts are commercial abrasive belts used on small air powered deburring tools. 80 grit belt on the grinder, I have grits to 320.


  10. Hogpatrol

    Hogpatrol AH ENABLER SILVER SUPPORTER AH Legend

    Joined:
    Apr 13, 2013
    Messages:
    4,381
    Video/Photo:
    59
    Likes Received:
    8,395
    Location:
    Delaware, USA
    Member of:
    Atglen Sportsmen's Club, NRA ,SCCFSA, Bridgeville Rifle & Pistol Club
    Hunted:
    RSA, DE, NJ, PA, KS, TX, ME
    Sweet! I made up a rig to hold a die grinder for small stuff. What grit are you using? Looks like 320.
