CZ550

425SCHADE

New member
Joined
Nov 21, 2020
Messages
14
Reaction score
12
CZ 550 magnum experts,

Chasing some confirmation and advice on the magazine and feed rail specs on the CZ 550 American Magnum "standard" model for the various chambering's.
I wish to use the 550 as a platform for my wildcat cartridge based around a slightly improved .416 Rem Mag with COAL of 3.600" and have found a new rifle currently in .458WM.
Does the .458 have a full length mag? Will the rail opening be too wide?

Thanks in advance,


spike.t

Sponsor
Since 2013
AH ambassador
Joined
Sep 12, 2010
Messages
9,606
Reaction score
8,601
Website
www.takerireservezambia.com
Media
333
Articles
6
Hunting reports
Africa
3
Member of
sci int, basc,wpaz
Hunted
zambia, tanzania, zimbabwe,Mozambique ,hungary, france, england
Alli know is from asking a friend who is one of the older statesmen in the english gunmaking trade a question a friend here asked me. It was about using a brno action to build a rifle..his answer was to use a 375 action as he found that for some reason the ones chambered in 458 win mag always have feeding problems when converted to another calibre...so possibly applies to the 550 as well....


CoElkHunter

AH elite
Joined
Nov 3, 2018
Messages
1,971
Reaction score
1,799
Location
Colorado
Media
16
CZ 550 magnum experts,

Chasing some confirmation and advice on the magazine and feed rail specs on the CZ 550 American Magnum "standard" model for the various chambering's.
I wish to use the 550 as a platform for my wildcat cartridge based around a slightly improved .416 Rem Mag with COAL of 3.600" and have found a new rifle currently in .458WM.
Does the .458 have a full length mag? Will the rail opening be too wide?

Thanks in advance,
I'm not even close to being a CZ 550 expert, but I do own a couple in .375, .458WM and the Lott. I may be wrong, but I believe the magazine length and feed rail specs are the same for all? I don't own a .416 RM, but from looking at my Hornady manual, the length and width of the RM is about the same for the Lott and the .375 H and H. What are your designs for your wildcatted RM? Is the shoulder degree and/or the case going to be blown out? If the design is to blow the case out, the feed rails might need to be modified. With the exception of the larger rim diameter, you'd be approaching the .416 Rigby case specs when blowing the case out. You could just buy the Rigby in the CZ, but not as much fun as a wildcat?


CoElkHunter

AH elite
Joined
Nov 3, 2018
Messages
1,971
Reaction score
1,799
Location
Colorado
Media
16
I'm not even close to being a CZ 550 expert, but I do own a couple in .375, .458WM and the Lott. I may be wrong, but I believe the magazine length and feed rail specs are the same for all? I don't own a .416 RM, but from looking at my Hornady manual, the length and width of the RM is about the same for the Lott and the .375 H and H. What are your designs for your wildcatted RM? Is the shoulder degree and/or the case going to be blown out? If the design is to blow the case out, the feed rails might need to be modified. With the exception of the larger rim diameter, you'd be approaching the .416 Rigby case specs when blowing the case out. You could just buy the Rigby in the CZ, but not as much fun as a wildcat?
Oops, nevermind, I see you already have a CZ in WM. Should work with a .416 barrel/chamber and your wildcat as long as it’s not too “exotic”?


425SCHADE

New member
Joined
Nov 21, 2020
Messages
14
Reaction score
12
I'm not even close to being a CZ 550 expert, but I do own a couple in .375, .458WM and the Lott. I may be wrong, but I believe the magazine length and feed rail specs are the same for all? I don't own a .416 RM, but from looking at my Hornady manual, the length and width of the RM is about the same for the Lott and the .375 H and H. What are your designs for your wildcatted RM? Is the shoulder degree and/or the case going to be blown out? If the design is to blow the case out, the feed rails might need to be modified. With the exception of the larger rim diameter, you'd be approaching the .416 Rigby case specs when blowing the case out. You could just buy the Rigby in the CZ, but not as much fun as a wildcat?
Thanks CoElkHunter,
Without overlaying drawings,my case @ shoulder diameter of 0.496", will be very similar to the Lott at the same point. Full H&H length (2.850") with a neck of 0.423"


CoElkHunter

AH elite
Joined
Nov 3, 2018
Messages
1,971
Reaction score
1,799
Location
Colorado
Media
16
Thanks CoElkHunter,
Without overlaying drawings,my case @ shoulder diameter of 0.496", will be very similar to the Lott at the same point. Full H&H length (2.850") with a neck of 0.423"
Interesting? Kinda similar to my idea of necking down the Lott to .416 and having a .416 Lott. I could use the Lott brass and have a .416. Why? Absolutely no reasonable reason? But then again, Remington chose their 8mm case to create their .416, when the almost identical .416 Hoffman had been around for many years prior. I guess when one of the wildcats becomes mainstream and is manufactured by the "big boys", everything else is left to the wildcatters? I neck down my .458WM brass to create my .416 Taylor which was born in the early 1970's. Winchester and Ruger actually produced prototype rifles in this cartridge, but Winchester dropped the ball on the ammunition side and it was never produced commercially. Sixteen years later we now have the .416 Remington.


425SCHADE

New member
Joined
Nov 21, 2020
Messages
14
Reaction score
12
My design is nothing outrageous, certainly not for a first attempt. I am hoping for performance that equals modern .404 Jeffery (.423"/400gn @ 2400)in a H&H style case. So nothing that it, a .416 Rigby or Rem Mag doesn't already do, But the cartridge has my name on it. :)


Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
344
Reaction score
399
Media
26
Also not claiming to be an expert- the magazine length is the same for 375 and 458. Magazine width should be determined by the cartridge diameter but 375/Win Mag/Lott all have the same base size, it is only the taper and length that varies. My magazine is stamped 458 win mag, I reamed to Lott and the Lott rounds fit easily into the magazine. It also feeds better than a Win Mag round but I did lots of work on the feed rails and reciever just under the rails. You can chekc the thread I did detailing the steps. I would say give it a try, you may be lucky and it all works perfectly. Other wise, working on the rails and magazine can be done by a competent smith in a few hours- or done by an amateur (Me!) in a lot of hours.


Boyd Brooks

AH enthusiast
Joined
Mar 9, 2017
Messages
295
Reaction score
957
Location
Whitby, Ontario
Media
6
Member of
OFAH, North American Hunt Club
Hunted
Canada, RSA
I googled 425 Schade and found nothing and looked at Quality Cartridge, same thing. Is the 425 Schade the cartridge of this rifle build? If so would love to see pictures of the cartridge as well as some performance numbers.


425SCHADE

New member
Joined
Nov 21, 2020
Messages
14
Reaction score
12

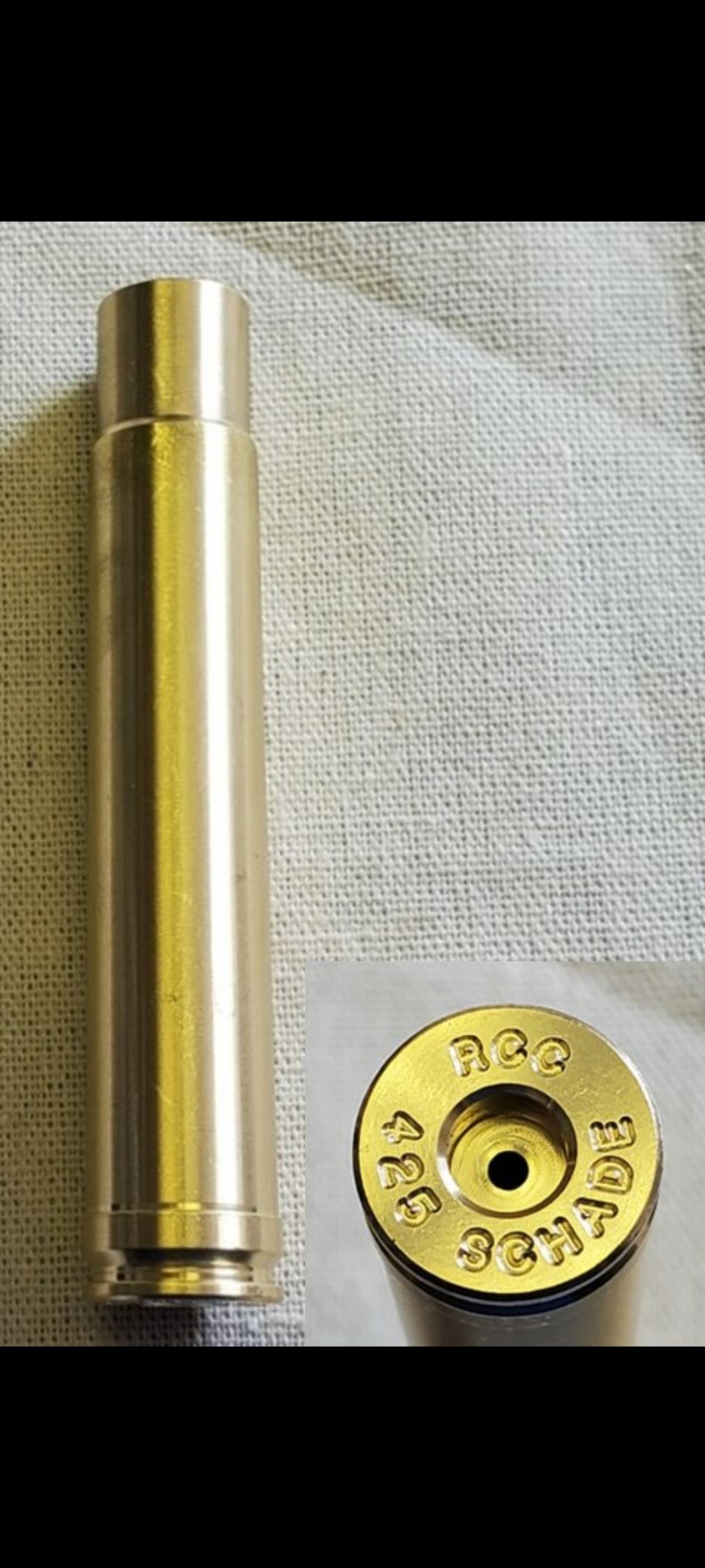

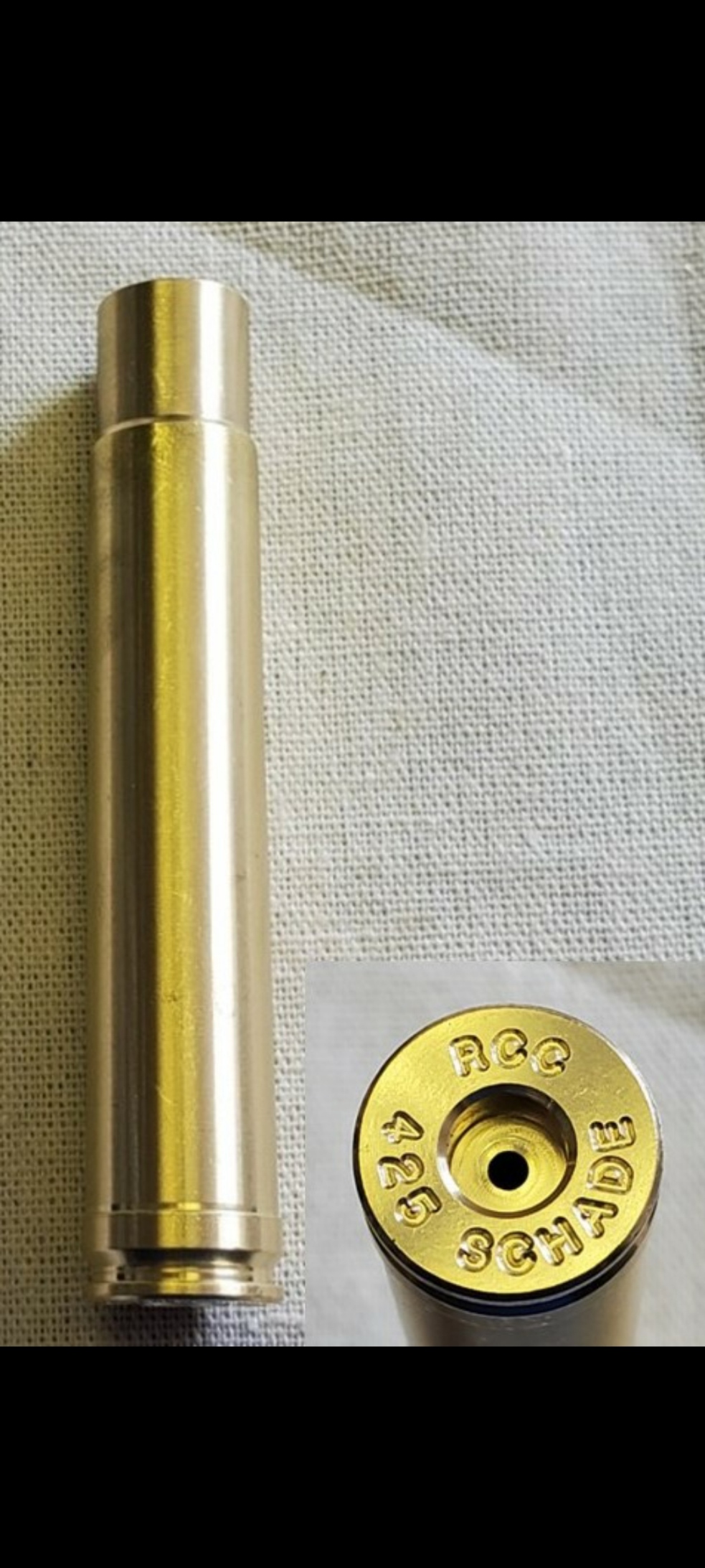

You won't find anything on it yet, custom cases from RCC are on the way and development will commence on completion of rifle build(s).
Looking to emulate .404 Jeffery in a belted mag (H&H) case.



BeeMaa

AH legend
Joined
Jun 11, 2017
Messages
2,498
Reaction score
3,705
Location
Eastern US
Media
98
Hunting reports
Africa
1
Member of
NRA Life Member, SCI
Hunted
Eastern US & RSA
What was the motivation behind using a belted cartridge?
Did you consider the 416RIGBY?


Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
344
Reaction score
399
Media
26
Also not claiming to be an expert- the magazine length is the same for 375 and 458. Magazine width should be determined by the cartridge diameter but 375/Win Mag/Lott all have the same base size, it is only the taper and length that varies. My magazine is stamped 458 win mag, I reamed to Lott and the Lott rounds fit easily into the magazine. It also feeds better than a Win Mag round but I did lots of work on the feed rails and receiver just under the rails. You can check the thread I did detailing the steps. I would say give it a try, you may be lucky and it all works perfectly. Otherwise, working on the rails and magazine can be done by a competent smith in a few hours- or done by an amateur (Me !) in a lot of hours. Finally, it is not just the feed lips and magazine, the bolt face/extractor also have a lot to do with smooth feeding- especially the inside corner of the extractor where the case rides up into position.


425SCHADE

New member
Joined
Nov 21, 2020
Messages
14
Reaction score
12
What was the motivation behind using a belted cartridge?
Did you consider the 416RIGBY?
Nostalgia? Cases can be made from a number of existing others if required? Didn't want something as cavernous as a Rigby? Most likely is I chose a design that didn't require completely reinventing the wheel.
