Barnes bullet expansion in large calibers (375 and up)

1dirthawker

AH fanatic
Joined
Apr 13, 2013
Messages
570
Reaction score
954
Media
13
Articles
1
Hunting reports
Africa
1
USA/Canada
1
Had terrible performance of 250 grain Hornady GMX out of a 375 H&H.

thats interesting, i used 250 gr GMX bullets in my 375 ruger and had phenomenal luck with that bullet. 1 big bull moose, 2 bull caribou and a very large brown bear. recovered a bullet from one frontal caribou, one neck shot quartering moose and broadside bear, all perfect expansion and performance. bear was shot multiple times.


Badboymelvin

AH veteran
Joined
Dec 5, 2013
Messages
192
Reaction score
525
Location
Geelong, Victoria, Australia
Media
21
Articles
2
Hunting reports
Australia/NZ
1
gentlemen,

i just talked to ryan at the barnes bullet company this morning and got some news/finality that i will share with you.

this is by memory so here you go,

BARNES TRIPLE SHOCK BULLETS;

500 gr= opens down to 1400 fps
450 gr= opens down to 1500
400 gr= opens down to 1600 fps
350 gr= opens down to 1500 fps

300 gr and lighter were designed with the 458 socomm in mind and open down to
1100-1200 fps.

like a dumbass, i forgot to ask about the 470 and 500 cal bullets, but this give you some ideas on their approach to building a bullet for express rifles. also, ryan mentioned that this information was not published anywhere (i did ask that)

so, there ya go people, the last word (that is not anecdotal) regarding barnes triple shock bullets started out at express velocities.

Thanks for posting this - it's a valuable tool for people who use Barnes triple Shock bullets. (y)

Cheers,

Russ


baxterb

AH veteran
Joined
Jun 12, 2019
Messages
127
Reaction score
144
I would ask why?
bruce.


He says the fast twist (1:12 vs. The 1:15 that’s needed to stabilize a 300gr) “this adds unnecessary rotational forces to a bullet that i suspect contributed in some way to the 375s reputation for poor performance with conventional soft points.”


Alistair

AH enthusiast
Joined
May 25, 2018
Messages
345
Reaction score
611
Location
Burton-on-Trent, UK
Media
2
Member of
BASC
Hunted
Scotland, Ireland & England
He says the fast twist (1:12 vs. The 1:15 that’s needed to stabilize a 300gr) “this adds unnecessary rotational forces to a bullet that i suspect contributed in some way to the 375s reputation for poor performance with conventional soft points.”

It's probably a fair point this. A faster speed of rotation is likely to destabilise the bullet faster and cause more yaw in tissue once expansion starts and the centre of mass and centre of rotation starts to change

That said, I think this small loss is more than balanced out by the flexibility that fast twist gives you with lighter bullet weights for lighter game and practice.


1dirthawker

AH fanatic
Joined
Apr 13, 2013
Messages
570
Reaction score
954
Media
13
Articles
1
Hunting reports
Africa
1
USA/Canada
1
That said, I think this small loss is more than balanced out by the flexibility that fast twist gives you with lighter bullet weights for lighter game and practice.

alister, i believe that a faster twist benefits longer/heavier bullets more. slower twists benefit lighter shorter bullets more. (all this of course in the same caliber.)

Last edited:

Tidalgunner

New member
Joined
Jul 24, 2018
Messages
8
Reaction score
22
Media
4
Hunting reports
Africa
1
I actually called Barnes and talked to them about expansion of their .510 caliber TSX bullets. "As long as you are over 1,200 fps they will open up" was the answer I got.
I second that. The velocity has to be a minimum of 1200 to get the hydrostatic pressure to open the petals. I have a .338 win mag and I actually keep it at a max range of 500 yards (1900 fps) because the petals don't open up enough past that range where I would feel comfortable. After that the velocity curve really degrades.


bruce moulds

AH legend
Joined
Aug 10, 2018
Messages
2,420
Reaction score
3,179
He says the fast twist (1:12 vs. The 1:15 that’s needed to stabilize a 300gr) “this adds unnecessary rotational forces to a bullet that i suspect contributed in some way to the 375s reputation for poor performance with conventional soft points.”

it must be to do with conventional cup and core bullets.
experiments done by a friend with twists in 220 swift clearly showed more violent terminal performance with faster twists.
he was looking for explosive varmint behaviour and found it.
the same would hold true of softs in hunting calibres, less the explosiveness.
higher striking velocity also does this.
however barnesx would not have this problem, and probably swift as well.
I would not trust woodleighs as much in fast twists.
bruce.


Dirtdart

Gold supporter
AH enthusiast
Joined
Dec 12, 2012
Messages
477
Reaction score
398
Media
164
Member of
Life Member SCI, Benefactor NRA, NMLRA.
Hunted
RSA, Namibia

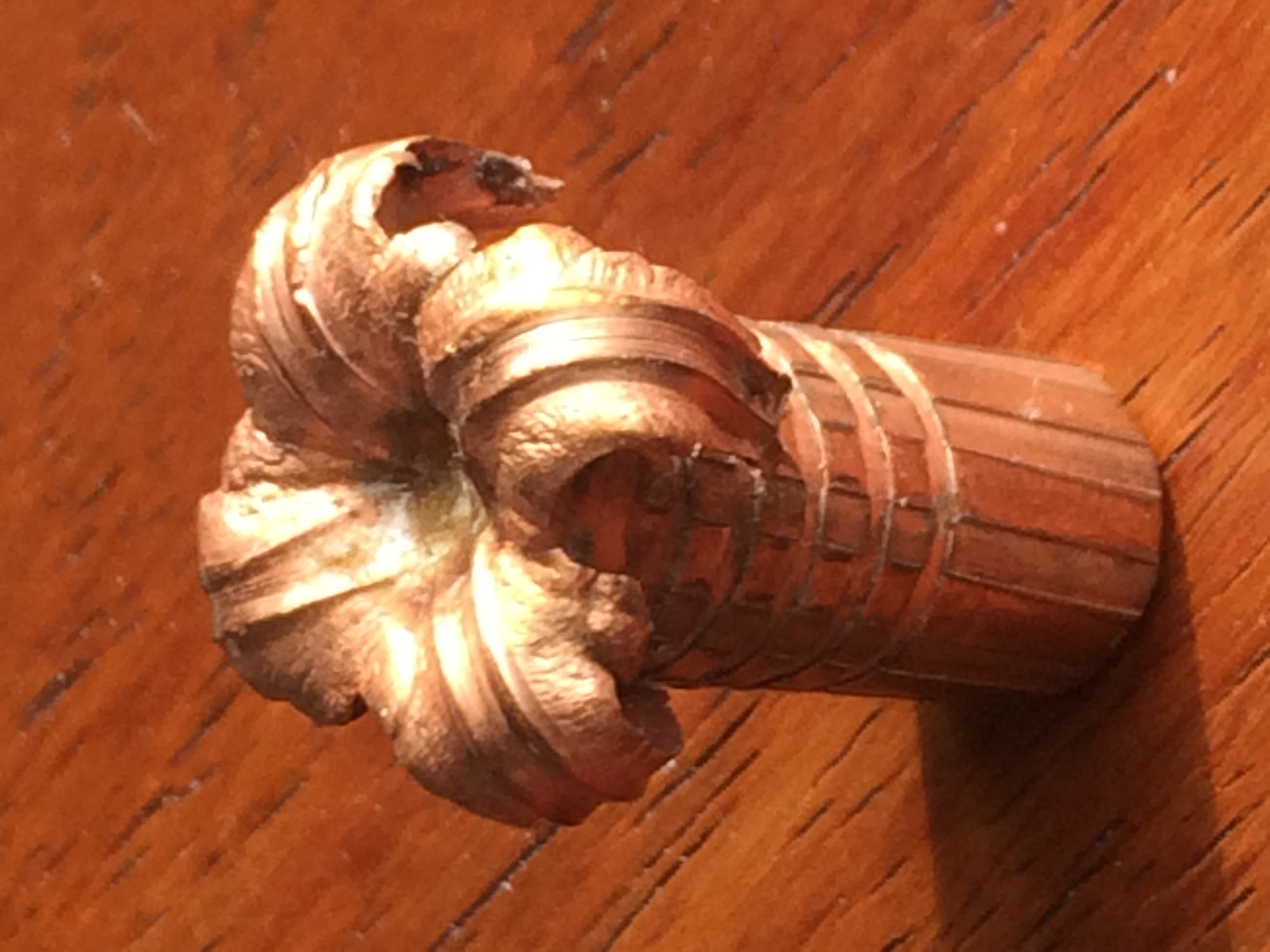

These are 235 grain .375 Barnes X recovered from my 100 yard backstop dirt backstop with 100% retention. Doesn't mean much but is more confidence inspiring than other things
I have retrieved.


ve7poi

AH fanatic
Joined
Jan 9, 2013
Messages
690
Reaction score
456
Location
Taylor British Columbia Canada
Media
10
Member of
Life member SCI
Hunted
British Columbia, Alberta, South Africa
Used Barnes 400tsx in 404 Jeffery at 2300fps chronograph on Cape eland at 200yds
Bullet opened up perfect petals and went through both shoulders ending up under skin on off shoulder.


Last edited by a moderator:

bruce moulds

AH legend
Joined
Aug 10, 2018
Messages
2,420
Reaction score
3,179
Used Barnes 400tsx in 404 Jeffery at 2300fps chronograph on Cape eland at 200yds
Bullet opened up perfect petals and went through both shoulders ending up under skin on off shoulder.
elands are big.
bruce.


1dirthawker

AH fanatic
Joined
Apr 13, 2013
Messages
570
Reaction score
954
Media
13
Articles
1
Hunting reports
Africa
1
USA/Canada
1
Used Barnes 400tsx in 404 Jeffery at 2300fps chronograph on Cape eland at 200yds
Bullet opened up perfect petals and went through both shoulders ending up under skin on off shoulder.

great performance, start velocity 150-200 fps faster than an "express" rifle, and inpacting around 2000 fps. still, good info thanks.


Ed Lally

AH veteran
Joined
Mar 20, 2019
Messages
245
Reaction score
490
Media
7
Hunting reports
Africa
1
Hunted
USA, Canada, South Africa
Over the last three Safaris, I used Barnes 50gr (.22-250), 100gr (.25-06), 140gr (7x64), 165gr (.300 WBY), 250gr (.375H&H) on PG, everything from Springbok to Zebra and EVERY shot except one was a one shot kill and that was my fault, I pulled the shot. I recovered several bullets and all were textbook expansions. 50gr to 250gr and performed as advertised!! I am hunting Buff in Zim in 2021. I will use 500gr Barnes in .470 NE or .458 Lott (bringing both). If it ain't broke, don't fix it!


Foxi

AH elite
Joined
Jul 31, 2012
Messages
1,650
Reaction score
2,766
Location
Germany
Media
181
Articles
7
Hunting reports
Africa
4
Europe
1
Hunted
Canada, USA,Austria,Turkey,Tschech Rep.,Poland,Hungary,Serbia,Denmark,Khomas HL and Omaheke/Namibia and England(England is wonderful) Romania,Luangwa/Zambia-,Gwayi/Zimbabwe/- + Save/Zimbabwe/- River. Horseback-tours in South Africa and Botswana.
I've had great success with 525 grain (light for caliber) TSX bullets in my 505 Gibbs exiting at 2350 fps. Perfect performance on a buffalo and a giraffe. I would expect similar performance in a 458 Lott and 416 Rigby or Rem mag.

Had terrible performance of 250 grain Hornady GMX out of a 375 H&H.

for me interesting to learn, that also a copper full bullet from such a powerful cartridge as the .505 brings no exit hole on a buff and a giraffe.

@dirthwalker
without high velocity the flags don't roll out.We talk about it in G that on the target it needs a velocity of 600 m/s = 1.968 fps to get textbook expansion.
I have never used your caliber with Barnes, but when I go to the mountains (long shots) I do not use copper bullets.

Last edited:

Philip Glass

Lifetime bronze benefactor
AH legend
Joined
Feb 26, 2015
Messages
3,654
Reaction score
5,949
Location
Texas
Website
www.dorper.net
Media
82
Articles
13
Hunting reports
Africa
8
USA/Canada
2
Asia/M.East
2
Member of
NRA, Life SCI, Life DSC, Life EWA
Hunted
RSA, Namibia, Zimbabwe, Cameroon, Mongolia, Kyrgyzstan, Austria, Australia, TX, NM
Over the last three Safaris, I used Barnes 50gr (.22-250), 100gr (.25-06), 140gr (7x64), 165gr (.300 WBY), 250gr (.375H&H) on PG, everything from Springbok to Zebra and EVERY shot except one was a one shot kill and that was my fault, I pulled the shot. I recovered several bullets and all were textbook expansions. 50gr to 250gr and performed as advertised!! I am hunting Buff in Zim in 2021. I will use 500gr Barnes in .470 NE or .458 Lott (bringing both). If it ain't broke, don't fix it!
Ed
I have also had great luck in many calibers hunting with Barnes ammo. 70gr 5.56, 160g 7mm Mag(2 different rifles), 270g .375 Ruger, and 500g .470NE.
I can’t wait to work with another Barnes load!
Philip


Foxi

AH elite
Joined
Jul 31, 2012
Messages
1,650
Reaction score
2,766
Location
Germany
Media
181
Articles
7
Hunting reports
Africa
4
Europe
1
Hunted
Canada, USA,Austria,Turkey,Tschech Rep.,Poland,Hungary,Serbia,Denmark,Khomas HL and Omaheke/Namibia and England(England is wonderful) Romania,Luangwa/Zambia-,Gwayi/Zimbabwe/- + Save/Zimbabwe/- River. Horseback-tours in South Africa and Botswana.
Ed
I have also had great luck in many calibers hunting with Barnes ammo. 70gr 5.56, 160g 7mm Mag(2 different rifles), 270g .375 Ruger, and 500g .470NE.
I can’t wait to work with another Barnes load!
Philip

There are also other good ones ,but Barnes has the most experience.
For me,at the moment the best copper bullet worldwide.


Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
6,602
Reaction score
7,822
Location
Colorado
Media
231
Hunting reports
Africa
3
USA/Canada
3
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
I can only relate my experiences with .375 H&H, but it has all been positive.
300 TSX - bushpig (25-30 yards), fine Cape buffalo (30) recovered and good mushroom, and bushbuck (30-35), duiker (15-20).
250 TTSX (now a favorite for accuracy) - croc (90 yards), eland (125 yards only one recovered and perfect mushroom), warthog (75 ran 100 yards or so), black wildebeest (170+), sable (25), caracal (25).
235 TSX (not as flat shooting as 250 even though it’s 200 fps faster), impala (40), blesbok (350), lion (17-19), lioness (20-25) recovered both with perfect mushroom, warthog (25), springbuck (75-100), blue wildebeest (150). I do not recommend the stubby 235 for lion. I would use a soft 300 grain cup and core if I did it again. Maybe a Nosler Partition.
