.416 Ruger Load Data for 300 and 350 Grain Bullets

ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,216
Reaction score
1,629
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Hi All,

I am still out looking for additional data. I was wondering if anyone has come across any manuals with data for the 300 and 350 grain bullets in the .416 Ruger. There is a plethora of data available for 400 grain bullets but I cannot find data that is not anecdotal or "My gun didn't blow up so it's safe" data. I mean tried and true, strain gauge tested data. Currently I am using Alliant PP 2000-MR which is phenomenal for 400 grain loads but I am not averse to buying a different powder for lighter bullets. I would just like a decent load that will throw a 350 out at 2,450-2,550fps without going into pressure guesstimation. After all, we all know that with some powders and cartridges, pressure signs don't even begin to hsow up until you are well within the 70K to 80K psi area. Thanks!


375 Ruger Fan

Gold supporter
AH legend
Joined
Jun 14, 2015
Messages
4,263
Reaction score
6,926
Location
Shreveport, Louisiana
Media
237
Articles
5
Hunting reports
Africa
7
USA/Canada
4
Australia/NZ
1
Member of
NRA, DSC
Hunted
Namibia, Zimbabwe, South Africa (Eastern Cape & NW), Canada, New Zealand, Alaska, TX, LA, MO, OH, MT, ID, WA, WY
Chris,

Joe at Realguns.com did a 2 part article a few years ago on the 416 Ruger and showed a bunch of load data for 350 and 400 gr bullets. Sorry, no 300 gr info. I did see on Hendershots.com that they offer custom load with 300 Barnes TSX with 2750 fps and 325 gr Norfolk.

Realguns 416 Ruger Part 1: http://www.realguns.com/archives/172.htm
Realguns 416 Ruger Part 2: http://www.realguns.com/archives/177.htm


larry4831

AH fanatic
Joined
May 26, 2015
Messages
530
Reaction score
370
Media
5
Member of
NRA
I second real guns.com. There's a part one and part two both have loads for 350 and 400 grain bullets. Found one site for 300 grain loads but it is not a tested site. I don't trust just any information on hand loads.


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,216
Reaction score
1,629
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
I second real guns.com. There's a part one and part two both have loads for 350 and 400 grain bullets. Found one site for 300 grain loads but it is not a tested site. I don't trust just any information on hand loads.
I have seen these before and he doesn't provide any pressure data. Also, his loads seem a little anemic. I wish speer or barnes would do some load testing with the .416 Ruger.


375 Ruger Fan

Gold supporter
AH legend
Joined
Jun 14, 2015
Messages
4,263
Reaction score
6,926
Location
Shreveport, Louisiana
Media
237
Articles
5
Hunting reports
Africa
7
USA/Canada
4
Australia/NZ
1
Member of
NRA, DSC
Hunted
Namibia, Zimbabwe, South Africa (Eastern Cape & NW), Canada, New Zealand, Alaska, TX, LA, MO, OH, MT, ID, WA, WY

ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,216
Reaction score
1,629
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Chris,

Are you shooting a 20" or 23" barrel model? Realguns did a 2 part article on the 23" African.

Ruger's Hawkeye African in 416 Ruger Part 1
http://www.realguns.com/articles/679.htm

Ruger's Hawkeye African in 416 Ruger Part 2
http://www.realguns.com/articles/680.htm
Oh I didn't see that one! Thanks for the link My question is, are his loads pressure tested or are they just guesstimations based on his particular rifle? Mine is a 23" African by the way...


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
6,302
Reaction score
6,770
Location
Grosse Ile, Michigan
Media
28
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
I think someone using "Quick Load" software could probably give you calculated pressure ratings if they were given the information they need to work up a load.


JKO HUNTING SAFARIS

Sponsor
Since 2011
AH enthusiast
Reviews
2
Joined
Aug 16, 2018
Messages
437
Reaction score
949
Location
South Africa
Website
jkosafaris.com
Media
401
Member of
PHASA, DSC, SCI
Hunted
South Africa, Botswana, Namibia, Zimbabwe, Mozambique, Burkina Faso, Zambia, Spain, Uganda, Greenland, Cameroon
Good day guys,

Did anyone ever worked out loads from this thread? I need to reload my 416 Ruger with Hodgon's now as we do not find Somchem powders anymore.

Any info will be appreciated....

All my best,

Jacques Spamer
JKO Hunting Safaris


375 Ruger Fan

Gold supporter
AH legend
Joined
Jun 14, 2015
Messages
4,263
Reaction score
6,926
Location
Shreveport, Louisiana
Media
237
Articles
5
Hunting reports
Africa
7
USA/Canada
4
Australia/NZ
1
Member of
NRA, DSC
Hunted
Namibia, Zimbabwe, South Africa (Eastern Cape & NW), Canada, New Zealand, Alaska, TX, LA, MO, OH, MT, ID, WA, WY
Swift Manual shows starting with 67.8 grs Varget and max load 73.0.

Also, BL-C(2) starting 65.1 grs and max 70.0

Hornady lists H335, starting with 61.6 grs and max of 69.5 grs.

Last edited:

Luederitz

AH senior member
Joined
Jul 27, 2019
Messages
63
Reaction score
93
Location
Germany
Media
16
Hunted
Germany, Austria, Namibia
Good day guys,

Did anyone ever worked out loads from this thread? I need to reload my 416 Ruger with Hodgon's now as we do not find Somchem powders anymore.
72 grains of Hodgdon CFE223 with a 400grs A-Frame, brass Hornady, magnum primer, OAL 84,5 mm
the pressure test says 3840 bar which is safe
the muzzle speed is 690 m/s

so you can go up to 74,5...75 grains of CFE223, the pressure will be around 4000 bar and the muzzle speed is slightly over 700 m/s


bassasdaindia

AH elite
Joined
Aug 23, 2012
Messages
1,330
Reaction score
897
Media
20
Articles
1
Hunting reports
Africa
3
I am loading a 300g peregrine bullet with somchem powder , but i don’t think either are available to you?


Edge

AH fanatic
Joined
Apr 1, 2016
Messages
914
Reaction score
1,530
Location
Between dreams and reality
Media
541
Hunting reports
Africa
4
USA/Canada
1
Hunted
PA, NM, ND, Al, FL, MD, Eastern Cape South Africa, Zimbabwe x 2
Speer has published load data for the 350gr Mag-Tip with a wide variety of powders, link below.

I'm using Varget for my practice loads and Alliant 2000 MR for full throttle loads. You can’t really get into pressure trouble with the 2000 MR as you can’t fit enough in the case. I've run a 2000 MR ladder test with the 350 TSX to see how much powder/velocity I can achieve and never a hint of pressure. I was really compressing the powder without reaching the top charge listed for the Speer data. I don't have my data book handy, if anyone wants my test data, let me know.

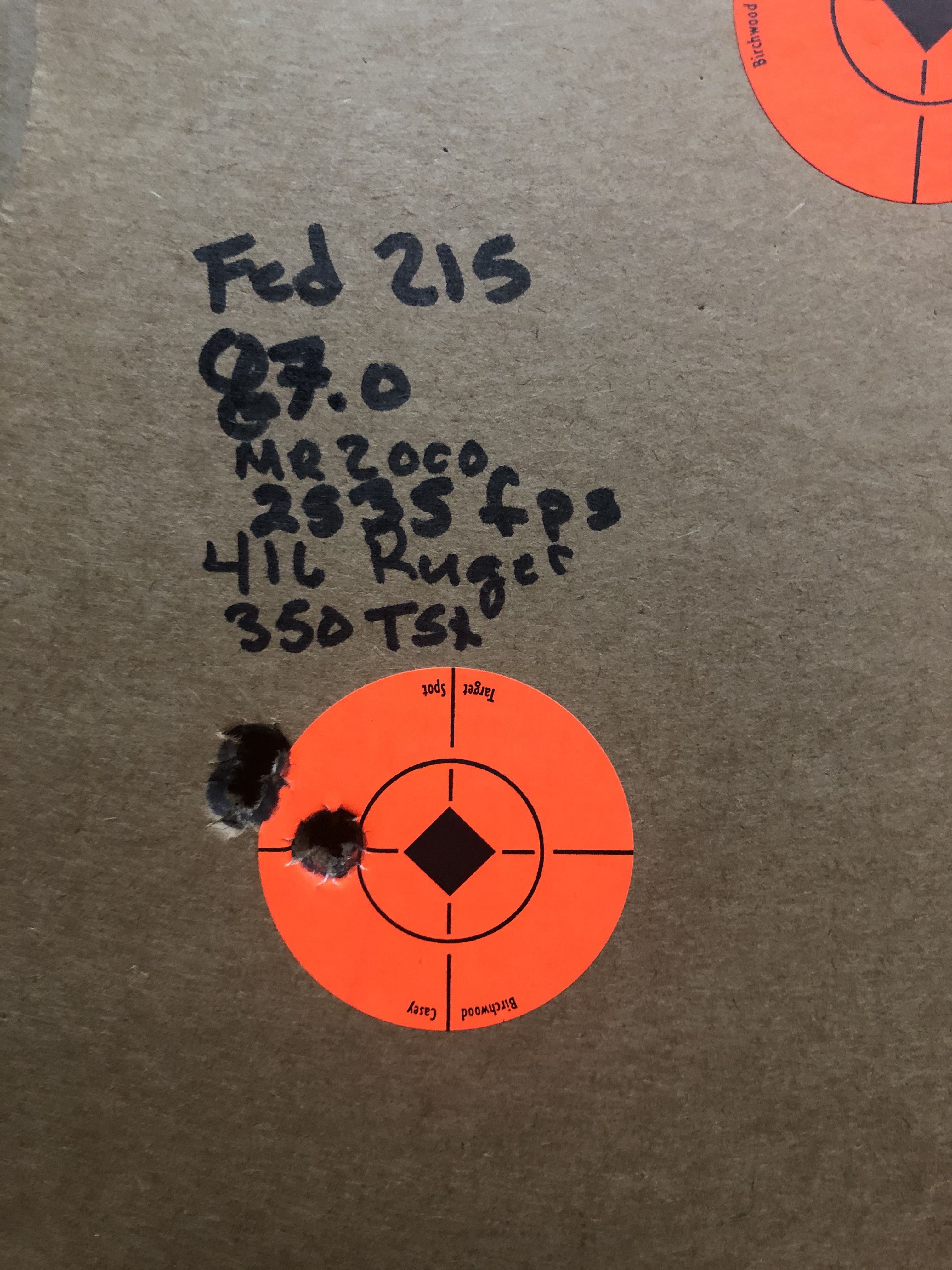

Targets below, the very first shots with the 350 gr Speer load (2350 fps) and the Barnes 350 TSX load (2535 fps), no load development, dump powder and shoot. I'm working on a load now to have the 350 TSX and Banded solid shoot to same POI.

https://www.speer-ammo.com/downloads/speer/reloading-pdfs/Rifle/41_caliber_416_dia/416_Ruger_350.pdf

Targets @ 100 yards
350 Speer



350 TSX



Attachments

  • 416_Ruger_350.pdf
    319.1 KB · Views: 99
Last edited by a moderator:
