Setting Up The North Star Gunstock Duplicator

John P.

AH veteran
Joined
Feb 4, 2016
Messages
200
Reaction score
225
Location
USA Pacific NW
Media
46

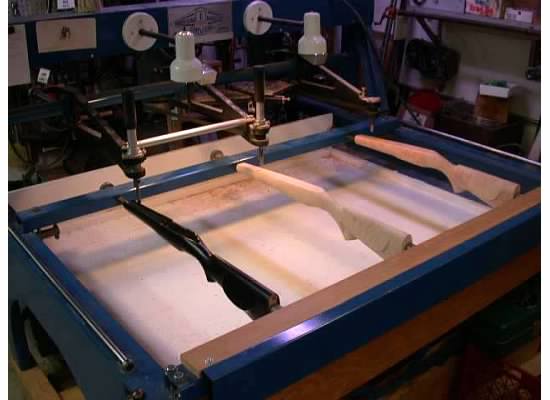

The beast, about 2000 pounds. One station for the pattern stock and two stations for carving. The far right position is equipped with a reversing mechanism allowing a left hand stock to be carved from a right hand pattern or vice versa. Or disconnect the reverse mechanism and carve two identical stocks. This NorthStar is unique in that the carriage runs on linear bearings instead of the usual drum and cable arrangement (Most North Star Duplicators are cable and drum). Despite the weight of the heavy carriage the machine is easy to operate and very precise. All that weight and structural mass makes for an accurate machine. My obtaining this machine is an interesting story which I will tell at a later date.


ry%3D400



Back view. That funny looking knob on the back of the tracing arm is an adjustable balance weight on a length of 1" all thread. Those big 220 volt motors have a lot of torque.


ry%3D400




The blank is Pacific Big Leaf Maple with a 21 year air cure. 2-3/4" thick as the stock will have 3/8" cast off. The pattern is made from plain grain maple and painted with hard black epoxy paint for a slick tracing surface.





First thing is to layout the location for the duplicator centers. The rear is a spur center, front is a cupped center.

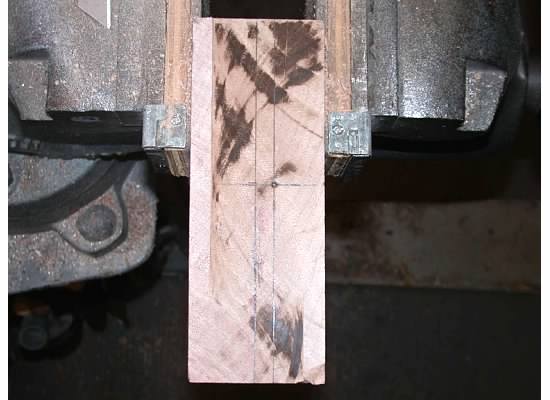

Center lines and a 3/8" offset for the cast off. The pattern was made with 3/8 cast off. Blank has been trimmed to length.


ry%3D400

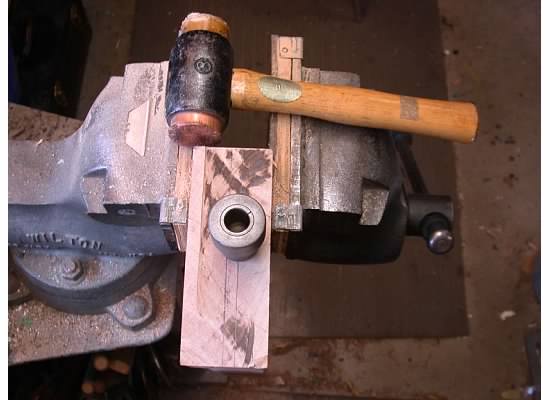

Rear center removed from the duplicator and tapped into the blank with a stout hammer.


ry%3D400



ry%3D400



Back to the duplicator. Using two levels to adjust the blank "on the level" with the pattern. In addition to the 3/8" cast off the pattern has 5/8" drop at the front of the comb, 1-3/4" drop at heel and 14-1/4" pull. The rifle is a dedicated iron sight rifle in 458 Lott, no scope, the stock is designed for easy line up of the sights.


ry%3D400



Now for the "Run Around". 1/4" diameter rods in the spindles. I run the right hand rod all around the blank, while maintaining contact. If the left hand rod touches the pattern, the blank must be re adjusted or it is not thick enough. This procedure ensures that I have enough wood in the blank and will not be "cutting air".


ry%3D400



Rotate the pattern and blank 90 degrees and run around again.


ry%3D400

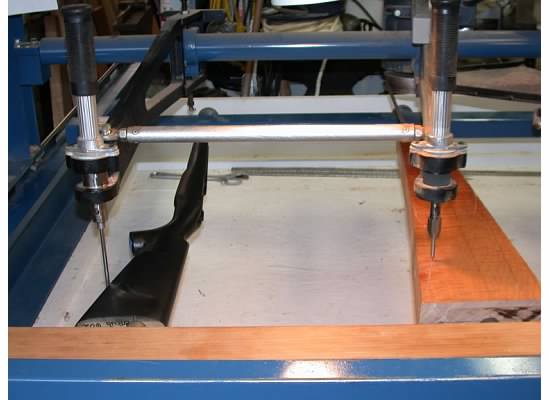

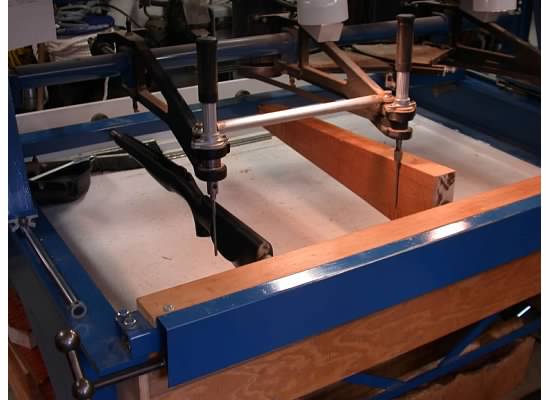

Now it is time to scribe lines for the band saw treatment. The right hand rod is replaced with a sharp scribe. Then the tracer spindle with the 1/4" rod is run around the pattern while maintaining contact of the scribe with the blank. This results in scribed lines 1/8" larger than the pattern.


ry%3D400



Look close and you may see the scribed lines. The blank goes to the band saw to remove excess wood.


ry%3D400

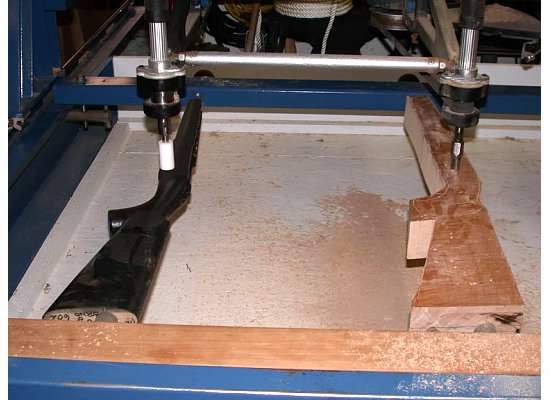

Back to the duplicator with less wood. Doing it this way is less time consuming than removing all the wood with the duplicator.


ry%3D400

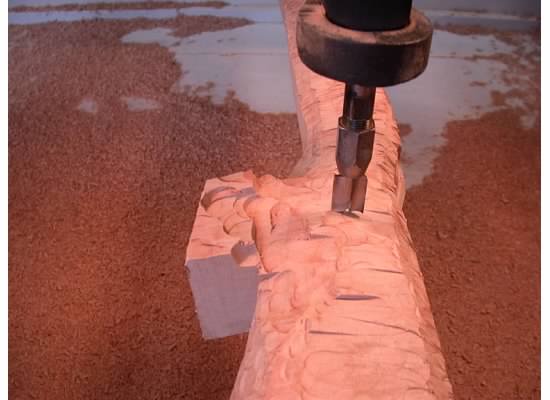

Roughing cuts. The cutter is a special bit made for the furniture industry. It really removes wood! Cutter is 3/4" diameter. This tracer stylus is teflon tipped for smooth sliding and is 1" in diameter. Combined with setting the cuter 1/8" higher than the tracer results in a carved stock that is 1/8" oversize.


ry%3D400

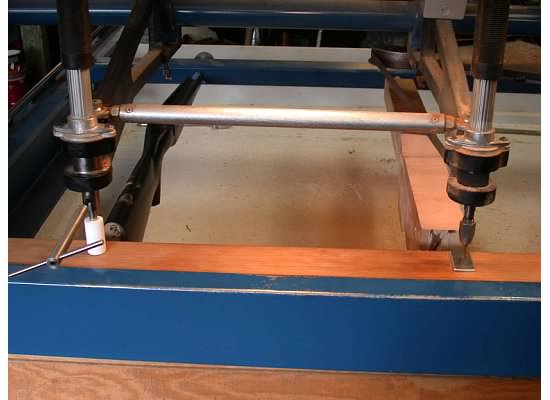

Setting the cutter 1/8" higher than the tracer. A 1/8" thick shim is under the cutter and the tracer is adjusted to touch the leveling board.


ry%3D400



After the first roughing cuts I put in a 7/8" diameter tracer and reset the cutter 1/16" higher than the tracer. This results in the stock being 1/16" oversize.


Then to a 1/32" shim and a 13/16" diameter tracer if I want to leave a 1/32" sanding allowance. Or a tracer the same size as the cutter and no shim if I want to go to exact size.

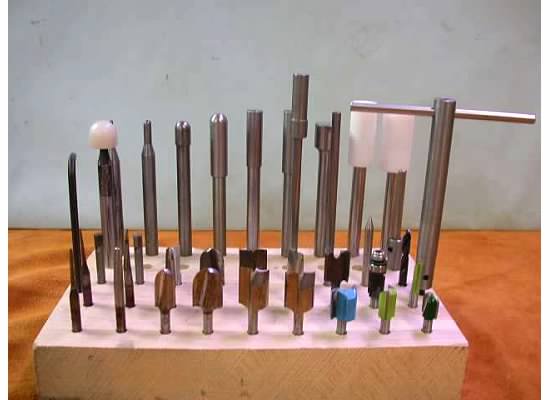

Cutter bits and tracers of various sizes for different areas of the stock. The T-Handle is for adjusting the spur center positions and also fits the tracer spindle. Carbide bits are standard router bits. The High Speed Steel bits are the special furniture industry roughing bits. I have many other cutter bits, the ones shown are the most used.


ry%3D400



The below is a previous carve of a stock for a 40X in 22-250 Rem. Also Maple.


ry%3D400

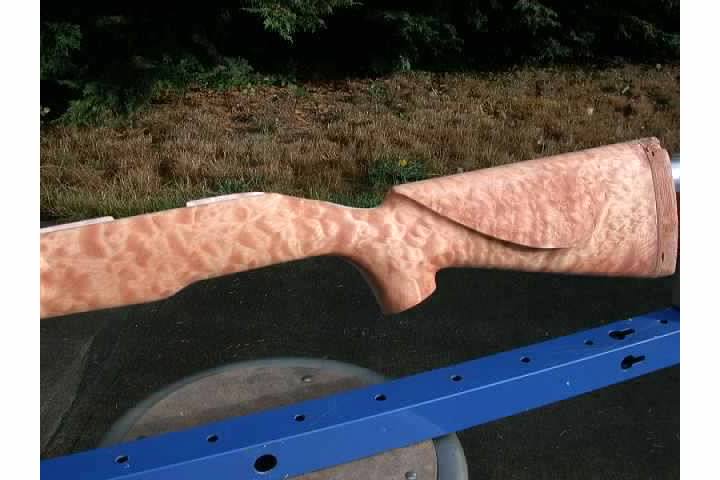

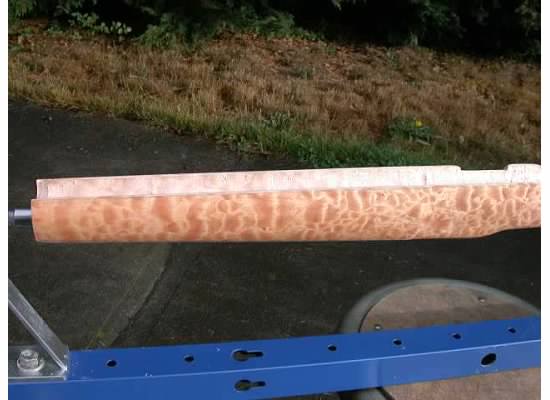

40X stock. Fresh off the duplicator and rough sanded no finish. That sanding cradle is real handy: It has the same centers as the duplicator, rotates 360 degrees and may be locked in any position. I clamp it in a big wood vise on the bench.


ry%3D400



The plywood on the end will come off as it was screwed on to prevent splintering of the end of the stock.



ry%3D480



ry%3D400




Back to the first stock.

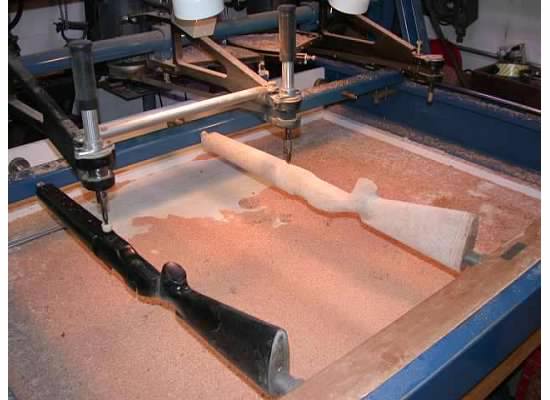

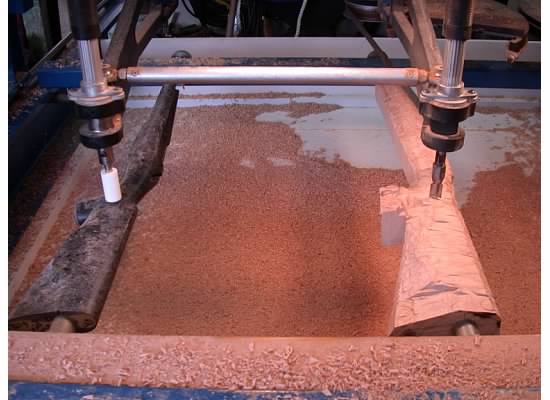

Another roughing view. 3/4" diameter cutter, 1/2" depth cut. The reason for big motors.


ry%3D400




The big crank rotates the pattern and the blank. Spur centers for the pattern and blanks are linked to a common shaft via 90 degree worm gearing. You can see the carved stock is becoming smoother: Down to the finishing cuts.

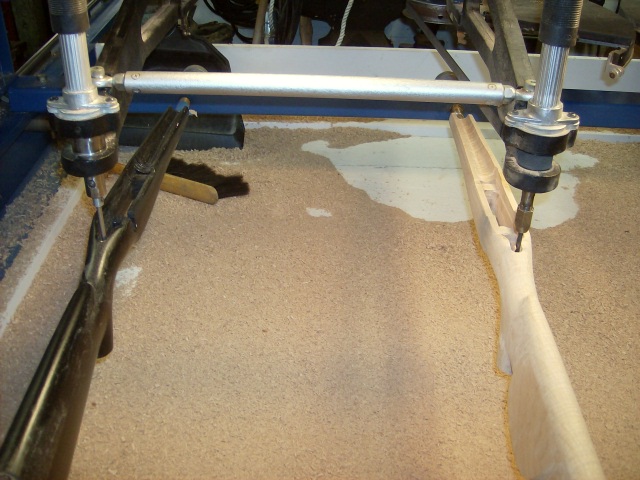

Another view. Drilling the action screw holes. 1/4" diameter rod in the tracer spindle, 1/4" drill bit in the carving spindle.





Pattern:





Stock:





Woo Hoo! Look at the grain in the barrel channel. Looks like the grain on this one goes all the way through the wood. I left the top of the stock about 1/32" proud to allow for final sanding. Once the stock is finished with my special concoctions the grain will really pop and the overall color will be a little darker. There is also a little more work to do inside the action recess.








Here is what a good log looks like just under the bark. Those bumpty bumps tell the "WoodHunter" what may be waiting to be revealed at the sawmill. The sides of the blank have been planed to reveal the grain: Note the tiger stripes continuing from the bumps. Few trees have grain this good. This tree was about 4 feet in diameter.


ry%3D400



At the sawmill. The knarlier the log is on the outside, the better chance of finding good grain inside. Look at all that green moss: This is Sasquatch Country in the Pacific North West.


ry%3D400

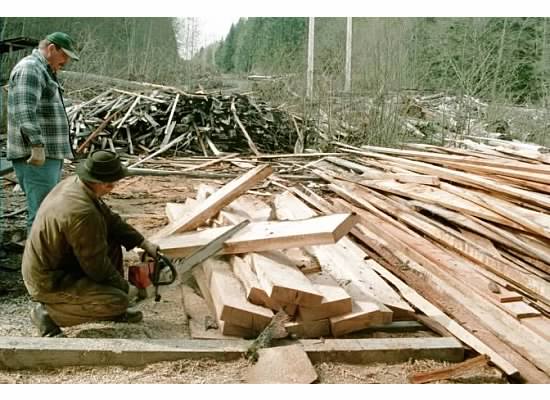

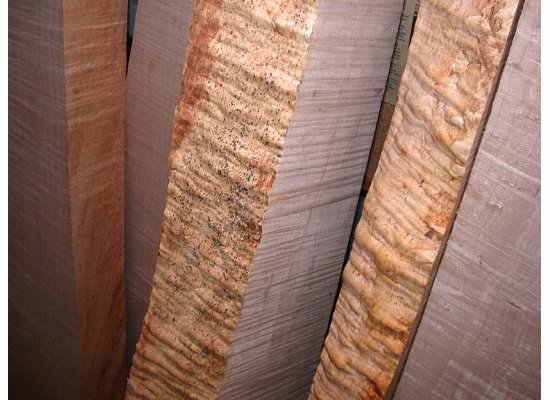

A lot of plain grain boards and firewood is made when searching for that "Grain to Die For". Photo taken 21 years ago. The blanks from this log have been silently air curing.


ry%3D400



Making the pattern stock. Bedding the barrel channel and front of the action to give a good hard surface for the tracer to follow.




Attachments

  • 2015-04-10 006.jpg
    2015-04-10 006.jpg
    134.3 KB · Views: 291
  • ry=400.jpeg
    26.8 KB · Views: 320
  • ry=400-8.jpeg
    23.8 KB · Views: 352
  • ry=400-13.jpeg
    24.6 KB · Views: 352
  • ry=400-9.jpeg
    26.6 KB · Views: 325
  • upload_2016-4-7_15-49-24.png
    209.7 KB · Views: 317
  • ry=400-12.jpeg
    33.6 KB · Views: 327
  • 2015-04-10 004.jpg
    2015-04-10 004.jpg
    141 KB · Views: 280
  • ry=400-11.jpeg
    30.3 KB · Views: 364
  • ry=400-10.jpeg
    21.8 KB · Views: 341
  • 2015-04-10 001.jpg
    2015-04-10 001.jpg
    139.4 KB · Views: 300
  • 2015-04-10 003.jpg
    2015-04-10 003.jpg
    142 KB · Views: 354
  • 2015-04-10 005.jpg
    2015-04-10 005.jpg
    135.3 KB · Views: 253
  • 2000-12-31 021.jpg
    2000-12-31 021.jpg
    225.1 KB · Views: 670
  • ry=400-2.jpeg
    27.3 KB · Views: 339
  • ry=400-18.jpeg
    26.1 KB · Views: 313
  • ry=400-3.jpeg
    28.4 KB · Views: 312
  • ry=400-21.jpeg
    47.7 KB · Views: 328
  • ry=400-20.jpeg
    33.3 KB · Views: 342
  • ry=400-4.jpeg
    26.4 KB · Views: 322
  • ry=400-19.jpeg
    31.1 KB · Views: 268
  • ry=400-17.jpeg
    27.3 KB · Views: 273
  • ry=400-5.jpeg
    26.8 KB · Views: 292
  • ry=480.jpeg
    36.1 KB · Views: 322
  • ry=400-16.jpeg
    33 KB · Views: 322
  • ry=400-6.jpeg
    28.9 KB · Views: 410
  • ry=400-15.jpeg
    29.7 KB · Views: 351
  • ry=400-14.jpeg
    23.5 KB · Views: 271
  • ry=400-7.jpeg
    27.2 KB · Views: 300
  • 2015-04-10 002.jpg
    2015-04-10 002.jpg
    135 KB · Views: 332
Last edited by a moderator:

BRICKBURN

Super moderator
Contributor
Lifetime titanium benefactor
AH ambassador
Joined
Aug 5, 2010
Messages
22,906
Reaction score
17,207
Location
Canada
Media
412
Articles
23
Hunting reports
Africa
8
USA/Canada
2
Europe
1
Hunted
Namibia, South Africa, Botswana, Mozambique, Canada, USA, Mexico, England
Thanks for sharing the process.


HuntingGold

AH fanatic
Joined
Dec 8, 2012
Messages
766
Reaction score
998
Location
South-Central Oregon
Media
118
Hunting reports
Africa
6
USA/Canada
2
Mex/S.Amer
1
Hunted
South Africa, United States (Oregon, Washington, Idaho, California and Wyoming)
Oh... I love it.

Thanks so much for posting. You put a helluva lot of time just in this post! I do appreciate it.

Randy


tarbe

AH legend
Joined
Jan 26, 2014
Messages
4,203
Reaction score
7,078
Location
Cypress, TX and Romance, MO
Media
120
Articles
1
Hunting reports
Africa
1
Member of
NRA Life, Handloaders Anonymous
Hunted
USA, South Africa, Zimbabwe
So...a guy has to ask...if I ran across a killer set of blanks for my Ruger No. 1, who would I send them to (along with the factory items to use as the basis) to get them roughed out? :)


HuntingGold

AH fanatic
Joined
Dec 8, 2012
Messages
766
Reaction score
998
Location
South-Central Oregon
Media
118
Hunting reports
Africa
6
USA/Canada
2
Mex/S.Amer
1
Hunted
South Africa, United States (Oregon, Washington, Idaho, California and Wyoming)
At this point you wouldn't want me anywhere near them!


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,987
Reaction score
5,955
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,613
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
That is a wonderul process to see on the oage and I can just imagine seeing the stock emerge out of the blank as the duplicator is going thoruhg its paces.Thanks for posting this one.


John P.

AH veteran
Joined
Feb 4, 2016
Messages
200
Reaction score
225
Location
USA Pacific NW
Media
46
That is a wonderul process to see on the oage and I can just imagine seeing the stock emerge out of the blank as the duplicator is going thoruhg its paces.Thanks for posting this one.

Yes it is a lot of fun, however at times I am a bit apprehensive of finding a defect far into the wood! But if a blank is selected with care this does not happen.


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,987
Reaction score
5,955
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,613
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
Yes it is a lot of fun, however at times I am a bit apprehensive of finding a defect far into the wood! But if a blank is selected with care this does not happen.
The same hold true for those of who carve a stock out of the blank by hand. There are never any guarantee's on what may be hiding under the surface. That became abundently clear when I felled a walnut tree in my fathers yard and left the trunk to dry with just the outer flitches taken off. I expected to get about 6 good sized blanks when it was eventually cut about 8 years later but found that when the tree was much smaller it had a lot of nails driven into it (maybe kids playing) and there were a lot of bark pockets so I ended up just getting one rifle stock from it.


John P.

AH veteran
Joined
Feb 4, 2016
Messages
200
Reaction score
225
Location
USA Pacific NW
Media
46
Ha! I have a large slab that will make three blanks. Walnut from the Willamette Valley of Oregon USA.

Darn thing has 5 bullets in it from a long time ago.

I may be able to obtain one nice rifle blank and two or three two piece blanks.


CAustin

Bronze supporter
AH ambassador
Joined
May 7, 2013
Messages
14,360
Reaction score
11,578
Media
258
Hunting reports
Africa
7
Member of
Courtney Hunting Club, NRA Life Member, SCI Kansas City Chapter
Hunted
South Africa, KwaZulu Natal, Kalahari, Northwest, Limpopo, Gauteng, APNR Kruger Area. USA Georgia, South Carolina, Arkansas, New Mexico, North Carolina and Texas
It takes a true craftsman to accomplish this detailed work! Amazing!


Rob404

Bronze supporter
AH legend
Joined
Jan 6, 2013
Messages
3,676
Reaction score
4,531
Location
Chaska Minnesota
Media
53
Hunting reports
Africa
2
Member of
NRA, Member Minnesota Horse and Hunt,,Caribou Hunt Club
Hunted
Illinois,Wisconsin,Michigan Limpopo Province South Africa
Thanks for the Great Post, a Fellow in Cologne Minn has one but so far I haven't run across that special Rifle that requires a custom made stock
