Ghost ring option on scoped Mauser express rifle?

Nevada Mike

AH veteran
Joined
Jan 9, 2019
Messages
233
Reaction score
208
Location
S.E. Arizona
As I am having a British style .404 built on a Mauser action I am interested in exploring the idea of a ghost ring (aperture) rear sight that would be usable when the Leupold 1.5 - 5X scope on QD mounts is removed.

Can't find a whole lot, but Taylor mentions this option as very functional in his 'African Rifles and Cartridges' book. He does not offer an illustration, unfortunately.

I learned to shoot rifles using a peep sight and I think my old eyes would appreciate such a simple rear sight.

Any ideas, photos or links?

Thanks for any help,

Mike


Scrumbag

AH fanatic
Joined
Jul 13, 2016
Messages
822
Reaction score
586
Media
46
Member of
BASC, SCI
Hunted
Europe
If you look here: http://www.scoutrifle.org/index.php?topic=5711.0 and keep scrolling there a few ideas.

Also, NEGC have a Weaver / Pic peep sight that I'm going to experiment with - You could have a weaver / pic set of bases on top of each bridge and swap out scopes and the peep sight quite easily?

Which Leupold scope is it? If it is the VXR 1.5-5x33 the eye relief is about 6" so you will need to mount the scope over the port. (I had one for scout mount on an 1892 clone and the eye relied was too short to mount in front of the ejection port).

Hope that helped rather than hindered.

Scrummy


Scrumbag

AH fanatic
Joined
Jul 13, 2016
Messages
822
Reaction score
586
Media
46
Member of
BASC, SCI
Hunted
Europe
Other option would be a cocking piece peep sight. Have one on my 9.3x62 and quite like it


ZG47

AH fanatic
Joined
Jan 20, 2015
Messages
513
Reaction score
399
Location
Wellington, New Zealand
Member of
NZDA, NZMSC
Hunted
New Zealand
As Scrumbag says: look at the NECG peep sight made for a Weaver base.

A bolt-mounted peep sight is a more complicated option and Lyman would have ceased production of their version, decades back. You would be looking to either buy an old sight for serious cash OR find someone who is making small batches of new bolt-mounted peep sights.

The new option would require serious research into repro sights as people tend to make the easier, i.e. cruder versions of old sights, e.g. you can buy a replica of the Lyman Model 21 side-mount receiver sight (1893 patent) designed to cope with the longer breech-block ‘throw’ of the Winchester Model 1886 (given that tang sights were impractical) BUT not the Lyman Model 38 which is basically a Model 21 with windgauge adjustment (the sight that most people really want).


perttime

AH enthusiast
Joined
Jan 3, 2019
Messages
421
Reaction score
370
Media
1
Rigby still offers the cocking piece option - but that is not exactly cheap. I'm pretty sure somebody here has mentioned making rigby style peeps for a little less.


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,986
Reaction score
5,953
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,613
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia

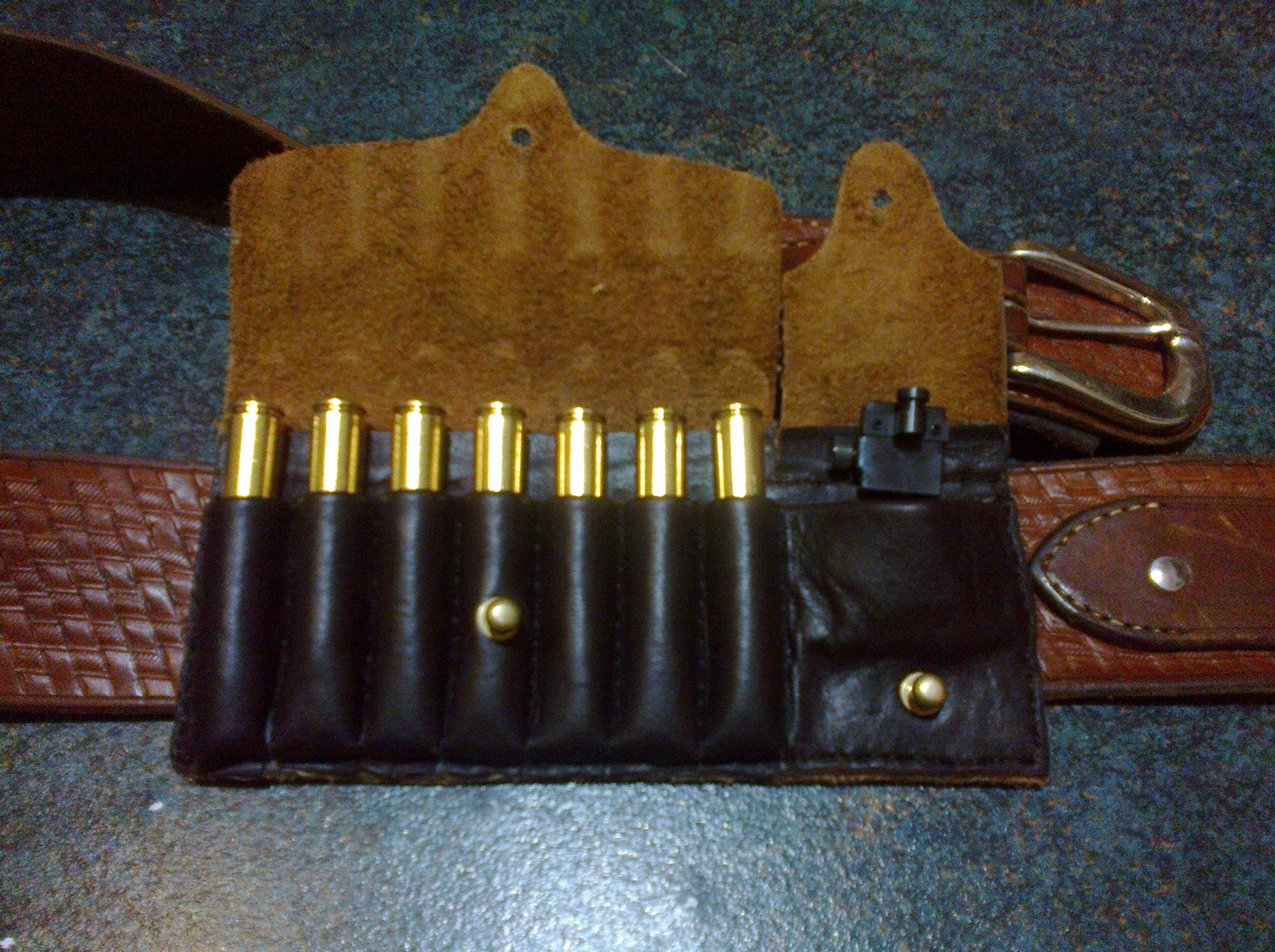

With the Talley scope base the Talley aperture sight is a good option and is what I have on one of my rifles. I made a cartridge holder that has a pocket at one end to carry the aperture.


crs

AH elite
Joined
Jun 17, 2009
Messages
1,058
Reaction score
1,487
Location
Republic of Texas
Website
sheltontechnologies.com
Media
6
Hunting reports
Africa
1
USA/Canada
1
Member of
CRS, NRA Patron Member, TSRA, DWWC, DRSS
Hunted
RSA
Von Gruff beat me to it, but the Talley peep works well on the Talley base I have that on my Simson .405 WCF double rifle.
Here is the scope on the rifle:

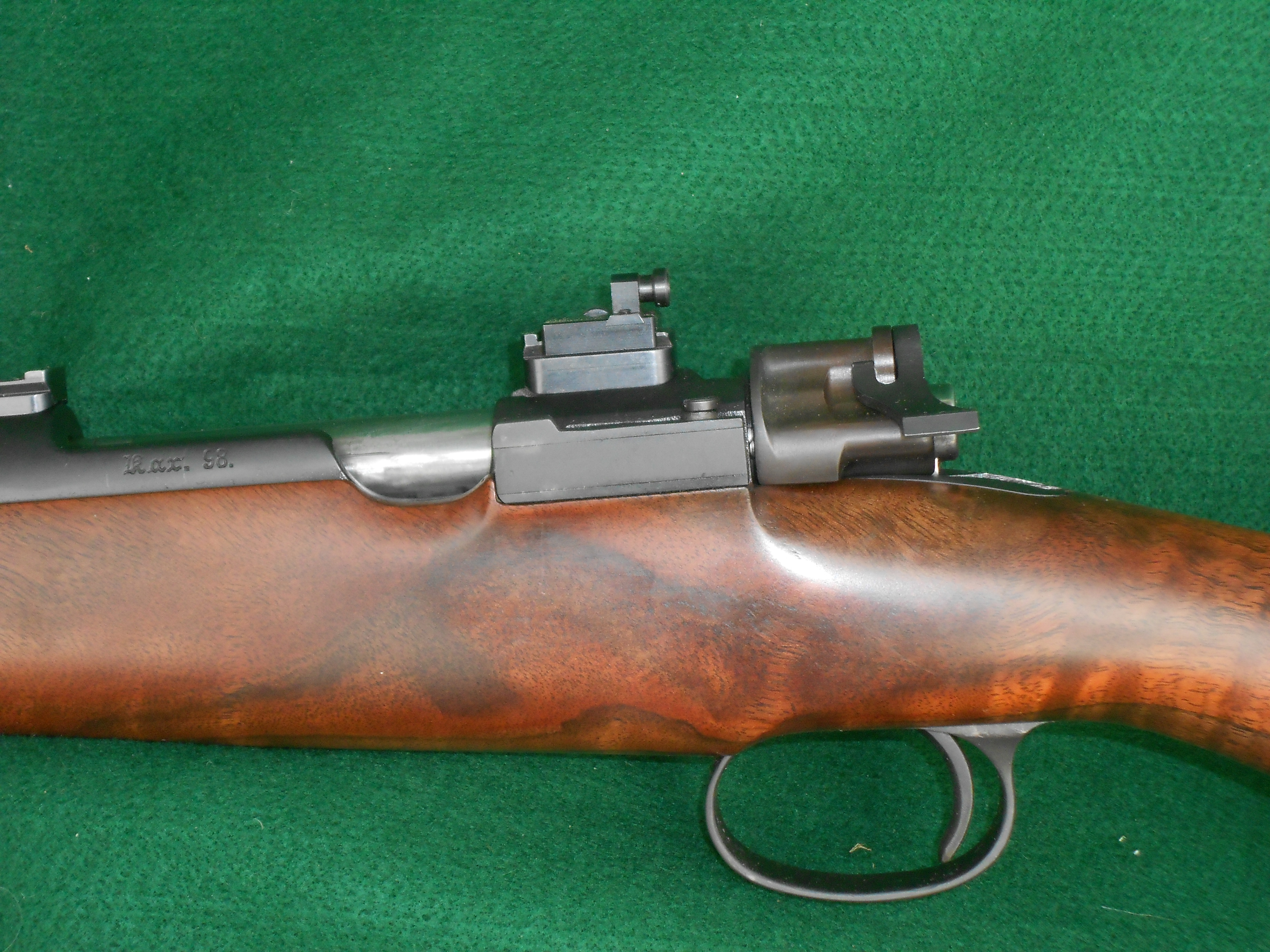

And the peep on the rifle: locked into grooves in rib. Same view as express sight.


Attachments

  • 51984_600x400.jpg
    167.8 KB · Views: 68
  • 55979_600x400.jpg
    112.2 KB · Views: 138
Last edited by a moderator:

Nevada Mike

AH veteran
Joined
Jan 9, 2019
Messages
233
Reaction score
208
Location
S.E. Arizona
ALL -- Thanks for the info. I have found a Rigby style cocking piece peep made by John McLaughlin of McLaughlin Firearms in Montana. COst is $300. I am also going to explore a 'folding' peep that could integrate into the rear square bridge / mounting block on the double square bridge on the Mauser I have chosen.

Any additional info appreciated.

Mike


WAB

AH legend
Joined
Oct 8, 2015
Messages
2,801
Reaction score
5,980
Location
Alabama
Media
91
Hunting reports
Africa
5
USA/Canada
1
Member of
DSC, NRA, SCI
Hunted
Zambia, Botswana, Mozambique, South Africa, Zimbabwe, Namibia, Scotland, England, Canada, Alaska, Ireland

mdwest

AH legend
Joined
Mar 20, 2016
Messages
2,041
Reaction score
4,156
Location
DFW
Media
36
Articles
1
Hunting reports
Africa
2
Mex/S.Amer
1
Member of
DSC Life Member, NRA Life Member
Hunted
USA, South Africa, Argentina, Peru

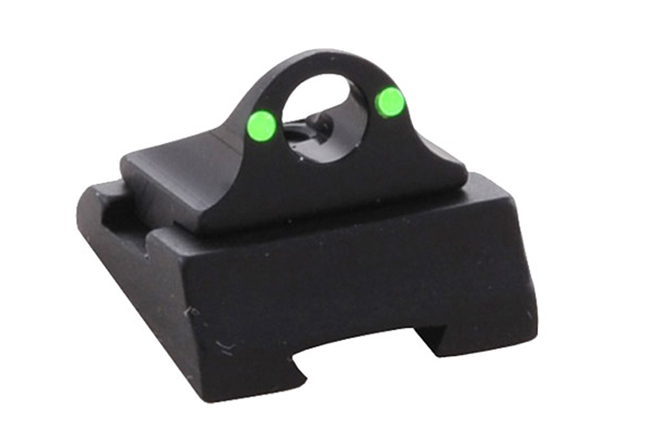

Williams makes a fiber optic rear ghost ring that is called the fire sight. I have one on my scoped 416 that was built on a 98 Mauser action and really like it a lot...



Attachments

  • williams-ghost-ring-sight_4.jpg
    54.7 KB · Views: 143
Last edited by a moderator:

Scrumbag

AH fanatic
Joined
Jul 13, 2016
Messages
822
Reaction score
586
Media
46
Member of
BASC, SCI
Hunted
Europe
With the Talley scope base the Talley aperture sight is a good option and is what I have on one of my rifles. I made a cartridge holder that has a pocket at one end to carry the aperture.
View attachment 263937 View attachment 263943

Ah I like the sling option! I was wondering about a butt cuff with a few cartridge loops and a pocket for the NEGC if I can't make the peep work on the scout rail of my Chiappa Alaskan


Dewald

AH enthusiast
Joined
Aug 16, 2012
Messages
327
Reaction score
558
Location
Empangeni, Zululand
Media
98
Member of
KZN Hunters/ SAHGCA/
Hunted
South Africa, Namibia
The Rigby style or cocking piece mounted is first prise. One also gets a peep, that attaches via the top screw on the M98 bolt release. Windage and Elevation adjustable, and quite neat and compact


perttime

AH enthusiast
Joined
Jan 3, 2019
Messages
421
Reaction score
370
Media
1
The Rigby style or cocking piece mounted is first prise. ...
I've been wondering what makes that a good position.
I've only seen them in photos. My eye tells me that it could be a fragile position - which is apparently a false impression.


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,986
Reaction score
5,953
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,613
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
I had a slleve sweated on my cocking piece (shortened the FP to suit) with a lowered portion to it so I could sit the sight lower and then shortened the stighting stem a little to miss catching the comb and this way I could sit the scope lower than otherwise I would have been able to
7x57 Stalking Rifle. 02-02-09 010.JPG


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,986
Reaction score
5,953
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,613
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
Thanks, Von Gruff. Exactly what I was looking for.
I forgot to mention that I also had the colar under the aperture stem shortened so it sat fully behind the wheel guard and that helped it to sit lower when wound down. It still raised enough to shoot easily ti 200 yds (This was on a 7x57) I only regulated it for the one distance (150yds so just like a scope it was a within the PBR for the cartridge. For the 404 I would simple set it for 55yds and it would be good to go. On my 404 I had a bridge mounted aperture and as it was the sole sight I had it set for a bit high at 55 yds so it was good for 150 if necessary .


Nevada Mike

AH veteran
Joined
Jan 9, 2019
Messages
233
Reaction score
208
Location
S.E. Arizona
Van Gruff - nice idea. Thanks.

Something I just learned a day ago is that McLauglin Firearms is developing a Rigby style rear peep that will be detachable and remount at zero. This will be mounted in a slot in the cocking piece and feature a detent with spring loaded button for mounting and removal. The idea is that it will maintain zero after re-mounting. According to John McLaughlin, this should be available in a couple months. The cost for the regular Rigby style peep is $300. I would guess that the new removeable model would be somewhere in the $300 to $400 zone.

I spoke with Reto (rifle builder making my .404) and he thinks this just about right for our project. So I am in to try the new bolt mounted detachable peep sight.


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
3,986
Reaction score
5,953
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,613
Articles
3
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
They are a fantastic sight so you may even find you like it so much that your scope is rarely on the rifle except for early morning or evening where the light gathering ability of the scope is a very real advantage. Within the shooting range of the 404 you will be well served with the Rigby style sight and have a much more balanced rifle that is a delight in hand easier to carry.
