Discussion in 'Firearms & Ammunition' started by Alchemist, Apr 21, 2017.

  1. MAdcox

    MAdcox GOLD SUPPORTER AH Fanatic

    Joined:
    Aug 15, 2017
    Messages:
    690
    Video/Photo:
    85
    Likes Received:
    1,029
    Location:
    Oklahoma, USA
    Member of:
    DSC; DSCOK
    Hunted:
    Oklahoma, Colorado, New Mexico, Texas, South Africa (Limpopo, Northern Cape)
    Looks like the picture on the box.

    Rule 303 and Ridgewalker like this.

  2. Ridgewalker

    Ridgewalker AH ENABLER LIFETIME BRONZE BENEFACTOR AH Ambassador

    Joined:
    Aug 8, 2016
    Messages:
    5,220
    Video/Photo:
    208
    Likes Received:
    5,154
    Location:
    Colorado
    Hunted:
    South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx

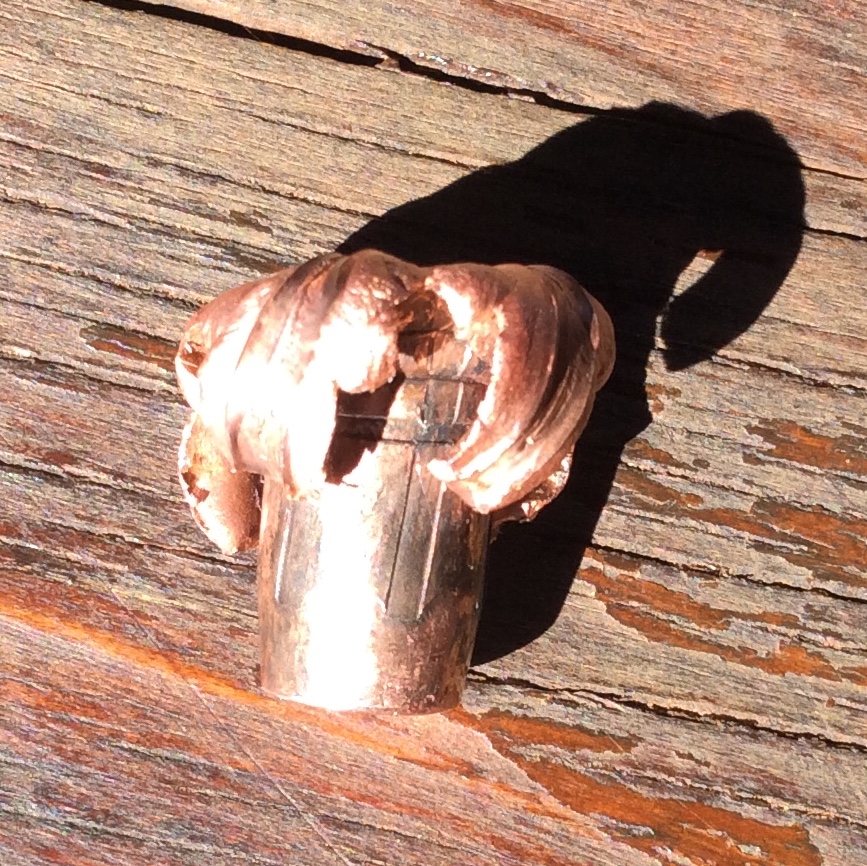

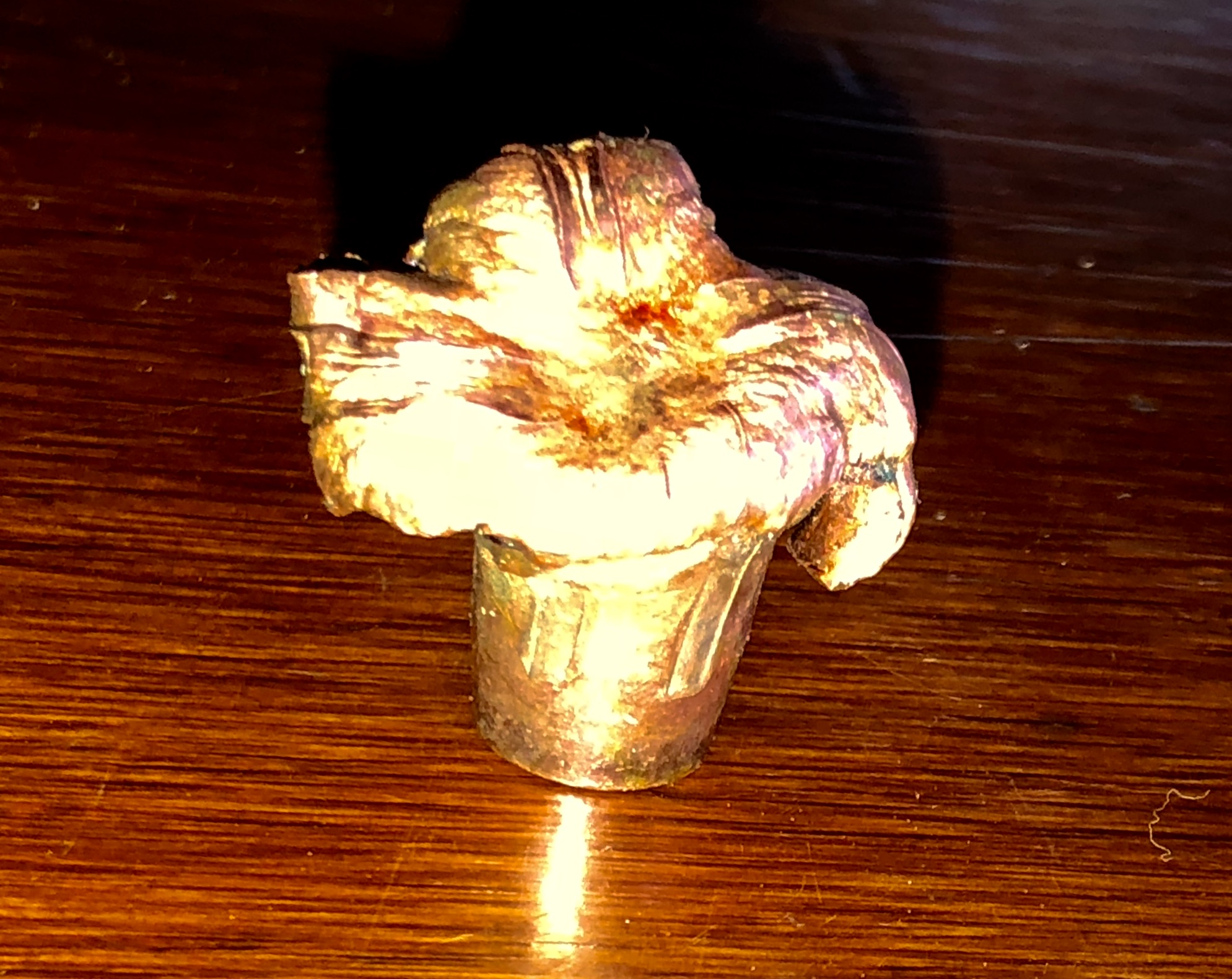

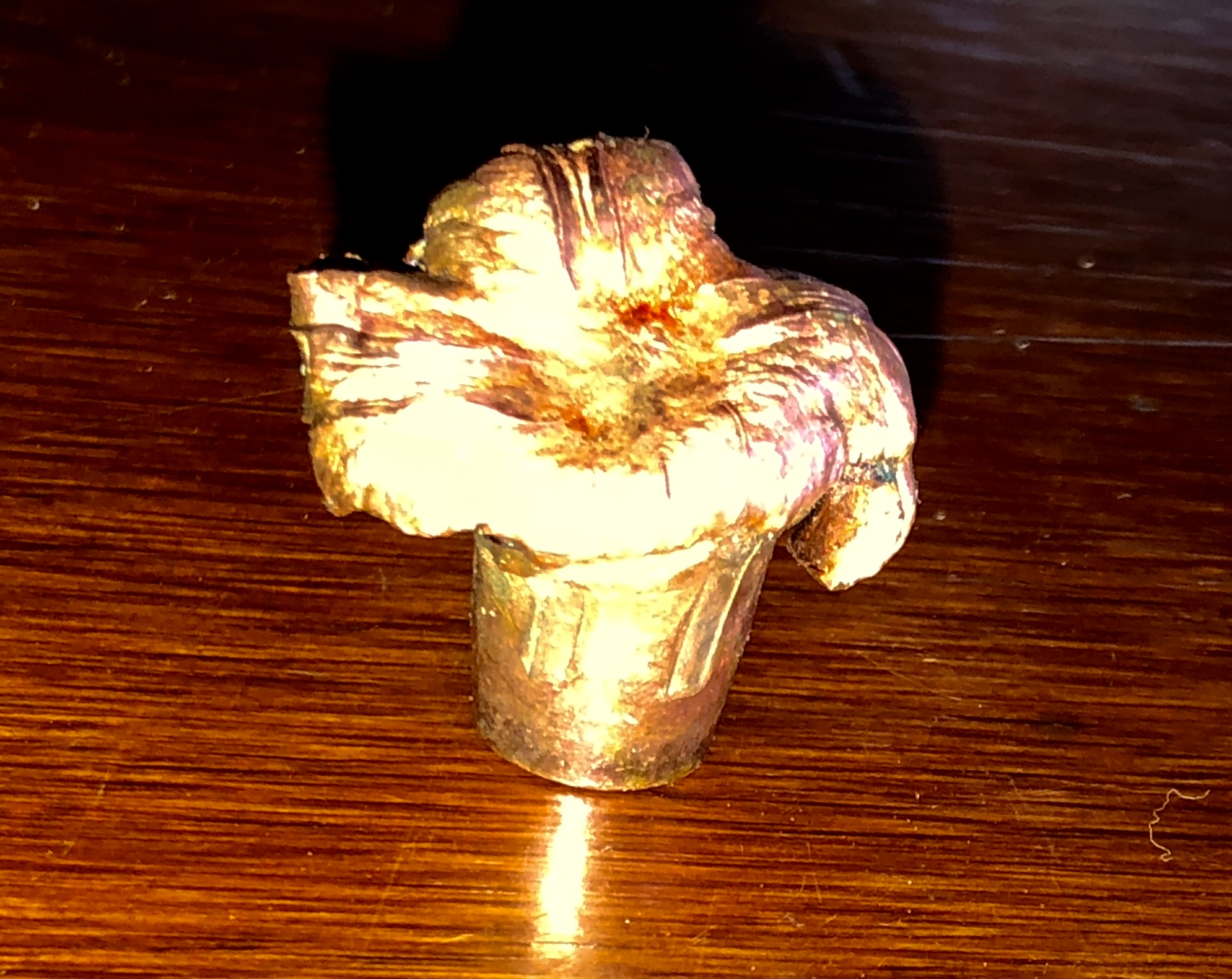

    Type of bullet: Barnes TTSX
    Bullet speed: 2,838 FPS MV
    Distance of shot: estimated 30 yds
    Original weight: 250
    Recovered weight: unknown
    Calibre: 375 H&H
    Species: 56” kudu
    Shot placement: neck just below head, instant kill pulverizing several vertebrae

    Appears to have lost one petal.


  3. MAdcox

    MAdcox GOLD SUPPORTER AH Fanatic

    Joined:
    Aug 15, 2017
    Messages:
    690
    Video/Photo:
    85
    Likes Received:
    1,029
    Location:
    Oklahoma, USA
    Member of:
    DSC; DSCOK
    Hunted:
    Oklahoma, Colorado, New Mexico, Texas, South Africa (Limpopo, Northern Cape)
    Cool bullet, I’m anxious to see the Eland and the 56” Kudu!!


  4. Ridgewalker

    Ridgewalker AH ENABLER LIFETIME BRONZE BENEFACTOR AH Ambassador

    Joined:
    Aug 8, 2016
    Messages:
    5,220
    Video/Photo:
    208
    Likes Received:
    5,154
    Location:
    Colorado
    Hunted:
    South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
    Madcox, the Eland I took recently, but I loaned my gun and ammo out for the kudu.
    Bullet found under skin.
    56” kudu


  5. MAdcox

    MAdcox GOLD SUPPORTER AH Fanatic

    Joined:
    Aug 15, 2017
    Messages:
    690
    Video/Photo:
    85
    Likes Received:
    1,029
    Location:
    Oklahoma, USA
    Member of:
    DSC; DSCOK
    Hunted:
    Oklahoma, Colorado, New Mexico, Texas, South Africa (Limpopo, Northern Cape)
    Beautiful bull, congrats


  6. Travis2282

    Travis2282 AH Enthusiast

    Joined:
    Dec 7, 2014
    Messages:
    288
    Video/Photo:
    19
    Likes Received:
    273
    IMG_0391.JPG 300 gr. A-frame I took out of a wildibeast I shot at 238 yards in the shoulder. It was laying just under skin on opposite side. Only bullet I recovered on recent hunt.


  7. Alchemist

    Alchemist AH Senior Member

    Joined:
    Nov 19, 2014
    Messages:
    80
    Video/Photo:
    13
    Likes Received:
    119
    Location:
    Pretoria
    Member of:
    NSA , SA Wingshooters
    180 gr Nosler Accubond @2980 f/s from a 300 Win Mag. Cape Eland bull. Broadside shot at 187 meters. Both lungs and heart. Bullet found trapped under the skin


    Last edited by a moderator: Jul 2, 2018
    USMA84DAB, ack, Ridgewalker and 4 others like this.

  8. Trail Rated

    Trail Rated AH Member

    Joined:
    Jun 26, 2018
    Messages:
    43
    Video/Photo:
    9
    Likes Received:
    63
    Location:
    Texas
    7AB73C06-9FA9-4F4E-8182-E3B78021E8F4.jpeg My profile pic is of a recovered PRVI Partisan 208-grain bullet in 8x56R and part of its jacket, shot from my ancient straight-pull Steyr Mannlicher 95/30 carbine. The bullet passed through the chest cavities of two 90-pound hogs. It was recovered under the hide on the far side of the second hog. They were unlucky enough to line up next to each other, so I said why not.


  9. Rule 303

    Rule 303 AH Fanatic

    Joined:
    Oct 6, 2015
    Messages:
    589
    Video/Photo:
    1
    Likes Received:
    432
    Location:
    Brisbane
    Hunted:
    Australia, New Zealand, Zimbabwe & Namibia
    Nice work. Shows the old rifles and calibres still work.:A Thumbs Up:

    Hogpatrol likes this.

  10. 686

    686 AH Senior Member

    Joined:
    Oct 18, 2017
    Messages:
    53
    Video/Photo:
    25
    Likes Received:
    89
    Took 5 head of game last week, great performance of the load/bullet. This is the only recovered slug, from a zebra shot quartering on, recovered under skin of back hindquarter

    Barnes LRX 270gr @ 2850 FPS
    .375 Weatherby
    Retained weight 268.1gr
    Max diameter 0.70”
    Range to animal ~180 yards
    Bullet entered inside front shoulder passing through vitals, gut, rear quarter, animal ran ~50 yards and fell dead.



  11. Ridgewalker

    Ridgewalker AH ENABLER LIFETIME BRONZE BENEFACTOR AH Ambassador

    Joined:
    Aug 8, 2016
    Messages:
    5,220
    Video/Photo:
    208
    Likes Received:
    5,154
    Location:
    Colorado
    Hunted:
    South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
    Good info! I haven’t tried any of the Barnes LRX bullets, but if this is typical, they work well!


  12. 686

    686 AH Senior Member

    Joined:
    Oct 18, 2017
    Messages:
    53
    Video/Photo:
    25
    Likes Received:
    89
    My PH exclaimed “I freaking love that rifle and that bullet!” after the fourth one-shot, quick kill. Very good accuracy, and retain a lot of energy down range due to the higher ballistic coefficient.


  13. AfricanEclipse

    AfricanEclipse AH Member

    Joined:
    Aug 3, 2018
    Messages:
    44
    Video/Photo:
    30
    Likes Received:
    93
    Location:
    Ormond Beach
    Member of:
    NRA
    Hunted:
    Zimbabwe, USA (PA, FL, AL)

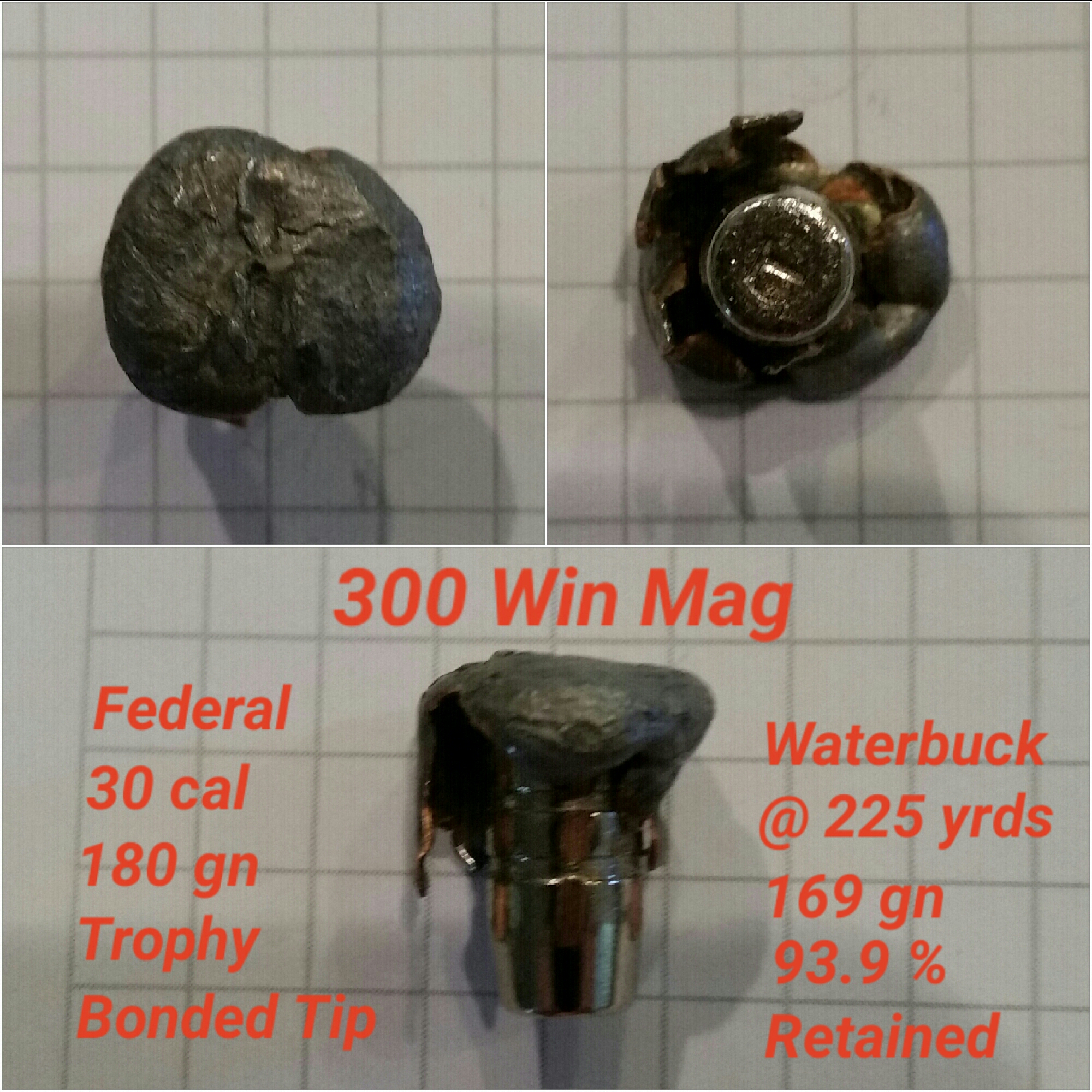

    I recently took this 29" class Waterbuck in southern Zimbabwe with my 300 Win Mag using Federal Premium 180 gr Trophy Bonded Tip factory ammo. I was on the other side of the reservoir in the background when I made the shot.
    2018-08-05 12.48.49.jpg The bullet entered the left side ribcage just behind the shoulder. Bullet clipped both lungs and tore a section out of the heart ventricles. It passed through ribs on right side and stopped in the skin on the right side. Pretty much a textbook shot. He ran about 40 yards through boulders and a small wash. Piled up where pic was taken.
    MV: 2960 fps
    IV: ~2550 fps
    (Unsure about rib bone impacts.)

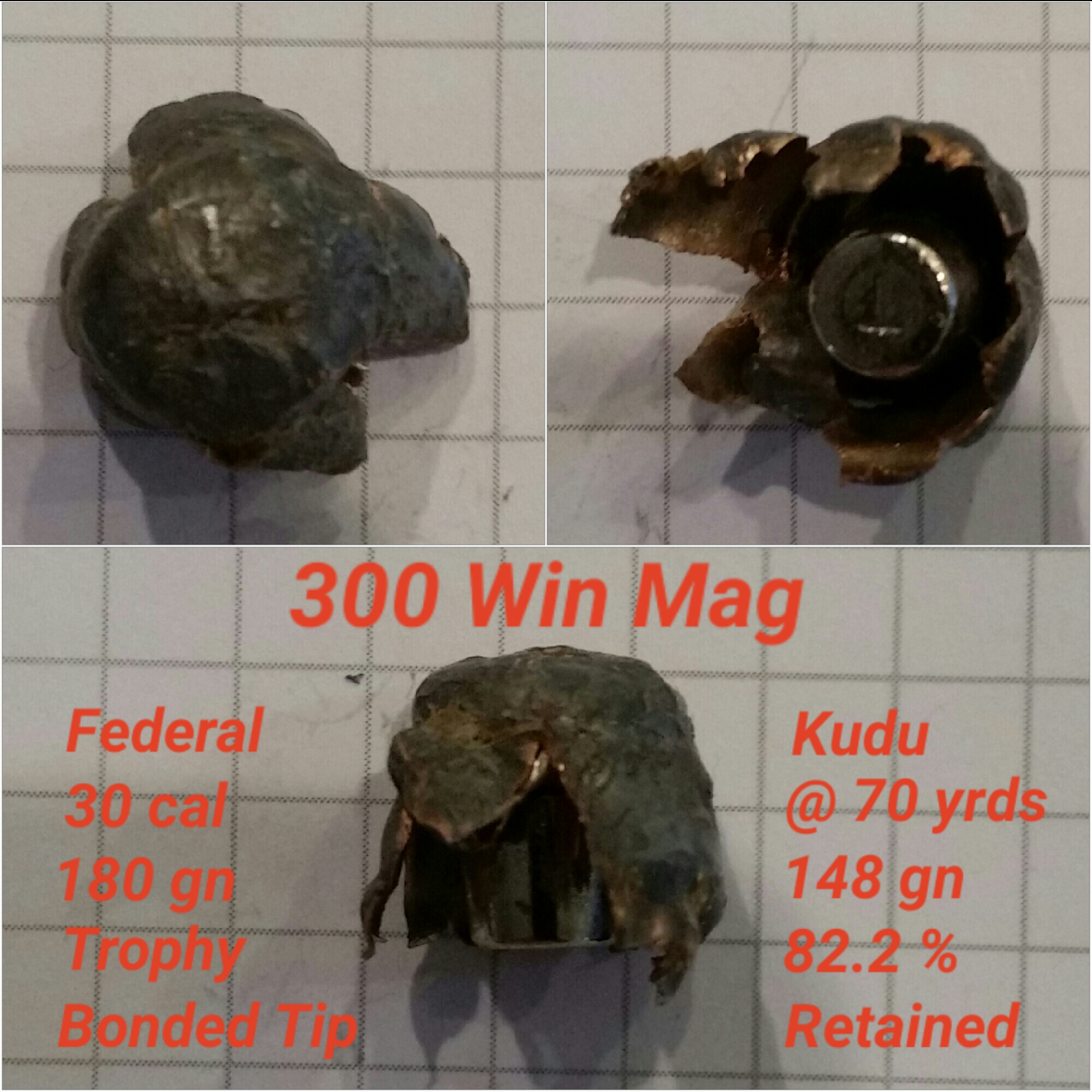

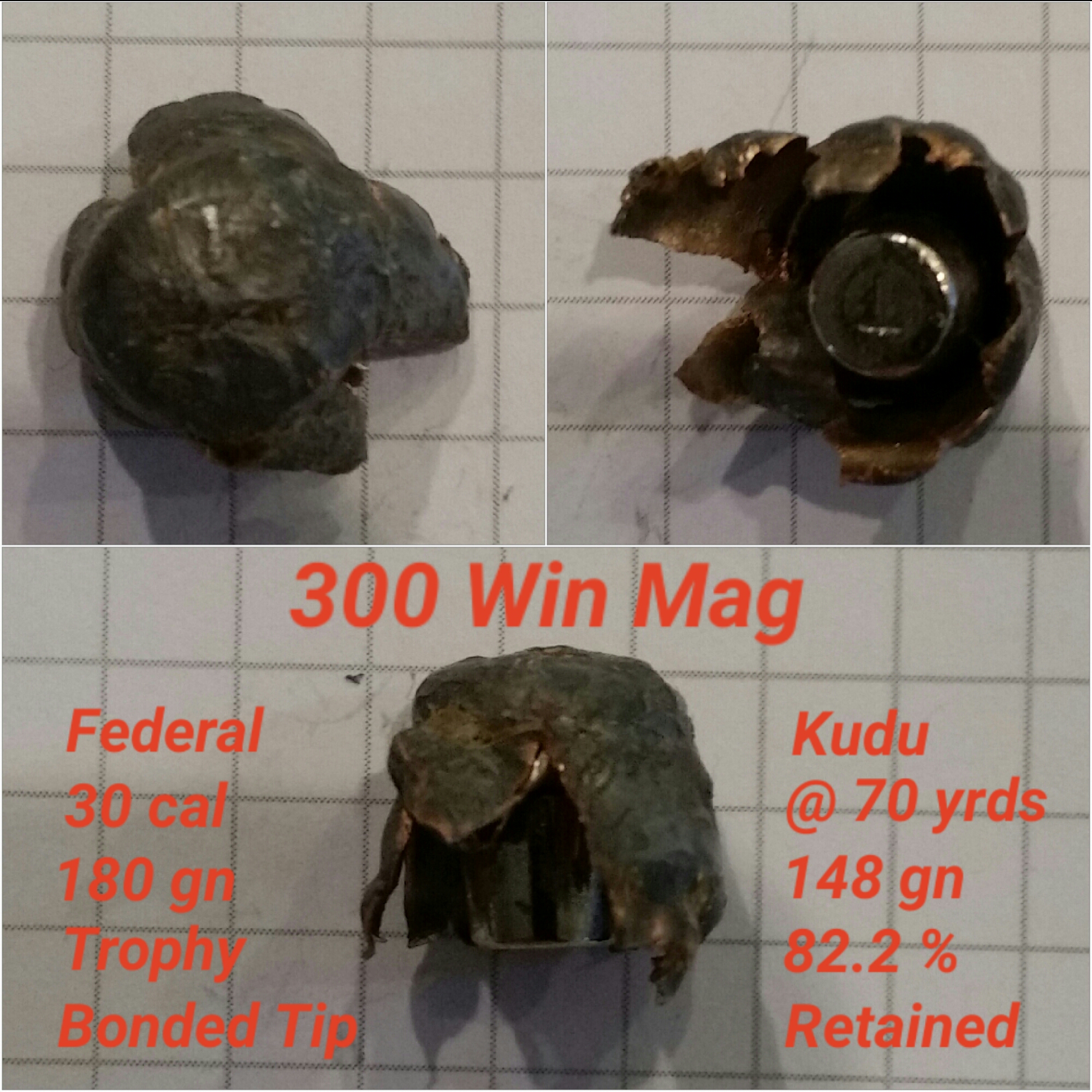

    Kudu taken at about 70 yards. Quartering away shot. Bullet entered rear of left ribcage in lower 1/3 section. Bullet passed into chest cavity after clipping the hepatic artery/vein (liver shot) and possibly the aorta. Bullet exited the right ribcage and came to rest just behind the right shoulder under the skin. A second insurance shot was placed in the upper left shoulder. It passed through. Kudu moved maybe 20-30 yards after first shot.
    2018-08-05 12.59.55.jpg
    MV: 2960 fps
    IV: ~2800 fps
    (rib impacts likely)

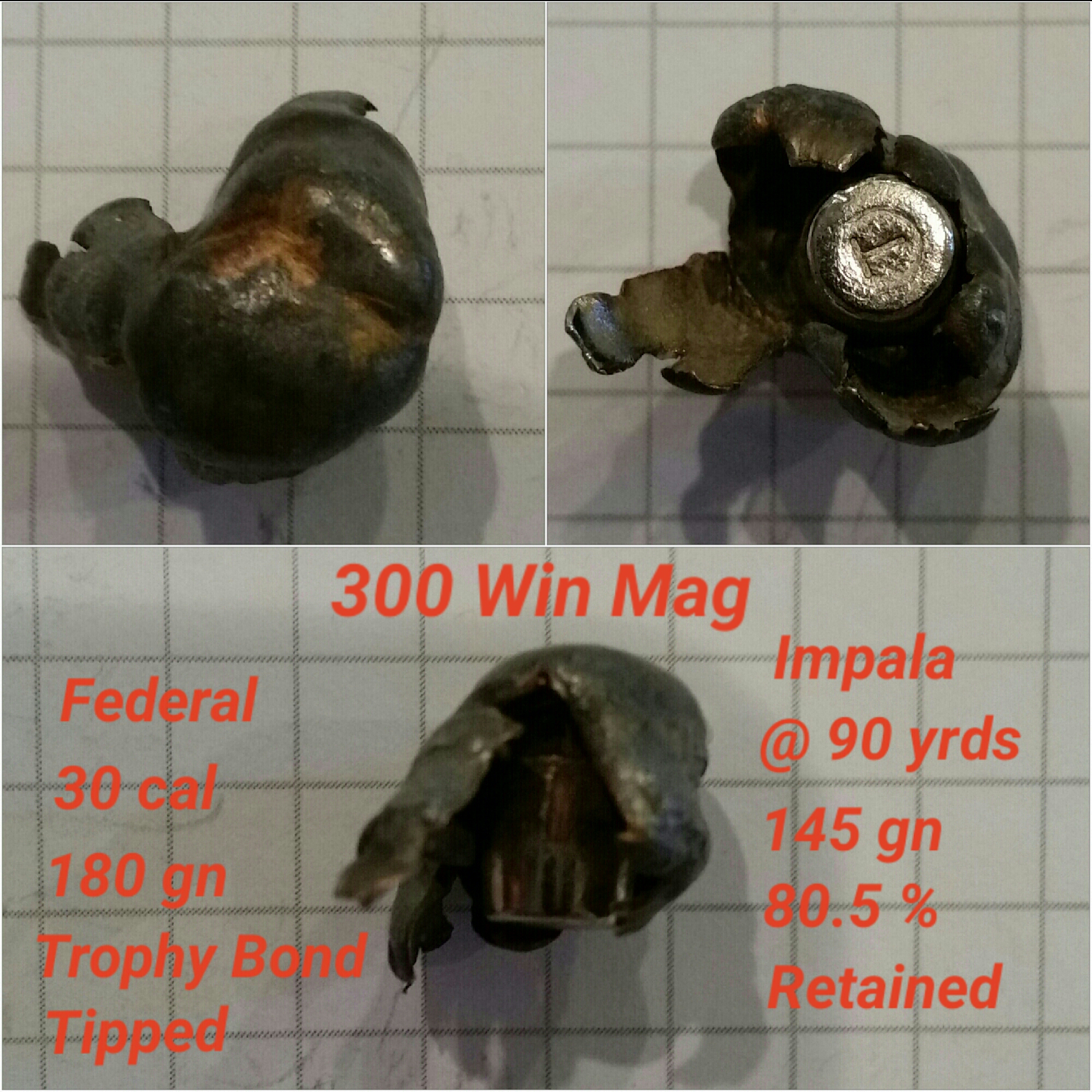

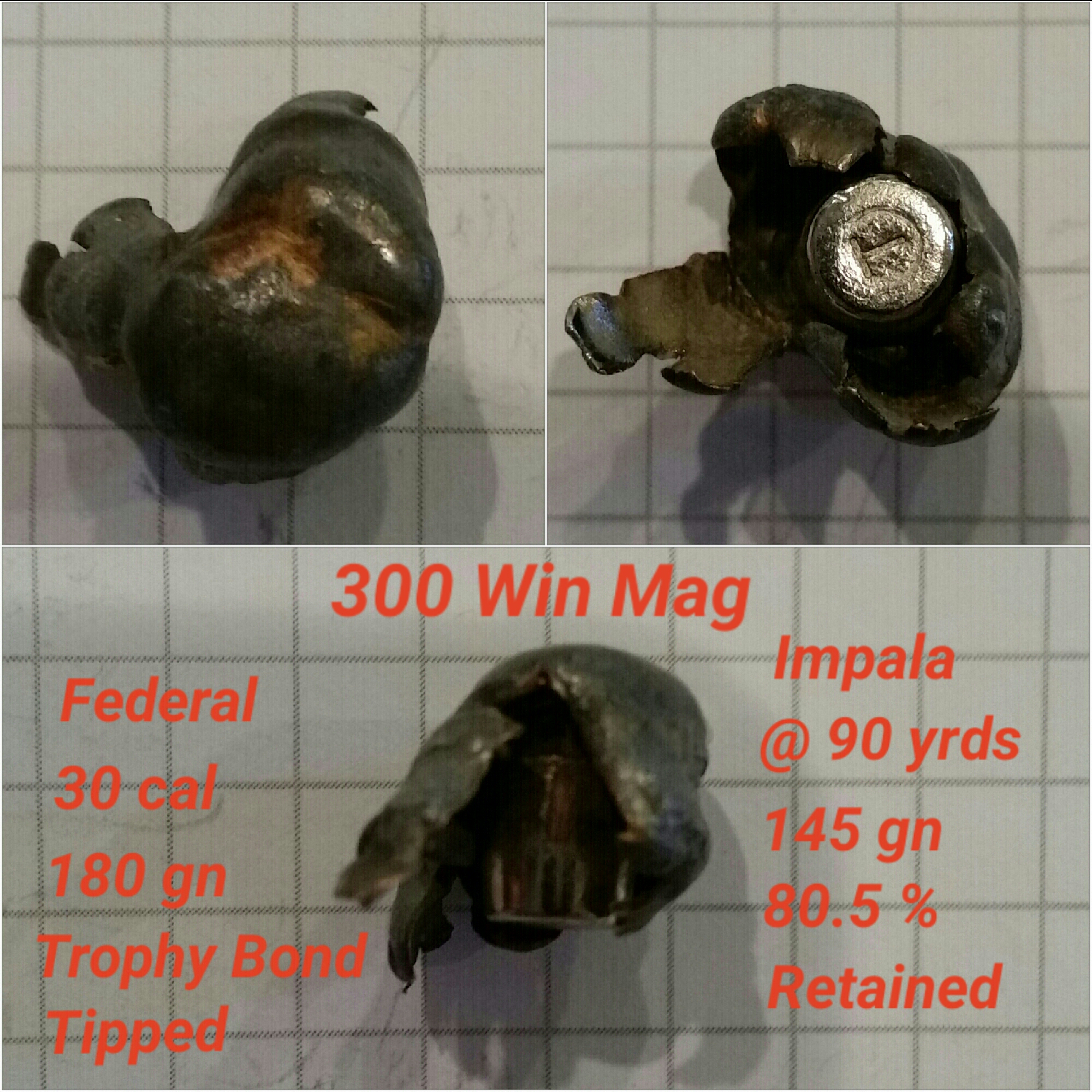

    This Impala was taken at around 90 yrds straight on chest shot right of center. Bullet passed through body and was hung up in the skin near rear of hind quarter. Impala did a sideways flip and went about 30 yards.
    2018-08-05 09.44.56.jpg
    MV: 2960 fps
    IV: ~2800 fps

    I took a Blue Wildebeest at around 80 yards with a straight on chest shot as well. The bullet went into the chest cavity and careened at a steep angle up exiting above the shoulders. He ran some 50 yards in thick brush as we chased. Piled up DOA. That was a heart-pounder!


    USMA84DAB, Gater, Alchemist and 5 others like this.

  14. MAdcox

    MAdcox GOLD SUPPORTER AH Fanatic

    Joined:
    Aug 15, 2017
    Messages:
    690
    Video/Photo:
    85
    Likes Received:
    1,029
    Location:
    Oklahoma, USA
    Member of:
    DSC; DSCOK
    Hunted:
    Oklahoma, Colorado, New Mexico, Texas, South Africa (Limpopo, Northern Cape)
    Great bullet performance thanks for the write up.
    Beautiful animals y the way. Awesome Kudu!

    AfricanEclipse likes this.

  15. Ridgewalker

    Ridgewalker AH ENABLER LIFETIME BRONZE BENEFACTOR AH Ambassador

    Joined:
    Aug 8, 2016
    Messages:
    5,220
    Video/Photo:
    208
    Likes Received:
    5,154
    Location:
    Colorado
    Hunted:
    South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
    I’d say you made great shots, but the Federal bullet did it’s part too. Excellent write up and some fine trophies!
    I just picked up a box of these to load up and test in my 300 WM. This is very encouraging!

    AfricanEclipse likes this.

  16. AfricanEclipse

    AfricanEclipse AH Member

    Joined:
    Aug 3, 2018
    Messages:
    44
    Video/Photo:
    30
    Likes Received:
    93
    Location:
    Ormond Beach
    Member of:
    NRA
    Hunted:
    Zimbabwe, USA (PA, FL, AL)
    Thanks! Every now and again even a blind squirrel finds a nut.
    My brother and me grew up hand loading shotgun, pistol, and rifle ammo but due to distance issues we weren't able to settle on a load for these before our safari. My particular rifle, a Colt Light Rifle, seemed to like around 79 grains of H1000. These are quite long so you may find you're loads are slightly compressed with so much of the bullet protruding into the casing.
    These bullets are TOUGH and keeping them going fast is likely a good idea. I took a Bushbuck at 296 yards (my furthest shot to date) and the bullet punched right through both hind quarters. I don't know how much it expanded or whether or not the decrease in velocity, some 500 fps, was a contributing factor in the amount of expansion.

    I'm interested to hear what load you develop if you care to share.

    Ridgewalker likes this.

  17. Ridgewalker

    Ridgewalker AH ENABLER LIFETIME BRONZE BENEFACTOR AH Ambassador

    Joined:
    Aug 8, 2016
    Messages:
    5,220
    Video/Photo:
    208
    Likes Received:
    5,154
    Location:
    Colorado
    Hunted:
    South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
    I'll update you as soon as I start getting data. Right now all my range time is devoted to teaching my granddaughter to shoot. I told her if she learns well and moves up to a centerfire in 2020, I’ll take her to Africa. She’s excited! Me too!

    ZG47 and AfricanEclipse like this.

  18. meigsbucks

    meigsbucks AH Fanatic

    Joined:
    Feb 5, 2011
    Messages:
    824
    Video/Photo:
    16
    Likes Received:
    720
    Location:
    Central Ohio
    Member of:
    SCI, NRA Life Member
    Hunted:
    Zimbabwe and Namibia

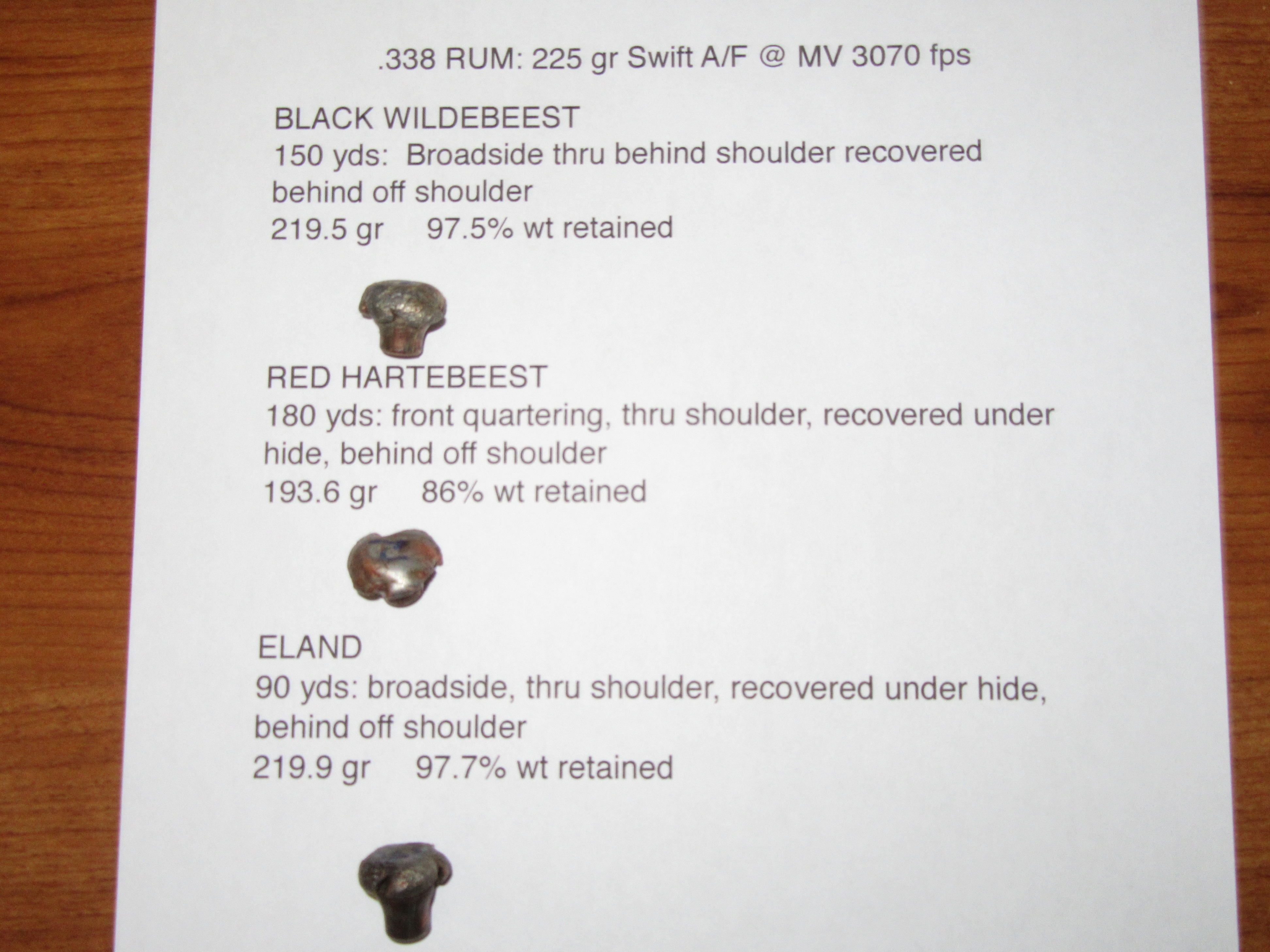

    Used a .338 RUM with 225 gr Swift A-Frames on a black wildebeest, red hartebeest, blesbok, eland, two gemsbok and a zebra. Attached is a photo of the recovered bullets. Also used a .30/06 with 180 gr Barnes TSX. With the '06 took two springbok, gemsbok, zebra and a steenbok. No bullets recovered as all made exit.



    Attached Files:

    Last edited by a moderator: Aug 9, 2018

  19. ack

    ack AH Enthusiast

    Joined:
    Mar 5, 2015
    Messages:
    368
    Likes Received:
    255
    This is the bullet I am sold on..I will use on next trip to Namibia....My .300 Win likes it too ! Perfect mushroom and can't come apart.

    Ridgewalker and AfricanEclipse like this.

  20. Ridgewalker

    Ridgewalker AH ENABLER LIFETIME BRONZE BENEFACTOR AH Ambassador

    Joined:
    Aug 8, 2016
    Messages:
    5,220
    Video/Photo:
    208
    Likes Received:
    5,154
    Location:
    Colorado
    Hunted:
    South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
    Meigsbucks, interesting how the same bullet going through the Eland doesn’t appear to have expanded as much at half the distance?
