Another Lee Speed style stock

Hunting Sailor

Silver supporter
AH enthusiast
Joined
Aug 29, 2016
Messages
384
Reaction score
365
Location
Eastern Cape, South Africa
Media
12
Hunting reports
Africa
1
Member of
SAHGCA
Hunted
South Africa, Sweden, Austria
Very nice work @Von Gruff.
I have a Lee Enfield based rifle that I would have loved for you to give a handy and light stock should life have turned out differently and we would have been in the same country.
Thanks for letting us in on the journey of this rifle.


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
4,870
Reaction score
9,126
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,622
Articles
4
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
A stock is only a piece of wood Gus, and so nothing to stop one being made here and sent there, like a few others I have sent off shore


AZDAVE

AH legend
Joined
Jul 26, 2013
Messages
2,273
Reaction score
3,840
Media
189
Hunting reports
Africa
5
Hunted
South Africa,Namibia, Alaska,lower 48
@Von Gruff Have read this post with great enjoyment. The jigs you made for drilling the stock bolt hole and attaching to forend cap just saved me many hours of thought for many of my future projects. A couple years back I built a lee speed in 40/60 maynard and just reshaped and refinished the stock and did the basic metal work slapped on a coat or cold blue and put it in the safe and planned on finishing that winter. Well this has given me the inspiration to pull it out and restock and finish properly. Like the bolt peep sight. I also enjoy seeing someone else use the old classic finishes. My red oil stain is 50/50 pure linseed and turps with alkenet root. On light woods I usually put on two coats then use the same BLO 600/1000 grit routine to fill the pores on English walnut. For the carlo walnut no stain but start the filling with 400 grit as the pores are larger. than use a commercial tung oil/varnish mix for several finish coats then rub out with rotten stone. I always have to do some stock work on most all my rifles (15 1/4 LOP) except my doubles most come with enough LOP that the most I have had to do was a little thicker recoil pad. Have a great day!


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
4,870
Reaction score
9,126
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,622
Articles
4
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
@AZDAVE be great if you would post up something on your 40-60 MaynardLee Speed.
As you know the the Lee Speed only applies to the patent for the improvments that JJ Speed made and not the actual stock which was still the military configuration although there was embellishments made to it through some of the comercial outlets. The stock we have come to know as the Lee Speed was the sporter stock that was offered later by BSA and others.
This is a good read on the subject
http://rifleman.org.uk/Lee-Speed.htm


Aaron N

AH fanatic
Joined
Nov 18, 2014
Messages
810
Reaction score
996
Location
Alberta, Canada
Media
7
Articles
2
Hunting reports
Africa
2
Hunted
Canada, South Africa
Great looking stock!

Is there any particular reason you used BLO to fill the grain? Can tung oil not be used?

Also, are there pros and cons to a BLO vs tung oil finish?

Just wondering because I would like to dabble into a bit of refinishing


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
4,870
Reaction score
9,126
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,622
Articles
4
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
Great looking stock!

Is there any particular reason you used BLO to fill the grain? Can tung oil not be used?

Also, are there pros and cons to a BLO vs tung oil finish?

Just wondering because I would like to dabble into a bit of refinishing

I use the blo simply because it is a good medium for carrying the fine dust into the pores. It is always on the bench for many different uses but the tung oil would work equally as well.


Aaron N

AH fanatic
Joined
Nov 18, 2014
Messages
810
Reaction score
996
Location
Alberta, Canada
Media
7
Articles
2
Hunting reports
Africa
2
Hunted
Canada, South Africa
I use the blo simply because it is a good medium for carrying the fine dust into the pores. It is always on the bench for many different uses but the tung oil would work equally as well.

That was a quick and easy answer! Thank you very much! You do beautiful work!


Bob Nelson 35Whelen

AH ambassador
Joined
Oct 28, 2018
Messages
5,596
Reaction score
10,798
Location
Wyong new south Wales Australia
Media
13
Hunting reports
Africa
1
Member of
SSAA
Hunted
Australia

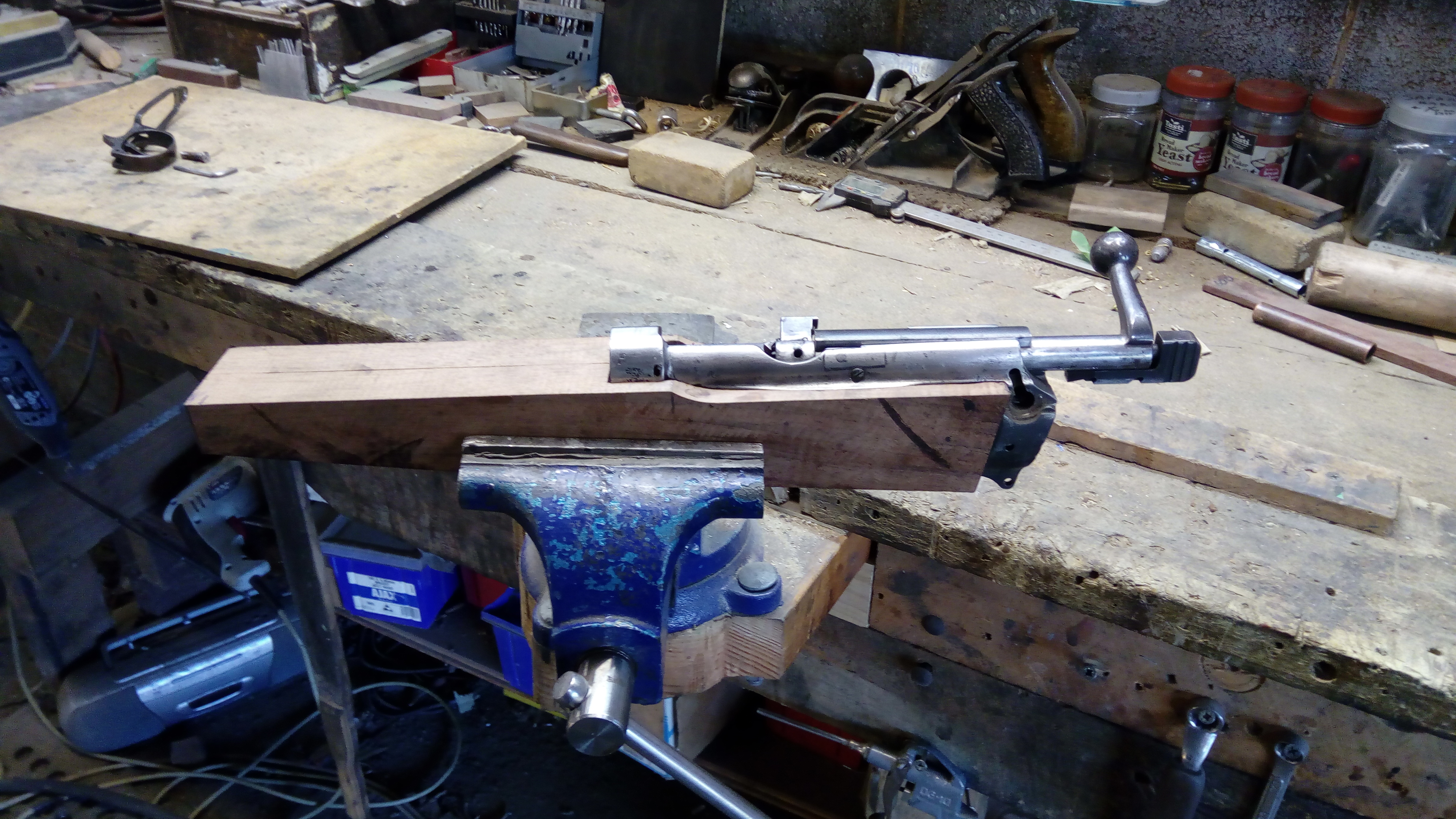

Was able to make a start on this today. as mentioned I used an action of mine without barrel to do the initial inlet
View attachment 244032

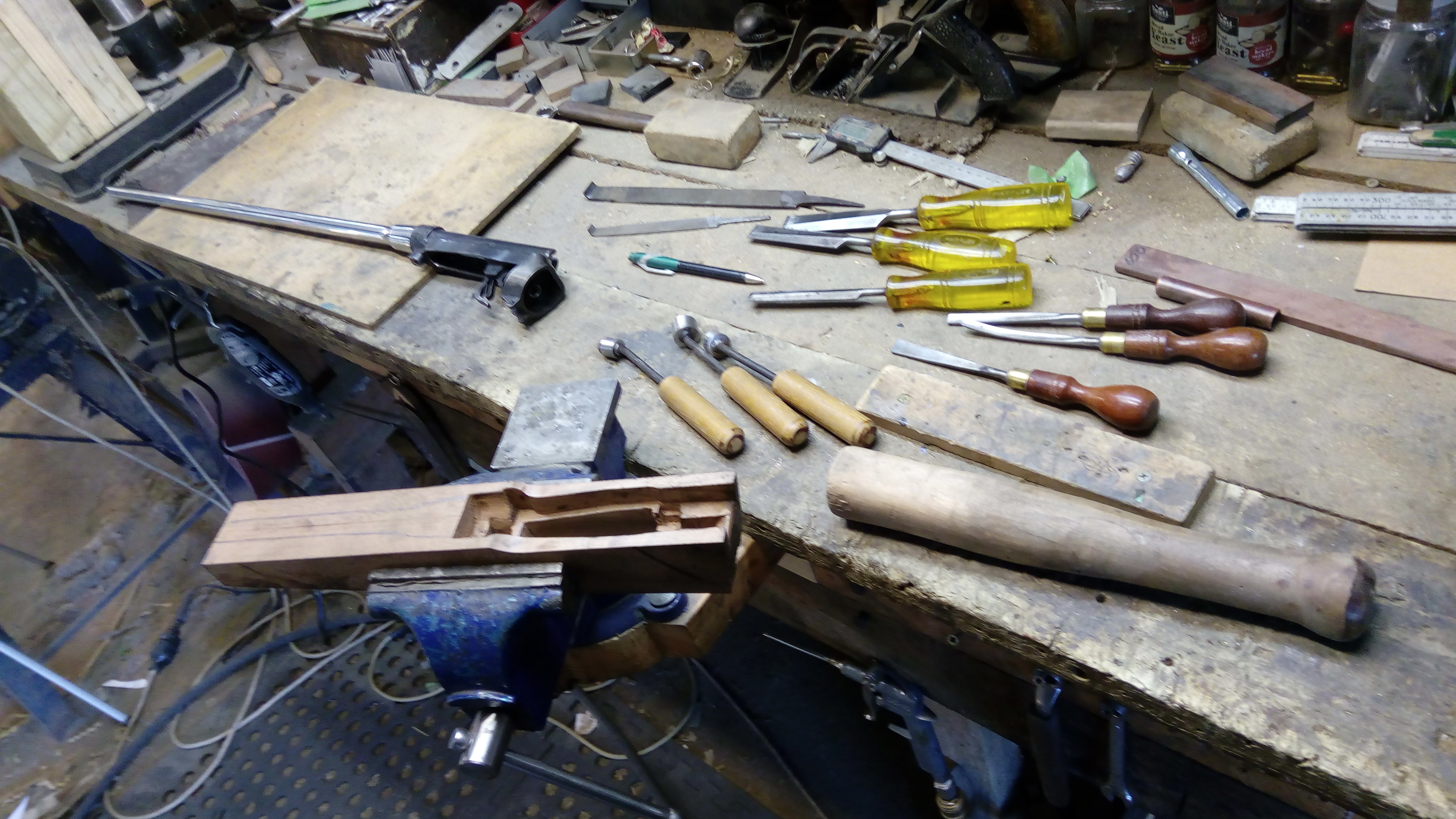

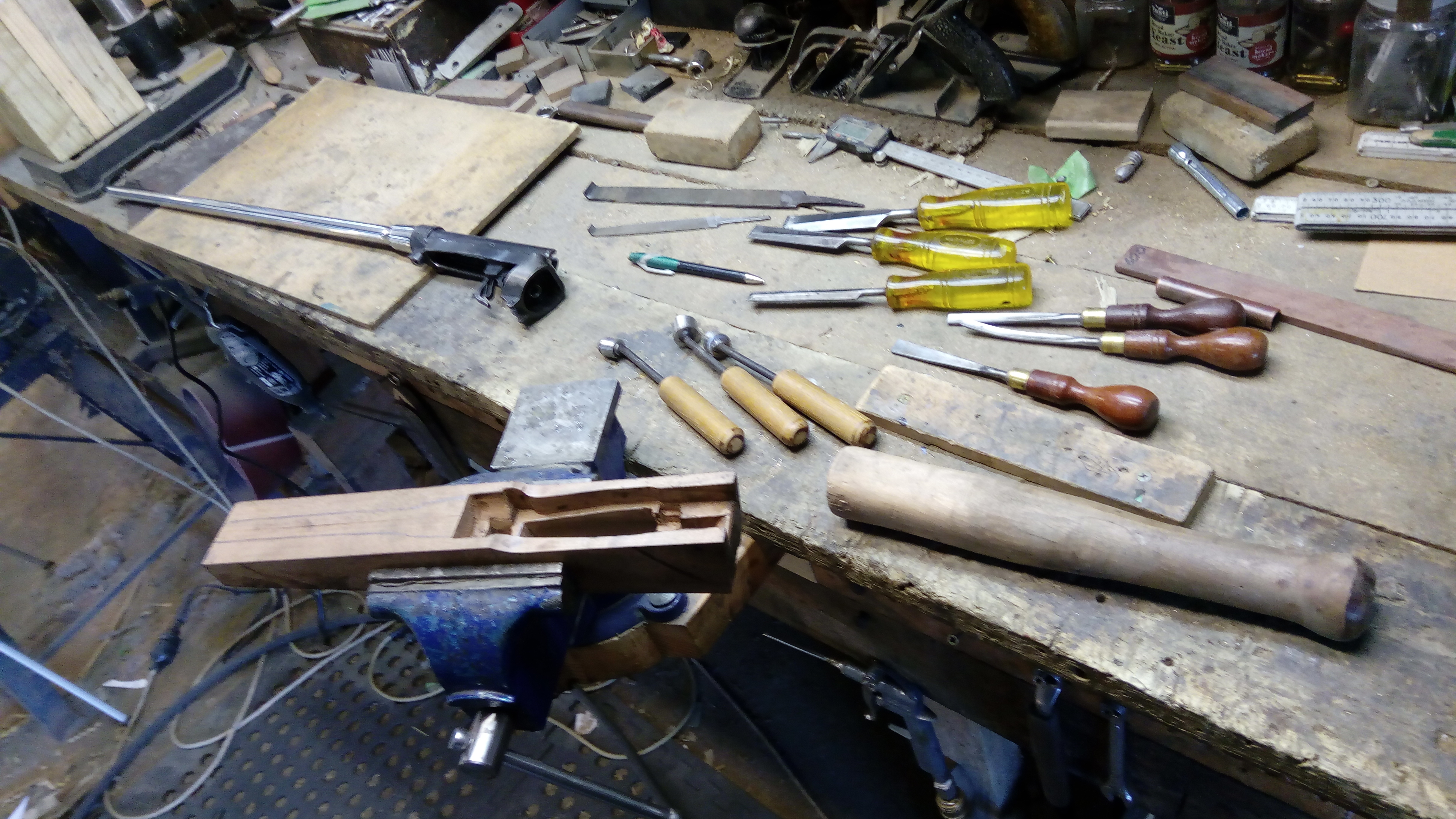

I was then able to sit barrelled action into the action inlet and mark in the barrel dimensions. Mark them in undersize till the actual fitting reveals the propper finished dimensins.
View attachment 244034

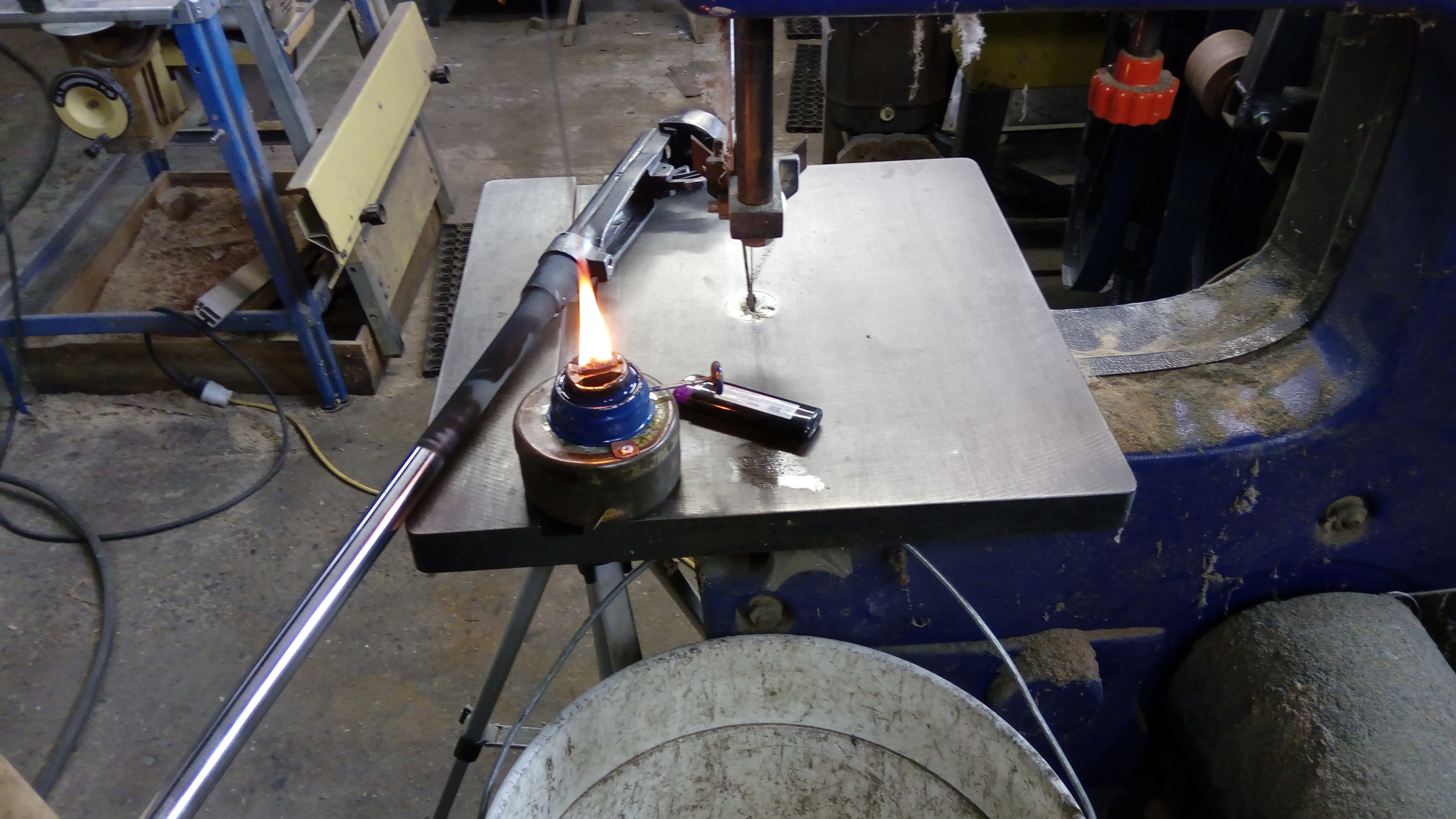

This is when the smoker gets fired up
View attachment 244035

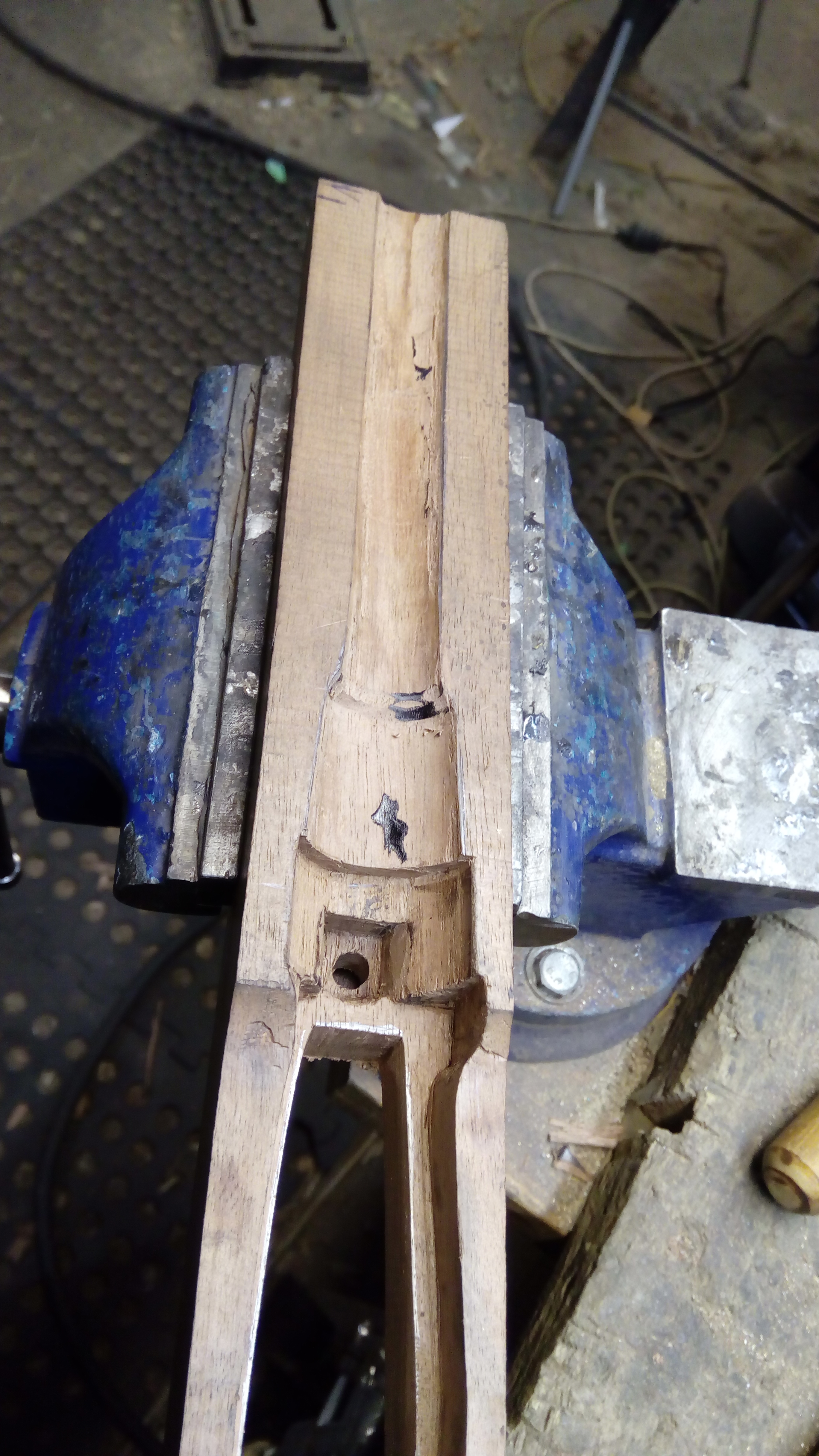

This make it so much easier to see where wood needs to come off
View attachment 244036

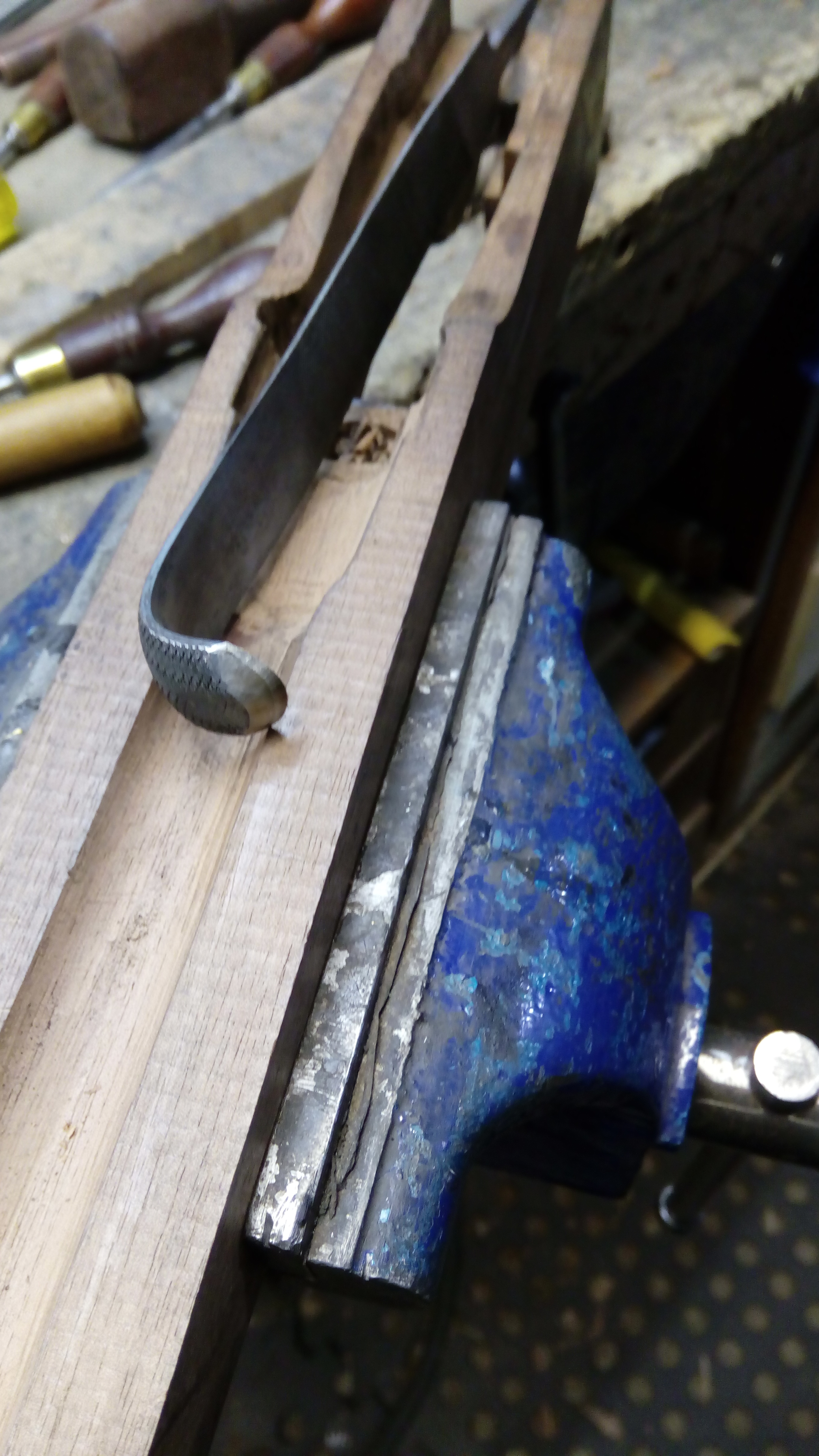

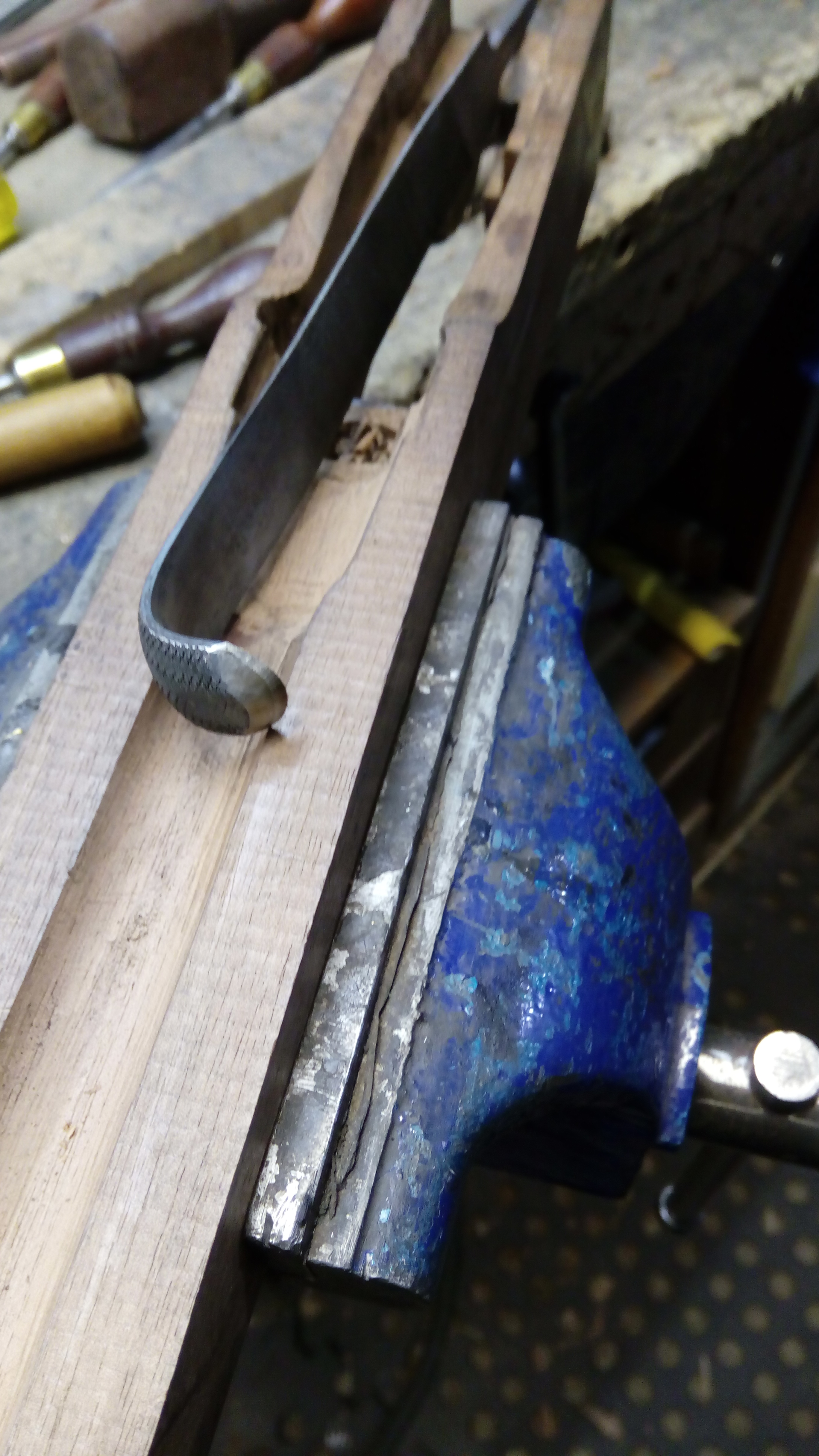

And the process begins. I made another scraper from an old file to make scraping small areas more easily done.
View attachment 244037

Should get this part done tomorrow.
@Von Gruff
Great start Gary I look f forward to seeing the finished job
Bob


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
4,870
Reaction score
9,126
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,622
Articles
4
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia

Bob Nelson 35Whelen

AH ambassador
Joined
Oct 28, 2018
Messages
5,596
Reaction score
10,798
Location
Wyong new south Wales Australia
Media
13
Hunting reports
Africa
1
Member of
SSAA
Hunted
Australia
This Lee Speed Stock project of yours is moving right along. And to think that it is all being done with hand tools and not a profiler.
@Shootist43
Art If'n you saw my gunsmith ripping into a,$1,000 piece of walnut with a hand ripsaw and big hammers and chisel you would have a coniption fit and a case of the horrors. The end result tho is a thing of beauty even his basic stocks. You should see his hand rubbed london oil finish with hand cut 24 lpi checkering on an exhibition grade blank topped with a rust blued custom 505 Gibbs built on a highly modified P14 action it would make you swoon. Unfortunately I didn't take a photo of it and it will never see a hunt anywhere. It was built for a gent for the big bore hunting target club that only hunts charging paper cut outs.
Bob


Bob Nelson 35Whelen

AH ambassador
Joined
Oct 28, 2018
Messages
5,596
Reaction score
10,798
Location
Wyong new south Wales Australia
Media
13
Hunting reports
Africa
1
Member of
SSAA
Hunted
Australia
All waxed this morning so thought I would get a couple of pics to finish the thread with









and of course the companion knife with walnut handles from the same blank.
@Von Gruff
Excellent job mate a pure classic and especially love the knife, great blade design both rifle and knife are pure underrated elegance in simplicity of design that is hard to do correctly. You have done this admirably worth hard work, intelligent design and the end result is beautiful practicality.
Bob
