So here I sit trying to figure out how to trim cases one handed while I wait for this wrist to heal. It got me thinking, surely there is better gear for case trimming. The below pic is what I use, Lee pilot system w a cordless drill. It is fine but not super accurate and time consuming. What do you guys use?



ufg8r93

Bronze supporter
AH enthusiast
Joined
Aug 9, 2012
Messages
304
Reaction score
839
Location
Atlanta Suburbs
Media
81
Hunting reports
Africa
2
Member of
NRA Life Member, SCI, DSC
Hunted
USA: AL, CO, GA, FL, SC, SD, WI, WY, Limpopo SA, North West SA, England, Saskatchewan
I use the same Lee pilot system but mounted on a Lyman Case Prep Express. Lee now makes a cutting head that mounts directly into one of the little stations on the Case Prep Express. Then I use a little handle on the shellholder to make it more comfortable. I also have a couple of the Little Crow Gunworks trimmers that are terrific if you are doing a lot of cases.
Case trimming w Lyman & Lee.jpg
Little Crow Case Trimmer 22-250.jpg

  • Like
Reactions: WAB

Aaron N

AH fanatic
Joined
Nov 18, 2014
Messages
736
Reaction score
858
Location
Alberta, Canada
Media
7
Articles
2
Hunting reports
Africa
2
Hunted
Canada, South Africa
My reloading stuff isn’t set up right now, but here’s what I use, and I would say it’s a one handed operation. You’ll be slowed down, but can still do it.

Unless I’m missing something, I’d say it would work for you


  • Like
Reactions: WAB

Royal27

AH ambassador
Joined
May 27, 2012
Messages
9,519
Reaction score
13,652
Media
109
Articles
5
Hunting reports
Africa
6
Member of
DSC, NRA, SCI
Hunted
USA - TX, CO, GA, ID. Africa - Zimbabwe, Zambia, and South Africa (Limpopo and EC)

Attachments

  • Screen Shot 2021-06-15 at 7.54.21 AM.png
    Screen Shot 2021-06-15 at 7.54.21 AM.png
    1.6 MB · Views: 6
  • Screen Shot 2021-06-15 at 7.54.22 AM.png
    Screen Shot 2021-06-15 at 7.54.22 AM.png
    445.2 KB · Views: 8

Pheroze

AH legend
Joined
Jul 6, 2013
Messages
4,114
Reaction score
4,947
Location
Ontario
Media
80
Articles
20
Hunting reports
USA/Canada
1
Member of
OFAH, DSC
Hunted
South Africa, Canada, USA

Attachments

  • Screen Shot 2021-06-15 at 7.55.08 AM.png
    Screen Shot 2021-06-15 at 7.55.08 AM.png
    2.1 MB · Views: 5
  • Screen Shot 2021-06-15 at 7.55.09 AM.png
    Screen Shot 2021-06-15 at 7.55.09 AM.png
    709.9 KB · Views: 6

Hogpatrol

Silver supporter
AH ambassador
Joined
Apr 13, 2013
Messages
6,548
Reaction score
15,548
Location
Delaware, USA
Media
87
Articles
4
Hunting reports
Africa
1
Member of
Atglen Sportsmen's Club, NRA ,SCCFSA,
Hunted
RSA, DE, NJ, PA, KS, TX, ME
I use WFT. It trims off the shoulder, not the case head. Neck lengths are all the same. If you had a fixed
drill motor, you could trim one handed.




Attachments

  • Screen Shot 2021-06-15 at 7.55.51 AM.png
    Screen Shot 2021-06-15 at 7.55.51 AM.png
    2.7 MB · Views: 7
  • Screen Shot 2021-06-15 at 7.55.53 AM.png
    Screen Shot 2021-06-15 at 7.55.53 AM.png
    2 MB · Views: 7

meigsbucks

AH elite
Joined
Feb 5, 2011
Messages
1,428
Reaction score
1,849
Location
Central Ohio
Media
20
Hunting reports
Africa
1
Member of
SCI, NRA Life Member
Hunted
Zimbabwe and Namibia

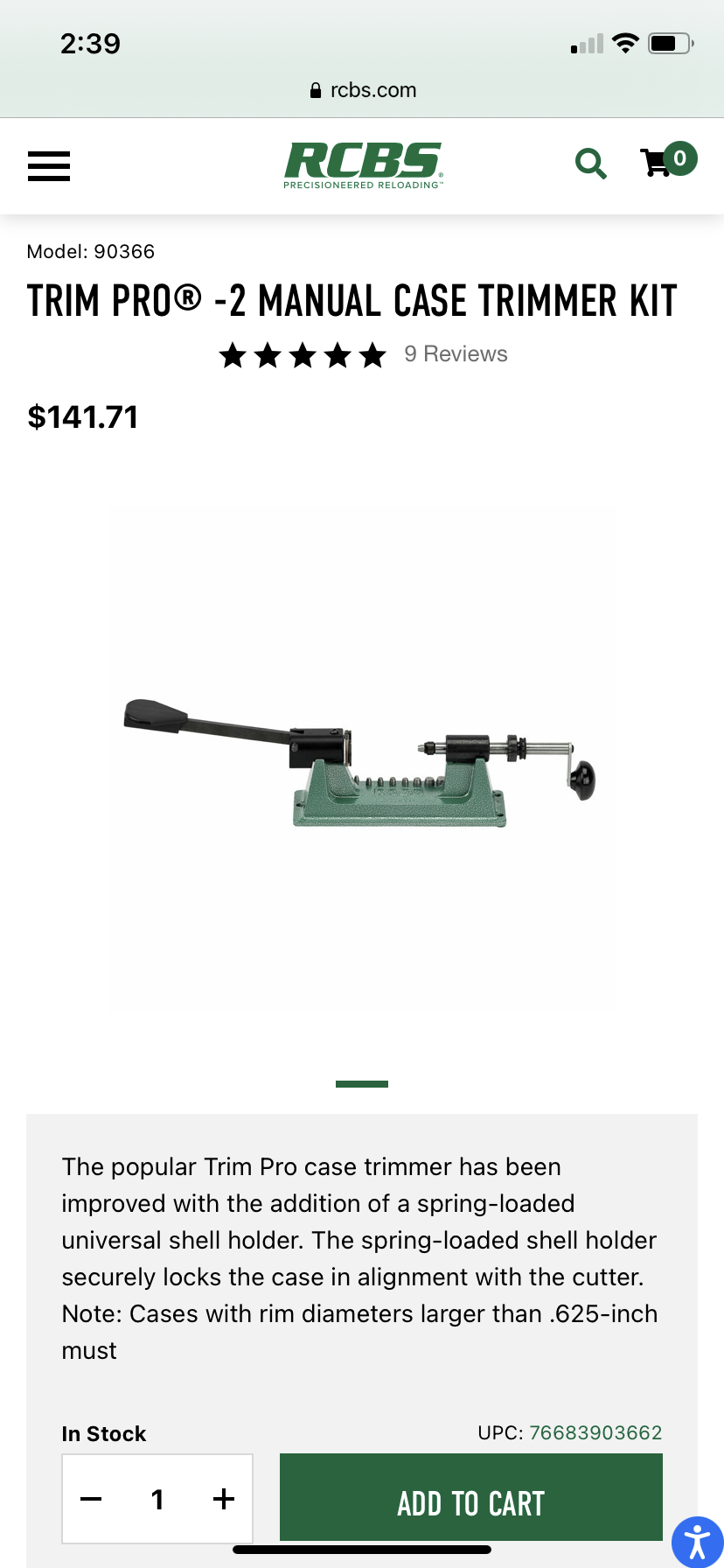

For years I used a RCBS Case Trim Pro. Two years ago I bought a Lyman Brass Smith Case Trim Xpress. An awesome product. It is accurate and easy to adjust. The only downside is that it won’t do straight wall rounds or Weatherby rounds.


Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
7,203
Reaction score
8,977
Location
Colorado
Media
240
Hunting reports
Africa
3
USA/Canada
4
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
I use a Little Crow for my 223 high volume chucked up in a drill press in the garage. Next to it is a Lyman Brass Smith Case Trimmer. In my reloading room I have Lee Case Gauge Trimmers for every caliber for when I am doing short test runs. I also have an ancient Lyman hand crank Case Trimmer and a Hornady hand crank Case Trimmer. Those are for middle volume duties.

  • Like
Reactions: WAB

Inline6

AH enthusiast
Joined
Feb 20, 2019
Messages
371
Reaction score
352

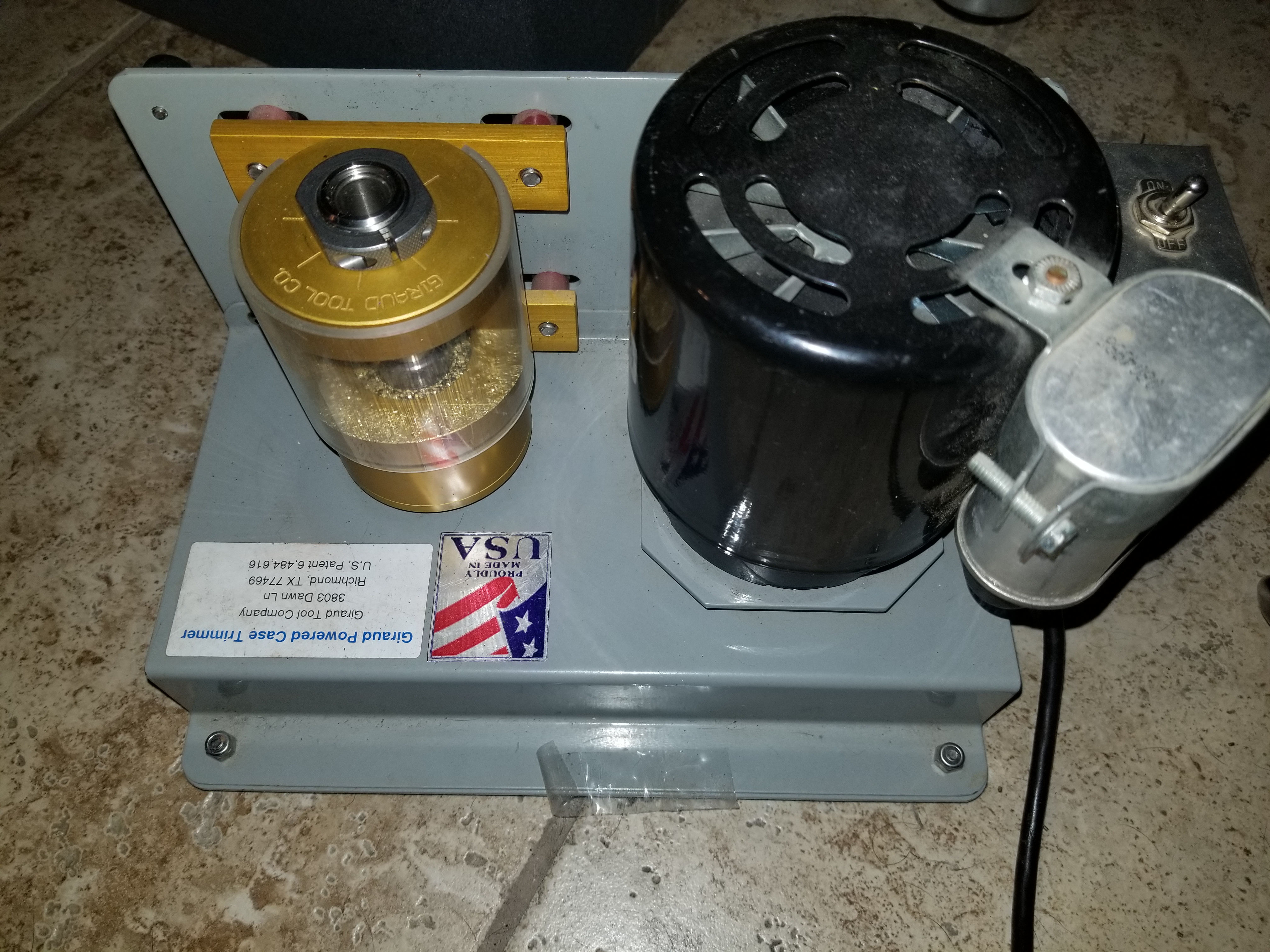

It's not the cheapest, it is however one of the fastest. You can trim and chamfer inside and out one motion. You can easily do 5 cases in 10 seconds.


Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
7,203
Reaction score
8,977
Location
Colorado
Media
240
Hunting reports
Africa
3
USA/Canada
4
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
Inline6, how difficult is it to change cartridges?


Inline6

AH enthusiast
Joined
Feb 20, 2019
Messages
371
Reaction score
352
Inline6, how difficult is it to change cartridges?
Once your case holder is set, you lock the collar and it's done.

The cutting head is on the bottom, a couple spanner wrenches takes it out. The cutters are caliber specific. So let's say you are working on 308 then want to 300wm. You would just change the shell holder. That caliber change is 30 seconds.

Personally the way I change the cutting heads is to buy one for each caliber. You can adjust the actual carbide cutter but that take more time than I'm willing to spend. To replace the cutting head assembly 2-3 minutes taking your time.


WAB

AH legend
Joined
Oct 8, 2015
Messages
3,376
Reaction score
7,801
Location
Alabama
Media
98
Hunting reports
Africa
5
USA/Canada
1
Member of
DSC, NRA, SCI
Hunted
Zambia, Botswana, Mozambique, South Africa, Zimbabwe, Namibia, Scotland, England, Canada, Alaska, Ireland
I'm glad I started this thread, you guys are a wealth of knowledge! I've been busy doing online research with the ideas you've provided. I'm not sure I'm ready to spend what the Giraud costs, but the Frankford Arsenal and Lyman Brass Smith look like good motorized options.
