Falling block action build along

Discussion in 'Firearms & Ammunition' started by Bailey Bradshaw, Aug 11, 2019.

  1. bruce moulds

    bruce moulds AH Elite

    Joined:
    Aug 10, 2018
    Messages:
    1,050
    Likes Received:
    889
    wonderful.
    bruce.

    postoak likes this.

  2. Butch Lambert

    Butch Lambert AH Senior Member

    Joined:
    Jan 30, 2019
    Messages:
    69
    Video/Photo:
    40
    Likes Received:
    99
    Location:
    Poetry, Texas
    I've known Bailey for several years. He lives about an hour away. His Wagyu beef that he sells a little of is just great. Bailey is one of the few guys that can do it all, metal work, engraving, and stockwork. He also does his own damascus and makes receivers out of his damascus. Bailey also builds a double falling block rifle.
    Can't go wrong with Bailey.


  3. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX
    Thanks Butch. Too kind of you.


  4. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX
    Making more progress on the sidelever actions. Safety is installed and operates smoothly and crisp. It blocks both the sear and trigger.

    [​IMG]

    [​IMG]


    Attached Files:

    Last edited by a moderator: Aug 27, 2019
    Bullthrower338 likes this.

  5. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX

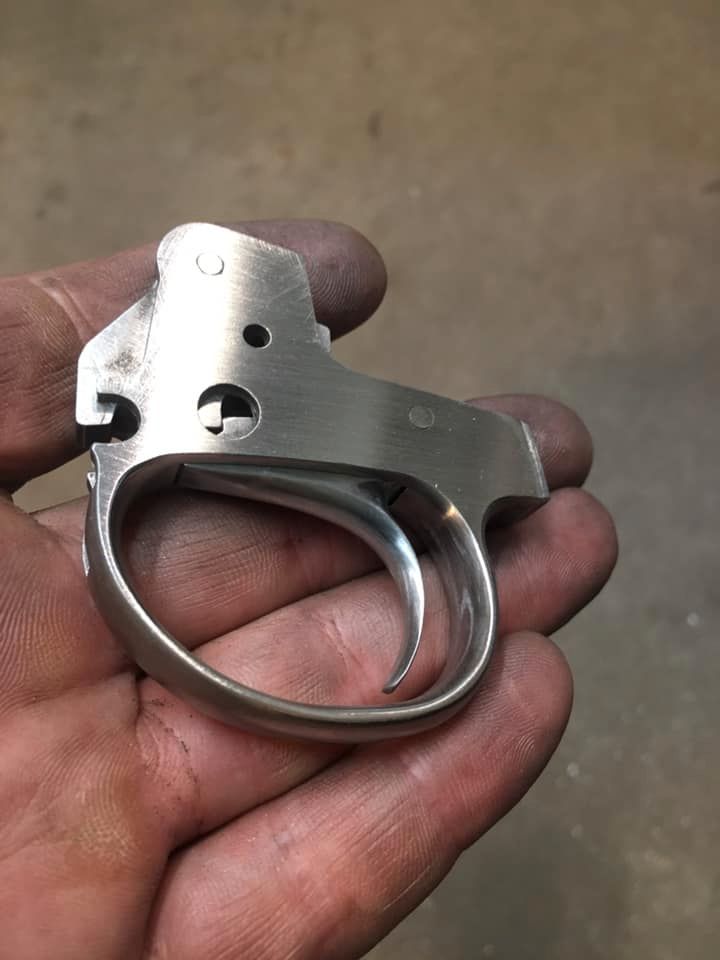

    Filed up the trigger guard and trigger. Sure makes a difference to add some shape

    [​IMG]

    [​IMG]


    Attached Files:

    Last edited by a moderator: Aug 30, 2019
    Von Gruff likes this.

  6. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX

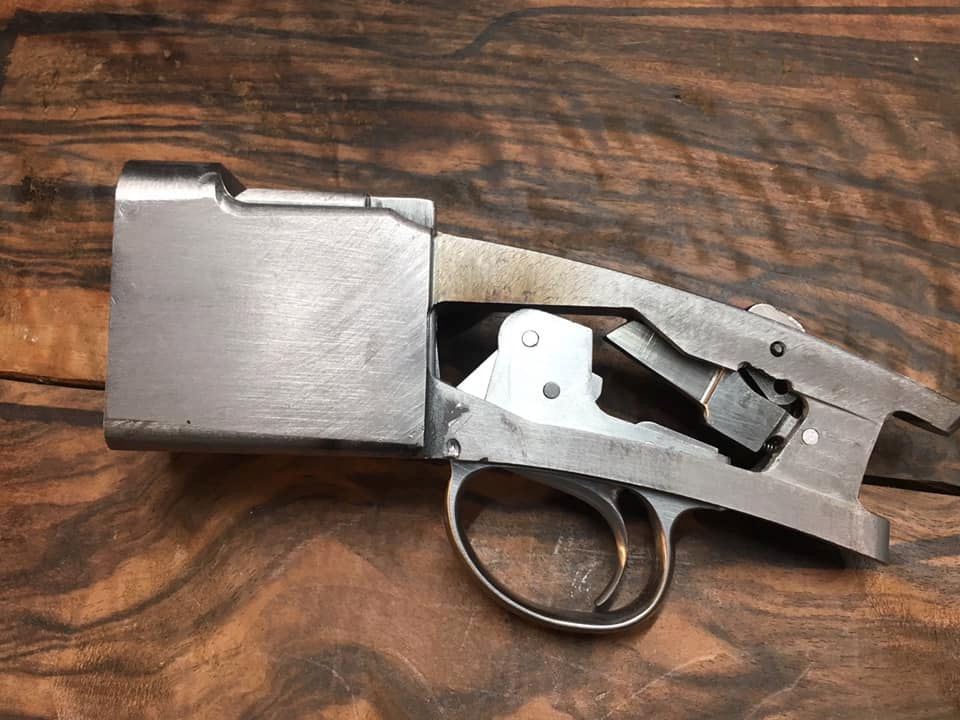

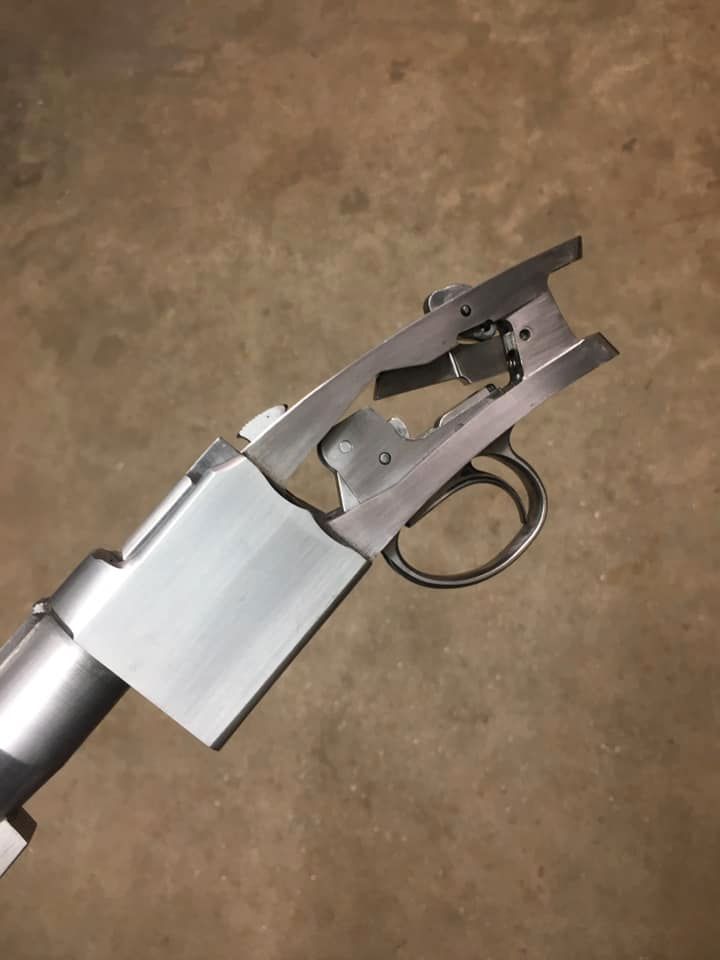

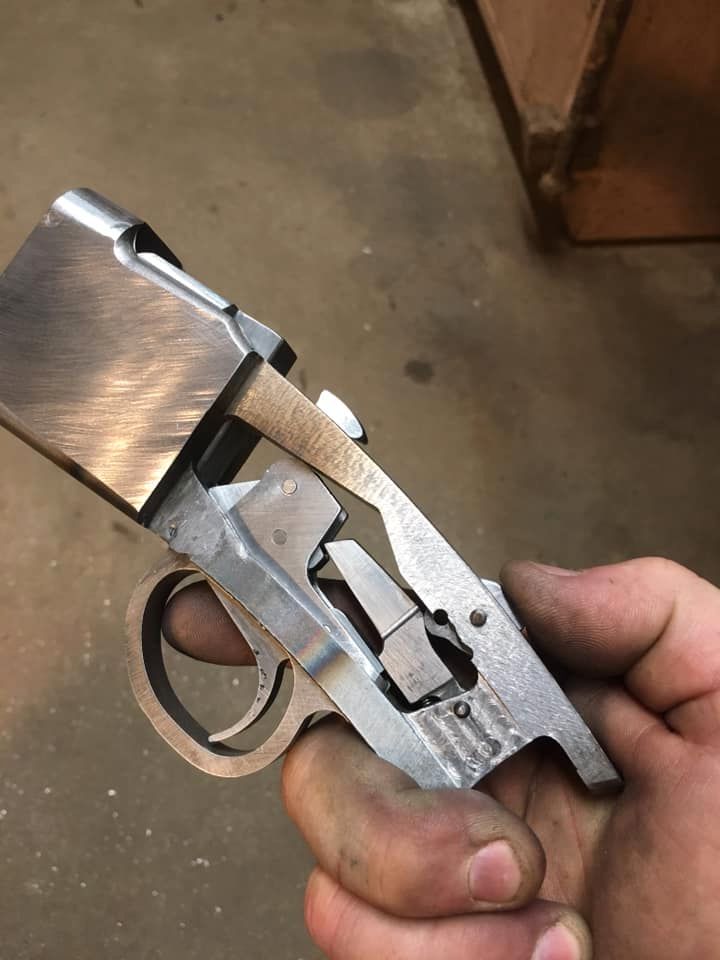

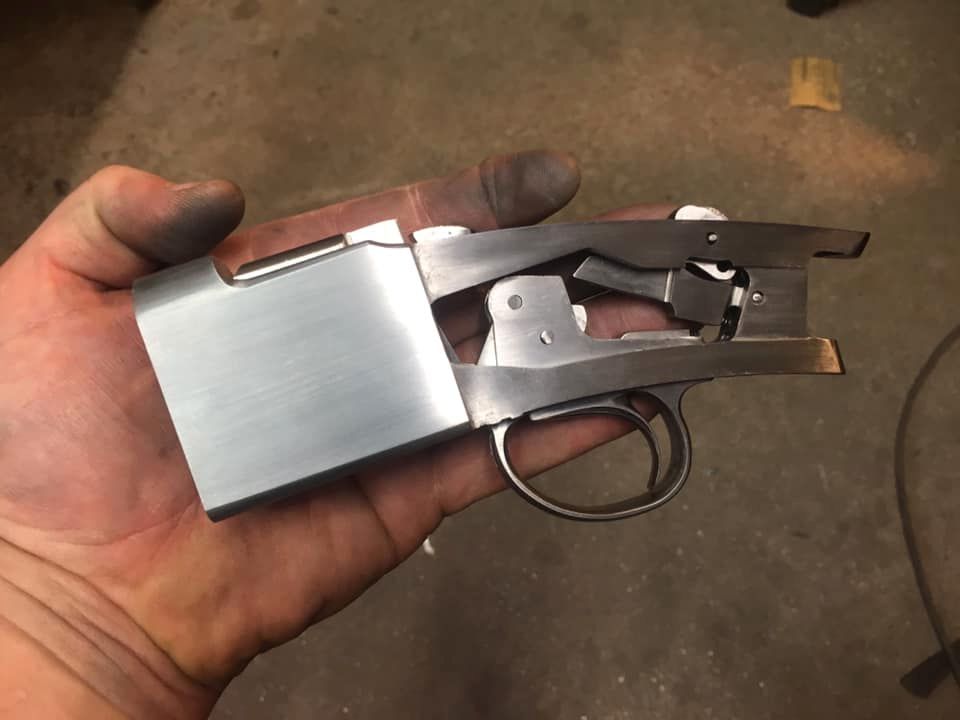

    This action is ready to harden the internal components and polish every surface. It cocks, fires, extractor is timed and stout, safety works and it opens and closes like butter. I'll polish it up and get on to the next action. One at a time at this point

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Attached Files:

    Last edited by a moderator: Aug 30, 2019
    spike.t and Bullthrower338 like this.

  7. Bullthrower338

    Bullthrower338 AH ENABLER AH Legend

    Joined:
    Sep 20, 2014
    Messages:
    3,710
    Video/Photo:
    132
    Likes Received:
    7,480
    Location:
    Houston, Texas
    Member of:
    Life Member Rocky Mountain Elk Foundation, NRA, Huntin' Fool, DSC and Pope and Young Club
    Hunted:
    USA, Mexico, Canada, RSA, Australia NT
    Great thread, thanks for posting this up!


  8. bruce moulds

    bruce moulds AH Elite

    Joined:
    Aug 10, 2018
    Messages:
    1,050
    Likes Received:
    889
    it will be interesting to see the striker mechanism go in.
    any detail in haw that setup works would be most appreciated.
    the striker was probably the last improvement in the development of the falling block.
    bruce.


  9. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX
    I will give a detailed overview of the internal components when I harden and polish them. The striker is installed and works great. FAR better than a traditional hammer/ transfer bar/ firing pin setup

    bruce moulds likes this.

  10. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX

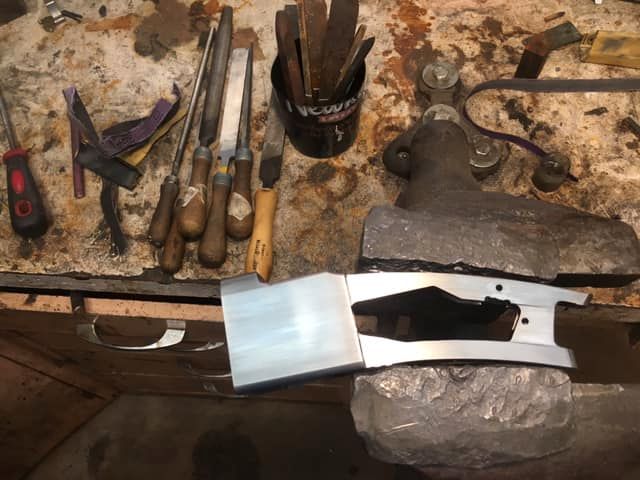

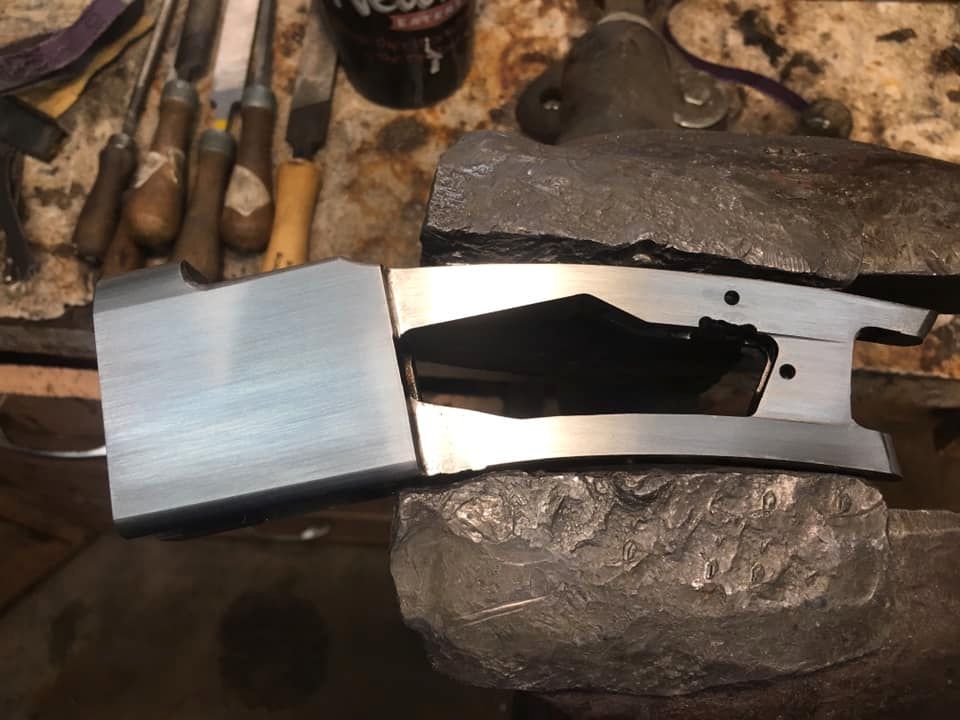

    Let the polishing begin. Start with files where needed, then stone from 220 to 400 and move to paper up to 400. A little wd-40 for lubricant.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Attached Files:

    Last edited by a moderator: Aug 31, 2019
    Bullthrower338 likes this.

  11. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX
    This one is 99% finished. Amazing what a good polish will do. Fully functional and ready to barrel. It will wear a Brux barrel and be chambered for the 6.5x65R cartridge. Very comparable to the 6.5-06 but with a rim. It also has an incredibly beautiful stock blank of curly Turkish walnut selected.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I will make a video that goes through all of the features and operation in the next day or so.


    Attached Files:

    Last edited by a moderator: Sep 5, 2019
    Pheroze and Adam S like this.

  12. Standard Velocity

    Standard Velocity New Member

    Joined:
    Sep 4, 2019
    Messages:
    14
    Likes Received:
    19
    That looks exceptional.

    Big fan of falling blocks. I like your implementation of side leaver and striker.

    Do you use the same steel for trigger, sear and receiver?

    Really beautiful work.


  13. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX
    Yes, S7 is what I use for the internals


  14. Ryan

    Ryan AH Fanatic

    Joined:
    Apr 16, 2011
    Messages:
    759
    Video/Photo:
    44
    Likes Received:
    774
    Location:
    Anchorage, Alaska
    I'm getting more and more interested in this rifle. I'm a lefty and I lke this design better than my Ruger #1. While the lever is right handed I can get used to it. The Ruger has a wall for support on the left side which make loading from that side tough, yours is more ambidextrous. A left side lever would probably have me looking at my finances right now.

    Last edited: Sep 5, 2019

  15. postoak

    postoak BRONZE SUPPORTER AH Enthusiast

    Joined:
    Dec 2, 2012
    Messages:
    481
    Video/Photo:
    28
    Likes Received:
    206
    Location:
    Texas
    Member of:
    Life member NRA
    Hunted:
    U.S.A., R.S.A, Namibia
    What is EDM?


  16. Ryan

    Ryan AH Fanatic

    Joined:
    Apr 16, 2011
    Messages:
    759
    Video/Photo:
    44
    Likes Received:
    774
    Location:
    Anchorage, Alaska
    Electrical Discharge Machining.
    Cool stuff, YouTube it.

    Bailey Bradshaw likes this.

  17. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX
    I can easily make one with a left handed lever. Will be starting another batch in two weeks. Just say the word....


  18. Bailey Bradshaw

    Bailey Bradshaw AH Senior Member

    Joined:
    May 6, 2019
    Messages:
    63
    Video/Photo:
    103
    Likes Received:
    137
    Location:
    Diana TX

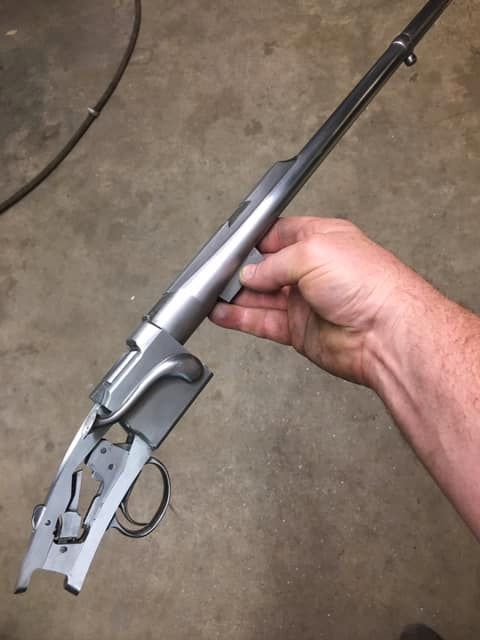

    The action is barreled with a Brux 6.5 chrome molly, chambered in 6.5X65R. It's fully funtional and ready for stocking.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]



    Attached Files:

    Last edited by a moderator: Sep 17, 2019
    farrokhrt, HWL and Pheroze like this.

  19. Bullthrower338

    Bullthrower338 AH ENABLER AH Legend

    Joined:
    Sep 20, 2014
    Messages:
    3,710
    Video/Photo:
    132
    Likes Received:
    7,480
    Location:
    Houston, Texas
    Member of:
    Life Member Rocky Mountain Elk Foundation, NRA, Huntin' Fool, DSC and Pope and Young Club
    Hunted:
    USA, Mexico, Canada, RSA, Australia NT
    Damn I love the looks of this rifle!


  20. spike.t

    spike.t AH ENABLER SPONSOR Since 2013 AH Ambassador

    Joined:
    Sep 12, 2010
    Messages:
    8,253
    Video/Photo:
    316
    Likes Received:
    5,398
    Member of:
    sci int, basc,wpaz
    Hunted:
    zambia, tanzania, zimbabwe,Mozambique ,hungary, france, england
    Go on.......you know you want to...no point spending sleepless nights thinking of it......:whistle::D
