a-square bullet lengths data wanted

[Jefferry404]

all, trying to compile a list of a-square bullet lengths for reloading. I have been using woodleigh for the dead tough and barnes mono for his mono solids (i scale the barnes length by navel bronze vs brass density). but would like some actual measured data. Appreciated any folks here can measure some lengths for me. thanks
Steve



[Schüler Jumbo]

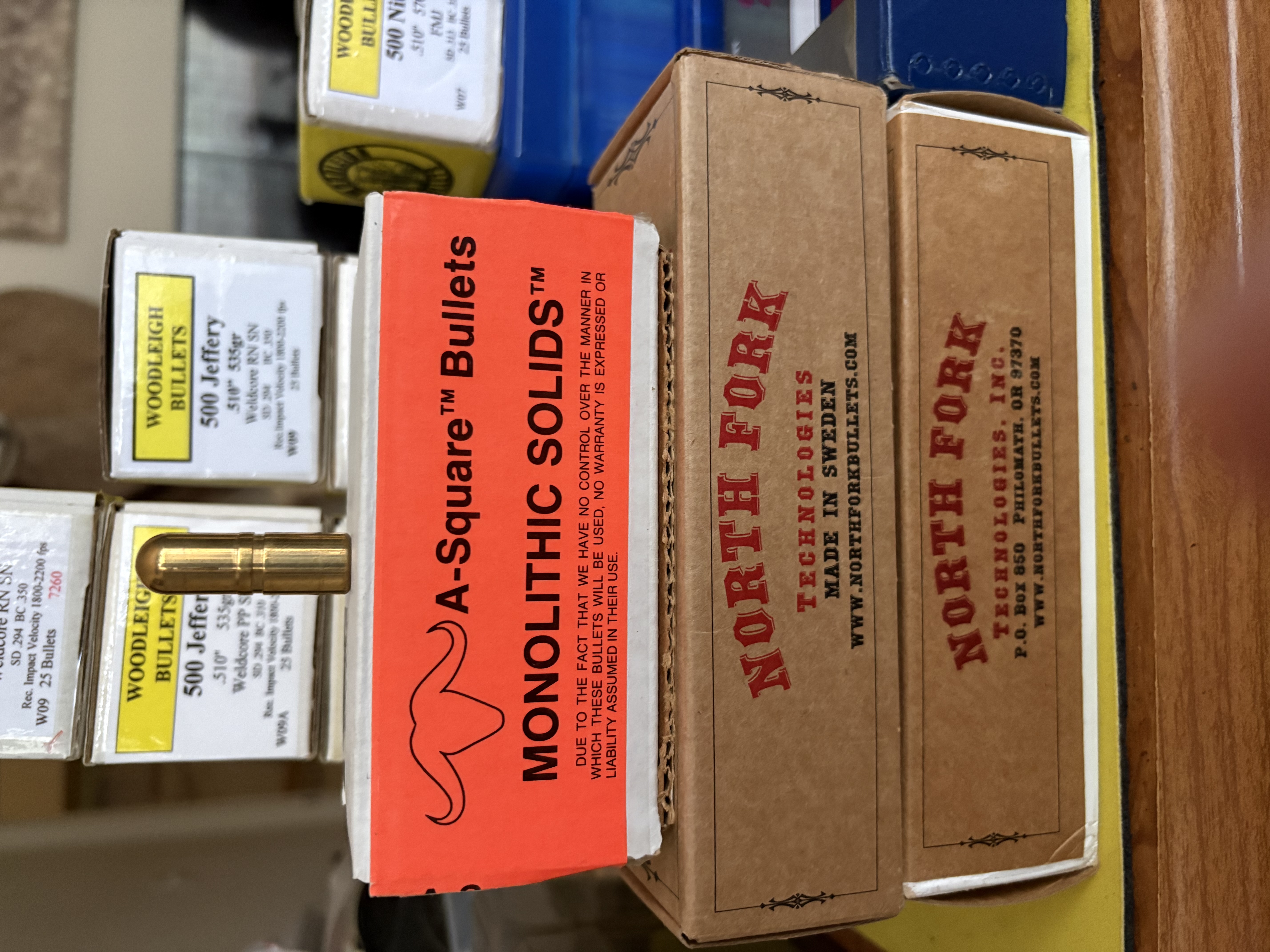

A2 .458” 465 grain Monolithic Solid: 1.455”

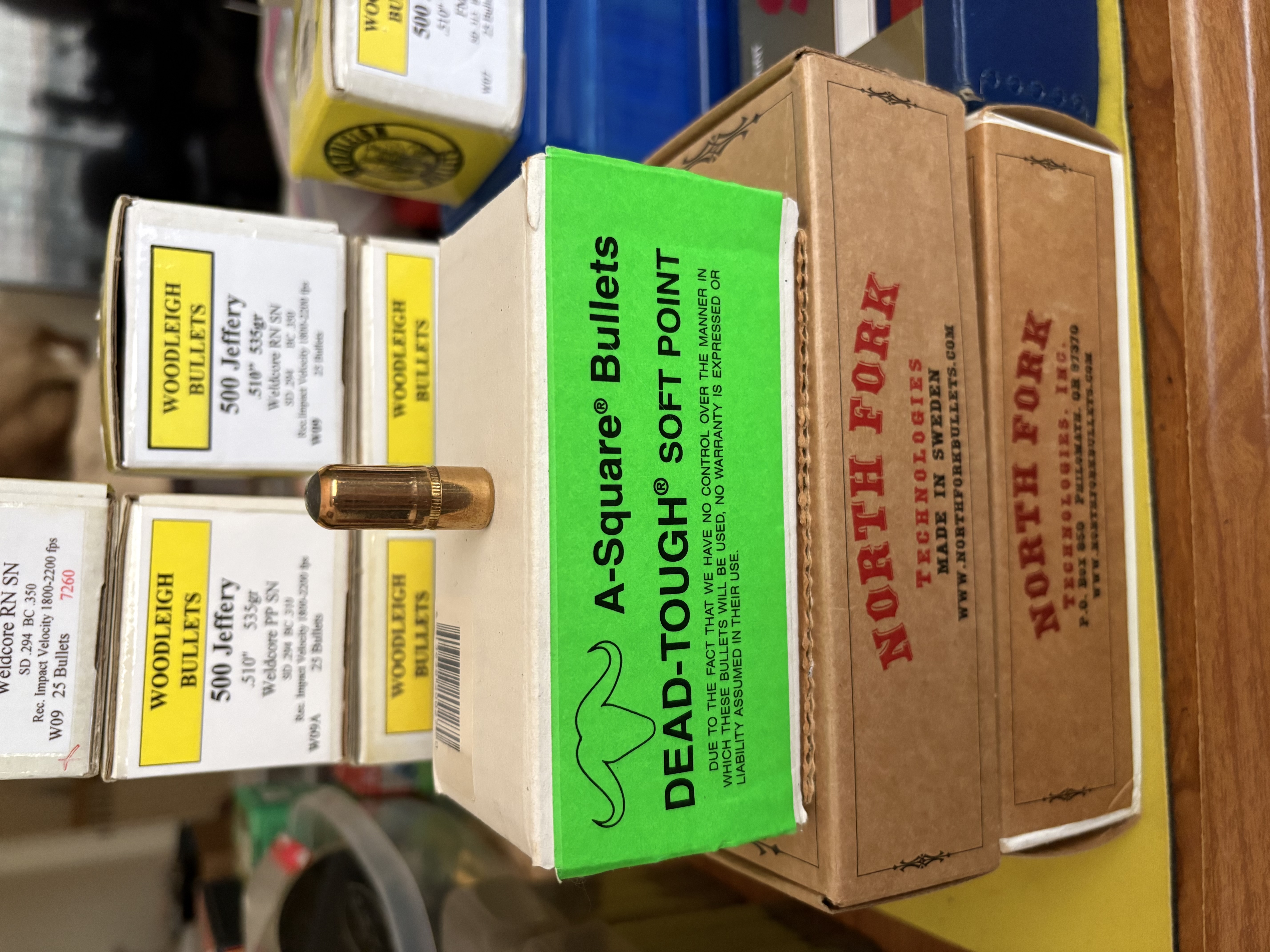

A2 .458” 465 grain Dead-Tough: 1.243”

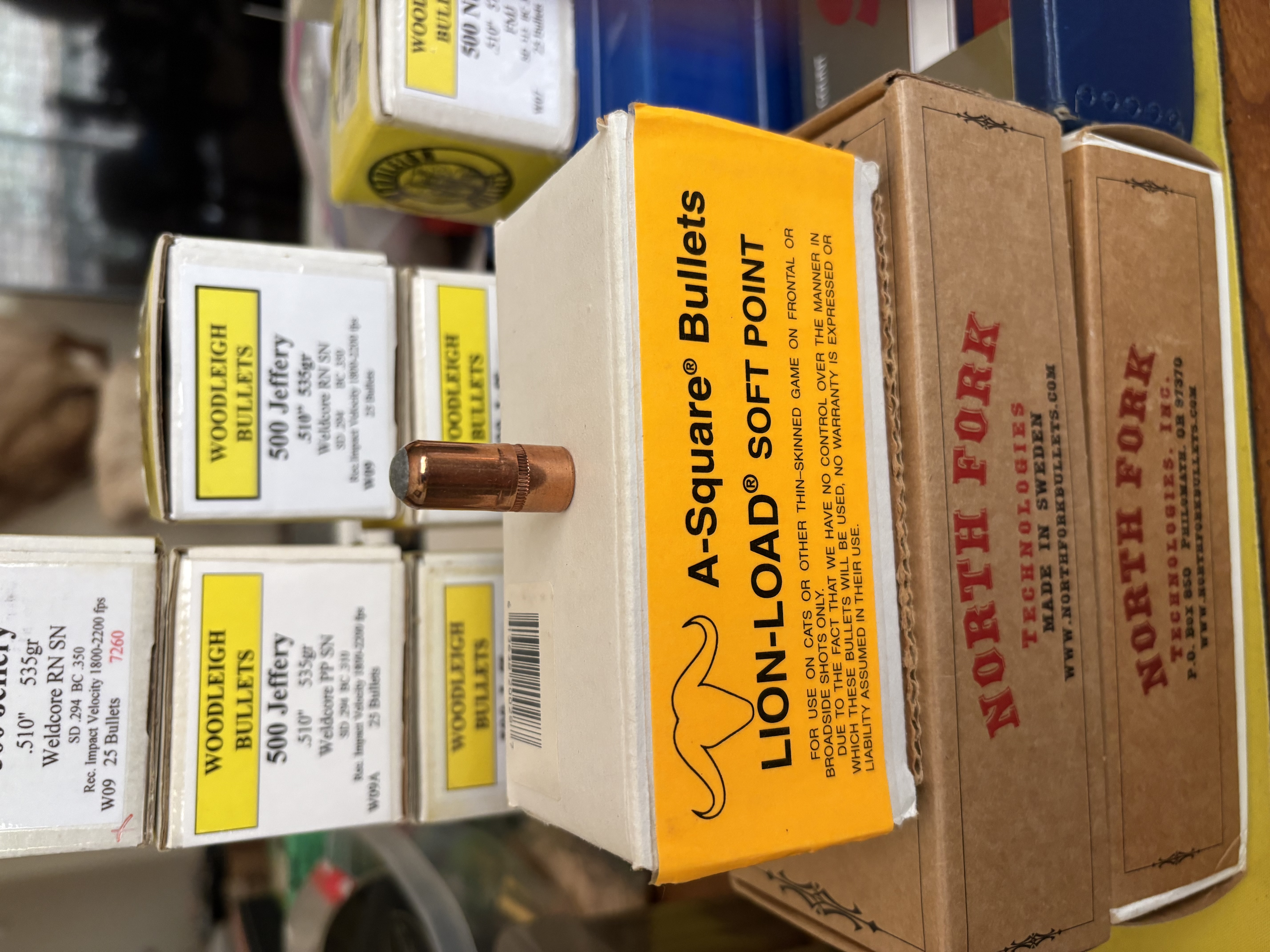

A2 .458” 465 grain Lion-Load: 1.165”



[Jefferry404]

@Schüler Jumbo, thank you Sir!
my source has:
0.458 0.458 Dead Tough 465 1.250 Jacketed Lead Core
0.458 0.458 Monolithic Solid 465 1.385 Solid Bronze/Copper
0.458 0.458 Lion Load 465 1.250 Thin-Jacketed Lead Core



[Schüler Jumbo]

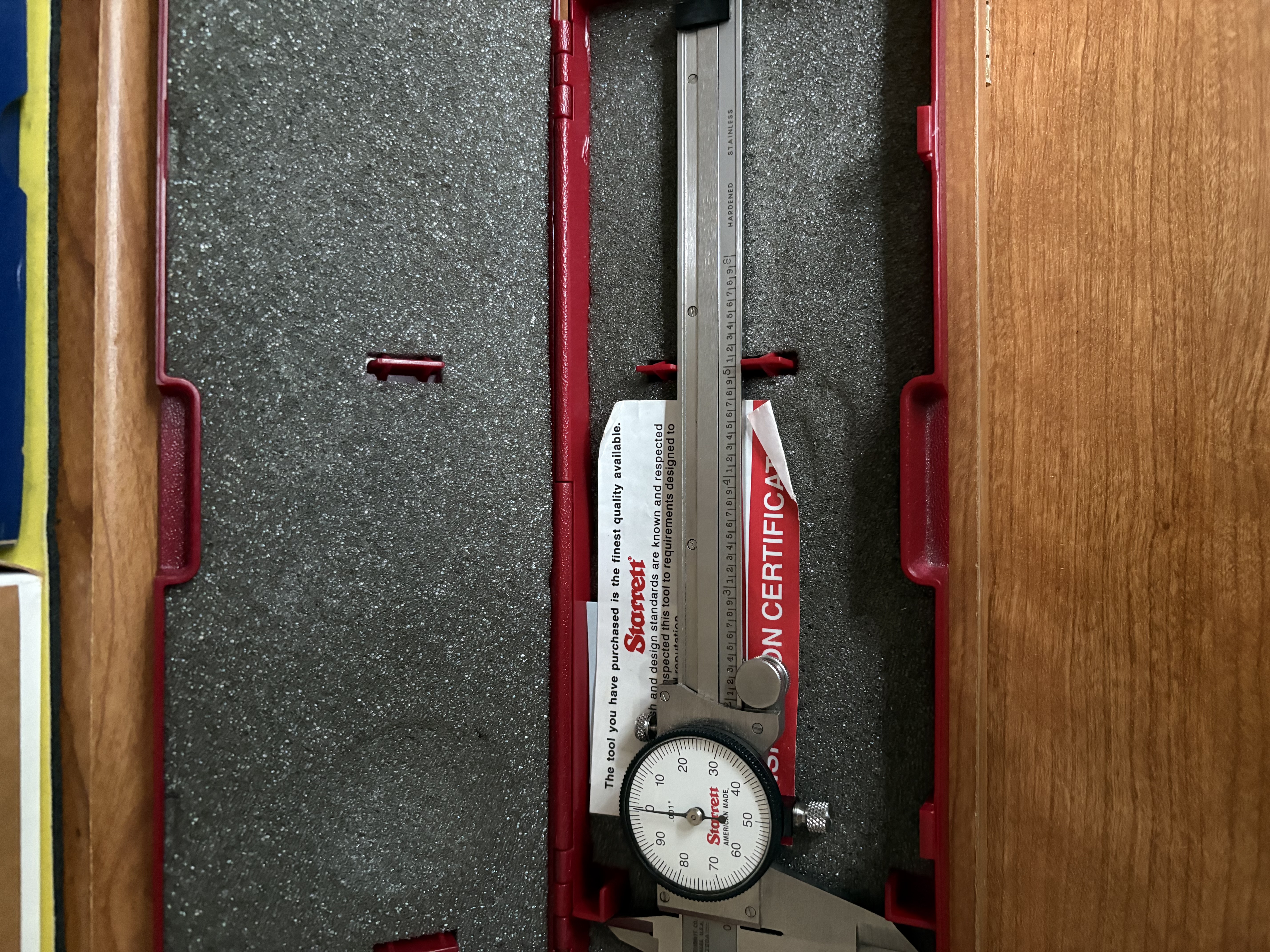

Hmmm, that’s a pretty significant difference. I measured with a Starrett.



[Jefferry404]

I know. Disappointing huh!



[Schüler Jumbo]

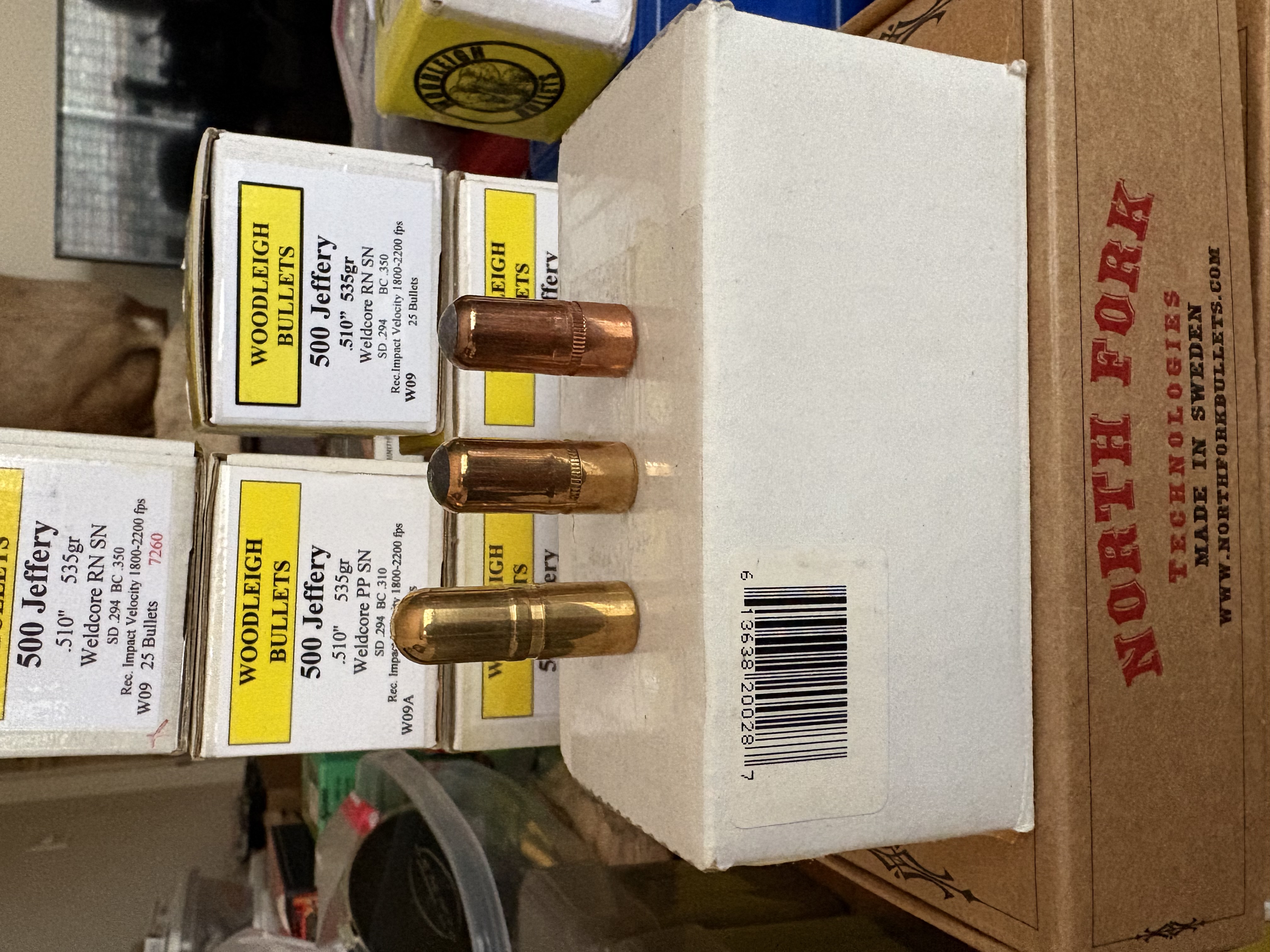

Looking at the photo of the three together the Dead-Tough and Lion-Load are not the same length.
