Trophy room lighting

Discussion in 'Taxidermy' started by RBurg44, Dec 31, 2017.

  1. RBurg44

    RBurg44 AH Senior Member

    Joined:
    Aug 24, 2016
    Messages:
    67
    Video/Photo:
    30
    Likes Received:
    79
    Location:
    Hampstead, MD
    hey guys gettin ready to wire yup the room got cathedral ceilings and 9' walls really would like to see some pics of you alls lighting and weather or not its enough of wish you had more... the room is 22'x21' if that helps. As a guess i have 10 recessed LED lights planned evenly spaced out but starting to think(or over think) if ill need more please help!


  2. tedthorn

    tedthorn AH Veteran

    Joined:
    Jul 2, 2014
    Messages:
    169
    Video/Photo:
    9
    Likes Received:
    128
    Location:
    South East Missouri
    Hunted:
    Eastern Cape of South Africa
    I'm going to add LED track lighting in my trophy room to get light in just the right place


  3. CAustin

    CAustin AH ENABLER BRONZE SUPPORTER AH Ambassador

    Joined:
    May 7, 2013
    Messages:
    11,365
    Video/Photo:
    101
    Likes Received:
    7,588
    Member of:
    Courtney Hunting Club, NRA Life Member, SCI Kansas City Chapter
    Hunted:
    South Africa, Kalahari, Northwest, Limpopo, Gauteng, APNR Kruger Area. USA Georgia, South Carolina, Arkansas, New Mexico, North Carolina and Texas
    I would suggest that the you include directional recessed lighting fixtures. That way you can aim the lights as you see fit!

    Rick Cox likes this.

  4. buddy48

    buddy48 AH Senior Member

    Joined:
    Sep 2, 2014
    Messages:
    70
    Video/Photo:
    12
    Likes Received:
    87
    Location:
    Georgia
    Hunted:
    Georgia, South Carolina, Iowa, Montana, Missouri, South Africa
    I A I'm working on my room as well. I have read some places where folks recommend lights below the animals shining up. Ever heard of this?


  5. Bhfs300

    Bhfs300 AH Fanatic

    Joined:
    Oct 25, 2013
    Messages:
    647
    Video/Photo:
    40
    Likes Received:
    465
    Hunted:
    USA Canada South Africa New Zealand
    You might have a set of lights set that will spot your trophies on one switch and another switch that just lights the room. That way you could have the room dim but main locations spotted where your trophies are.


  6. wesheltonj

    wesheltonj AH Elite

    Joined:
    Feb 11, 2015
    Messages:
    1,227
    Video/Photo:
    8
    Likes Received:
    893
    Location:
    South Texas
    Member of:
    Endowment-Life NRA, DSC, SCI, RMEF
    Hunted:
    USA, RSA
    I would suggest the you "wash the walls" with LED lighting and them have some LED spots.


  7. Dr Ray

    Dr Ray AH Elite

    Joined:
    Apr 1, 2017
    Messages:
    1,276
    Video/Photo:
    3
    Likes Received:
    811
    Location:
    Cairns, Australia
    Simple answer is no I have not heard that one before.

    Philip Glass likes this.

  8. 375 Ruger Fan

    375 Ruger Fan AH Legend

    Joined:
    Jun 14, 2015
    Messages:
    2,101
    Video/Photo:
    107
    Likes Received:
    2,319
    Location:
    Houston, Texas
    Member of:
    NRA
    Hunted:
    Namibia, Zimbabwe, South Africa (Eastern Cape), Alaska, TX, LA, MO, OH, MT, ID, WA, Canada (Yukon)
    Yes, I have heard of this and actually incorporating it into my trophy room, currently under construction. Having lighting from multiple angles eliminates shadows around the trophies.


  9. Philip Glass

    Philip Glass LIFETIME BRONZE BENEFACTOR AH Elite

    Joined:
    Feb 26, 2015
    Messages:
    1,618
    Video/Photo:
    14
    Likes Received:
    2,370
    Location:
    Texas
    Member of:
    NRA, Life SCI, Life DSC, Life EWA
    Hunted:
    RSA, Namibia, Kyrgyzstan, Austria, Zimbabwe, Texas
    There is a seminar every year at SCI on building a trophy room. They do talk about lighting along with everything else. I remember them talking about perimeter lighting that shines down the walls. Sounds like a great idea. You must light the room (ie the recessed lights) and then light the features/mounts. Now with led track lighting has so many possibilities. I was just on a scissorlift rearranging and putting up Giraffe etc and I also repointed my non-led track lights. The are fun to play with but if I had more and they were cool leds I’d be happier. Maybe a project for 2018!
    Philip

    ScottG and BWH like this.

  10. Lowry smith

    Lowry smith New Member

    Joined:
    Feb 28, 2012
    Messages:
    8
    Video/Photo:
    2
    Likes Received:
    14
    Location:
    Oklahoma
    Hunted:
    Zimbabwe, South Africa, new Zeland,U.S., Kyrgyzstan Spain Burkina Faso
    I have track lighting with low voltage heads I think the 12 volt 50 watt halogen bulbs give the most natural light


  11. K-man

    K-man AH Elite

    Joined:
    Apr 14, 2013
    Messages:
    1,231
    Video/Photo:
    32
    Likes Received:
    1,646
    Hunted:
    Soon Alaska, RSA, Zimbabwe, New Zealand, British Columbia, Oklahoma, Texas, Kansas, Utah, Colorado, New Mexico, Wyoming
    Led lights can be purchased here in the states in almost any shading (Kelvin) that you want from 2500 to 5000. look at a display with different shades to determine the color you need. I like the front/low lighting but I can't see how you can do it without your body casting a shadow on the mount. Whatever you end up doing, make sure the lighting is flexible or moveable because your mounts will need to be moved as your collection grows. I prefer the basic room lighting with led track lights that can be repositioned. Good Luck!


  12. Shannon1966

    Shannon1966 AH Senior Member

    Joined:
    Aug 15, 2016
    Messages:
    50
    Likes Received:
    52
    Location:
    Longview Texas
    Member of:
    FUMC, SCI, NFIB, TLTA
    Hunted:
    Zimbabwe, New Mexico, British Columbia, Colorado, Canada, Louisiana, Oklahoma, Iowa, Mexico
    This is very interesting. Please post pics of lighting in trophy rooms.


  13. Ridge Top Ranch

    Ridge Top Ranch AH Enthusiast

    Joined:
    Aug 15, 2014
    Messages:
    260
    Video/Photo:
    3
    Likes Received:
    373
    Location:
    Kansas City, MO USA
    Member of:
    SCI, NRA
    Hunted:
    U.S. Zimbabwe, South Africa, Northwest & Limpopo
    Will be doing a 27x28 room this spring. My plan is to do recessed LED floods in "daylight" 2' from the walls every 4' around perimeter. Then add adjustable LED spots. All on dimmers.

    Only other lighting will be lamps and LED drop lights over 14' dining table for all the grand kids. I will post pics when done.

    Rick Cox and 375 Ruger Fan like this.

  14. RBurg44

    RBurg44 AH Senior Member

    Joined:
    Aug 24, 2016
    Messages:
    67
    Video/Photo:
    30
    Likes Received:
    79
    Location:
    Hampstead, MD
    Does 2' from walls on ceiling sound about right for track lighting shining down? Not sure how far a typical mount comes off wall but i feel hey are at 2' for smaller animals but 3' cold easily be had on a kudu or sable. Insite guys! Wiring up these week!


  15. Bhfs300

    Bhfs300 AH Fanatic

    Joined:
    Oct 25, 2013
    Messages:
    647
    Video/Photo:
    40
    Likes Received:
    465
    Hunted:
    USA Canada South Africa New Zealand
    Hi

    Here are a couple photos of my Trophy room

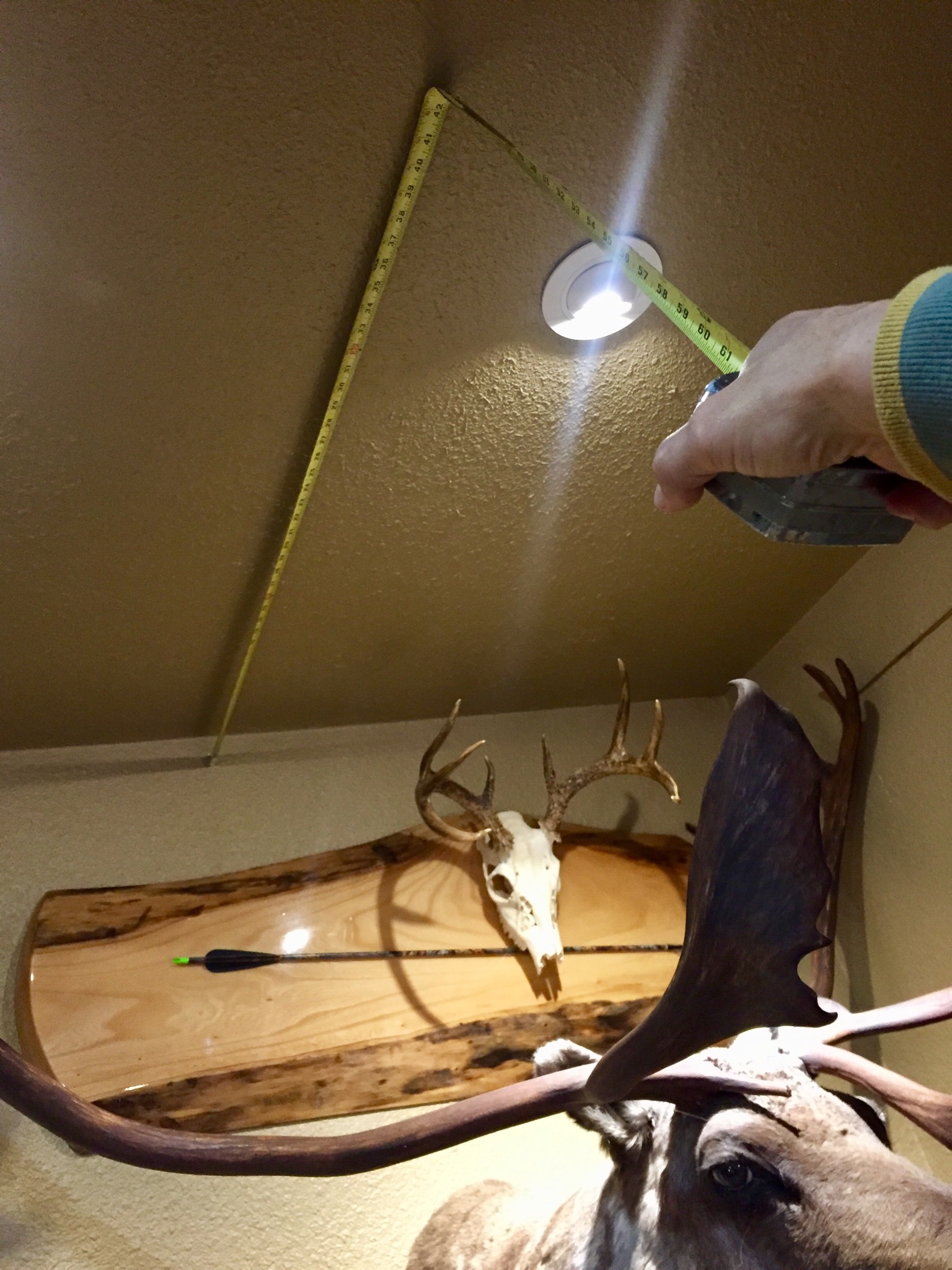

    and I would say Two Feet is to close. One set of two photos is of a Whitetail and a Caribou. Two spots at about 36 inches.

    AF8987C7-EC5A-4CB9-BD8F-EE22E0D5C8D9.jpeg CC3F5B87-8FEC-4CC5-B85F-90CDDB8A8E8C.jpeg

    Next is a Nyala and a Kudu again two spots about 44-46 inches. Both are 4” directional spots.

    745D8139-DD92-44BF-8227-1D6215D06EBC.jpeg 5D7914A0-9409-4D81-8AA8-7680F3958FA4.jpeg

    My room is in the basement so the roof is only about 7.5’. That means a higher roof would be out from the wall more.
    I was a Geometry teacher for about 38 years so the math is kind of important:)


  16. 375 Ruger Fan

    375 Ruger Fan AH Legend

    Joined:
    Jun 14, 2015
    Messages:
    2,101
    Video/Photo:
    107
    Likes Received:
    2,319
    Location:
    Houston, Texas
    Member of:
    NRA
    Hunted:
    Namibia, Zimbabwe, South Africa (Eastern Cape), Alaska, TX, LA, MO, OH, MT, ID, WA, Canada (Yukon)



    ScottG and Bhfs300 like this.

  17. Bhfs300

    Bhfs300 AH Fanatic

    Joined:
    Oct 25, 2013
    Messages:
    647
    Video/Photo:
    40
    Likes Received:
    465
    Hunted:
    USA Canada South Africa New Zealand
    X=5. That is the Geometry that Carpenters use to square up walls:)

    375 Ruger Fan likes this.

  18. 375 Ruger Fan

    375 Ruger Fan AH Legend

    Joined:
    Jun 14, 2015
    Messages:
    2,101
    Video/Photo:
    107
    Likes Received:
    2,319
    Location:
    Houston, Texas
    Member of:
    NRA
    Hunted:
    Namibia, Zimbabwe, South Africa (Eastern Cape), Alaska, TX, LA, MO, OH, MT, ID, WA, Canada (Yukon)
    The old 3-4-5 triangle for the perfect right angle! :)

    Bhfs300 likes this.

  19. Hmaxwell

    Hmaxwell AH Member

    Joined:
    Mar 26, 2017
    Messages:
    47
    Likes Received:
    69
    This room is 27x30 with 14’ sidewalls. We did 7 led cans on each vault and a chandelier in the center. All on dimmers and independent. Ends up being a lot of light when all on at full power. Just ideas.


    Last edited by a moderator: Jan 13, 2018
    Rick Cox likes this.

  20. buddy48

    buddy48 AH Senior Member

    Joined:
    Sep 2, 2014
    Messages:
    70
    Video/Photo:
    12
    Likes Received:
    87
    Location:
    Georgia
    Hunted:
    Georgia, South Carolina, Iowa, Montana, Missouri, South Africa

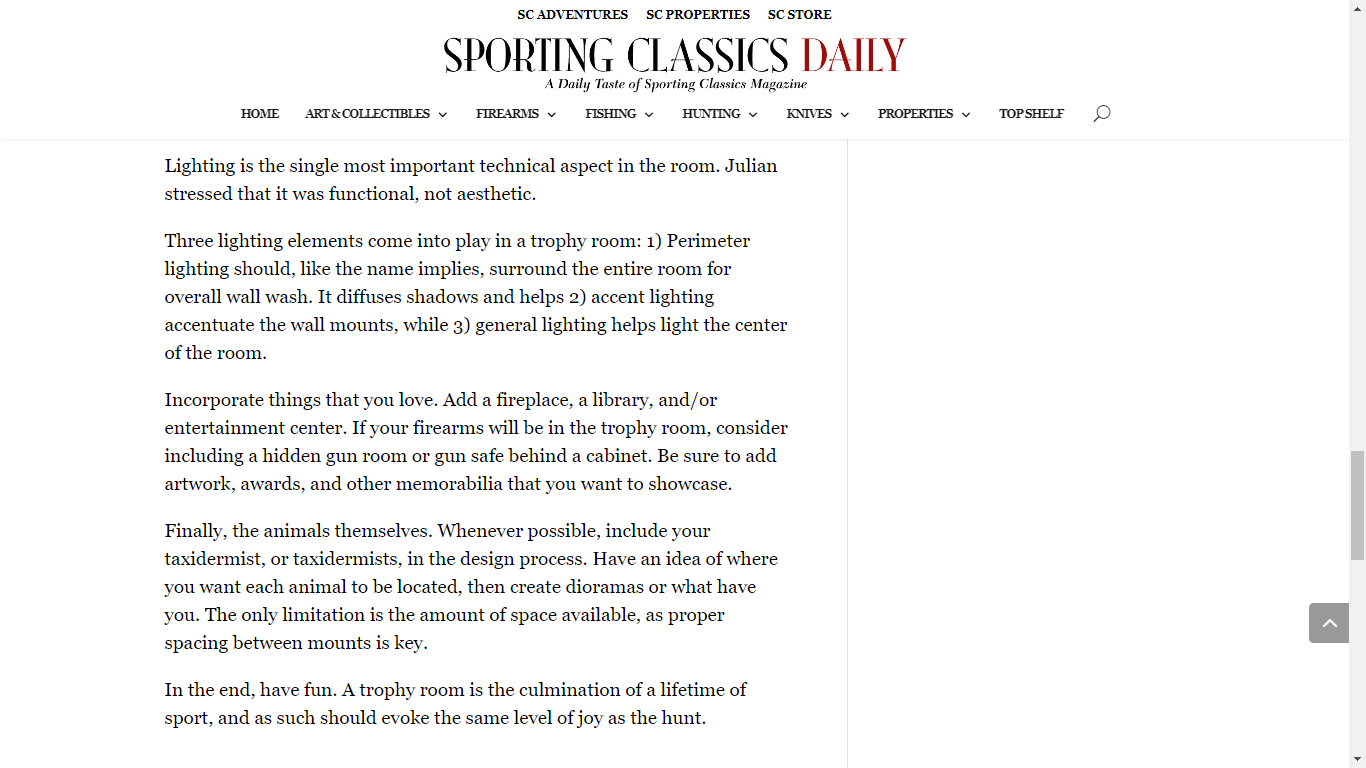

    “Three lighting elements come into play in a trophy room: 1) Perimeter lighting should, like the name implies, surround the entire room for overall wall wash. It diffuses shadows and helps 2) accent lighting accentuate the wall mounts, while 3) general lighting helps light the center of the room.”

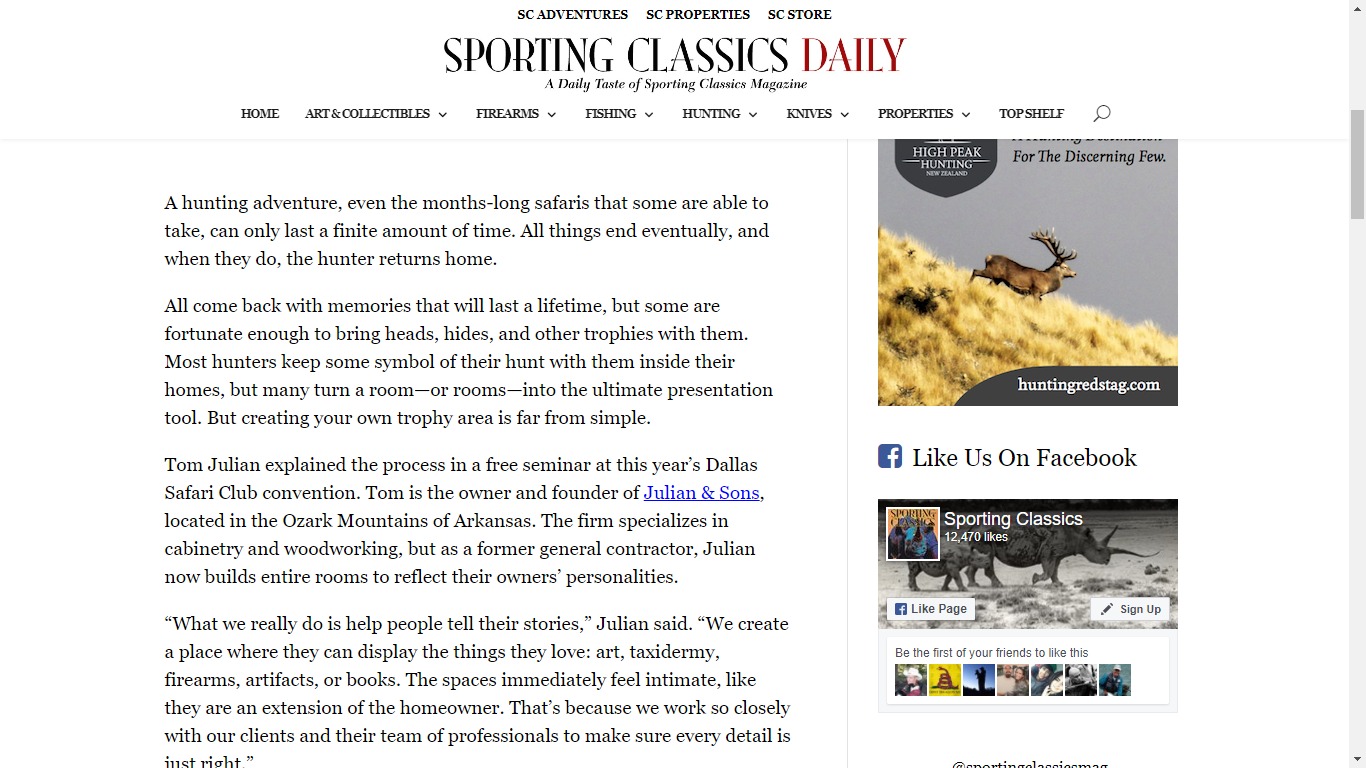

    Exceprt from an article in Sporting Classics Daily. Tom Julian discussed design of a trophy room:

    http://sportingclassicsdaily.com/designing-your-own-trophy-room/

    If you’ve been to a seminar of his I’m sure you’ve heard this. I haven’t had an opportunity to attend one.


    Attached Files:

    Last edited by a moderator: Jan 17, 2018
