Suppressed .416 Rigby

717gunnner

New member
Joined
Jun 5, 2020
Messages
2
Reaction score
15
Media
3
My last name is Rigby, so I've always wanted a .416. A few years ago while still living in Alaska, I walked into Cabelas where there was a CZ550 waiting for me (the only 416 I'd ever be able to afford). With no objection from the Mrs, I took it home with me. I grabbed some reloading supplies on the way back to my village and spent the next several weeks loading and shooting. I took it with me on a few unsuccessful subsistence bear hunts, but we moved out of Alaska the following year before I could take one.

Now living in PA, I knew I wasn't ever going to have a practical use for the caliber, so it was time to have some fun. Last year I added Form 1 suppressor building to my growing list of DIY firearm related hobbies. After building my first few suppressors, I thought, why not suppress my 416? Research quickly came up empty, I couldn't even find a threaded 416, let alone a suppressed one (not surprised).

I contacted my gunsmith about threading my CZ and discussed a few challenges. We were both shooting in the dark considering the barrel taper, soldered on front sight band, and the barrel profile being too narrow for a good shoulder without a collard. Thankfully my gunsmith was willing to give it a shot.

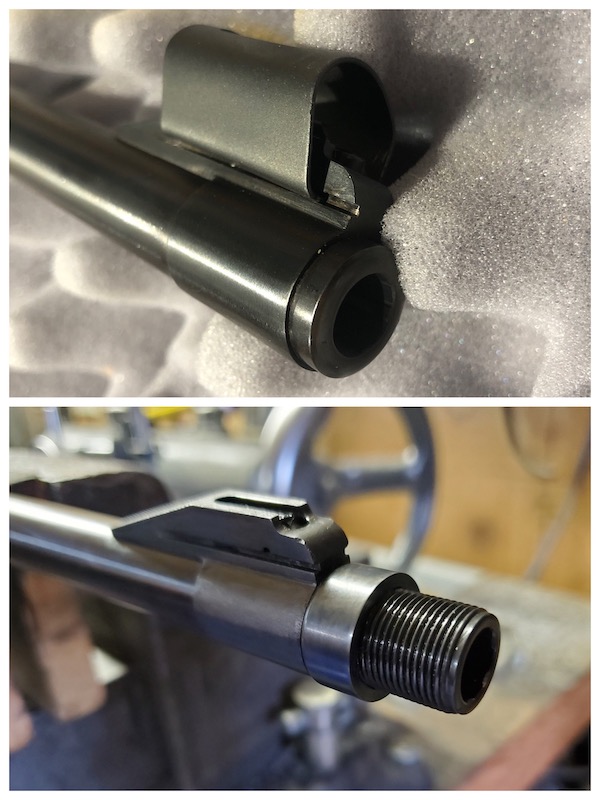

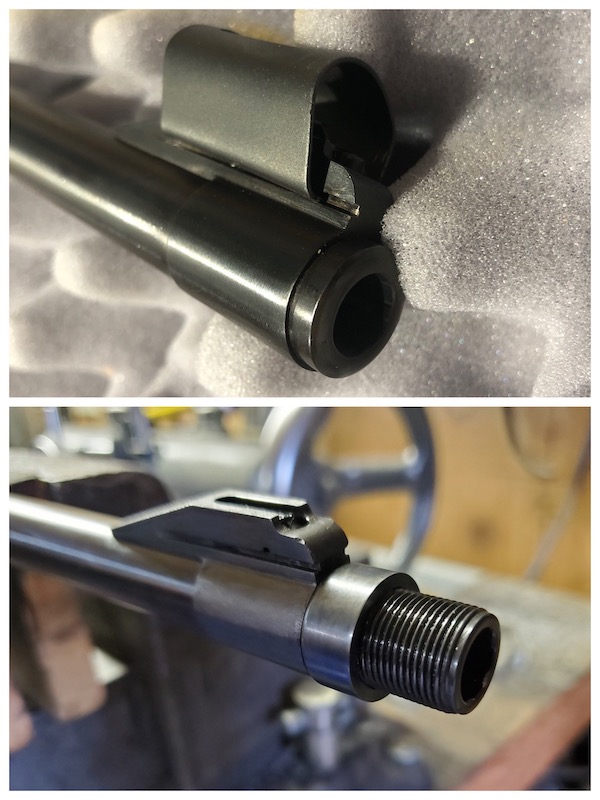

I was able to source a new sight band from CZ in case the original was damaged during removal (which it was). The next issue was getting the sight band fitted further back on the barrel given the taper. He was able to heat the band up enough to stretch it further back on the barrel. After that he had no issues concentrically threading the barrel (5/8-24), turning a collard, and installing it between the threads and sight band.

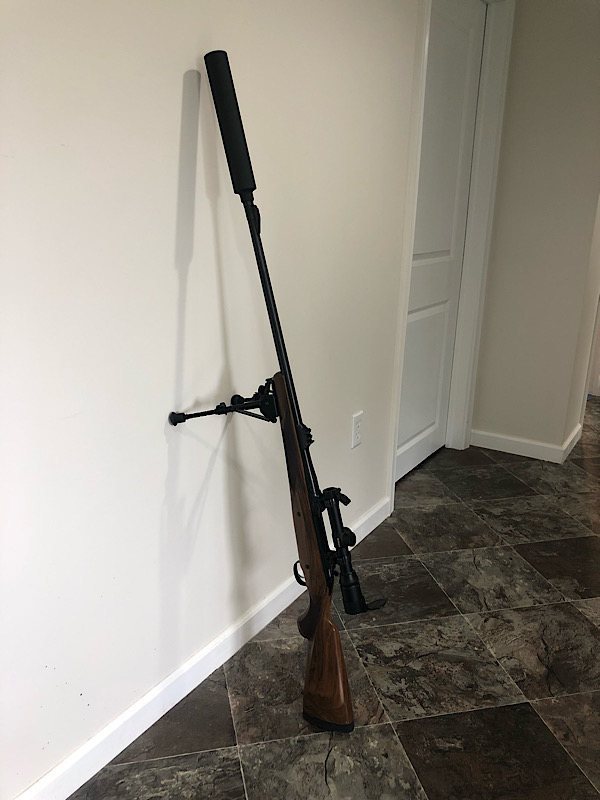

I designed and built the suppressor based off of a .338 Lapua suppressor. The tube and mounts are made from Grade 9 titanium and the baffles are made from 17-4 H900 heat treated stainless steel. I'm planning to shoot both standard and reduced power loads through it.





Attachments

  • IMG_0017-2.jpeg
    108.1 KB · Views: 73
  • IMG_0017.jpeg
    108.1 KB · Views: 144
  • IMG_0067.JPG
    256.2 KB · Views: 59
  • IMG_0068.JPG
    99.5 KB · Views: 124
Last edited by a moderator:

Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
7,687
Reaction score
9,670
Location
Colorado
Media
247
Hunting reports
Africa
3
USA/Canada
4
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
717gunner, welcome to the forum!
Man that is one long pipe!


Red Leg

Lifetime bronze benefactor
AH ambassador
Joined
May 19, 2009
Messages
8,562
Reaction score
31,138
Location
Texas Hill Country
Media
350
Articles
6
Hunting reports
Africa
3
USA/Canada
5
Mex/S.Amer
2
Europe
5
Member of
SCI DSC life memberships / NRA Patron Life
Hunted
Mexico, Namibia, RSA, Zambia, Germany, Austria, Argentina, Canada, Mozambique, Spain, US (15 states)
Would look pretty cool mounted on a gun carriage. Seriously though, would you really consider taking that long a rifle into the woods and jess, or is this a rifle for fun at the range?


Tra3

AH elite
Joined
Jan 22, 2019
Messages
1,381
Reaction score
2,695
Location
Minneapolis, MN
Media
22
Member of
SCI
Hunted
Namibia
Cool project.
Are you getting a FPS increase with the suppressor?
What is the suppressor weight?


Dr Ray

AH legend
Joined
Apr 1, 2017
Messages
3,393
Reaction score
4,383
Location
Cairns, Australia
Media
53
Articles
5
Hunting reports
Australia/NZ
7
Member of
Sporting Shooters Association of Australia + CRM Gunsports (Cairns)
Interesting project


Mekaniks

Gold supporter
AH elite
Joined
Jan 20, 2014
Messages
1,726
Reaction score
3,213
Location
Seward, Alaska
Media
78
Articles
1
Hunting reports
Africa
1
USA/Canada
8
Australia/NZ
1
Member of
SCI, RMEF
Hunted
AK, WY, WA, ID, FL, SD, TX, HI, South Africa- Northwest Province
Welcome to AH:S Welcome: Great first post and cool project.


717gunnner

New member
Joined
Jun 5, 2020
Messages
2
Reaction score
15
Media
3
Would look pretty cool mounted on a gun carriage. Seriously though, would you really consider taking that long a rifle into the woods and jess, or is this a rifle for fun at the range?

Purely a range toy. If I had any intention of hunting with this I'd shorten the barrel to 20" (if the ballistics even made sense) and reduce the suppressor length to 8-9".

Cool project.
Are you getting a FPS increase with the suppressor?
What is the suppressor weight?

I need to borrow a Chronograph to find out. Suppressor weight is 22oz.


Cody hunt4life

AH senior member
Joined
Mar 29, 2019
Messages
65
Reaction score
98
Location
Frisco, TX
Website
www.facebook.com
Media
29
Hunting reports
Africa
1
Member of
NRA, SCI, Texas Trophy Hunters Association
Hunted
USA, Mexico, South Africa
My last name is Rigby, so I've always wanted a .416. A few years ago while still living in Alaska, I walked into Cabelas where there was a CZ550 waiting for me (the only 416 I'd ever be able to afford). With no objection from the Mrs, I took it home with me. I grabbed some reloading supplies on the way back to my village and spent the next several weeks loading and shooting. I took it with me on a few unsuccessful subsistence bear hunts, but we moved out of Alaska the following year before I could take one.

Now living in PA, I knew I wasn't ever going to have a practical use for the caliber, so it was time to have some fun. Last year I added Form 1 suppressor building to my growing list of DIY firearm related hobbies. After building my first few suppressors, I thought, why not suppress my 416? Research quickly came up empty, I couldn't even find a threaded 416, let alone a suppressed one (not surprised).

I contacted my gunsmith about threading my CZ and discussed a few challenges. We were both shooting in the dark considering the barrel taper, soldered on front sight band, and the barrel profile being too narrow for a good shoulder without a collard. Thankfully my gunsmith was willing to give it a shot.

I was able to source a new sight band from CZ in case the original was damaged during removal (which it was). The next issue was getting the sight band fitted further back on the barrel given the taper. He was able to heat the band up enough to stretch it further back on the barrel. After that he had no issues concentrically threading the barrel (5/8-24), turning a collard, and installing it between the threads and sight band.



I designed and built the suppressor based off of a .338 Lapua suppressor. The tube and mounts are made from Grade 9 titanium and the baffles are made from 17-4 H900 heat treated stainless steel. I'm planning to shoot both standard and reduced power loads through it.



That’s exactly what I’m trying to have done with mine as well! I’ve got the suppressor for it just need to have my CZ 550 Safari .416 Rigby barrel threaded. My hope is to retain the front sight as well as I do still plan to use this particular rifle on my next trip across the pond for close quarters shots on Cape Buffalo. I’m wanting ti go suppressed for most of the same reasons you are to make the rifle a bit more enjoyable to shoot for other large game in North America as well. I’d be very interested in hearing some shooting results being that apparently you and I are the only two out there that are going to be running .426 Rigby suppressed. I’ll be running mine with a Banish 46 can. Hope to hear an update preferably with a few factory loads as well since I’m not a reloader myself. Best of luck!


Hunter-Habib

AH fanatic
Joined
Jul 8, 2021
Messages
598
Reaction score
1,572
Media
32
Hunted
Zambia , Namibia , Kenya , Mozambique , Zimbabwe
Seems intriguing and very futuristic looking.


mdsalern

AH senior member
Joined
Mar 12, 2022
Messages
84
Reaction score
100
Location
Fort Worth, Texas
Don’t know that I would ever do that to mine, but thank you for the idea. It is a fine looking setup. How long is the suppressor? What are your db readings with and without the can?


BryceM

AH veteran
Joined
Aug 5, 2009
Messages
167
Reaction score
103
Media
10
Hunting reports
Africa
1
USA/Canada
1
Member of
NRA, RMEF
Hunted
USA, Namibia
Ha. Fantastic!

How's the recoil? Pretty tame I'd imagine.


BeeMaa

AH legend
Joined
Jun 11, 2017
Messages
4,289
Reaction score
9,386
Location
Alexandria, VA USA
Media
123
Hunting reports
Africa
1
Member of
NRA Life Member, SCI
Hunted
Eastern US & RSA
Purely a range toy. If I had any intention of hunting with this I'd shorten the barrel to 20" (if the ballistics even made sense) and reduce the suppressor length to 8-9".
IMO - You would still have a rifle with a 28" barrel with a weight on the end of it...turning it into an unbalanced club. Keep it as is for a range rifle because it looks like a ton of fun. Then remove the suppressor (and install a thread protector) for hunting use. It will be much better balanced for the intended purpose.
