Saturday was the day for building the rifle range back stop. I had two friends help out, construction was rail road ties, 1/2" diameter rebar used to pin each tie together and a truck load of sand.

Range 1.jpg

Range 2.jpg

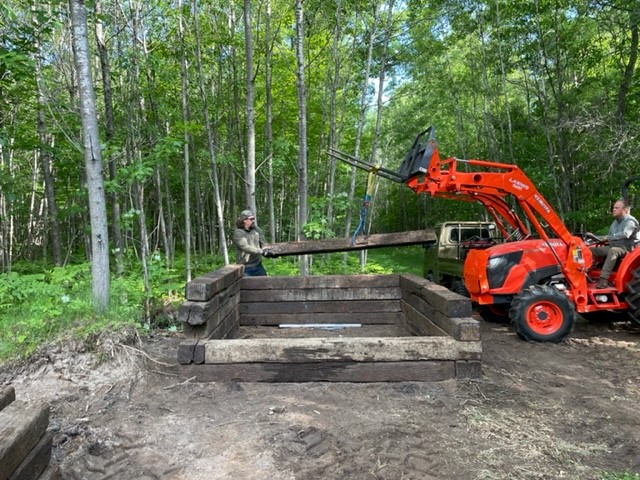

We had a tractor with front end loader to lift and position the rail road ties. Several drills with 1/2" diameter 18" long wood bits running with a generator. Grinder to cut the 1/2" rebar into 12" pins.
Range 3.jpg

Range 4.jpg

Last edited:

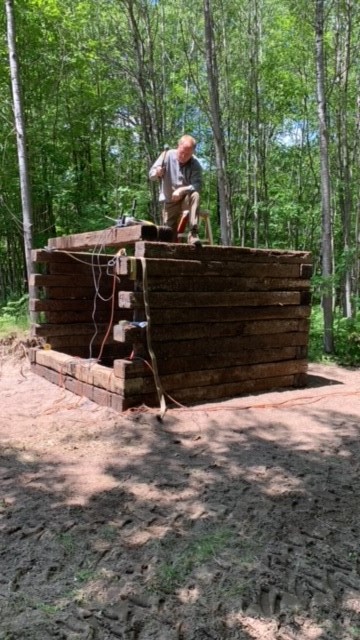

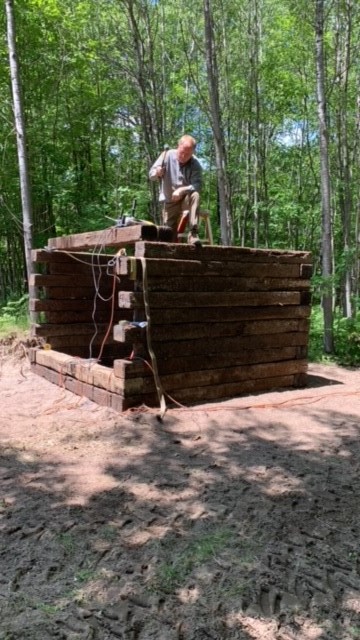

The exterior dimentions were approximately 110" square, we built 10 ties tall and then used rail road ties to make a solid roof. Initially we just added the 2 front roof ties to hold the front walls together, then we filled the structure with sand and added the rest of the roof.
Range 5.jpg

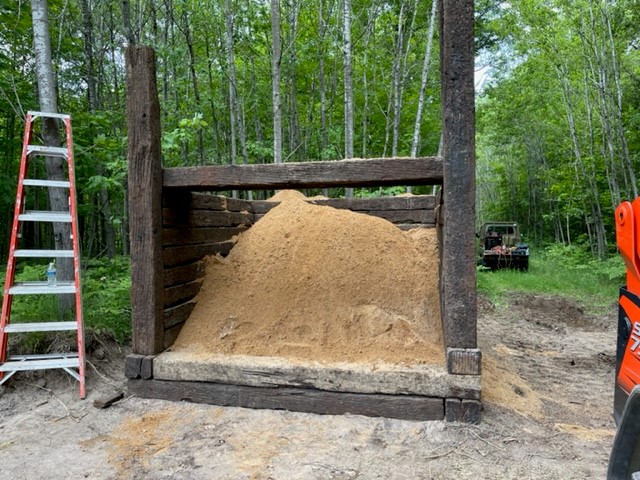

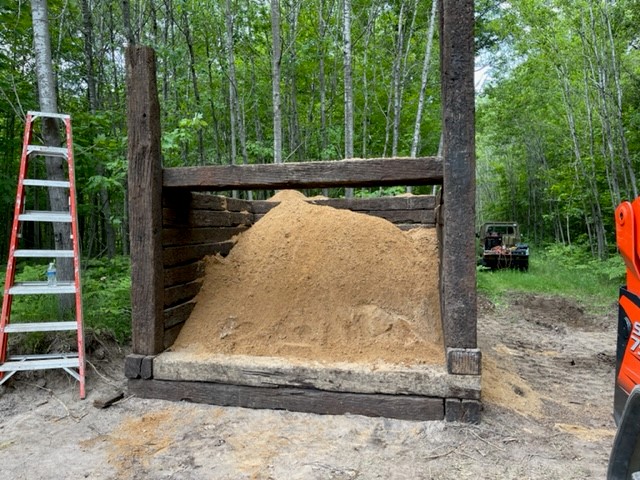

We used about 9 cubic yards of sand, thankfully I have a track loader that made short work of filling the structure from the front and back.


Range 6.jpg


Range 7.jpg

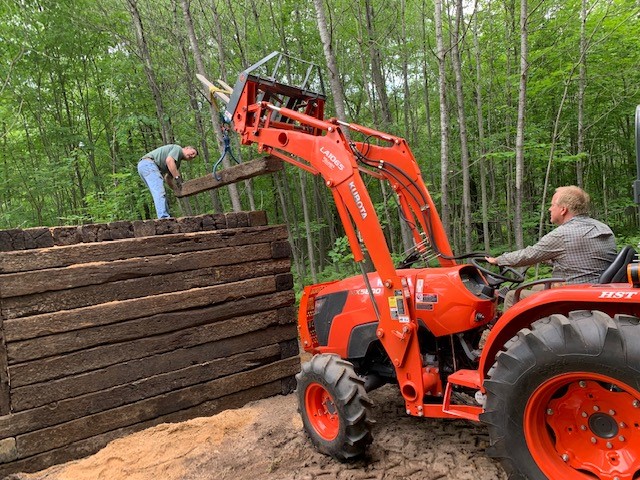

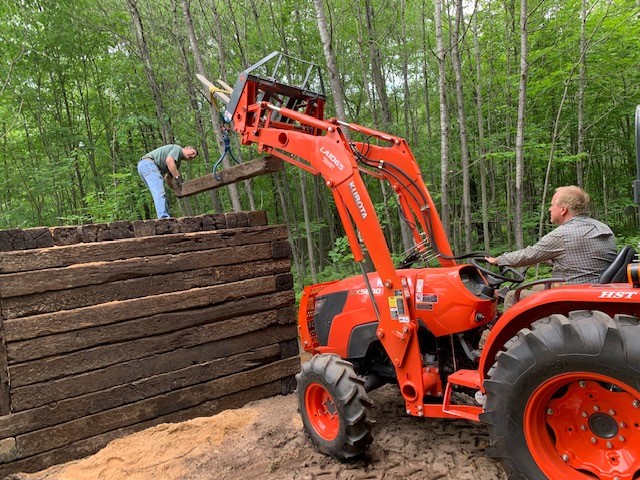

The tractor took the effort out of handling the rail road ties, this is the last roof tie being put in place, walls were 10 ties high, roof ties sat on top of this. We used 46 ties in total each tie used two 12" bits of 1/2" rebar to pin it in place.

Range 8.jpg


We have about 345 yards of visibility to the backstop on a trail that is about 30' wide, I'm looking forward to getting a little more rifle shooting practice in the future. I plan to either rubber membrane or metal sheet the roof to keep out the weather, so the sand stays pretty dry and does not get washed down.

Next project is a 24' wide pistol range! Thanks to my hunting buddies who helped out and will get to use the new rifle range too.
