Priming 470 N.E.

Discussion in 'Reloading' started by Opposite Pole, Jan 11, 2020.

  1. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland
    Hi fellas, I finally collected enough 470 cases to start reloading and was about to begin load development but run into a problem with priming. Turns out the size of the rim on these cases prevents me from being able to use both my Forster press and my Forster tool for priming. Does anyone use a seperate priming tool for their large rimmed cases? Something that uses standard shell holders? Speed of priming is irrelevant here, happy to handle one primer at a time but I don’t wan to invest in new press just for priming, I’m happy with my press and don’t really have space or need for another one.


  2. perttime

    perttime AH Enthusiast

    Joined:
    Jan 3, 2019
    Messages:
    347
    Video/Photo:
    1
    Likes Received:
    232
    Sorry, just curious: what exactly gets in the way on the Forster tools?

    (A photo is often worth a 1000 words...)

    Last edited: Jan 11, 2020

  3. Shootist43

    Shootist43 AH ENABLER GOLD SUPPORTER AH Legend

    Joined:
    Apr 25, 2015
    Messages:
    4,987
    Video/Photo:
    22
    Likes Received:
    4,166
    Location:
    Grosse Ile, Michigan
    Member of:
    NRA
    Hunted:
    Michigan, Texas, Missouri, Limpopo Province South Africa
    Opposite Pole, have you tried contacting Forster? For giggles I just sent Forster an email re. this issue. I'll let you know what they say as soon as they reply. If you like, I'll call them Monday morning. I thought Forster Presses could take any caliber that used 7/8" - 14 dies. I don't have one but I like the principal they work on.


  4. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland
    The priming tool on the Forster press utilises jaws to hold the case in place, these jaws cannot be opened wide enough to accept the large rim of 470 cases. Also the floorplate of the tool has a narrow gap the case is supposed to slide through to get under the jaws, this too is too narrow. This issue only affects priming. However it should be noted that the jaws holding the case for sizing etc. will not accept 470 case either, one has to use standard shellholder for it. Changing from the floating Forster jaws to the shell holder arrangement requires undoing two hex screws and the press can be converted so in under a minute. IMG_1770.JPG


  5. PHOENIX PHIL

    PHOENIX PHIL AH ENABLER AH Ambassador

    Joined:
    Apr 15, 2009
    Messages:
    8,826
    Video/Photo:
    53
    Likes Received:
    6,593
    Member of:
    SCI
    Hunted:
    USA, S. Africa

    Attached Files:

    Last edited by a moderator: Jan 11, 2020
    Opposite Pole likes this.

  6. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland

  7. Wyatt Smith

    Wyatt Smith AH Fanatic

    Joined:
    May 9, 2019
    Messages:
    695
    Video/Photo:
    19
    Likes Received:
    774
    Location:
    Pike county
    Opposite Pole likes this.

  8. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland
    Looks like we’ve got a winner


  9. fourfive8

    fourfive8 AH Fanatic

    Joined:
    Apr 27, 2017
    Messages:
    979
    Video/Photo:
    179
    Likes Received:
    1,329
    Hunted:
    USA, South Africa, Mozambique, Zimbabwe, Zambia, Botswana
    Don't know about the various tray-fed, hand held primer models/brands because some are ok and some are a little junky with zinc and/or pot metal parts. I use a hand held model but it is all steel and a bunch more expensive. Just have to decide what will work best for you. But most (not all) do use a universal type shell holder. The caveat is not all the shell holder manufacturing companies make one for the 470-500 NE sized case. The most commonly available I think is the Hornady # 55 shell holder. Midway shows out of stock but Midsouth shows in stock. Midway does show the RCBS # 46 shell holder for the 470-500 NE in stock. And depending on where you live, availability may an issue for any of the loading tools?

    https://www.midsouthshooterssupply....r-55-shell-holder-(470-and-500-nitro-express)
    https://ads.midwayusa.com/product/1012298058?pid=953953


    Attached Files:

    Last edited: Jan 11, 2020

  10. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland
    I do have a shell holder for it, from Redding I think


  11. fourfive8

    fourfive8 AH Fanatic

    Joined:
    Apr 27, 2017
    Messages:
    979
    Video/Photo:
    179
    Likes Received:
    1,329
    Hunted:
    USA, South Africa, Mozambique, Zimbabwe, Zambia, Botswana
    That’s a good start! I think the Redding would a # 31


  12. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland

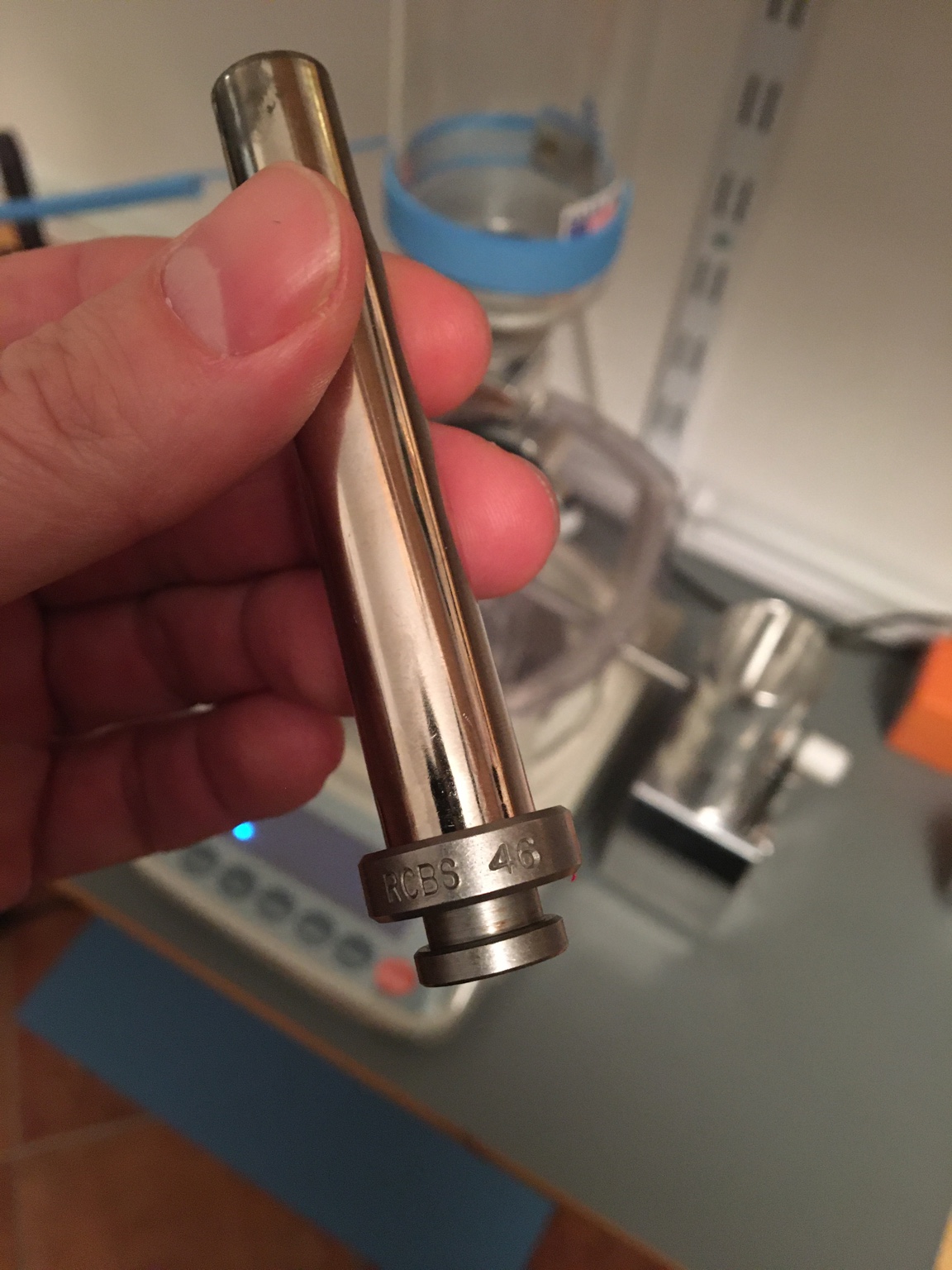

    Correction, mine is from RCBS #46

    fourfive8 likes this.

  13. PHOENIX PHIL

    PHOENIX PHIL AH ENABLER AH Ambassador

    Joined:
    Apr 15, 2009
    Messages:
    8,826
    Video/Photo:
    53
    Likes Received:
    6,593
    Member of:
    SCI
    Hunted:
    USA, S. Africa
    That will work with the Lyman tool.


  14. Shootist43

    Shootist43 AH ENABLER GOLD SUPPORTER AH Legend

    Joined:
    Apr 25, 2015
    Messages:
    4,987
    Video/Photo:
    22
    Likes Received:
    4,166
    Location:
    Grosse Ile, Michigan
    Member of:
    NRA
    Hunted:
    Michigan, Texas, Missouri, Limpopo Province South Africa
    Opposite Pole, I received a reply from Forster. it reads" yes, the hand primer Seater should be able to accommodate the 470 NE case head." For whatever that is worth.


  15. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland
    Thanks for the info. I will get in touch with them I think and send them some pictures, unless my Norma cases are way out of specs the 470 will not fit. I'll measure them on the weekend. I've order the Lyman tool so the problem is solved but I'll be curious to follow up on it with Forster.


  16. Shootist43

    Shootist43 AH ENABLER GOLD SUPPORTER AH Legend

    Joined:
    Apr 25, 2015
    Messages:
    4,987
    Video/Photo:
    22
    Likes Received:
    4,166
    Location:
    Grosse Ile, Michigan
    Member of:
    NRA
    Hunted:
    Michigan, Texas, Missouri, Limpopo Province South Africa
    Opposite Pole, FYI I have found the latest batches of new Norma brass that I've loaded for the first time had VERY tight primer pockets. In fact I've had to remove minute amounts of brass in order for the primers to be inserted.


  17. Opposite Pole

    Opposite Pole AH Fanatic

    Joined:
    Jun 6, 2017
    Messages:
    763
    Video/Photo:
    78
    Likes Received:
    827
    Location:
    Warsaw & Sydney
    Member of:
    SSAA; PZŁ, KŁ Sęp
    Hunted:
    Australia, Poland
    I’ve found the same with my 9.3x74R Norma brass. Few cases were so tight that I stopped with primers seated half way, I was not willing to apply any more pressure for fear of detonation. The 470 brass I’ll be using is from factory rounds I shot so hopefully the pockets won’t be so tight.

    What did you use to expand the primer pockets?


  18. Shootist43

    Shootist43 AH ENABLER GOLD SUPPORTER AH Legend

    Joined:
    Apr 25, 2015
    Messages:
    4,987
    Video/Photo:
    22
    Likes Received:
    4,166
    Location:
    Grosse Ile, Michigan
    Member of:
    NRA
    Hunted:
    Michigan, Texas, Missouri, Limpopo Province South Africa
    A small hand held "primer pocket reamer." This tool is sometimes used to remove the primer crimp from Military Brass.

    Opposite Pole likes this.
