Pressure sign question

Discussion in 'Reloading' started by YancyW, Apr 14, 2018.

  1. YancyW

    YancyW GOLD SUPPORTER AH Veteran

    Joined:
    Sep 5, 2017
    Messages:
    163
    Video/Photo:
    4
    Likes Received:
    143

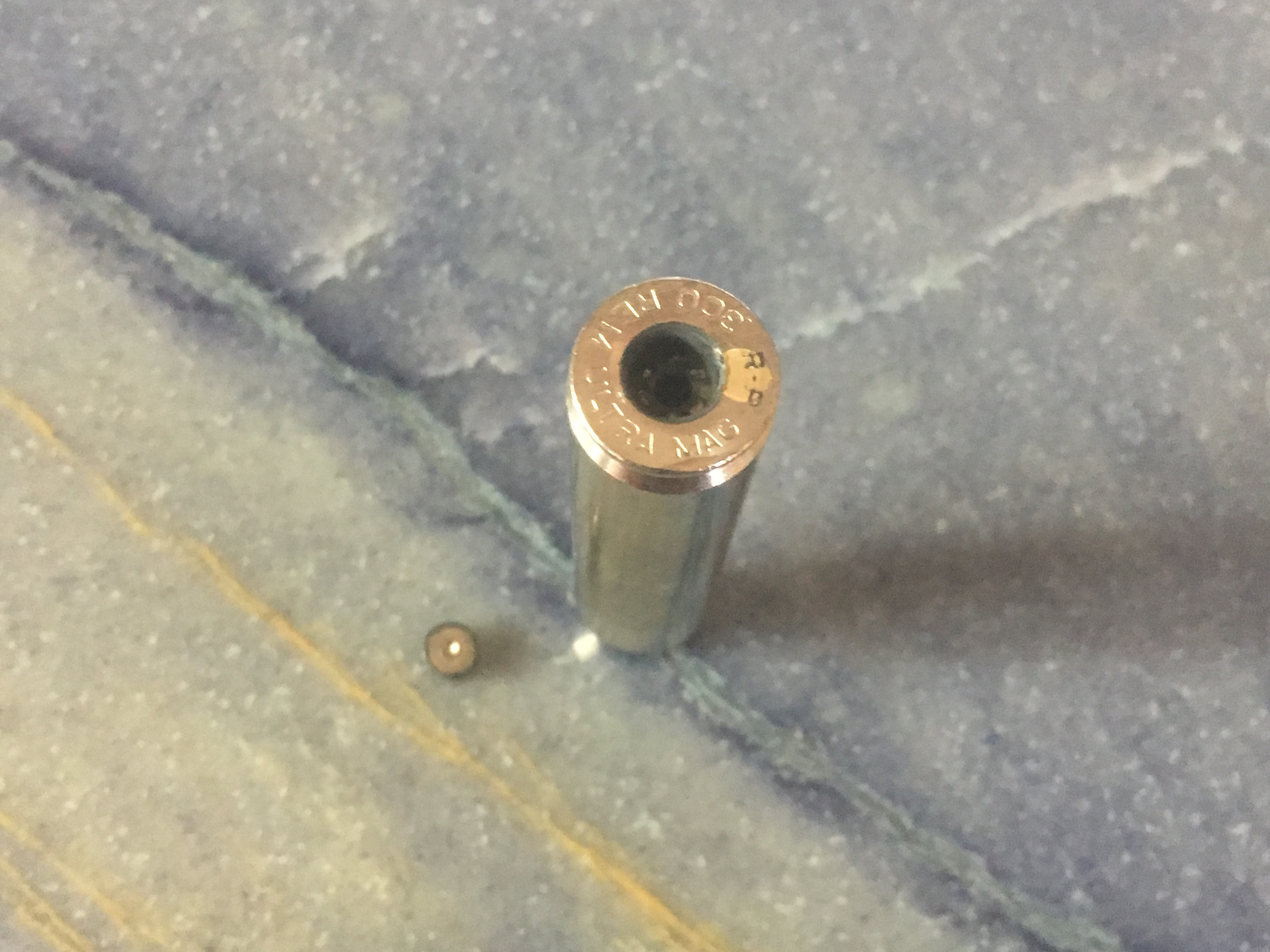

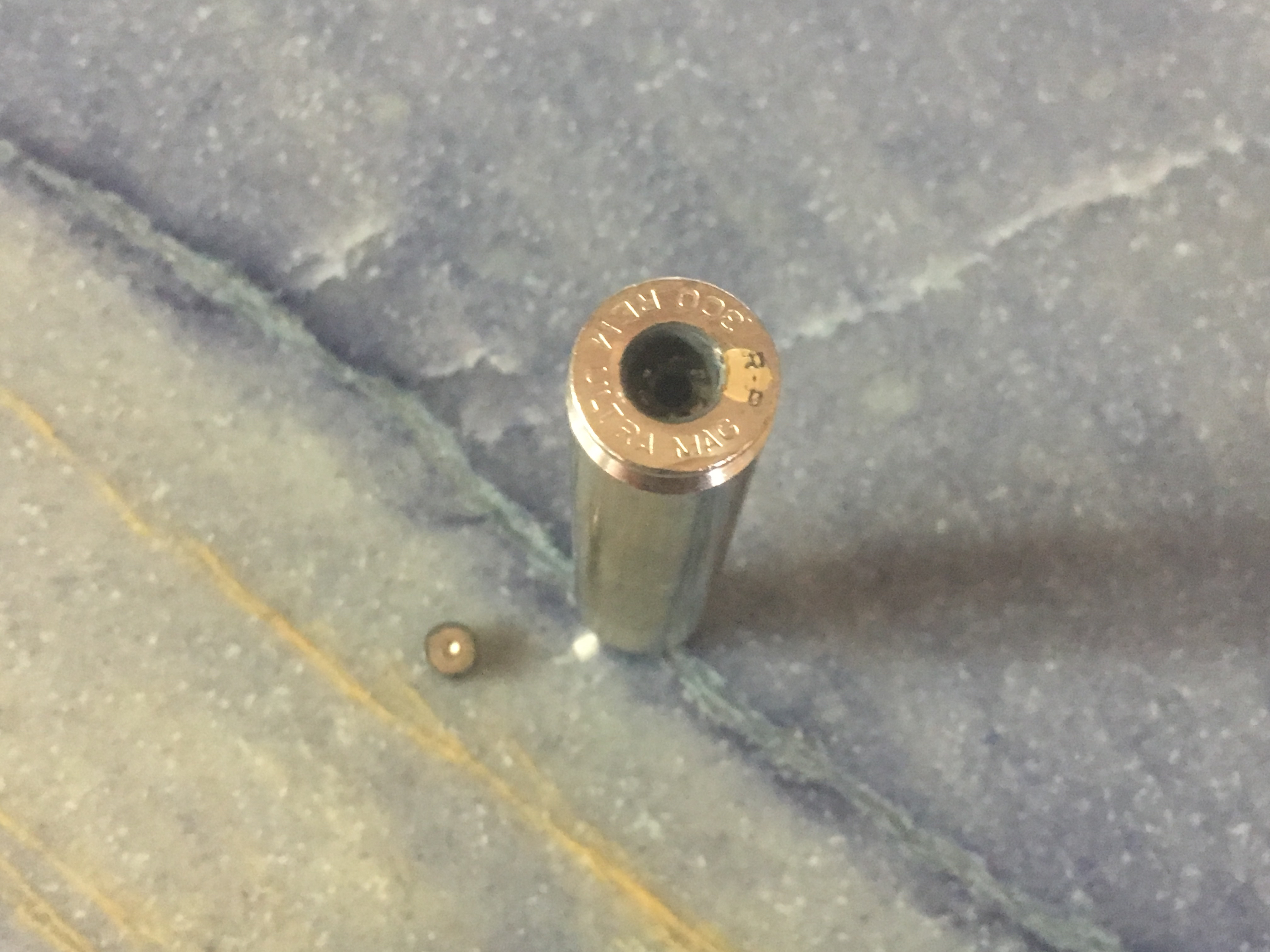

    I am not an expert by any means, but I am thinking this one might be a bit hot.

    IMG_2227 copy.jpg

    Last edited by a moderator: Apr 14, 2018

  2. Jay Bucher

    Jay Bucher AH Member

    Joined:
    Feb 20, 2018
    Messages:
    26
    Video/Photo:
    7
    Likes Received:
    26
    Location:
    North Florida
    Member of:
    NRA
    It looks like a little over pressure

    lcq and Dr Ray like this.

  3. Pheroze

    Pheroze AH ENABLER BRONZE SUPPORTER AH Legend

    Joined:
    Jul 6, 2013
    Messages:
    2,970
    Video/Photo:
    21
    Likes Received:
    2,584
    Location:
    Ontario
    Member of:
    OFAH, DSC
    Hunted:
    South Africa, Canada, USA
    Oh man.:confused: And that's a real wack of powder

    lcq and Dr Ray like this.

  4. Dr Ray

    Dr Ray AH Elite

    Joined:
    Apr 1, 2017
    Messages:
    1,490
    Video/Photo:
    11
    Likes Received:
    990
    Location:
    Cairns, Australia
    Bolt face might be pitted now so check.
    This sure is an overload.!

    lcq likes this.

  5. YancyW

    YancyW GOLD SUPPORTER AH Veteran

    Joined:
    Sep 5, 2017
    Messages:
    163
    Video/Photo:
    4
    Likes Received:
    143
    It did.

    The kicker is, this was factory ammo. Barnes LRX 190gr.

    Dr Ray likes this.

  6. Dr Ray

    Dr Ray AH Elite

    Joined:
    Apr 1, 2017
    Messages:
    1,490
    Video/Photo:
    11
    Likes Received:
    990
    Location:
    Cairns, Australia
    Wtf

    Get headspace checked by a gunsmith immediately. Something is terribly wrong.


  7. YancyW

    YancyW GOLD SUPPORTER AH Veteran

    Joined:
    Sep 5, 2017
    Messages:
    163
    Video/Photo:
    4
    Likes Received:
    143
    I am, the rifle is a custom build by Bob Beck, I am going to send it back to him. I have about 300 rounds through the rifle, it has run fantastic until this happened this afternoon.


  8. Bullthrower338

    Bullthrower338 AH ENABLER SILVER SUPPORTER AH Legend

    Joined:
    Sep 20, 2014
    Messages:
    2,708
    Video/Photo:
    55
    Likes Received:
    4,767
    Location:
    Houston, Texas
    Member of:
    Life Member Rocky Mountain Elk Foundation, NRA, Huntin' Fool, DSC and Pope and Young Club
    Hunted:
    USA, Mexico, Canada, RSA
    with 300 rounds through it I am surprised that if it were a headspace issue, damn well has signs of it though. Could be a mixture of a few things with all the stars aligning to create a perfect storm. A severely out of spec case maybe combined with a slightly out of spec chamber. Was this round loaded from the magazine? Could the bullet have setback into the case during recoil then fed into the chamber? Set to far out and the mono metal bullet buried in the lands? Whatever it was, pressure was substantial, glad you and your rifle are in one piece.

    lcq, fourfive8 and Dr Ray like this.

  9. Jay Bucher

    Jay Bucher AH Member

    Joined:
    Feb 20, 2018
    Messages:
    26
    Video/Photo:
    7
    Likes Received:
    26
    Location:
    North Florida
    Member of:
    NRA
    If you have 300 rounds thru it. It’s an ammo problem. Bob loves Bergers. Try some of them.


  10. IdaRam

    IdaRam BRONZE SUPPORTER AH Elite

    Joined:
    Jun 30, 2014
    Messages:
    1,576
    Video/Photo:
    173
    Likes Received:
    2,379
    Location:
    Idaho
    Member of:
    NRA Life Member, NAHC Life Member, SCI, DSC, Wild Sheep Foundation, NSSF
    Hunted:
    Idaho, Montana, Utah, Wyoming, California, Alberta Canada, South Africa, Zimbabwe
    Wow
    Had you fired any rounds from this same box of ammo prior to this one? Or was this the first out of the box? Have you shot this same ammo before?
    Agree with post above, 300 rounds and no issues then this. Seems more like an ammo issue.
    Let us know how this shakes out (y)

    lcq likes this.

  11. YancyW

    YancyW GOLD SUPPORTER AH Veteran

    Joined:
    Sep 5, 2017
    Messages:
    163
    Video/Photo:
    4
    Likes Received:
    143
    210g VLDs is what I have mostly shot, but I was going to take it to Africa next month, so I was trying out something different.


  12. YancyW

    YancyW GOLD SUPPORTER AH Veteran

    Joined:
    Sep 5, 2017
    Messages:
    163
    Video/Photo:
    4
    Likes Received:
    143
    First round. Needless to say, I decided to stop at that point.


  13. lcq

    lcq AH Elite

    Joined:
    Nov 30, 2013
    Messages:
    1,494
    Video/Photo:
    10
    Likes Received:
    1,194
    Member of:
    NRA CSSA
    Hunted:
    Canada, RSA
    These days I'm very leery of Barnes factory ammo as the company is no longer under Barnes control and QC isn't the same. I bought a box of 7mm ttsx 150gr and they were a mix of brass and silver primers. So much for lot to lot consistency. If it is good with other ammo then you should send that box back to Barnes because it looks like a case for recall. Factory ammo is invariably loaded conservatively (lawyers) and that round with the blown primer and ejector mark looks really hot


  14. Bullthrower338

    Bullthrower338 AH ENABLER SILVER SUPPORTER AH Legend

    Joined:
    Sep 20, 2014
    Messages:
    2,708
    Video/Photo:
    55
    Likes Received:
    4,767
    Location:
    Houston, Texas
    Member of:
    Life Member Rocky Mountain Elk Foundation, NRA, Huntin' Fool, DSC and Pope and Young Club
    Hunted:
    USA, Mexico, Canada, RSA
    Check OAL on your bergers and on the ttsx loads. Check your chamber with a bullet comparator. I’m interested to see what those numbers are.

    Dr Ray likes this.

  15. ChrisG

    ChrisG BRONZE SUPPORTER AH Fanatic

    Joined:
    Jan 6, 2015
    Messages:
    808
    Video/Photo:
    14
    Likes Received:
    711
    Location:
    Adirondack Park, NY, USA
    Member of:
    NAHC, NRA, Rocky Mtn. Elk Foundation.
    Hunted:
    USA, Canada
    That is definitely too hot. The blown primer might be a sign of excessive head space, but you also have a lot of brass that flowed into the extractor cutout (I am assuming this is a push feed by the look of it). Cartridge brass usually doesn't start to flow until you get up to around 80,000 psi. I would call Barnes, send them the lot number on the box and the blown case and tell them what happened. It is also possible that this particular piece of brass was never hardened the way it was supposed to be. Did it stick in the chamber? Too soft of brass will do this same thing at normal pressure.

    Dr Ray likes this.

  16. fourfive8

    fourfive8 AH Enthusiast

    Joined:
    Apr 27, 2017
    Messages:
    462
    Video/Photo:
    29
    Likes Received:
    503
    Hunted:
    USA, South Africa, Mozambique, Zimbabwe, Zambia, Botswana
    Too hot no doubt. Maybe the perfect storm of variables. The most likely may or may not be the reason and it will be difficult for anyone to admit a fault or problem.

    IMO- may be something like not enough clearance in neck or throat and/or throat (freebore) is too short. Some ammo seems ok and shoots well as hot ammo many times does... then a type of ammo that may be running at upper end of perssure coupled with a type of bullet, that if stuck into lands, will increase pressure- perfect storm.

    ChrisG likes this.

  17. YancyW

    YancyW GOLD SUPPORTER AH Veteran

    Joined:
    Sep 5, 2017
    Messages:
    163
    Video/Photo:
    4
    Likes Received:
    143
    Yeah, you can see where the extractor pulled the rim of the casing. Just under MAG on the case.


  18. ChrisG

    ChrisG BRONZE SUPPORTER AH Fanatic

    Joined:
    Jan 6, 2015
    Messages:
    808
    Video/Photo:
    14
    Likes Received:
    711
    Location:
    Adirondack Park, NY, USA
    Member of:
    NAHC, NRA, Rocky Mtn. Elk Foundation.
    Hunted:
    USA, Canada
    Sorry I meant ejector cutout.


  19. PARA45

    PARA45 AH Fanatic

    Joined:
    Jun 15, 2010
    Messages:
    659
    Video/Photo:
    23
    Likes Received:
    537
    Member of:
    NRA LIFE MEMBER
    Hunted:
    South Africa, Nicaragua, FL, CA, SD, GA, SC, CO
    WOW!!!!! I would contact the ammo company real quick and in a hurry. If there is any damage to your rifle, I would let them know as well and have them reimburse you.


  20. PeteG

    PeteG AH Elite

    Joined:
    Jan 20, 2012
    Messages:
    1,183
    Video/Photo:
    47
    Likes Received:
    1,012
    I had a similar issue with factory sako ammo in my 300wm.
    2 rounds out of a box blew the primers out.
    the rest of the box was fine, shot them out and another box or two with no further issues.
