My .500 Jeffery wish list build MEMBERS opinions are welcome

[Huvius]

The genuine model for the Mauser cocking piece is quite rare but most of the others are pretty common.
I do believe that the treaded staff on the taller ones can be shortened to make them a more correct height for the application.
The sleeve can likely be shortened as well.
Here in the US, going to one of the larger gun collector shows would almost certainly turn up something usable.

A quick Ebay search turned up exactly what I'm talking about!

https://www.ebay.com/itm/318567649204?_skw=lyman+peep+sight+short&itmmeta=01KZM7M33NDFGXEVVKH47THCYC&hash=item4a2c1c8fb4:g:HDwAAeSwNwVqUQoc&itmprp=enc%3AAQALAAAA8GfYFPkwiKCW4ZNSs2u11xBPkKe0vt9OP92WSjI6buT%2FwjorQ0FUyQqUCjdnTJrPVUhQhE5CCFsYd%2FXoc6XwtklAY%2BjCIyq5G3LlSMaD3XDMRqfbQrmks4FGPC8aiSLXWhTXUbmwKgDgbfpaBGc3xGF1s1EcirF33hZ36%2FBpFPiVDTe9qgusXBpskLQW8q9Uhpux6k3tA2epR7tD1kXgCUlgZ2strPZ6oUrvYI8zwvek0Y54oIiFm0bSfLwCpFds00bOfEpaIPCY8FRrt53uIYoUQC0Ch83dCErKAp35cYnDZhTD4DJDgbaadTACJGlFVw%3D%3D%7Ctkp%3ABk9SR_yx0If9Zw



[Huvius]

And another!!
Maybe I should pick one up for future projects!

eBay item number: 318367039537



[Gert Odendaal]

Huvius, thank you kindly for this information, it is much appreciated. I currently have this one available on the Pederzoli SxS double muzzle loader rifle ...still in the process to work on loads accurate up to 80 meters. I am using this rear sight to determine the height in relation to the front bead ...I will then substitute this sight with a custom build sight I will build to be permanently fitted to my Pederzoli .50 cal.

I am going to take apart this sight and duplicate it to build a replica with some of my own design features for a Mauser 98 rifle ...

You and Grand Verneur really did assist me in this regards by providing me with valuable information as well as photos.

FEEDBACK:
I arranged for the Mauser MOD 98 action to be send to the Bohler company to Nitrite the complete Mauser MOD 98 action ..Frans Odendaal of Eagle Barrels , South Africa is making use of this process to ensure a high level of integrity of the Mauser MOD 98 actions he uses when he build rifles for his clients..



[Gert Odendaal]

Frans Odendaal of Eagle Barrels really is turning out fine hunting rifles as well as Ultra distance target rifles , machining his own designed long distance shooting rifles , barrels and actions .
A few photos of the rifle build by Frans Odendaal that shot the smallest group in SA to date over a 1000meters distance .



[Gert Odendaal]

And another!!
Maybe I should pick one up for future projects!

eBay item number: 318367039537

For sure , this one is a gem..

Short adjustable stem , compact, and can still do adjustments at 50 meters on a 500 Jeffery rifle ..



[Gert Odendaal]

Here is a Ghost ring dove tailed on my .375 H&H Magnum, I will be making a similar ghost ring body BUT will make a adjustable post with a large ghost ring aperture opening/hole of 6 mm diameter ...this will be adjusted to the different heights by two spring loaded ball bearing set screws ..

The new stem design will have M6x 0.75 thread pitch...as well as two flat sides to regulate by drilling a 1/2 ball bearing diameter dept to enable an arrest point at 25 meters , 75 meters distances ...

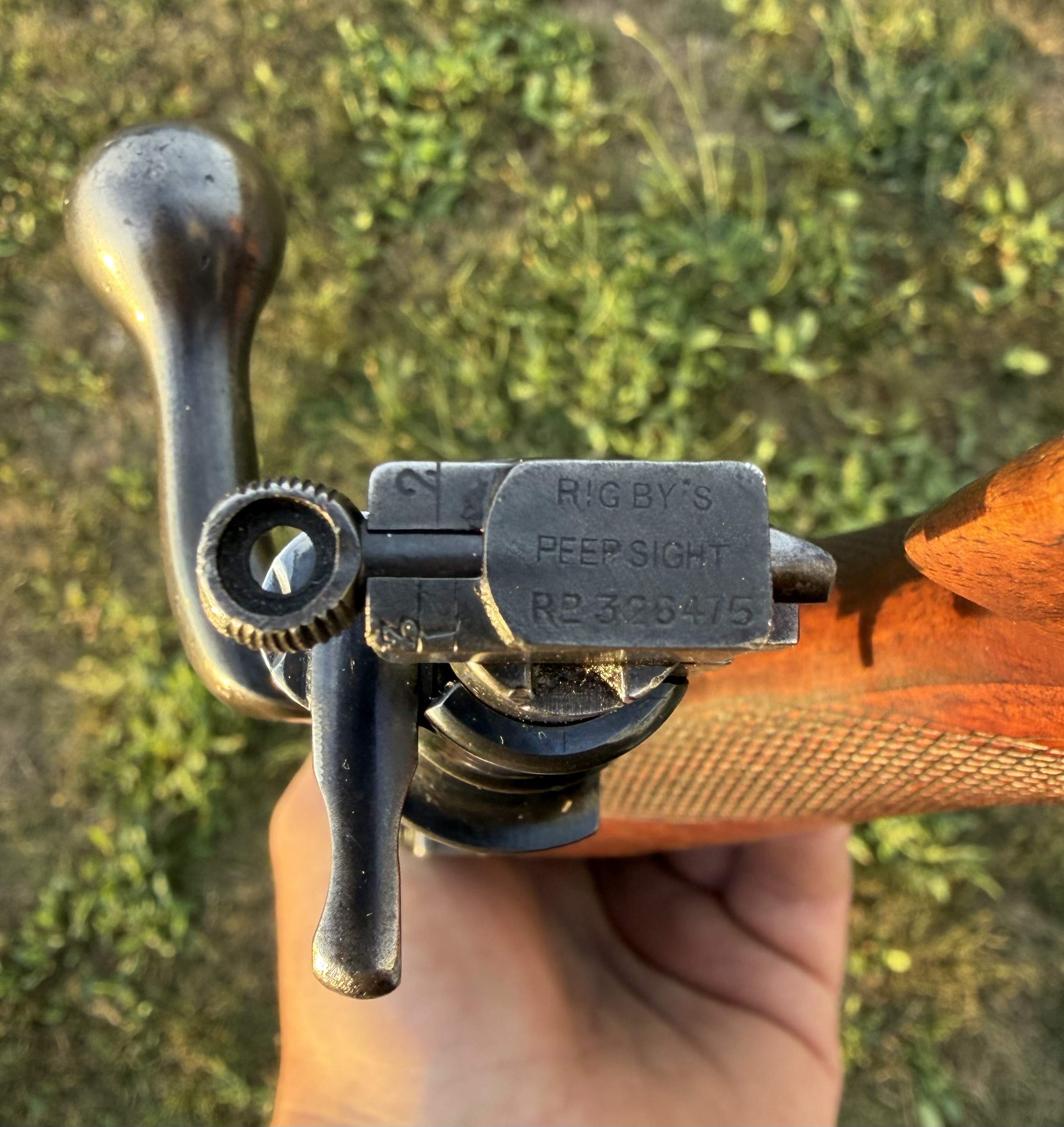

I received a photo from one of our members, Adam Stevens , of the original Rigby cocking piece dove tailed peep/ghost ring sight ...similar to what I am intending to mill from a solid piece of spring steel to enable me to hardened and temper it to straw color ...

Here is my own design , made a few years ago for my .375 H&H Magnum I build under the mentorship of Johan Greyling of JS Gunsmith ...

I will keep the sleeve design but will change the ghost ring post design...



[Gert Odendaal]

Members please be so kind as to upload photos of your 500 Jeffery front sight and post??
I need to get an idea of how robust I need to make the front sight ...what different designs you members have on your .500 Jeffery rifles ..

I am going to make a Quarter rib with a spring tensioned single folding leaf regulated at 100 meters as well...it will be a functional sight at 100 meter V-express folding leaf for bushveld hunting as well...point blank distance to 70 meters using the ghost ring , Quarter rib single leaf spring loaded flip up blade out to 100 meters ..similar like this Quarter rib on my .375 H&H Magnum but only a single leaf ..spring tensioned flip up distance indicator



[Schüler Jumbo]

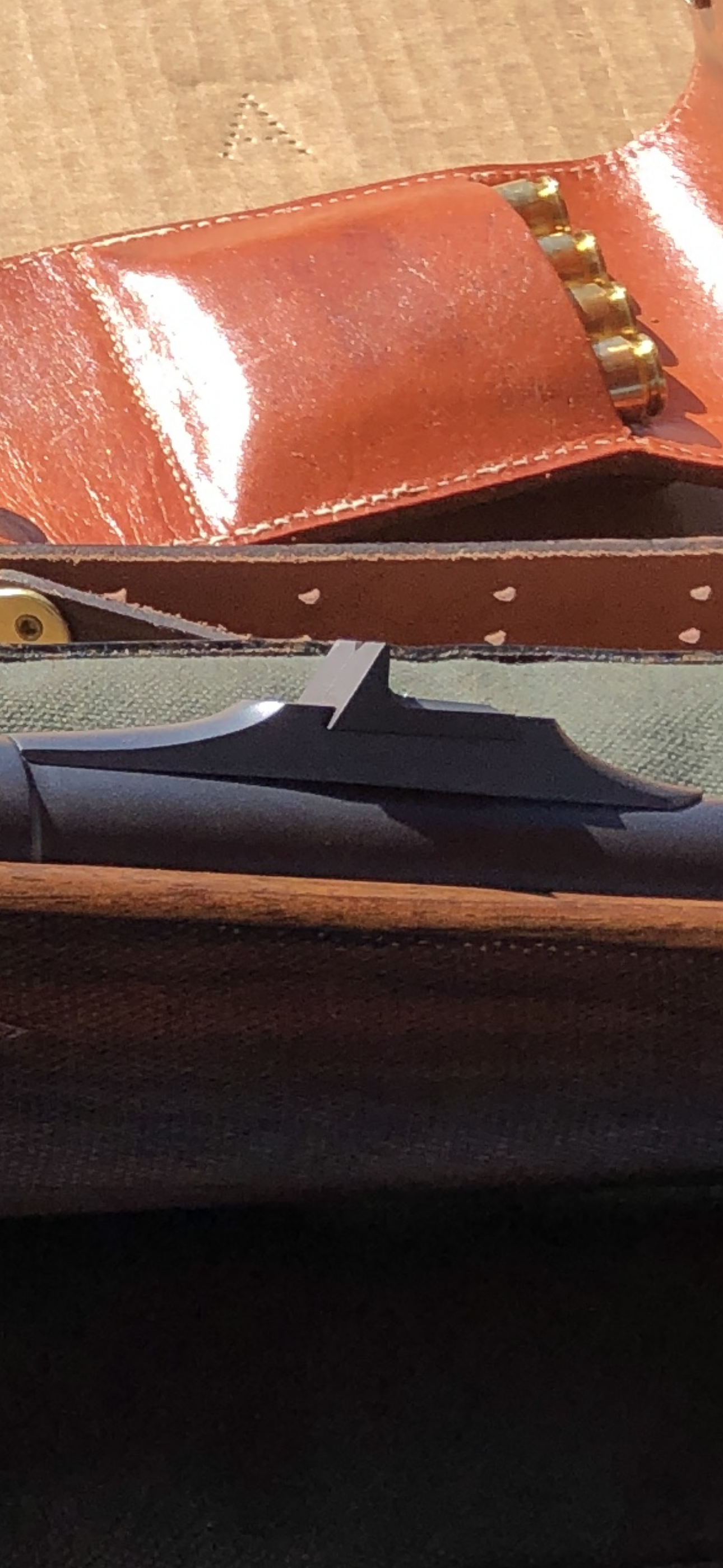

Front and rear sights on my .500 Schüler:



[Gert Odendaal]

Front and rear sights on my .500 Schüler:

Schuler thank you kindly this is much appreciated...



[Tibavati]

Members, here are the components of a .500 Jeffery build:
1X Magnum heavy 24" inch barrel
1x Mauser 98 action ( receiver/bolt/magazine box/bottom metal)
1x American Black Wall Nut blank
Pacmyer recoil pad
V-express rear sight 50 meter , 100 meter and 150m flip up spring tension distance indicators
Buffalo Boss grip cap
Black Ivory forend
Alkenet root oil rifle stock finishing

This is my own component list....please take part in this discussion, WHAT WILL YOU WANT TO DO WITH SUCH A .500 Jeffery build project if it was yours???

This should be a basic workhorse stopper. You can dress it up but keeping it no frills is also a good idea. Your build is well thought out.



[Gert Odendaal]

Front and rear sights on my .500 Schüler:

Yes, front sight is nicely done and robust...yes will build the same type of front sight with the flip up night sight white bead as well

Quarter rib : Since I am going to use the Ghost ring as Primary sights I will build a dove tailed single leaf spring tensioned flip up V-Express sight into the quarter rib ...



[Gert Odendaal]

This should be a basic workhorse stopper. You can dress it up but keeping it no frills is also a good idea. Your build is well thought out.

Made some changes already to this list...
Replacing the buffalo grip cap with a steel type grip cap..members mentioned the Buffalo grip cap tends to crack as time goes by...I am contemplating inserting a nice solid piece of Black ivory inside this skeleton grip cap and checker it as well...( friend of mine is doing the rifle stock checkering )

I am fortunate I manage to get a lot of Black Ivory/Zebra wood. I have now high quality Black Ivory wood, extremely dense an a few logs received from a member of my whatsapp group..



[Gert Odendaal]

This should be a basic workhorse stopper. You can dress it up but keeping it no frills is also a good idea. Your build is well thought out.

Made changes in regards to the V-Express sight leaves o the Quarter rib as well..members pointed out due to the recoil of a 500 Jeffery the three or more express leafs are going to flip up or down .....

I am only inserting one flip up leaf distance indicator 100m ...
This leaf will be under enough spring tension not to flip up under recoil..since I will be using the Ghost ring sight as the primary sights on my 500 Jeffery.



[Gert Odendaal]

This should be a basic workhorse stopper. You can dress it up but keeping it no frills is also a good idea. Your build is well thought out.

Timbevati , thank you kindly for your input it is much appreciated..



[Huvius]

I just absolutely love the flip up tang aperture sight, was that a common thing back in the day?

..members pointed out due to the recoil of a 500 Jeffery the three or more express leafs are going to flip up or down .....

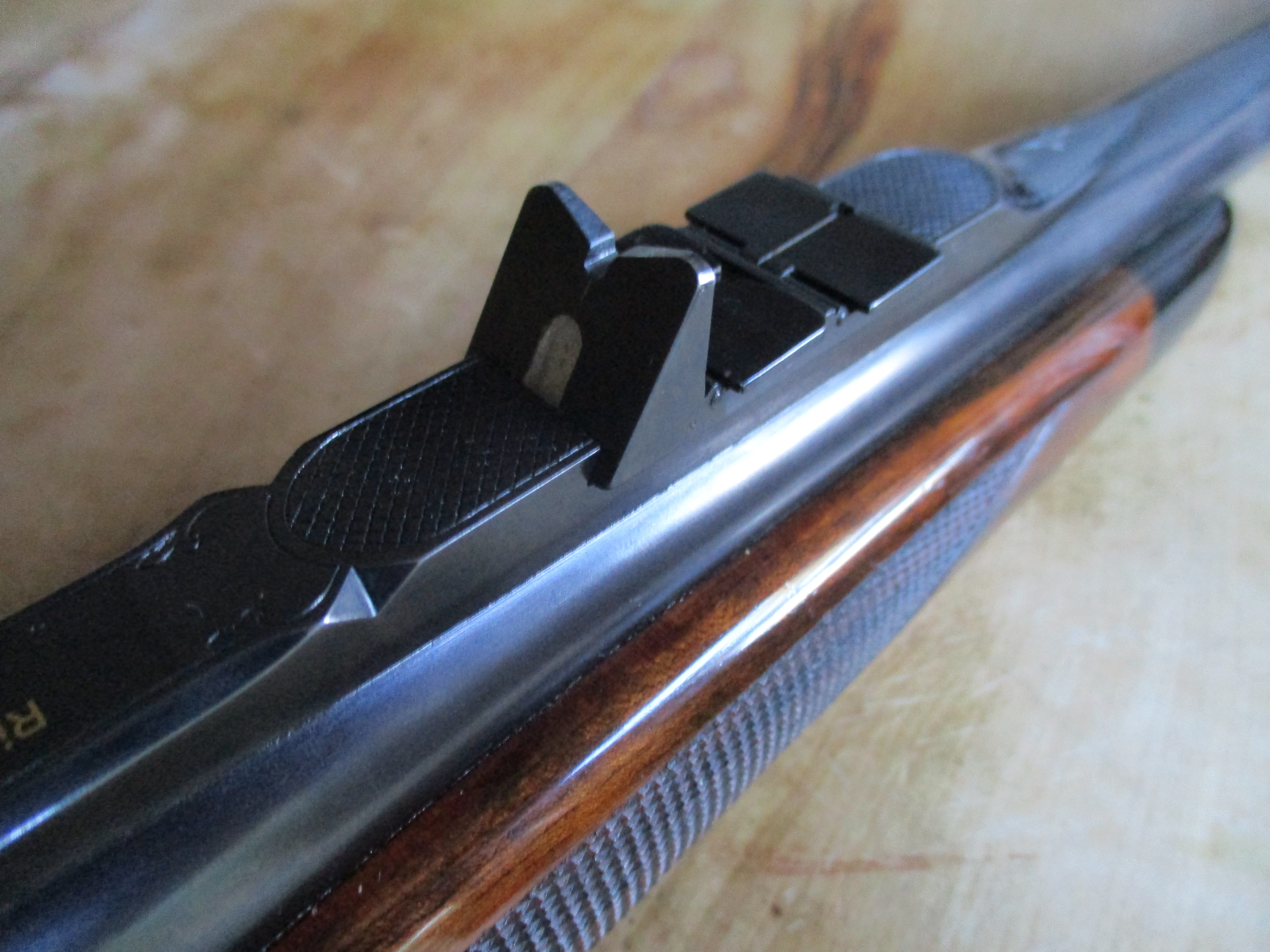

On quality rifles, the long express island has a flat spring - really just a strip of thin spring steel - that runs just below the leaves.
Each leaf has two flats at the hinge so that when flipped up, one flat is held by the spring keeping it up and the other flats (90deg from the other) holds the other leaves down in the same way.
It’s really more simple than I’m explaining it!



[Gert Odendaal]

Updating the wish list on the .500 Jeffery build:
1 X Mauser MOD 98 Large ring ( nitrite proofed Bohler company)
1X Schuler type spacer plate bolted to underside of Mauser action bottom( Craig Klintworth)
1x Eagle Barrel 24" inches Heavy Magnum profile , 110mm extended knox Crown 22.8mm diameter
1x American Black Wall nut over size duplicator cut rifle stock ( heavy straight grained wood)
1x Steel grip cap infused /checkered Black Ivory insert
1x custom build magnum size magazine box
1x custom build magnum size/strength 0.5mm thick material make as wide as possible spring ( width of magazine box )
1x Magnum follower plate milled from solid Aluminum aircraft grade with 0.3mm distances all around magazine box sides..( vertical rails protruding 10mm wide and 0.3mm deep inside the magazine box )
1x Trijicon RMR Type 2 red dot ( Additional sight system modern option..Mauser action is already drilled and tap.



[Gert Odendaal]

On quality rifles, the long express island has a flat spring - really just a strip of thin spring steel - that runs just below the leaves.
Each leaf has two flats at the hinge so that when flipped up, one flat is held by the spring keeping it up and the other flats (90deg from the other) holds the other leaves down in the same way.
It’s really more simple than I’m explaining it!

Yes, you are correct. I made use of a ball bearing and a spring inserted vertically under the swivel point of the flip up leaf spring Huvius..I can then choose what strength of spring I want to exert spring tension onto the flip up leaf ..

The Trijicon RMR Type 2 red dot sight as another sight option since the rear of the Mauser MOD 98 action is already drilled and tapped ( bought it like that)



[grand veneur]



[Gert Odendaal]

Grand Veneur, it is a beautiful quarter rib design...just beautiful, designed perfectly and made perfectly...I am doing a quarter rib, but as mentioned a flip up spring tensioned leaf to be able to use my ghost ring as the primary sight ....I am looking forward to see how the Trijicon red dot sight will work on the 500 Jeffery as well...



[Huvius]

Members please be so kind as to upload photos of your 500 Jeffery front sight and post??

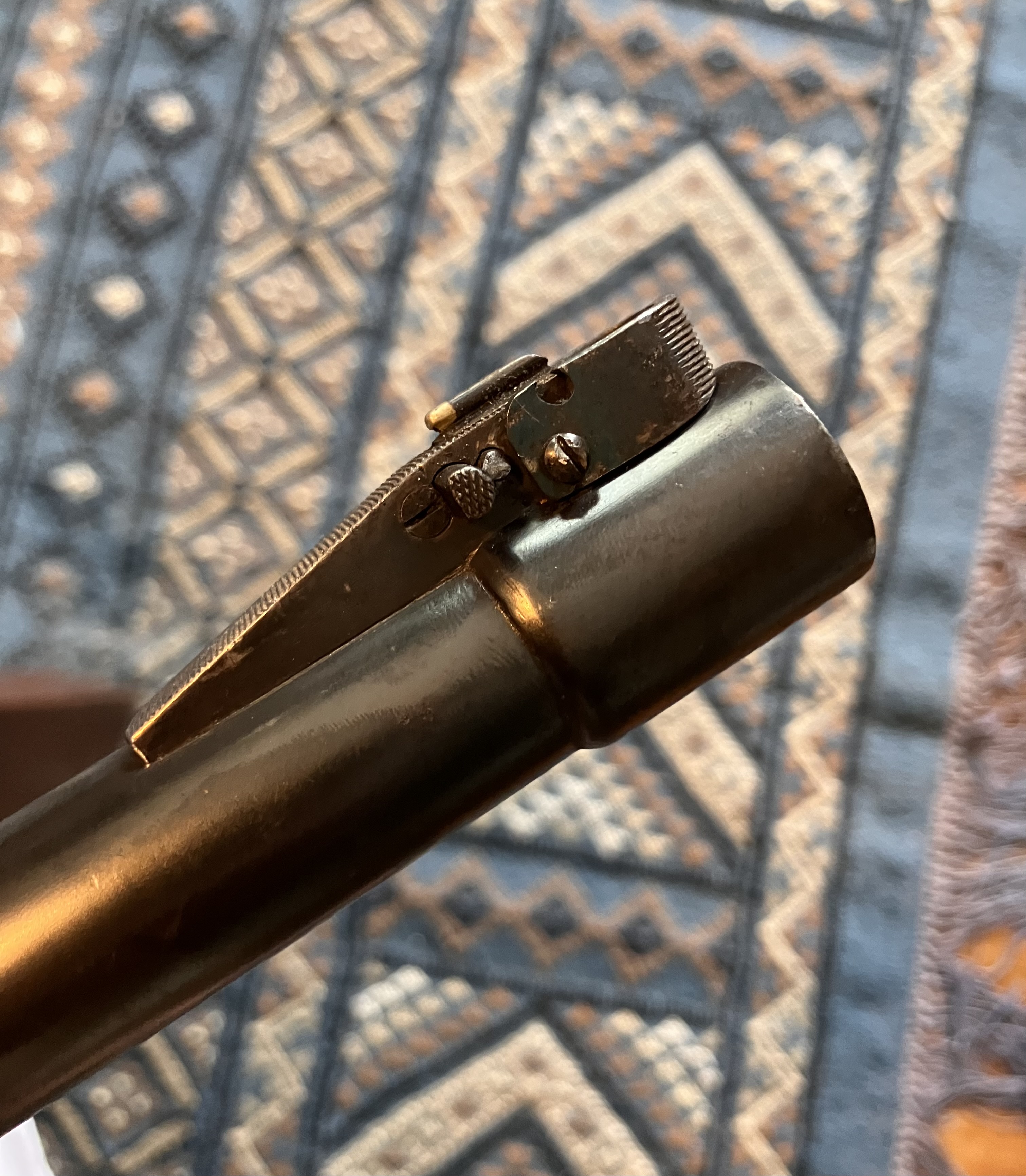

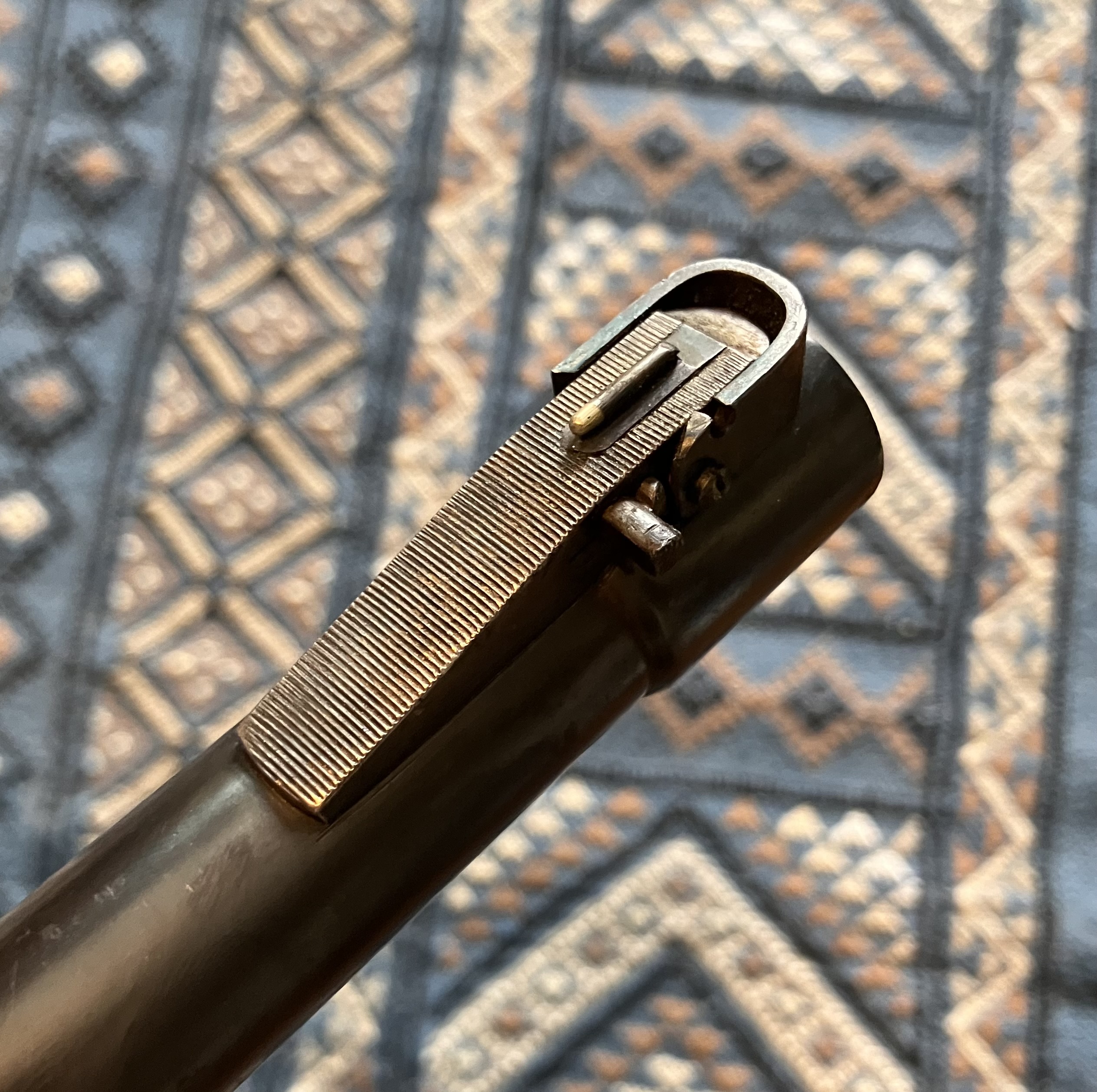

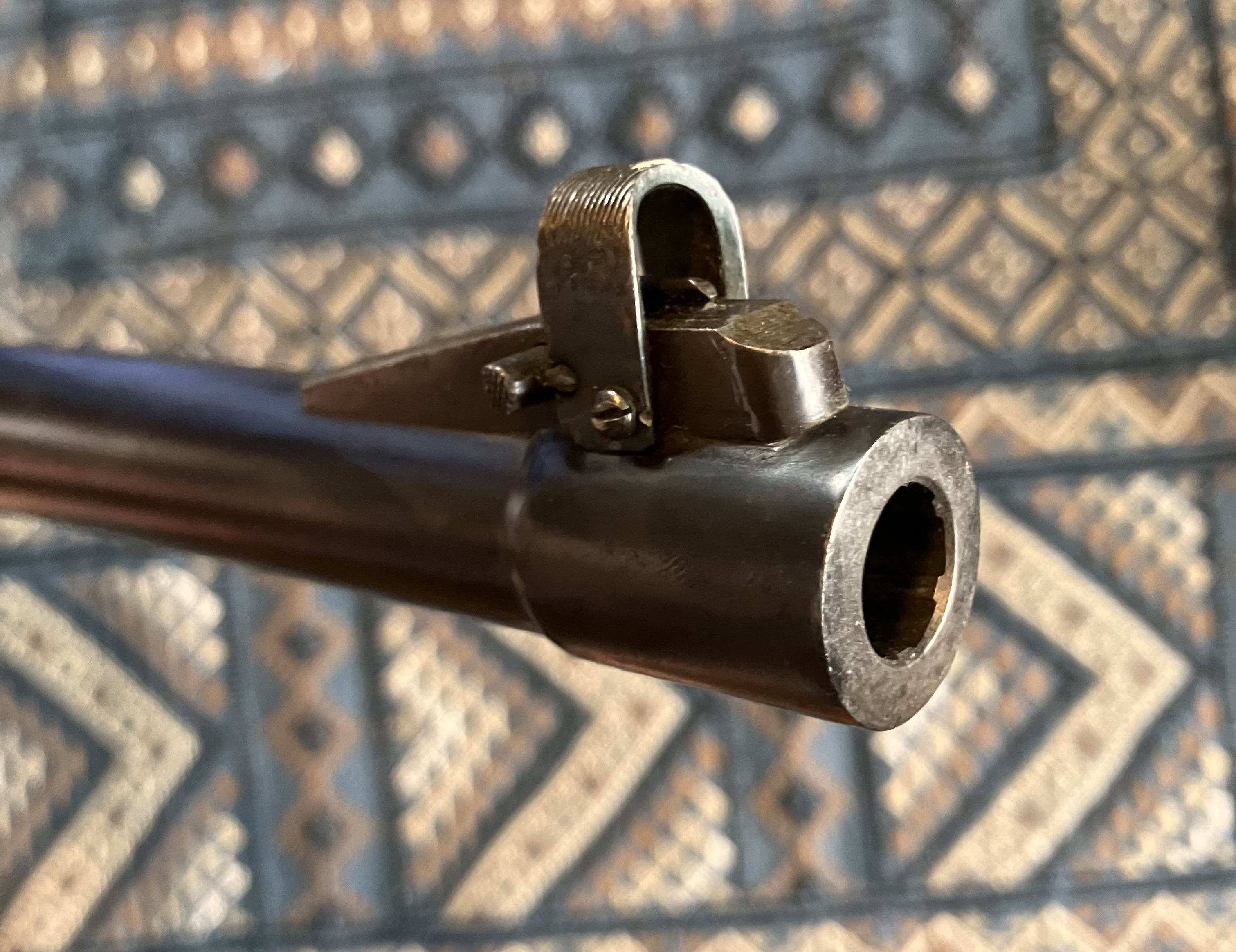

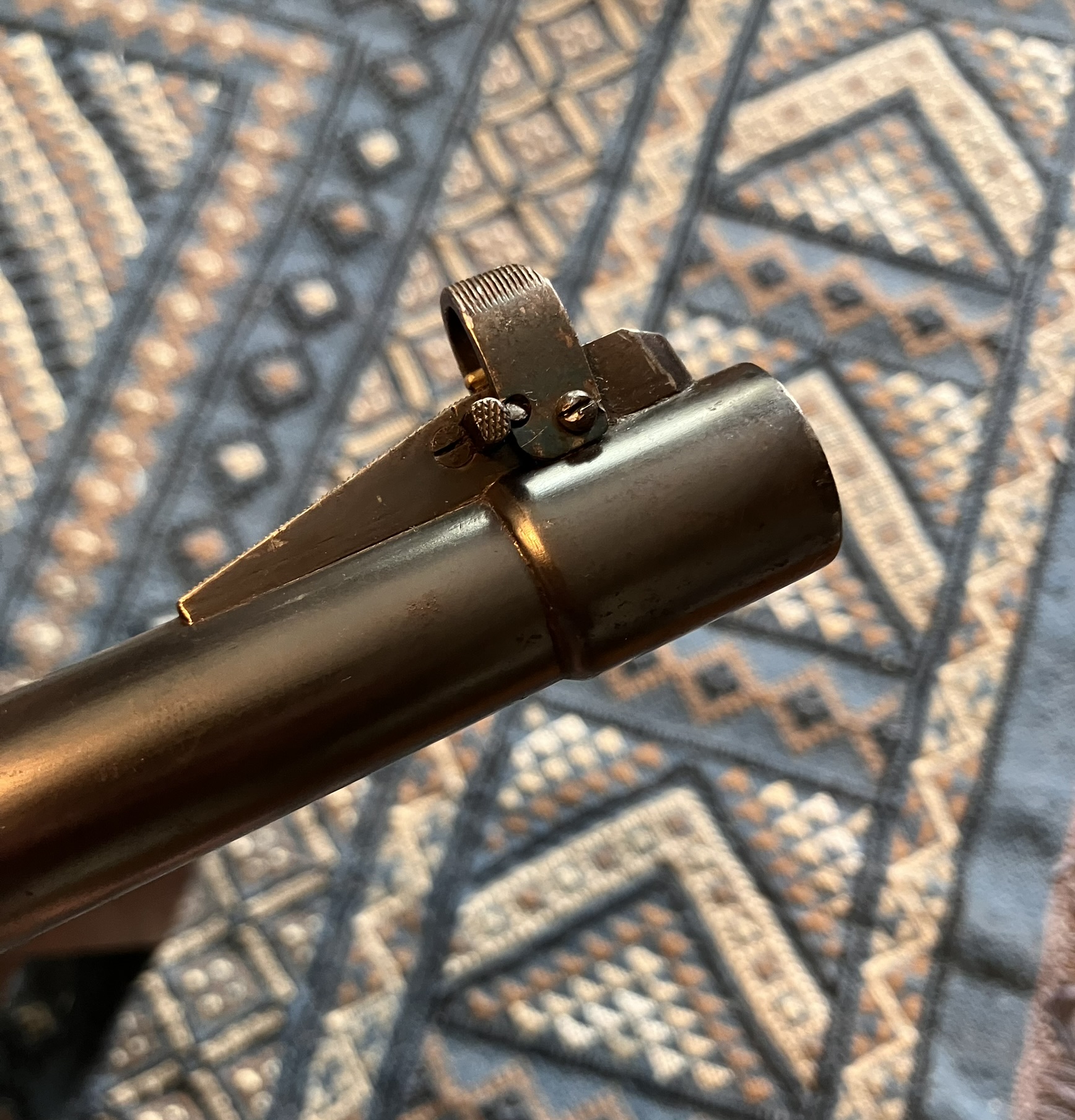

Here are photos of my original Schuler Jumbo.
You can see what an artillery piece these rifles are considering that’s a half inch hole in the end!!
The hood release is the little button on the side of the ramp and the hood itself is THICK ! Not just a shade but for real protection .

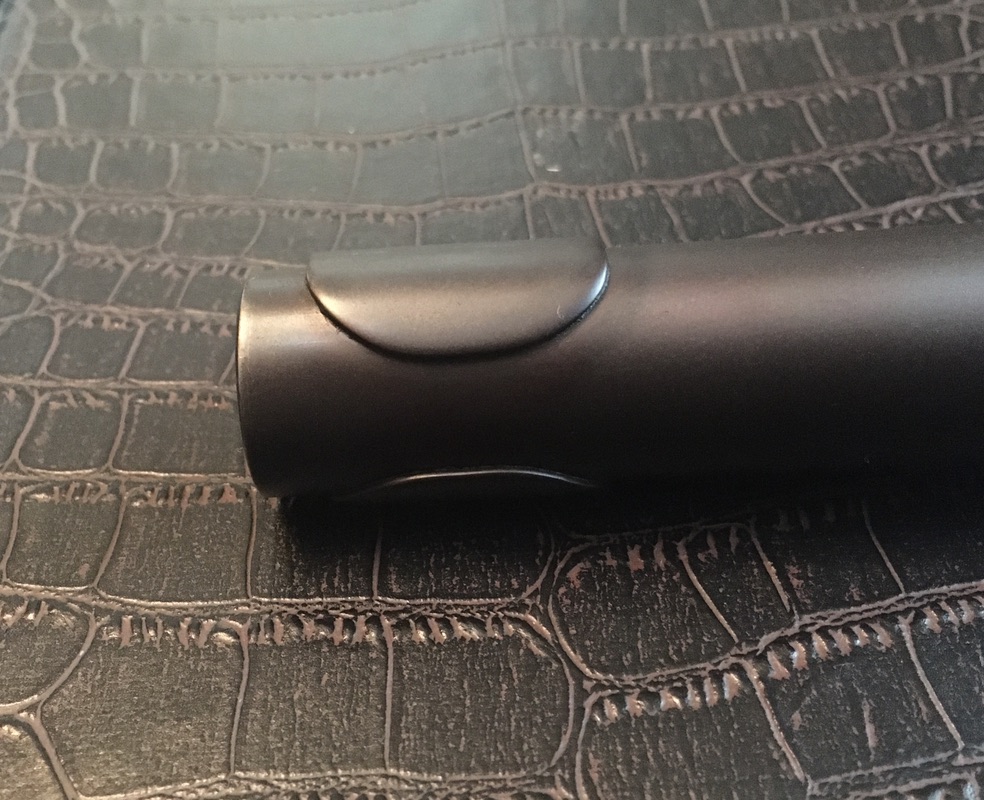

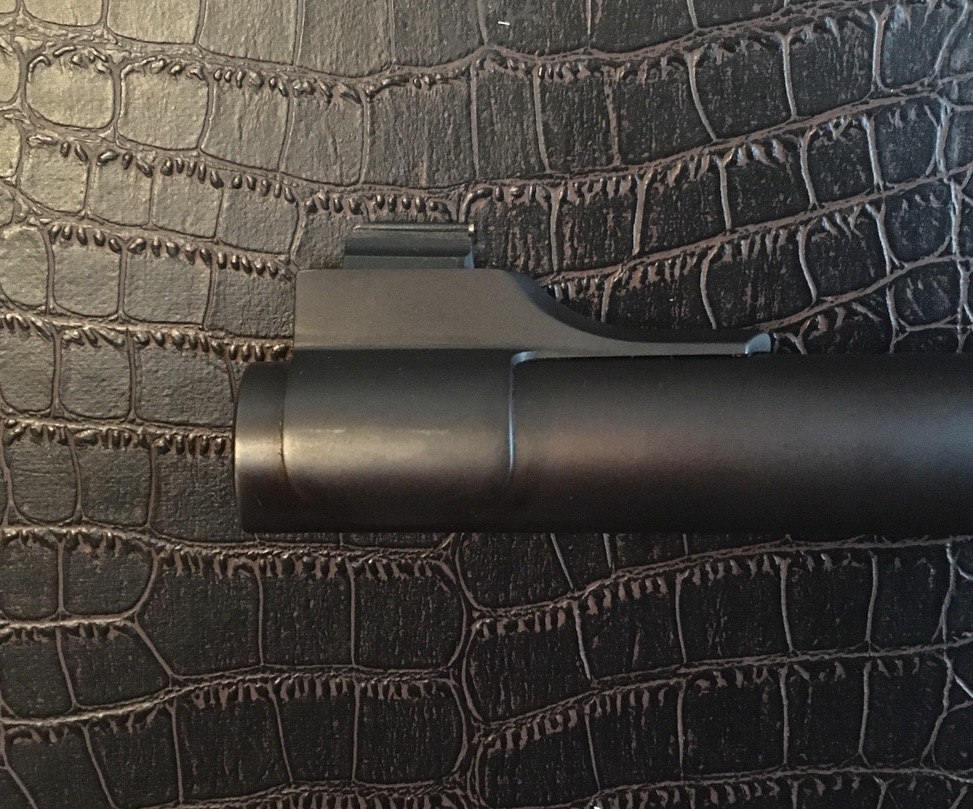

This one, although not a 500 Jeff., is a 500 Ruger No.1 which, I believe had the original front sight split and opened up for the 500 barrel.
Pretty slick I think and gives a good amount of solder area for a strong join.
