Lets talk Drillings

EDELWEISS

AH enthusiast
Joined
Aug 10, 2011
Messages
257
Reaction score
202
Location
MARYLAND
Hunting reports
Africa
1
Hunted
US, Canada, Middle East(does that count)
I have had a "lust" for drillings almost as long as my Double Rifle lust, sadly though Ive never "pulled the trigger" to buy one. I think I want a "LITE" Drilling (my term), something like 20ga x 20ga over maybe 6.5x55 or 7x57, although I could be talked into another rifle chambering. Basically what I want is something that is really light enough to carry all day but still be useful on medium game in the Whitetail range. Im not usually a "pretty rifle" sorta guy, preferring working guns over safe queens; but for a drilling I think I want engraving or perhaps relief game scenes.

Talk to me....


Red Leg

Lifetime bronze benefactor
AH ambassador
Joined
May 19, 2009
Messages
5,513
Reaction score
13,979
Location
Texas Hill Country
Media
261
Articles
5
Hunting reports
Africa
2
USA/Canada
3
Mex/S.Amer
1
Europe
3
Member of
SCI DSC life memberships / NRA Patron Life
Hunted
Mexico, Namibia, RSA, Germany, Austria, Argentina, Canada, Mozambique, Spain, US (15 states)
Okay........ Soooo ....... buy one?

A couple of thoughts before you do. You won't find one in 6.5x55, but you can in 6.5x57R. The 7x57R is relatively common and the 7x65R less so. You will not find a 7x57. You also will have a hard time finding one in 20 bore over anything. I have handled perhaps two, and both of those were over .22 Savage. Standard is 16 bore. Makes a light and useful gun. The rifles above will weigh between 6.5 and 7.25 pounds without a scope. The only effective way to scope them is with claw mounts. Many that you find will have the bases in place, often without the scope (when our boys were looting - excuse me - liberating - their way across Germany, they didn't realize that the German hunter typically stored his scope separately from his drilling. Hence, a lot came home in duffle bags without scopes). There are a couple of guys in the States who can fit rings and a modern scope to the bases. You can find the occasional ultra-lite drilling with a dural (aluminum alloy) frame. Never got the point. Turns a perfectly balanced design into a viciously kicking little bitch - particularly with shotgun loads.

Guns international always has quite a few drillings listed. Just remember they are the equivalent of a high performance car - they are complicated - and way too many have seen the attention of shade tree American mechanics. I would estimate that half I pick up have some sort of induced issues with triggers, springs, or the barrel selectors. Doubling and tripling is an eye-crossing experience with a 6.5 lb weapon. Any damage whatsoever to any frame screw is a sure indicator of trouble.

Of course the Sine Qua Non of the tribe is the double rifle drilling. Mine has the clam shell lock and 9.3x74R x 9.3x74R over the shot barrel. It weighs just a bit less than eight pounds without the scope and is not for the faint of heart.


EDELWEISS

AH enthusiast
Joined
Aug 10, 2011
Messages
257
Reaction score
202
Location
MARYLAND
Hunting reports
Africa
1
Hunted
US, Canada, Middle East(does that count)
Okay........ Soooo ....... buy one?

A couple of thoughts before you do. You won't find one in 6.5x55, but you can in 6.5x57R. The 7x57R is relatively common and the 7x65R less so. You will not find a 7x57.
Are you saying NO to the 6.5x55 and 7x57 because they arent rimmied? I know Ive seen other rimless cartridges in post war drillings.

Yeah, Ive thought about a double rifle drilling, I also have some love for a DG cartridge drilling, perhaps something like the Luftwaffe gun in 9.3x74R; but I think a medium cartridge would get more use--and isnt that the point of a drilling after all?.

Theres a 20x20 Simson (Merkel) Drilling on gunbroker right now.


Red Leg

Lifetime bronze benefactor
AH ambassador
Joined
May 19, 2009
Messages
5,513
Reaction score
13,979
Location
Texas Hill Country
Media
261
Articles
5
Hunting reports
Africa
2
USA/Canada
3
Mex/S.Amer
1
Europe
3
Member of
SCI DSC life memberships / NRA Patron Life
Hunted
Mexico, Namibia, RSA, Germany, Austria, Argentina, Canada, Mozambique, Spain, US (15 states)
In my experience, not many. The Colt Sauer was marketed in the US in rimless rounds - they are also fairly hideous with huge beavertail forends and weigh a lot. Sort of like Americanizing a fine British game gun. Simson tried a few as well. But heck, if you see rimless drillings, then by all means get one. And you have already scratched the 20x20 itch. Look forward to seeing the one you get.


EDELWEISS

AH enthusiast
Joined
Aug 10, 2011
Messages
257
Reaction score
202
Location
MARYLAND
Hunting reports
Africa
1
Hunted
US, Canada, Middle East(does that count)
It may have been Colt Sauers, I never handled them, just saw listings. Thanks for the heads up though; I always figured a drilling should have a lively swing. If its a "log" why carry it...

Joined
Oct 23, 2016
Messages
24
Reaction score
27
Location
Tennessee
Media
22
It may have been Colt Sauers, I never handled them, just saw listings. Thanks for the heads up though; I always figured a drilling should have a lively swing. If its a "log" why carry it...
I have had a "lust" for drillings almost as long as my Double Rifle lust, sadly though Ive never "pulled the trigger" to buy one. I think I want a "LITE" Drilling (my term), something like 20ga x 20ga over maybe 6.5x55 or 7x57, although I could be talked into another rifle chambering. Basically what I want is something that is really light enough to carry all day but still be useful on medium game in the Whitetail range. Im not usually a "pretty rifle" sorta guy, preferring working guns over safe queens; but for a drilling I think I want engraving or perhaps relief game scenes.

Talk to me....

I will eventually get a Merkel 96K. You can order a new one and chose 20 gauge or 12 gauge along with choices in caliber of .223 Rem., 243. Win., 7x57R, 7x65R, .308 Win., .30R Blaser, .30-06, 8x57IRS, 9,3x74R.

Games scenes of your choice or go scroll engraving only. You can also go with a nice case color finish too. Hard to beat if you have the cash. I'd love to see what Chapuis or Verney Carron could do in a drilling but as far as I know they done make them. Secretly, I also wish Sabatti would offer a "budget" drilling.

I'd love a rifle drilling two barrels of 9.3x74r over a single 20 or 12 gauge barrel, or also the opposite. Or 20x20 over a .450/.400!! So many choices.


Longwalker

AH fanatic
Joined
Apr 2, 2015
Messages
696
Reaction score
1,361
Location
Canada
Media
67
Articles
1
Hunting reports
USA/Canada
4
Member of
Saskatchewan Wildlife Federation, Saskatoon Gun Dog Club
Hunted
Canada, USA, Germany, South Africa, Namibia

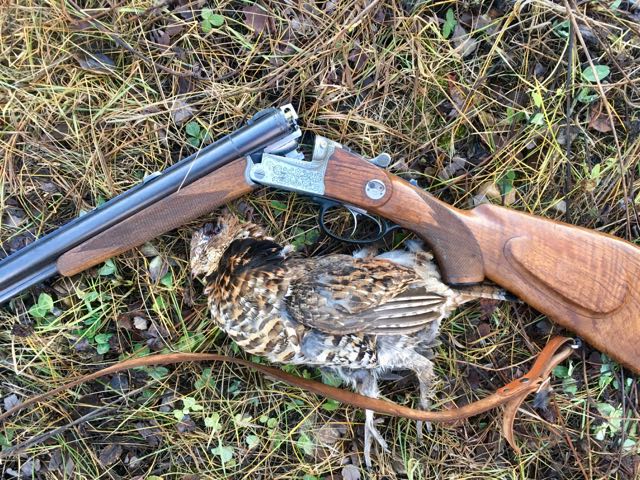

I have a Krieghoff drilling in 16x16/7x57R. It has a dural aluminum frame. It is light, handy, versatile and deadly. It does not kick excessively, certainly not a "viciously kicking little bitch" but then I use standard one ounce upland game loads in the shotgun barrels. I just used it yesterday on a grouse hunt. Worked perfectly.
I have owned two others, both Sauers, both in 16x16/8x57R. I would not consider purchasing a drilling ( or any other hinge action firearm) in a rimless cartridge. That's what rimmed cartridges were designed for. They are MUCH easier to grasp when unloading in cold or wet conditions, or when in a hurry.
I have used a buddy's 12x12/7x65R Merkel drilling while hunting in Germany, it was effective, but not well balanced and handy like the 16 ga guns I have owned.
Modern drillings are made in 20 ga, and I would certainly suggest you check them out. I have not handled one, but expect that they may be the best chambering, along with 7x57R for a USA hunter.
I also have a Krieghoff .22 magnum rimfire insert in mine, makes it even more handy when doing "come what may" hunts on our trapline. I have used it for things like beaver and rabbits and grouse. With the Kahles 3-9 scope clicked in to the claw mounts it is accurate and effective on medium sized game to as far as I care to shoot.


Red Leg

Lifetime bronze benefactor
AH ambassador
Joined
May 19, 2009
Messages
5,513
Reaction score
13,979
Location
Texas Hill Country
Media
261
Articles
5
Hunting reports
Africa
2
USA/Canada
3
Mex/S.Amer
1
Europe
3
Member of
SCI DSC life memberships / NRA Patron Life
Hunted
Mexico, Namibia, RSA, Germany, Austria, Argentina, Canada, Mozambique, Spain, US (15 states)
I have a Krieghoff drilling in 16x16/7x57R. It has a dural aluminum frame. It is light, handy, versatile and deadly. It does not kick excessively, certainly not a "viciously kicking little bitch" but then I use standard one ounce upland game loads in the shotgun barrels. I just used it yesterday on a grouse hunt. Worked perfectly.
I have owned two others, both Sauers, both in 16x16/8x57R. I would not consider purchasing a drilling ( or any other hinge action firearm) in a rimless cartridge. That's what rimmed cartridges were designed for. They are MUCH easier to grasp when unloading in cold or wet conditions, or when in a hurry.
I have used a buddy's 12x12/7x65R Merkel drilling while hunting in Germany, it was effective, but not well balanced and handy like the 16 ga guns I have owned.
Modern drillings are made in 20 ga, and I would certainly suggest you check them out. I have not handled one, but expect that they may be the best chambering, along with 7x57R for a USA hunter.
I also have a Krieghoff .22 magnum rimfire insert in mine, makes it even more handy when doing "come what may" hunts on our trapline. I have used it for things like beaver and rabbits and grouse. With the Kahles 3-9 scope clicked in to the claw mounts it is accurate and effective on medium sized game to as far as I care to shoot.

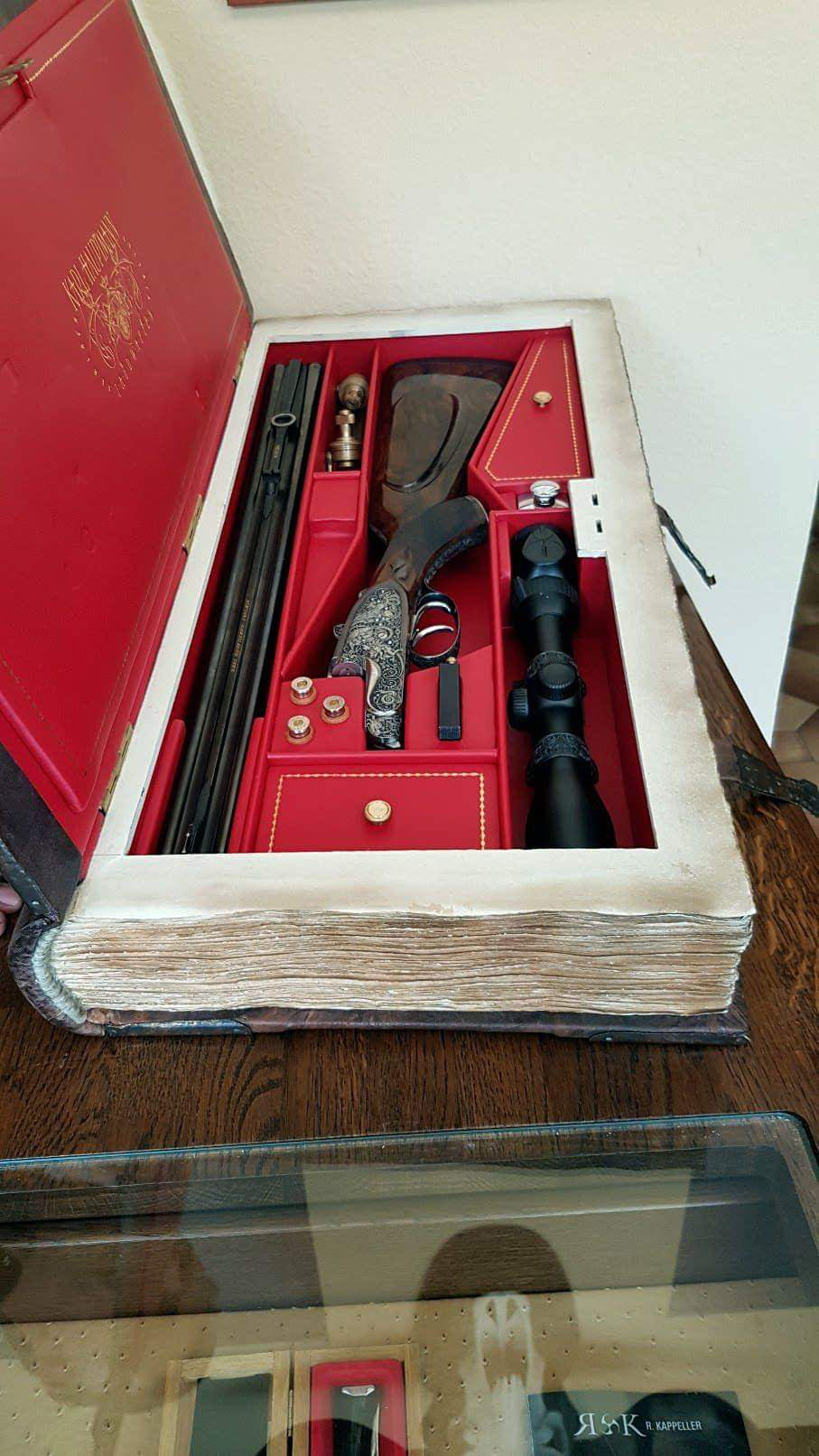

View attachment 162330
Probably more critical sounding than I meant to be. Had a Meffert vierling for a while with a dural frame and fairly short stock. It was 16x16/8x57R (318)/.22 Hornet. Without scope, which is how I used it on drive hunts, it was very light and I wager would catch most people's attention when fired. If not carefully paying attention - like when a boar busted cover - I would put my thumb knuckle into my right eye with painful regularity. I finally sold the vicious little bitch. :) I too am a great believer in Einstecklaufe (insert barrels). I have either .22lr or .22 mag for each of mine. They create an incredibly versatile weapon.


rookhawk

AH legend
Joined
Mar 4, 2015
Messages
3,025
Reaction score
3,924
Location
North America
Media
138
Articles
2
Member of
NRA Life Benefactor, Trout Unlimited, Safari Club International
The default drilling is 16x16x8mmJR

That is perfect, especially if you can find a 27" barrel.

20 bores cost more. Long barrels cost more yet in 20. Most 20s have small rifle cartridges as their trio.

Lots of exceptions but those are the guidelines.
