Leica Ultravid HD-Plus



For Breath-Taking Views

Crystal Clear Vision
Experience nature in razor-sharp detail

The Leica Ultravid HD-Plus series is a precise combination of state-of-the-art technology, new coating processes, innovative glass materials and the greatest optical know-how.



The Leica Ultravid HD-Plus models meet the highest demands of binocular users. The binoculars incorporate innovative coating processes, high-quality lenses and high-transmission glass (SCHOTT HT™- Glass) in the prisms. A sophisticated system of baffles keeps stray-light at a minimum. In addition, the perfect balance between transmission and contrast ensures rich colours, clear vision and the sharpest detail resolution.

Resistant By Nature
Great performers in all situations

The timeless elegant design hides and protects what’s inside: precise mechanisms and the finest optics. The Ultravid HD-Plus binoculars are reliable companions that have been tested under the toughest conditions.


The focusing mechanism is unerringly smooth and, with only 1.25 turns, it ensures safe, fast and precise focusing. Ergonomic construction allows relaxed and fatigue-free observation. The main weight of the binoculars lies in the middle of your palm. The patented twist-up eyecups with up to four click-stops (depending on the model) offer the best individual viewing comfort – for perfect handling.

Innovative Aquadura® Coating
Protects the optical systems from water, dirt and damage

The AquaDura® coating developed by Leica gives crystal clear vision in any weather and protects the lenses from scratches and abrasion. Raindrops simply roll off. Dirt and fingerprints are easily wiped away.


Thanks to these features, Ultravid binoculars are ideal companions even on challenging tours. There are very few manufacturers who offer such a sophisticated and wide product range of premium binoculars. All models combine precise and robust mechanisms, high transmission, maximum stray-light suppression and brilliant contrast for perfect image sharpness – no matter which front lens diameter and magnification factor you use. Whether as a small companion on day trips, or as a leading light for observation at night - the Ultravid HD-Plus binoculars are the ideal all-rounders for the perfect viewing experience.

Leica Ultravid HD-Plus Range

Excellence in brightness and mechanical performance


Leica Ultravid 32 HD-Plus



The Leica Ultravid 32 HD-Plus models are unequalled in their compact form, high optical performance and easy focusing. The 8x32 HD-Plus model is the perfect companion for long hikes or nature observation in difficult terrain. On city tours, the large field of view provides you with the necessary overview when the distance to the observed object is short. The 32 models are ideal for daylight use and are available with a magnification factor of 8x or 10x. The 10x magnification offers insights into the finest details, even at long distances. The 8x magnification offers a larger field of view.

Delivery scope contoured neoprene carrying strap, front lens caps, eyepiece caps, cordura case
Magnification 8 x
Front lens diameter 32 mm
Exit pupil 4 mm
Twilight factor 16
Field of view at 1,000 m / Field of view at 1,000 yds 135 m
404 ft
Eye-relief 13.3 mm
Objective angle of view 7.7°
Close focusing distance approx. 2.1 m/7.2 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes, removable, with 4 click stops
Adjustable interpupillary distance 52 – 74 mm
Focusing internal focusing via central focusing device
Prism system roof prism with phase correcting coating P40 and HighLux-System HLS™
Coating HDC™ multicoating and Leica AquaDura™ lens coating
Watertightness waterproof to a depth of 5 m/16.5 ft
Housing magnesium, nitrogen-filled
Dimensions (W x H x D) 116 x 116 x 56 mm
4.57 x 4.57 x 2.2 in
Weight approx. 535 g / 18.9 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220

Leica Ultravid HD-Plus (10 x 32)

Delivery scope contoured neoprene carrying strap, front lens caps, eyepiece caps, cordura case
Magnification 10 x
Front lens diameter 32 mm
Exit pupil 3.2 mm
Twilight factor 17.9
Field of view at 1,000 m / Field of view at 1,000 yds 118 m
352 ft
Eye-relief 13.2 mm
Objective angle of view 6.7°
Close focusing distance approx. 2 m/6.6 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes, removable, with 4 click stops
Adjustable interpupillary distance 52 – 74 mm
Focusing internal focusing via central focusing device
Prism system roof prism with phase correcting coating P40 and HighLux-System HLS™
Coating HDC™ multicoating and Leica AquaDura™ lens coating
Watertightness waterproof to a depth of 5 m/16.5 ft
Housing magnesium, nitrogen-filled
Dimensions (W x H x D) 116 x 120 x 56 mm
4.57 x 4.7 x 2.2 in
Weight approx. 565 g / 19.9 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220

Leica Ultravid 42 HD-Plus



The models of the 42 HD-Plus series are among the most compact binoculars available on the market in their class but their light-gathering power can compete with the larger 50 mm models. Leica Ultravid 42 HD-Plus binoculars are available with a magnification factor of 7x, 8x or 10x.

The 7x magnification is a true leading light and so is ideal for use in the hours approaching darkness. In addition, the 7x magnification offers a steady image, because hand trembling or engine vibrations, e.g. on a boat, are not transmitted.

The 8x magnification binoculars are real all-rounders. Despite the lower magnification factor they offer sharp and detailed images and thanks to their good exit pupil they keep performing for a relatively long time in fading light. The excellent field of view of the 8x magnification also offers a good overview, especially in wooded regions. The 10x magnification shows fine details even at long distances – without burdening you with too much weight.

Delivery scope Neoprene carrying strap, contoured, eyepiece cover, protective front lens cover, Cordura case
Magnification 7 x
Front lens diameter 42 mm
Exit pupil 6 mm
Twilight factor 17.1
Field of view at 1,000 m / Field of view at 1,000 yds 140 m
420 ft
Eye-relief 17 mm
Objective angle of view 8°
Close focusing distance approx. 3.3 m/10.8 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes, removable, with two click stops
Adjustable interpupillary distance 55 – 75 mm
Focusing Internal focusing via central focusing device
No. of lens elements (each side) 8, all with HDC™ coating and Leica AquaDura™
Prism system Roof prism with phase correcting coating P40 and HighLux-System HLS™
Watertightness Watertight to a depth of 5 m/16.5 ft
Housing Die-cast magnesium, nitrogen-filled
Dimensions (W x H x D) 120x 141 x 68 mm
4¾ x 55⁄8 x 25⁄8 in
Weight approx. 770 g / 27.2 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220

Leica Ultravid HD-Plus (8 x 42)

Delivery scope Neoprene carrying strap, contoured, eyepiece cover, protective front lens cover, Cordura case
Magnification 8 x
Front lens diameter 42 mm
Exit pupil 5.2 mm
Twilight factor 18.3
Field of view at 1,000 m / Field of view at 1,000 yds 130 m
389 ft
Eye-relief 15.5 mm
Objective angle of view 7.4°
Close focusing distance approx. 3 m/9.8 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes, removable, with two click stops
Adjustable interpupillary distance 55 – 75 mm
Focusing Internal focusing via central focusing device
No. of lens elements (each side) 9, all with HDC™ coating and Leica AquaDura™
Prism system Roof prism with phase correcting coating P40 and HighLux-System HLS™
Watertightness Watertight to a depth of 5 m/16.5 ft
Housing Die-cast magnesium, nitrogen-filled
Dimensions (W x H x D) 121 x 142 x 67 mm
4¾ x 55⁄8 x 25⁄8 in
Weight approx. 790 g / 27.9 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220

Leica Ultravid HD-Plus (10 x 42)

Delivery scope Neoprene carrying strap, contoured, eyepiece cover, protective front lens cover, Cordura case
Magnification 10 x
Front lens diameter 42 mm
Exit pupil 4.2 mm
Twilight factor 20.5
Field of view at 1,000 m / Field of view at 1,000 yds 112 m / 336 ft
Eye-relief 16 mm
Objective angle of view 6.4°
Close focusing distance approx. 2.9 m/9.5 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes
Adjustable interpupillary distance 55 – 75 mm
Focusing Internal focusing via central focusing device
No. of lens elements (each side) 9, all with HDC™ coating and Leica AquaDura™
Prism system Roof prism with phase correcting coating P40 and HighLux-System HLS™
Watertightness Watertight to a depth of 5 m/16.5 ft
Housing Die-cast magnesium, nitrogen-filled
Dimensions (W x H x D) 120 x147 x 68 mm
4¾ x 5¾ x 2¾ in
Weight approx. 750 g / 26.5 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220

Leica Ultravid 50 HD-Plus

The Leica Ultravid 50 HD-Plus binoculars provide exceptional contrast and outstanding image brightness that other binoculars with larger front lens diameters can hardly rival. Their fluoride lenses ensure optimum image clarity and resolution power. Thanks to their large front lens diameter, they are particularly suitable for observations at night and in the hours approaching darkness. Leica Ultravid 50 HD-Plus binoculars are available with a magnification factor of 8x, 10x or 12x.

With their ideal combination of high transmission and perfect contrast, the 8x50 DH-Plus models are truly excellent binoculars for use at night and in low-light.
The 10x50 HD-Plus models offer high magnification for good detail identification and thanks to the large exit pupil they allow unique observation experiences even in the hours approaching darkness.
The 12x magnification offers the best possible detail identification, and is ideal for the use with tripods.

Delivery scope Neoprene carrying strap, contoured, eyepiece cover, protective front lens cover, Cordura case
Magnification 8 x
Front lens diameter 50 mm
Exit pupil 6.2 mm
Twilight factor 20.0
Field of view at 1,000 m / Field of view at 1,000 yds 117 m
352 ft
Eye-relief 17 mm
Objective angle of view 6.7°
Close focusing distance approx. 3.5 m/11.5 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes, removable, with 4 click stops
Adjustable interpupillary distance 58 – 74 mm
Focusing Internal focusing via central focusing device
Prism system Roof prism with phasecorrecting coating P40 and HighLux-System HLS™
Watertightness Watertight to a depth of 5 m/16.5 ft
Housing Magnesium, nitrogen-filled
Dimensions (W x H x D) 120 x 182 x 68 mm
4.9 x 7.2 x 2.7 in
Weight approx. 1,000 g / 36.7 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220 42 220

Leica Ultravid HD-Plus (10 x 50)

Delivery scope Neoprene carrying strap, contoured, eyepiece cover, protective front lens cover, Cordura case
Magnification 10 x
Front lens diameter 50 mm
Exit pupil 5.0 mm
Twilight factor 22.4
Field of view at 1,000 m / Field of view at 1,000 yds 117 m
352 ft
Eye-relief 15 mm
Objective angle of view 6.7°
Close focusing distance approx. 3.3 m/10.8 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes, removable, with 4 click stops
Adjustable interpupillary distance 58 – 74 mm
Focusing Internal focusing via central focusing device
Prism system Roof prism with phasecorrecting coating P40 and HighLux-System HLS™
Watertightness Watertight to a depth of 5 m/16.5 ft
Housing Magnesium, nitrogen-filled
Dimensions (W x H x D) 125 x 178 x 70 mm
4.9 x 7.0 x 2.8 in
Weight approx. 1,000 g / 36.7 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220

Leica Ultravid HD-Plus (12 x 50)


Delivery scope Neoprene carrying strap, contoured, eyepiece cover, protective front lens cover, Cordura case
Magnification 12 x
Front lens diameter 50 mm
Exit pupil 4.2 mm
Twilight factor 24.5
Field of view at 1,000 m / Field of view at 1,000 yds 100 m
299 ft
Eye-relief 13 mm
Objective angle of view 5.7°
Close focusing distance approx. 3.2 m/10.5 ft
Diopter compensation ± 4 diopters
Automatic diopter compensation ADC™ yes
Eyepieces for eyeglass wearers yes, removable, with 4 click stops
Adjustable interpupillary distance 58 – 75 mm
Focusing Internal focusing via central focusing device
Prism system Roof prism with phasecorrecting coating P40 and HighLux-System HLS™
Watertightness Watertight to a depth of 5 m/16.5 ft
Housing Magnesium, nitrogen-filled
Dimensions (W x H x D) 120 x 182 x 78 mm
4.7 x 7.2 x 3.0 in
Weight approx. 1,040 g / 35.3 oz
Order No. Accessories
Neoprene carrying strap, contoured included
Floating carrying strap, orange 42 163
Tripod adapter 42 220

Screenshot (145).png


Leica Ultravid HD-Plus Equipment

“Swazi For Leica” Binocular Beret Ever-Ready Cover For Binoculars
Extremely practical and rugged



A rugged and weatherproof cover
The extremely practical and rugged “Swazi for Leica” ever-ready cover has been created for Leica in collaboration with Swazi, the well-known outdoor equipment manufacturer from New Zealand. This rugged and weatherproof cover protects binoculars against wind, weather, moisture and dirt in any situation. The binoculars are held tight against the body by the cover when walking or climbing and are immediately ready for use when needed.

“Aneas For Leica” Binocular Bags
Elegant and particularly hardwearing




Robust, finest-quality canvas
The new “Aneas for Leica” binocular bags are ideal for the safe stowage and carrying of all binoculars with 42 mm objective lenses. Made in France, the elegant, particularly hardwearing, and weatherproof bags in robust, finest-quality canvas are available in a choice of brown or green. The bags are produced in collaboration with “Aneas”, the French artisan workshop well known for their use of the premium materials, finest leathers, and elaborate finishing.

Neoprene Binocular Strap “SPORT”
Allows binoculars to be carried without swinging




Ingeniously designed

The ingeniously designed “Sport” belt allows binoculars to be carried without swinging when walking or climbing and simultaneously offers fast access to the binoculars whenever and wherever they are needed. The binoculars are automatically drawn back into the right carrying position when not in use. The Neoprene material is soft, particularly comfortable on bare skin, and the belt can be adjusted to any suitable length.

Neoprene Binocular Strap



Ideal grip on the shoulder
Thanks to their contoured design, the Neoprene carrying straps from Leica adapt perfectly to the body and, thanks to a broad, cushioned Neoprene element, also offer superior comfort when carrying binoculars. The structured, rubber-like lining guarantees ideal grip on the shoulder and prevents binoculars slipping when walking or climbing. First-class materials and high-quality finishing make the Neoprene carrying straps particularly robust and hardwearing. As a further advantage, they guarantee almost silent use of binoculars.

Floating Carrying Strap
For maximum comfort and security in and near water




Floating Carrying Strap
All Leica binoculars are waterproof to a depth of 16.5 ft/5m. With the floating neoprene carrying strap they will always remain afloat, allowing for the care-free use of Leica binoculars near or in water. The strap’s eye-catching signal orange color offers optimum visibility, so the binoculars can be found easily and quickly. The extra wide fit of the strap protects the neck and shoulders when carrying heavier equipment.

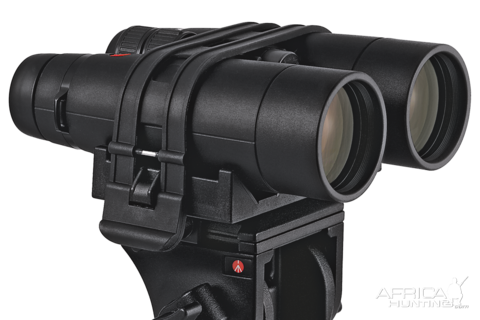

Tripod Adapter
For a steady view




Tripod Adapter
A stable platform for binoculars is helpful when viewing objects at greater distance or focusing on a particular scene. The Leica Tripod Adapter enables simple and secure attachment of the binoculars on all standard tripods and monopods. It is quickly and easily attached to the flexible baseplate of the tripod adapter with elastic rubber belts.
