Leica ER 5 Quality Riflescopes

Leica Sport Optics

Sponsor
Since 2016
AH fanatic
Joined
Nov 21, 2016
Messages
647
Reaction score
223
Website
us.leica-camera.com
Media
88
Articles
78
Reflecting A Passion For Hunting



A Precise Hunting Companion
Go for a perfect shot

The new Leica ER 5 riflescopes and you are a perfect match — German engineering meets the North American hunter and shooter for high-performance. Focused on the essentials: precision mechanics, outstanding optical quality, and extraordinary durability. Now you just need to focus yourself! The ER 5 is sure to deliver great results every time.



Easy To Use
Find the precise point of impact

Shooter safety first: the turrets are easily resettable without tools. And by featuring the longest eye relief in their class and a very forgiving exit pupil, additional shooter safety is provided.



Quick Action And Close Quarters
Pinpoint your target quickly

The outstanding optical quality ensures that you won’t miss any of the necessary details, even in dense cover – the wide-range 5× zoom factor offers highly versatile magnification ranges to meet any hunting need.



Leica ER 5 Range



Leica ER 5 1 — 5x24

Let us open your eyes to this specialist for dangerous games: the ER 5 1 is the perfect choice for fast-moving targets, even at short distances. Low Power allows you to keep both eyes on your target. This compact, lightweight camera provides higher power with up to 5× magnification to allow shooting at longer distances so you won’t miss any necessary details, even in dense cover. A large exit pupil and wide field of view help you to pinpoint your target quickly.

Click values for Elevation & Windage 1/3 MOA
Parallax free distance 100 yds/91.4 m
Eye relief 3.8 in/95 mm
Range of dioptric compensation ± 2.5 dpt
Magnification range 1 x – 5 x
Eff. Entrance pupil diameter @ min. magnification 16 mm
Eff. Entrance pupil diameter @ max. magnification 24 mm
Vignetting at low power 36 %
Eff. exit pupil diameter @ min. magnification 16 mm
Eff. exit pupil diameter @ max. magnification 5 mm
Objective field of view @ 100 m min. magnification 105 ft/32 m
Objective field of view @ 100 m max. magnification 21 ft/6.4 m
Light transmission (daylight & night adapted eye) ≥ 90 %
Length over all 272 mm/10.7"
Front mounting distance 85 mm/3.3"
Rear mounting distance 67 mm/2.6"
Objective bell diameter 28.6 mm ± 0.1 mm/1.125"
Eyepiece diameter 1.625 in/41.3 mm
Main tube diameter (mounting area) 1.181 in/30 mm
Weight 410 g/14.5 oz
Total travel elevation (@ 100 yds) ≥ 72.7cm/100 MOA
Total travel windage (@ 100 yds) ≥ 72.7cm/100 MOA
Filter thread M 27 x 0.5
Functional temperature −13 °F/+131 °F
−25 °C/+55 °C
Storage temperature −40 °F/+185 °F
−40 °C/+85 °C
Nitrogen filled yes
Scope of delivery objective and eyepiece cover, warranty card, manual, cleaning cloth


Leica ER 5 1.5 — 8x32

A perfect match for a high-performance, lightweight rifle. The ideal balance between size and weight delivers fast and smooth performance. As a versatile all-rounder it’s perfect for mountain hunting, providing a wide range of applications from close range/low light to small target/longer range.

Click values for Elevation & Windage ¼ MOA
Parallax free distance 100 yds/91.4 m
Eye relief 3.8 in/95 mm
Range of dioptric compensation ± 2.5 dpt
Magnification range 1.5 x – 8 x
Eff. Entrance pupil diameter @ min. magnification 26 mm
Eff. Entrance pupil diameter @ max. magnification 32 mm
Vignetting at low power 19 %
Eff. exit pupil diameter @ min. magnification 16 mm
Eff. exit pupil diameter @ max. magnification 4 mm
Objective field of view @ 100 m min. magnification 67 ft/20.4 m
Objective field of view @ 100 m max. magnification 13.5 ft/4.12 m
Light transmission (daylight & night adapted eye) ≥ 90 %
Length over all 310 mm/12"
Front mounting distance 50 mm/2.0"
Rear mounting distance 67mm/2.6"
Objective bell diameter 38 mm/1.5"
Eyepiece diameter 1.625 in/41.3 mm
Main tube diameter (mounting area) 1.181 in/30 mm
Weight 340 g/12 oz
Total travel elevation (@ 100 yds) ≥ 110 MOA
Total travel windage (@ 100 yds) ≥ 100 MOA
Filter thread M 35.5 x 0.5
Functional temperature −13 °F/+131 °F
−25 °C/+55 °C
Storage temperature −40 °F/+185 °F
−40 °C/+85 °C
Nitrogen filled yes
Scope of delivery objective and eyepiece cover, warranty card, manual, cleaning cloth


Leica ER 5 2 — 10x50

Its versatility prepares you for any hunting or shooting situation thanks to the large objective diameter and the highly usable power range: the universal riflescope features 10x magnification and a 50 mm objective for normal hunting distance and high-contrast optical performance for quick target acquisition. Excellent light transmission allows you to quickly identify and acquire your target even if the weather turns and visibility decreases. Side Focus Parallax adjustment lets you focus quickly and directly, preventing deviations of point of impact.

Click values for Elevation & Windage ¼ MOA
Parallax free distance 50 yds – ∞/45.70 m – ∞
Eye relief 3.8 in/95 mm
Range of dioptric compensation ± 2.5 dpt
Magnification range 2 x –10 x
Eff. Entrance pupil diameter @ min. magnification 31.8 mm
Eff. Entrance pupil diameter @ max. magnification 50 mm
Vignetting at low power 36 %
Eff. exit pupil diameter @ min. magnification 16 mm
Eff. exit pupil diameter @ max. magnification 5 mm
Objective field of view @ 100 m min. magnification 54.25 ft /16.54 m
Objective field of view @ 100 m max. magnification 10.75 ft/3.28 m
Light transmission (daylight & night adapted eye) ≥ 90 %
Length over all 358 mm/14"
Front mounting distance 50 mm/2.0"
Rear mounting distance 67mm/2.6"
Objective bell diameter 60 mm/2.4"
Eyepiece diameter 1.625 in/41.3 mm
Main tube diameter (mounting area) 1.181 in/30 mm
Weight 620 g/22 oz
Total travel elevation (@ 100 yds) ≥ 100 MOA
Total travel windage (@ 100 yds) ≥ 90 MOA
Filter thread M 55 x 0.75
Functional temperature −13 °F/+131 °F
−25 °C/+55 °C
Storage temperature −40 °F/+185 °F
−40 °C/+85 °C
Nitrogen filled yes
Scope of delivery objective and eyepiece cover, warranty card, manual, cleaning cloth


Leica ER 5 3 — 15x56

This versatile low-light riflescope also comes with a large objective that means a large exit pupil: you can quickly identify and acquire your target, even in bad weather conditions. Its 15× magnification is perfect for smaller targets or longer distances and the 56 mm objective enables vignetting and superior light transmission. Suitable for virtually every kind of hunting.

Click values for Elevation & Windage ¼ MOA
Parallax free distance 50 yds – ∞/45.70 m – ∞
Eye relief 3.8 in/95 mm
Range of dioptric compensation ± 2.5 dpt
Magnification range 3 x –15 x
Eff. Entrance pupil diameter @ min. magnification 49 mm
Eff. Entrance pupil diameter @ max. magnification 56 mm
Vignetting at low power 12 %
Eff. exit pupil diameter @ min. magnification 16 mm
Eff. exit pupil diameter @ max. magnification 3.7 mm
Objective field of view @ 100 m min. magnification 36.25 ft/11.05 m
Objective field of view @ 100 m max. magnification 7.25 ft/2.21 m
Light transmission (daylight & night adapted eye) ≥ 90 %
Length over all 388 mm/15.3"
Front mounting distance 59 mm/2.3"
Rear mounting distance 67 mm/2.6"
Objective bell diameter 66 mm/2.6"
Eyepiece diameter 1.625 in/41.3 mm
Main tube diameter (mounting area) 1.181 in/30 mm
Weight 720 g/25.5 oz
Total travel elevation (@ 100 yds) ≥ 90 MOA
Total travel windage (@ 100 yds) ≥ 80 MOA
Filter thread M 58 x 0.75
Functional temperature −13 °F/+131 °F
−25 °C/+55 °C
Storage temperature −40 °F/+185 °F
−40 °C/+85 °C
Nitrogen filled yes
Scope of delivery objective and eyepiece cover, warranty card, manual, cleaning cloth

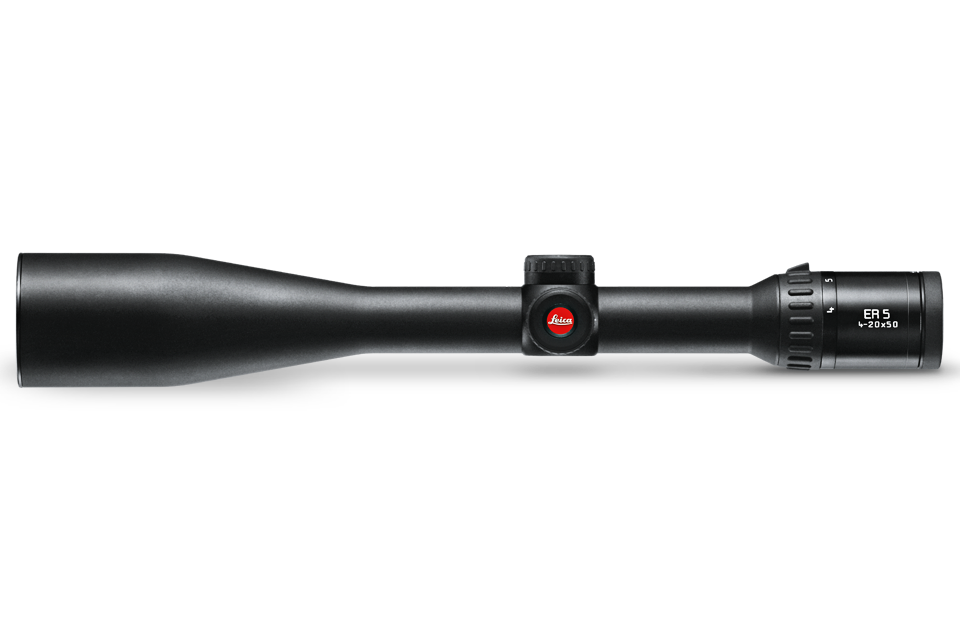

Leica ER 5 4 — 20x50

Extended range shooting starts right here: 20× power magnification, a large and user-friendly eye box, Side Focus Parallax adjustment and specialized ballistic reticles offer amazingly fast and accurate targeting at extended and long-range shooting distances. The 50 mm objective provides excellent light transmission, so even in fading light this scope produces bright, high-contrast images, meaning you won’t miss any necessary details.

Click values for Elevation & Windage ¼ MOA
Parallax free distance 50 yds – ∞/45.70 m – ∞
Eye relief 3.8 in/95 mm
Range of dioptric compensation ± 2.5 dpt
Magnification range 4 x – 20 x
Eff. Entrance pupil diameter @ min. magnification 50 mm
Eff. Entrance pupil diameter @ max. magnification 50 mm
Vignetting at low power 0 %
Eff. exit pupil diameter @ min. magnification 12.5 mm
Eff. exit pupil diameter @ max. magnification 2.5 mm
Objective field of view @ 100 m min. magnification 27.25 ft/8.31 m
Objective field of view @ 100 m max. magnification 5.25 ft/1.6 m
Light transmission (daylight & night adapted eye) ≥ 90 %
Length over all 415 mm/16.3"
Front mounting distance 65 mm/2.5"
Rear mounting distance 67 mm/2.6"
Objective bell diameter 60 mm/2.3"
Eyepiece diameter 1.625 in/41.3 mm
Main tube diameter (mounting area) 1.181 in/30 mm
Weight 650 g/23 oz
Total travel elevation (@ 100 yds) ≥ 70 MOA
Total travel windage (@ 100 yds) ≥ 60 MOA
Filter thread M 55 x 0.75
Functional temperature −13 °F/+131 °F
−25 °C/+55 °C
Storage temperature −40 °F/+185 °F
−40 °C/+85 °C
Nitrogen filled yes
Scope of delivery objective and eyepiece cover, warranty card, manual, cleaning cloth

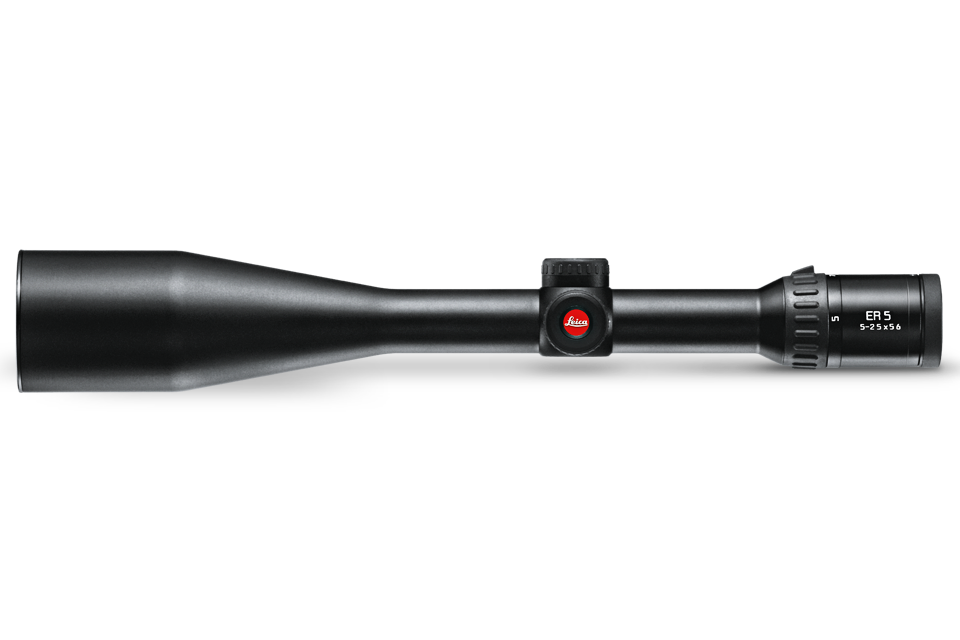

Leica ER 5 5 — 25x56

Hunting in low light at an extended shooting distance? No problem! The 50 mm objective of the

ER 5 5-25x56 produces amazingly bright, high-contrast images no matter how bad light conditions or the extended shooting distance may be. Besides the large and user-friendly eye box and the Side Focus Parallax adjustment for fast and precise shots, this scope gives you the highest power magnification for extreme long-range shots and maximum accuracy.

Click values for Elevation & Windage ¼ MOA
Parallax free distance 50 yds – ∞/45.70 m – ∞
Eye relief 3.8 in/95 mm
Range of dioptric compensation ± 2.5 dpt
Magnification range 5 x – 25 x
Eff. Entrance pupil diameter @ min. magnification 56 mm
Eff. Entrance pupil diameter @ max. magnification 56 mm
Vignetting at low power 0 %
Eff. exit pupil diameter @ min. magnification 11 mm
Eff. exit pupil diameter @ max. magnification 2.3 mm
Objective field of view @ 100 m min. magnification 21.5 ft/6.55 m
Objective field of view @ 100 m max. magnification 4.25 ft/1.3 m
Light transmission (daylight & night adapted eye) ≥ 90 %
Length over all 431 mm/17"
Front mounting distance 65 mm/2.5"
Rear mounting distance 67 mm/2.6"
Objective bell diameter 62 mm/2.4"
Eyepiece diameter 1.625 in/41.3 mm
Main tube diameter (mounting area) 1.181 in/30 mm
Weight 680 g/24 oz
Total travel elevation (@ 100 yds) ≥ 50 MOA
Total travel windage (@ 100 yds) ≥ 45 MOA
Filter thread M 58 x 0.75
Functional temperature −13 °F/+131 °F
−25 °C/+55 °C
Storage temperature −40 °F/+185 °F
−40 °C/+85 °C
Nitrogen filled yes
Scope of delivery objective and eyepiece cover, warranty card, manual, cleaning cloth


LEICA ER 5 Reticles

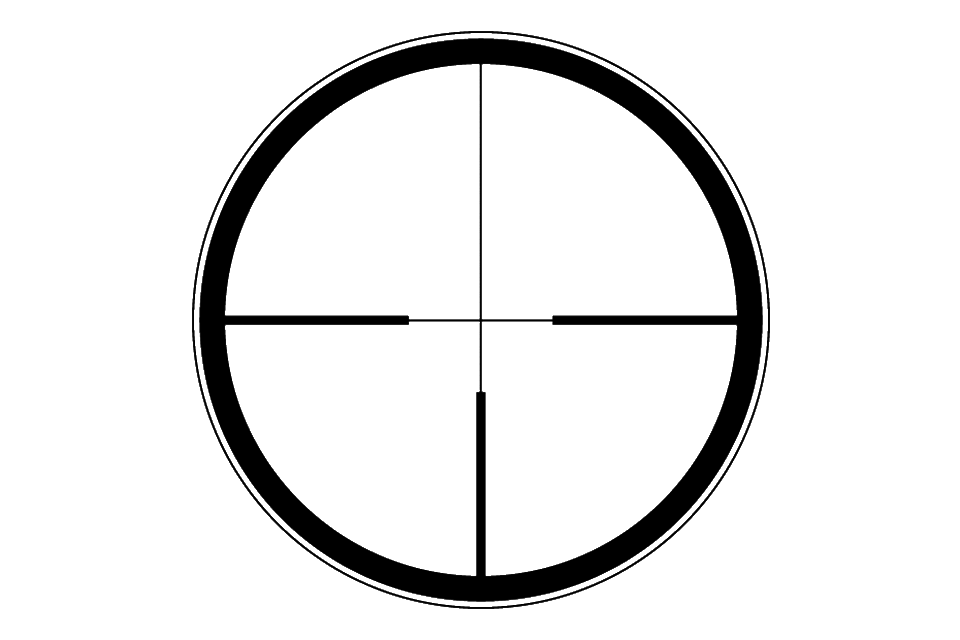

Reticle German 4a

Go for a Classic European Style Reticle: heavy posts are easily seen against a dark target or in low light. Use it for general big-game, dangerous-game, or pig hunting.


Reticle Ballistic

Perfect for quick hold-over determinations and distances beyond point blank range. Provides hold-off determinations for 10 and 20 mph crosswinds. Approximates the ballistics of modern center-fire cartridges. Suitable for mountains or open plains, big-game hunting, and varmint shooting.


Reticle Magnum Ballistic

Provides quick hold-over range determinations for enhanced magnum ballistics. Gives you hold-off determinations for 10 and
20 mph crosswinds. Approximates the ballistic of modern flat
shooting magnum rifles. Suitable for mountains or open plains, big-game hunting, and varmint shooting at extended ranges.


Reticle Circle Plex

This reticle provides rapid target acquisition for quick shots in heavy cover. It’s equally at home on a rifle or shotgun. Use it for big-game, dangerous-game, pig hunting, turkey or action shooting sports.


Reticle LE-TAC

Allows rapid target acquisition with quick visual ranging. It approximates the ballistics of 5.56 w/62 gr bullet. Excellent in combination with the Modern Sporting Rifle.
 Use it for action shooting sports or close-quarter environments.


Leica Equipment

Leica Sunshade
Effective reduction of stray light



Rugged and reliable

The optional all-metal sunshade ensures a brilliant image even in intense sunlight. A second sunshade can be affixed via a second screw thread to increase its effectiveness in reducing stray light. The interior thread (1.93 in x 0.03 in/49 mm x 0.75 mm) can be used to attach special filters. Measuring 1.97 in/50 mm in length, the sunshade is anodised aluminium.


rookhawk

AH legend
Joined
Mar 4, 2015
Messages
3,379
Reaction score
4,745
Location
North America
Media
138
Articles
2
Member of
NRA Life Benefactor, Trout Unlimited, Safari Club International
The ER 5 scopes are now discontinued. Can the "closed secret" of their place of manufacture be revealed? I had heard that they were made in the USA briefly, then made by Leica in Portugal due to slow fabrication in the USA.

Did Zeiss USA make these?
