Iron sights for bolt action rifle Dangerous Game

mark-hunter

AH legend
Joined
Aug 14, 2016
Messages
2,023
Reaction score
2,629
Media
25
Articles
2
Hunted
Namibia - Kalahari, Namibia - Khomas highland
Guys, let me check the community opinion.

How do you regulate iron sights for DG bolt action rifle?
Some sights are fixed.
So, regulating is done once, to remain for the time being. (like for ever)

In my case, at 50 meters,375 HH, shooting with iron sights, point of impact is cca 5 cm (2 inches) below point of aim.
Would you lower front sight a bit, to get zero at 50?
Would you regulate for any other distance, like zero at 30 meters?
Keep it as it is?

Any suggestions?


Opposite Pole

AH elite
Joined
Jun 6, 2017
Messages
1,258
Reaction score
1,900
Location
Warsaw & Sydney
Media
98
Member of
SSAA; PZŁ, KŁ Sęp
Hunted
Australia, Poland
There will be little difference between 30 and 50 with open sights. I regulate my irons on bolt actions for 50m. In case of 375 this will cover you for hunting from 0 to 100m easily. If my rifle shot 5cm low at 50m I would regulate the sights.


ZG47

AH fanatic
Joined
Jan 20, 2015
Messages
544
Reaction score
471
Location
Wellington, New Zealand
Member of
NZDA, NZMSC
Hunted
New Zealand
@mark-hunter If you lower the front sight, secure the rifle and put something heavy like a denim rag on the barrel, to protect against mis-strokes of your file. Use a second cut file. A triangular example, no longer than 8”/200mm, such as I use to fettle auger bits would be a good choice. Always file in the same direction. Rasps are made for back and forth action, files are not.


spike.t

Sponsor
Since 2013
AH ambassador
Joined
Sep 12, 2010
Messages
10,530
Reaction score
13,416
Website
www.takerireservezambia.com
Media
337
Articles
8
Hunting reports
Africa
3
Member of
sci int, basc,wpaz
Hunted
zambia, tanzania, zimbabwe,Mozambique ,hungary, france, england

curtism1234

AH fanatic
Joined
Apr 28, 2016
Messages
882
Reaction score
1,009
Media
6
Are you using a scope or primarily hunting with the irons?

If using a scope, I'd just leave the irons be - they are close enough for the load you are using today.


C.W. Richter

AH fanatic
Joined
Aug 23, 2017
Messages
812
Reaction score
1,022
Location
Pocono Mtns., PA USA
Media
48
Hunting reports
Africa
1
Member of
PA SCI, Various Endless Mtns., PA Region Clubs
Hunted
Zimbabwe 2x, Namibia 2x, RSA 2x, USA, Canada
Real close DG encounter? "In a fight-(use the) Front Sight!"


mark-hunter

AH legend
Joined
Aug 14, 2016
Messages
2,023
Reaction score
2,629
Media
25
Articles
2
Hunted
Namibia - Kalahari, Namibia - Khomas highland
Are you using a scope or primarily hunting with the irons?
Scope is primary. mounts are qd.
Iron sights are back up. (until they become primary)

To paraphrase, iron sights probably I will not need, but in case I need, I will need it very badly.
That need can be either because of close quarters situation with DG, or because of some kind of malfunction of the optics, which is the main reason to have QD mounts in rifle.
Thats how I see it.


Opposite Pole

AH elite
Joined
Jun 6, 2017
Messages
1,258
Reaction score
1,900
Location
Warsaw & Sydney
Media
98
Member of
SSAA; PZŁ, KŁ Sęp
Hunted
Australia, Poland
Scope is primary. mounts are qd.
Iron sights are back up. (until they become primary)

To paraphrase, iron sights probably I will not need, but in case I need, I will need it very badly.
That need can be either because of close quarters situation with DG, or because of some kind of malfunction of the optics, which is the main reason to have QD mounts in rifle.
Thats how I see it.

The way I see it is you have sights on your barrel, there’s nothing to be lost from having them regulated properly. If you never end up using them for hunting at least you got to practise with them while regulating.


mark-hunter

AH legend
Joined
Aug 14, 2016
Messages
2,023
Reaction score
2,629
Media
25
Articles
2
Hunted
Namibia - Kalahari, Namibia - Khomas highland
exactly, thats why I wanted to see with others, and their experiences, of proper regulating.

  • Like
Reactions: WAB

WAB

AH legend
Joined
Oct 8, 2015
Messages
3,060
Reaction score
6,805
Location
Alabama
Media
94
Hunting reports
Africa
5
USA/Canada
1
Member of
DSC, NRA, SCI
Hunted
Zambia, Botswana, Mozambique, South Africa, Zimbabwe, Namibia, Scotland, England, Canada, Alaska, Ireland
I would want them hitting just above the front sight at 50 yards.

Agreed, Align the sights at the bottom of a 2” bull, bullet should strike the center. Some use 4”, I prefer 2”. In a pinch you want the point of impact/point of aim visible above the front sight.


BeeMaa

AH legend
Joined
Jun 11, 2017
Messages
3,065
Reaction score
5,389
Location
Alexandria, VA USA
Media
104
Hunting reports
Africa
1
Member of
NRA Life Member, SCI
Hunted
Eastern US & RSA
Agreed, Align the sights at the bottom of a 2” bull, bullet should strike the center. Some use 4”, I prefer 2”. In a pinch you want the point of impact/point of aim visible above the front sight.
This is how I aligned my irons. POI is 2" (5cm) above POA at 50 yards and it works well for both my wife and myself. If your POI is 5cm lower than your POA, that means you can not "see" where your bullet is supposed to be going. I'd make an adjustment to lower the front sight, which will raise your POI.

If it is a CZ550, the front sight is removable and the bottom is marked with a number. @One Day... addressed the sight height in another thread here. Not to mention he gives you the formula to correct your issue.
https://www.africahunting.com/threads/cz550-front-sight-blade-designations.60224/post-714504

We are also using scopes in QR mounts with irons only as a backup. We will usually practice with the irons for the last couple of shots of a range session.


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
6,057
Reaction score
6,252
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Given that you already have QD rings on your scope, another option would be to purchase an adjustable rear sight from NECG, they have a number of options available. Zero the rifle with the NECG rear sight then remove it and reinstall your QD mounted scope. I have this set-up on several of my 40+ caliber rifles.


calling4life

AH member
Joined
Oct 8, 2020
Messages
32
Reaction score
38
Location
Brookston, MN
I don't use a blanket number.

I wouldn't if I were you either. Take your load and find what trajectory you want with a ballistics calculator.

Example, my 458 lott, Federal 500gr Trophy bonded bear claw, 2200 fps, .282BC

1/2" sight height (I use irons), 15 yard zero.
This would have me within 1/2" of my POA out to a little over 97 yards.

So from zero to 97 yards I only have, at MOST, 1/2" of "miss" in my sight regulation.

I bought the lowest white bead front from NECG, bought the Low rear from Wayne at AHR, and am filing it down now to regulate. I actually have an extra rear low, plus a med and high. And have all the other height white dots, plus the lowest green one, which unfortunately is higher than the lowest white, should I figure out my eyes just can't do white.

But to me, this is an iron sight only gun meant for stopping, to me, the ballistics gave me a picture of what I could do and what I could expect.

Now, put it into practice, so that is a 15yd zero, also zeros at 83yds, so, go shoot, throw a target up at 15 yards, am I 3" high... well, file that rear down a bit more, try again.

Am I 1/2" high... well, maybe step that target back to 10 yards, is it zeroed there, if so, now where does it hit at 50, maybe it's 1" high at 50 but now zeroed at 100 yards as well.

Is that acceptable and leave it alone? Perhaps.

Anyways, that gives you an idea, an expectation, a start, now gear it towards what you want and your load and then you'll know whereabouts you should sight in.

** one more thing, just simply moving my sight height with that same data, moving the sight height to 1.5" has me still zeroed at 15 yards, but near 5" high at 100.

I point that out because sight height matters quite a bit, from being within 1/2" of POA from zero to 97 yards to being within 1/2" of POA from about 10 to 21 yards ONLY.

I'm ok with a 1/2" POA-POI difference, that's why I went with sights as low as possible, you may be fine with different numbers. I'd also rather sacrifice out further than closer because this is for stopping.

But something of which to be aware, because it's a big deal, 1.5" high sights means at Mark Sullivans 10 foot stopping distance I'd be over an inch low just because of sight regulation alone.

That's just an example, nobody get excited about the name and turn this into a Sullivan thread.

So, I'd say check the numbers and get yourself what you want, you may want these regulated specifically for stopping, meaning you may want to zero them at 5 yards, and you don't care if that means you're 10 feet high at 100yds, 100 yds isn't in play, it matters more that you don't die because your POA-POI gap was big at very close ranges.


mark-hunter

AH legend
Joined
Aug 14, 2016
Messages
2,023
Reaction score
2,629
Media
25
Articles
2
Hunted
Namibia - Kalahari, Namibia - Khomas highland
Ok, here is feedback to the community
Rifle is newer model, zkk 602.
Rear iron sight are express type, 100, 200, 300 m. Adjustable for for windage.
Front sight is fixed as it is.

Being total old fashion, i decided for german QD swing mounts, for swaro 1.7-10x42.
German swing mount bases are installed on dove tail.
But in this system, when looking over the scope bases, iron sights are not visible, view obstructed by scope mounts bases..

So, my gunsmith had (in combination with few other upgardes - but now I am speaking about sights, on this thread), so he had to:
- raise rear sights (by installing a steel doubler below the sight, inside dove tail.)
- raise front sights (by changing few of them, different height to allign POA/POI)

And we had to zero the sights in the process. We went both to the range.
When I made this thread the first front sight was a bit high, and rifle was shooting 2 inches low at 50 meters.
Then we reinstalled, new one, lower type. (8mm btw)

Finally. with 100 meter set on rear sight, rifle with new front sight hits exactly at point of aim, at 50 meters. First 2 hits were a bit to the left, cca 2 inches,but perfectly allinged with center for elevation, and the rest was easily adjusted by adjusting windage on rear sight.
Final two sighters were dead on in center of target at 50 meters, exactly at the point of aim.

I did not want to change nothing any more. I was happy.
Will post some photos tommorow.


mark-hunter

AH legend
Joined
Aug 14, 2016
Messages
2,023
Reaction score
2,629
Media
25
Articles
2
Hunted
Namibia - Kalahari, Namibia - Khomas highland
As promissed above, few photos on the subject of scope mount bases, and sights regulation.
Photos made by mobile phone, so not exactly top quality.
But I beleive it will be selfexplanatory.

1 Rear sight.jpg
2 front sight.jpg
3 swing mount base close up.jpg

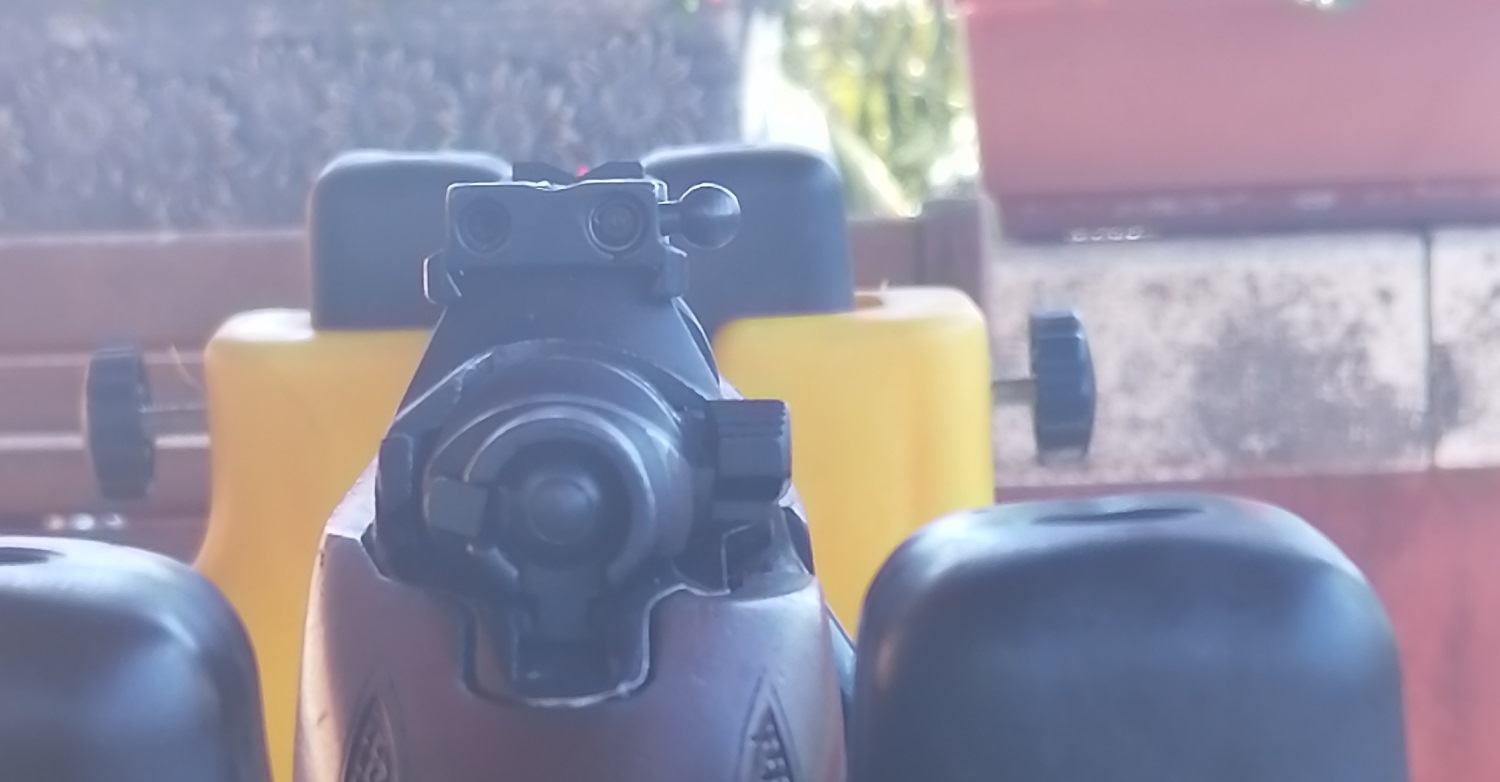

4 rear sight over the scope bases.jpg
5 scope being installed half way.jpg
6 scope installed.jpg

Last edited by a moderator:

IvW

AH legend
Joined
Dec 20, 2016
Messages
3,655
Reaction score
7,260
Location
South Africa
Media
62
Articles
3
Hunting reports
Africa
1
Member of
BASA, CHASA
Hunted
South Africa, Zimbabwe, Mozambique, Botswana, Namibia,Zambia
Ghost ring sights 50m for 500 Jeff 100 for 375 H&H


BeeMaa

AH legend
Joined
Jun 11, 2017
Messages
3,065
Reaction score
5,389
Location
Alexandria, VA USA
Media
104
Hunting reports
Africa
1
Member of
NRA Life Member, SCI
Hunted
Eastern US & RSA
@mark-hunter - I was looking at your setup and had a couple of questions about the height added to make the German Swing Mount system possible.

When you don't have the scope mounted, are you able to mount the rifle and have the iron sights align with your eye easily? Secondly when the scope is mounted, are you able to get a proper cheek weld on the stock?

I was looking at the difference between your ZKK602 vs my old CZ550. Granted, my scope is only a 1" tube and yours is a 30mm, but the difference in height from the bore is significant even with the naked eye. My concern is that the rifle fits you properly and the sights come up naturally, whichever you are using at the time.



mark-hunter

AH legend
Joined
Aug 14, 2016
Messages
2,023
Reaction score
2,629
Media
25
Articles
2
Hunted
Namibia - Kalahari, Namibia - Khomas highland
When you don't have the scope mounted, are you able to mount the rifle and have the iron sights align with your eye easily? Secondly when the scope is mounted, are you able to get a proper cheek weld on the stock?
If I wouldnt have german swing mount bases installed, so if it was with original setup - dove tail only, sights would be visible as designed. Once this type of mount bases are installed, they allign exactly with top of rear sight, covering the notch and front sight. This means, iron sights are 5 mm, too short approximately.

So, with this type scope mount bases, sights are not visible.
This also means, if you install rings directly on dove tail - sights they will be visible.

In my case, this was the only option to raise the sights. because I wanted exclusively german swing mounts. So this was the only soultion to for me. Now is OK.

This is montecarlo type stock, it fits me all very good, I alse have a longish face confirguration. So cheek weld is very good. when using both scope, or/and mechanical sights.

Now from this rifle, in subject, I so far fired maybe 20 shots, for initial testing and later regulation of sights. Next phase is a bit more training, and deeper familiarisation, on different range distances and few other types of ammo. I will also test 200 and 300 meters express sights to see how they perform. 200, 300 meters is optimistic, but to me it is nice, nostalgic touch.
