Good day members
I thought of sharing an interesting process. I previously fire formed .375 H&H Magnum brass to fit in my 404 Jeffery when I purchased it a few years ago. Reason being , there was not any brass available. Today I did the some process. I needed some brass to to shoot while practicing and do not want to use my new Hornady brass.
Step I
Anneal the brass .375 H&H Magnum brass.

Step two
Prime the brass
Step 3

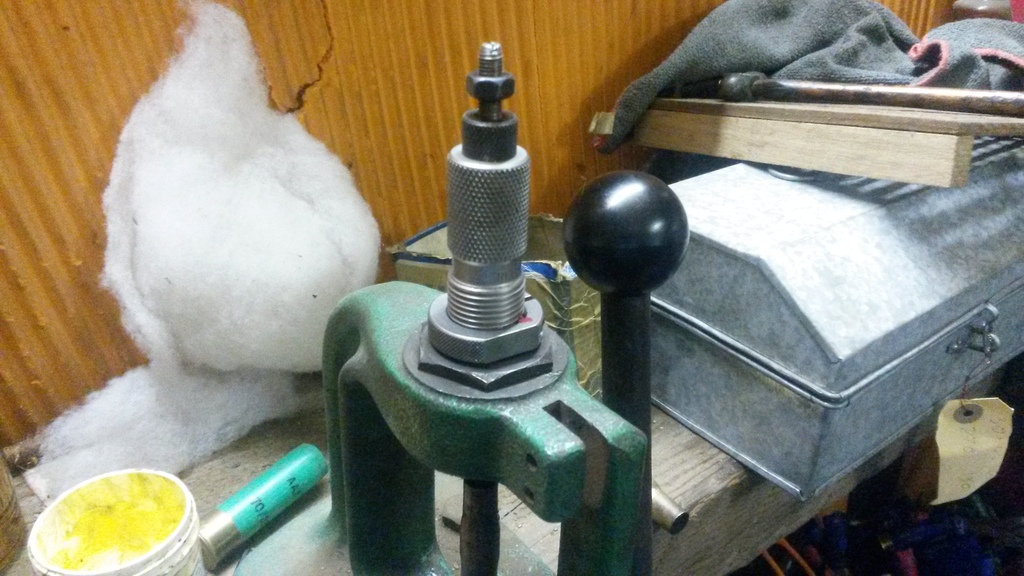

Size the brass with the 404 Jeffery full sizer die. For this experiment I used 30 gn black powder and stuff maize meal into the brass .

I then load it into the 404 Jeffery and fire ..the first top part fire formed ...


Step 4
I then fire the brass:

Step 5
Re- load , this time I used 50gn , S335 with a cast bullet 350 gn and fire the brass...the whole brass fire formed to a .423 brass , 404 Jeffery...


Step 6:
Brass is totally converted to 404 Jeffery brass...will upload a photo tomorrow of the fire formed .375 H&H Magnum to a 404 Jeffery brass...


Attachments

  • 20170523_163700_zps5qntqlpu.jpg
    258.6 KB · Views: 360
  • 20170523_163807_zpsdz8czr4z.jpg
    230.1 KB · Views: 259
  • 20170523_163925_zpsln1bv7b6.jpg
    162.9 KB · Views: 224
  • 20170523_165515_zpsmgzxeftg.jpg
    272.1 KB · Views: 221
  • 20170523_172721_zpsy6fmgame.jpg
    259.3 KB · Views: 253
  • 20170523_192510_zpsbzsdexpg.jpg
    283.1 KB · Views: 302
Last edited by a moderator:

BRICKBURN

Super moderator
Contributor
Lifetime titanium benefactor
AH ambassador
Joined
Aug 5, 2010
Messages
22,981
Reaction score
17,470
Location
Canada
Media
412
Articles
23
Hunting reports
Africa
8
USA/Canada
2
Europe
1
Hunted
Namibia, South Africa, Botswana, Mozambique, Canada, USA, Mexico, England
Interesting.


8x68

AH fanatic
Joined
Mar 1, 2015
Messages
667
Reaction score
557
Location
Ontario, Canada
Media
12
Member of
OFAH, CCFR
Hunted
Canada, USA
I was going to ask "where did the belt go?"


Gert Odendaal

AH legend
Joined
Apr 19, 2012
Messages
2,303
Reaction score
2,329
Media
884
Articles
1
Hunting reports
Africa
1
Member of
SAJW
The belt expanded exponentially...(y) I did fire formed a few brass more today...now I have some practice brass without using my original Hornady and RWS brass...(y)


CAustin

Bronze supporter
AH ambassador
Joined
May 7, 2013
Messages
14,465
Reaction score
11,788
Media
258
Hunting reports
Africa
7
Member of
Courtney Hunting Club, NRA Life Member, SCI Kansas City Chapter
Hunted
South Africa, KwaZulu Natal, Kalahari, Northwest, Limpopo, Gauteng, APNR Kruger Area. USA Georgia, South Carolina, Arkansas, New Mexico, North Carolina and Texas
I didn't realize something like this could be done. Can this process damage the rifle?


Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
6,879
Reaction score
8,247
Location
Colorado
Media
231
Hunting reports
Africa
3
USA/Canada
3
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
Very interesting, but doesn't that leave a weak seam where the belt was? I assume (my first mistake) the brass doesn't melt together?


Gert Odendaal

AH legend
Joined
Apr 19, 2012
Messages
2,303
Reaction score
2,329
Media
884
Articles
1
Hunting reports
Africa
1
Member of
SAJW
No, CAustin, it is not possible for the rifle to be damaged..remember, the brass is flowing when the fire forming takes place..brass can stretch quite a lot..I used but 30 gn black powder and stuffed maize meal...there is no weak spot around the belt..I have done this process about four years back already and still shoot the brass I fire formed way back..
I will upload some photos of that process with more detail to see...(y)


Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
6,879
Reaction score
8,247
Location
Colorado
Media
231
Hunting reports
Africa
3
USA/Canada
3
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
Gert, this is fascinating to me! I never heard nor would have thought this could be done!
So where is the typical failure mode for this brass? Belted cases usually fail near where the brass thins above the belt, or splitting necks sooner or later even after annealing.


Gert Odendaal

AH legend
Joined
Apr 19, 2012
Messages
2,303
Reaction score
2,329
Media
884
Articles
1
Hunting reports
Africa
1
Member of
SAJW
As mentioned previously..the past four years I am shooting these brass..so far no failures at all...remember belted cases head space on the belt..in this case the shoulder is the head space part...:D:D


Ray B

AH legend
Joined
Aug 19, 2016
Messages
2,818
Reaction score
3,465
Location
WA St, USA
Media
77
Hunting reports
USA/Canada
1
Do you use a tapered expander button to neck the .375" out to .423"?


Gert Odendaal

AH legend
Joined
Apr 19, 2012
Messages
2,303
Reaction score
2,329
Media
884
Articles
1
Hunting reports
Africa
1
Member of
SAJW
Johan Greyling explain to me the concept of fire-forming and flow of brass. He also explained that by using 15 gn MP 2OO in the brass stuffed with maze-meal is a safe procedure to blow out brass.



We did fire form the brass in two stages as well as run it through the 404 Jeffery sizing die. The first fire forming round showed the brass fire-formed from the neck to halve way of the brass.


I used the MP200 15 gn with maze-meal for the second time as well, and run it through the full length 404 sizer.


The third time I re-load 71 gn S335 and a 400 gn cast bullet to shoot . This ensured a fully formed .375 H&H Magnum brass fitting in my 404 Jeffery rifle.


Attachments

  • DSC_0010_zpsddg56liv-2.jpg
    120.8 KB · Views: 185
  • DSC_0010_zpsddg56liv.jpg
    120.8 KB · Views: 267
  • Figuur5_zpsyaqfbenq.jpg
    122 KB · Views: 229
  • P1011469_zpsufviokgn.jpg
    158.2 KB · Views: 233
  • P1011523_zpsu8aazsgv.jpg
    71 KB · Views: 204
Last edited by a moderator:

cagkt3

AH legend
Joined
Apr 10, 2017
Messages
2,931
Reaction score
2,056
Location
Texas
Media
87
Articles
1
Hunting reports
Africa
2
USA/Canada
1
Member of
DSC, SCI - West Texas Chapter, HSC, NRA Life Member, Ducks Unlimited
Hunted
South Africa, Zimbabwe, OK, TX, UT, KS
Fascinating stuff, thanks Gert!


Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
6,879
Reaction score
8,247
Location
Colorado
Media
231
Hunting reports
Africa
3
USA/Canada
3
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
Thanks Gert! I'm still amazed! I appreciate all the explanations, pictures, etc.


Ray B

AH legend
Joined
Aug 19, 2016
Messages
2,818
Reaction score
3,465
Location
WA St, USA
Media
77
Hunting reports
USA/Canada
1
I'm wondering about the powders used. the first firing was with BlackPowder-does it matter if it's F, FF, FFF, or FFFF? The second firing was with MP200 and the third with S335. What powders that are available in the US could be substituted for these firings?


Gert Odendaal

AH legend
Joined
Apr 19, 2012
Messages
2,303
Reaction score
2,329
Media
884
Articles
1
Hunting reports
Africa
1
Member of
SAJW
Ray, the previous first experiment four years back was done with pistol powder, MP200, 15 gm...this weeks process Johan Greyling suggested I use black powder, FFg 30 gn...and then 50 gn S335 rifle powder...


Ray B

AH legend
Joined
Aug 19, 2016
Messages
2,818
Reaction score
3,465
Location
WA St, USA
Media
77
Hunting reports
USA/Canada
1
Since 375 H&H brass is readily available & 375 RUM is virtually non-existent, I'm wondering if the process noted above would work to expand the case out to RUM &/or Dakota specs.


Gert Odendaal

AH legend
Joined
Apr 19, 2012
Messages
2,303
Reaction score
2,329
Media
884
Articles
1
Hunting reports
Africa
1
Member of
SAJW
Ray, this was exactly the reason why I had to do this fire-forming process. I had a lot of .375 H&H brass available but not enough 404 Jeffery brass. The only way you will get an answer is to do a fire form process. I need to point out to the fact that many people warned me about how dangerous this process is....
Let us look at how dangerous this process is:
Annealing is the key to the success of this process.
Using a minute amount of pistol powder, since it is a fast burning powder that ensure expanding of the brass...

I used MP200 , 15 gn pistol powder in a large brass cartridge of a .375 H&H Magnum caliber .
I stuff the brass cartridge full of maize meal, really pressing it with a rod until it is filled up to the brim.

All that is left is to chamber it and fire it for the first time. At this stage I am not able to see where the danger in this process is.
This process is repeated twice. The first top half will form first, then the bottom halve forms. Both stages is competed by full sizing the brass with a 404 Jeffery die.

To fully form the brass I re-load with a minimum re-loading powder load seating a cast bullet and fire away..at this stage the fire form process is completed.

People pointed out to the fact that when using this fire formed .375 H&H Magnum brass to 404 Jeffery brass , the brass head will separate, the necks will disintegrate, the brass will blow out and wreck the action , causing damage to the hunter or people around him.

I am still using .375 H &H Magnum brass /404 Jeffery brass today, this has been used for the past five years, I still have to loose a fire formed brass up to today...

On the end of the day, this worked for me , due to a scarcity of 404 Jeffery brass I had to make a plan to enable me to shoot my 404 Jeffery rifle I bought five years ago.
I did not do this process to prove a point to critics ....(y)(y)


ve7poi

AH fanatic
Joined
Jan 9, 2013
Messages
708
Reaction score
487
Location
Taylor British Columbia Canada
Media
10
Member of
Life member SCI
Hunted
British Columbia, Alberta, South Africa
Thank you a very informative post
Must try sometime just for practice rounds and compare brass life with new 404J Hornady brass and WR brass
