Choosing powders for 458 Lott from Quickload/Gordons Reloading Data?

Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
Hi all,

Some theory questions to the experienced reloaders:

When choosing powder for a certain bullet/cartridge combination, what do you look for ?

So I have Quickload data and Gordons Relaoding Tool freeware. So looking for a certain velocity, you can use different powders. Some produce the same velocity at a lower maximum pressure. Some produce the same velocity at lower lower load percentage. What do you tend to choose and why ?

For example , S321 powder produces 2230 fps with 72 grains and 90.1 % load ratio with pretty high pressure(minimum load due to load %) (recommended powder from bullet manufacturer)
IMR 4895 produces 2211 fps with 72.5 gr with 93 % load ratio and much lower pressure(often recommended for Lott)
VV530 produces 2208 fps with 71 gr with 93.3 % load ratio and medium pressure.
VV135 produces same velocity and load in grains with about 101.1 % load ration and higher pressure.

Hit me with some reloading theory


Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
515 gr Peregrine VRG -2 solids -so monlithic copper similar to North Fork


shark_za

AH veteran
Joined
Feb 6, 2020
Messages
177
Reaction score
289
Location
South Africa
Media
2
Hunted
Limpopo, KZN, Free State, N-Cape, E-Cape
Generally you want to be closest to 100% load ratio as this give the most consistent burn and Standard Deviations.
Anything over 90% is great. 101% is bad. Lowest predicted pressures and work up slowly.

  • Like
Reactions: IvW

Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
6,040
Reaction score
6,215
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Nhoro, of the three powders you named, I'd take the IMR 4895. your load density is above 90% and the pressure is low. How does the 2211 FPS compare to factory offerings using the same bullet? Contrary to some, I don't mind slightly over 100% load density, although I refrain from loads over 106%. How does the 2211 FPS fare as far as barrel time is concerned. Would slightly slower or faster times be more accurate?


Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
Thanks for your comments. They confirm what I was thinking. Further background is that I do quite a few kids camps so the rifle is carried a lot. If it is used, it will be at 10 yards (apparently that is National Parks definition of when your life is in imminent danger !) So I am aiming for 2200 fps and an uncompressed load. Reliable in 45 degree heat and if it sits around for a year. So not really looking to push the boundaries.


shark_za

AH veteran
Joined
Feb 6, 2020
Messages
177
Reaction score
289
Location
South Africa
Media
2
Hunted
Limpopo, KZN, Free State, N-Cape, E-Cape
I guess a little compression can be ok. Where would you draw the line?


bruce moulds

AH legend
Joined
Aug 10, 2018
Messages
2,830
Reaction score
4,043
as long as the load is safe, as much powder so that the case does oy bulge.
bruce.


Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
Nhoro, of the three powders you named, I'd take the IMR 4895. your load density is above 90% and the pressure is low. How does the 2211 FPS compare to factory offerings using the same bullet? Contrary to some, I don't mind slightly over 100% load density, although I refrain from loads over 106%. How does the 2211 FPS fare as far as barrel time is concerned. Would slightly slower or faster times be more accurate?

Thanks, I agree that IMR 4895 then VV N 530 look most promising. Ironically, due to lock down, I have loaded a couple of rounds with IMR 3031- cos that is available right now due to the lockdown. I know the Vihtavuaori powders are good and usually (before lockdown) they are pretty available through a local importer. The makers of Peregrine push S 321 as the best powder-I think because of the low load density-They go to 80 gr as a max load. I would rather avoid Somchem powders as I think they are a bit lower quality and I want reliability. IMR 3031 is pretty close to S 321. So that was how I ended up with 3031- lockdown but I will be able to switch later.

Factory ammo is around 2300 fps with 500 gr solids and Peregrine max loads with their 515 gr are 2350 fps (S 321 powder and I am sure pretty heavy compression.So I am idling along at 2200 fps. And I cannot hear any powder moving when I shake the cartridge so I am closer to 100 % than 90 %. I guess a drop tube would maybe create the theoretical 93% load density.

Background is that I do quite a few kids camps in Zambezi valley and National Parks have decided that 10 m is about when your life is in' imminent danger'. So I am looking for absolute reliability- I would have 1 shot at 10 m.


Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
Feedback-69 gr of IMR 3031 was a bit disappointing-2003 and 2020 fps but with nicely rounded primers and easy extraction. So after all my questions,Quickload was quite a way off ! Anyway, I will load some more cartridges this week when I can. Probably need about 72-73 gr of IMR 3031 which according to Quickload will be about 97 % load density. So it looks like Peregrines own data is the most accurate, 72- 80 gr of S321 which is fairly similar to IMR 3031


Luvthunt

AH enthusiast
Joined
Aug 4, 2018
Messages
387
Reaction score
275
Media
2
In the 90s there was an article written in Handloader mag on the Lott the conclusion was IMR 4320 was the powder to use if you choose not to use Win 748.
Many powders such as IMR 4895,H4895,Rl 15, Imr 3031 Imr4064Win 748 and some I do not remember were tested.


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
6,040
Reaction score
6,215
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Nhoro, do you have QuickLoad on your computer or are you using someone else to work up loads for you? Did you determine your fired case capacity or just use the "standard?"


fourfive8

AH elite
Joined
Apr 27, 2017
Messages
1,810
Reaction score
3,112
Media
234
Hunted
USA, South Africa, Mozambique, Zimbabwe, Zambia, Botswana
Nhoro,

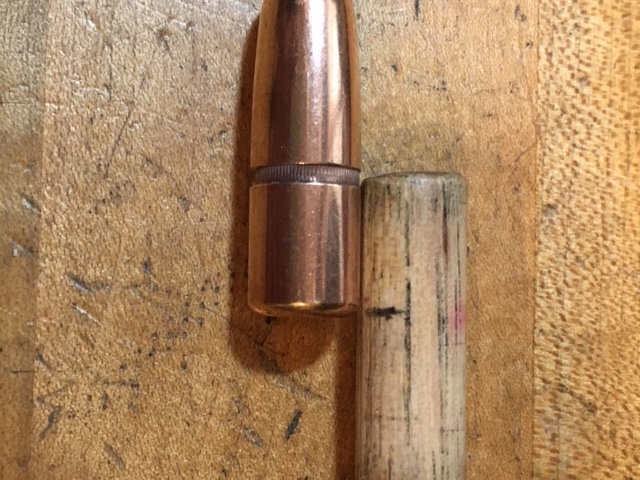

A very simple and direct way to determine 100% load density with a particular powder and bullet that will be crimped at a crimp groove in a particular case is to use something like a wood dowel. Use a fine pen or sharp pencil to mark the dowel at the bullet base, as shown in the pic, with the end of the dowel at the place where the case mouth will be crimped in the crimp groove. Add the powder to a sized and prepped case in small increments until mark on dowel is at case mouth when measuring the powder location in case. Weigh the powder. That is the weight of the 100% load density with that bullet, powder and case.
Pics of process using a 375 HH and Woodleigh 300 gr soft point . simple, direct, low tech, accurate :)

load density 1.JPG

load density 2.JPG

Last edited:

Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
Nhoro, do you have QuickLoad on your computer or are you using someone else to work up loads for you? Did you determine your fired case capacity or just use the "standard?"
The guy I reload with has the program. In Zimbabwe, reloading needs a separate licence that now involves further rules on top of the gun license. It involves explosives law, extra lockups etc etc. So most guys reload through the local gunclub or through a friend-like I do. I used standard case capacity.


Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
Nhoro,
A very simple and direct way to determine 100% load density with a particular powder and bullet that will be crimped at a crimp groove in a particular case is to use something like a wood dowel. Use a fine pen or sharp pencil to mark the dowel at the bullet base, as shown in the pic, with the end of the dowel at the place where the case mouth will be crimped in the crimp groove. Add the powder to a sized and prepped case in small increments until mark on dowel is at case mouth when measuring the powder location in case. Weigh the powder. That is the weight of the 100% load density with that bullet, powder and case.
Pics of process using a 375 HH and Woodleigh 300 gr soft point . simple, direct, low tech, accurate :)

View attachment 360654
View attachment 360656
Thanks


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
6,040
Reaction score
6,215
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Here is a screen shot from QuickLoad showing a 500 Gr. Peregrine Bullet and IMR 3031 Powder in a 458 Lott.



Nhoro

AH enthusiast
Joined
Sep 16, 2014
Messages
393
Reaction score
491
Media
26
Thanks Shootist43. That looks like I expected- The load is close to or around 100 % at 69 grains. and probably needs 3-4 more grains to get there. Did you by any chance run a ladder and maybe a powder comparison sheet ? Things are so complicated in Zim. I can probably get a reasonable supply of Vihtavuori powder- 130 and 530 were suggested by the local supplier. Interestingly those are sort of similar to IMR 3031 and 4895 so it seems those sorts of burning speeds are sweet spots.


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
6,040
Reaction score
6,215
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Here is a load using V V 530C
V


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
6,040
Reaction score
6,215
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Nhoro if you determine the weight in water contained in a fired but unresized case (with a convex bubble) QuickLoad's simulations will be much more accurate. Most often the actual volume is slightly higher than "standard."
