98 extractor claws

Discussion in 'Gunsmithing' started by Shawn.54, Nov 4, 2019.

  1. Shawn.54

    Shawn.54 AH Fanatic

    Joined:
    Jul 25, 2016
    Messages:
    686
    Video/Photo:
    10
    Likes Received:
    618
    Location:
    USA western pa
    Member of:
    NRA

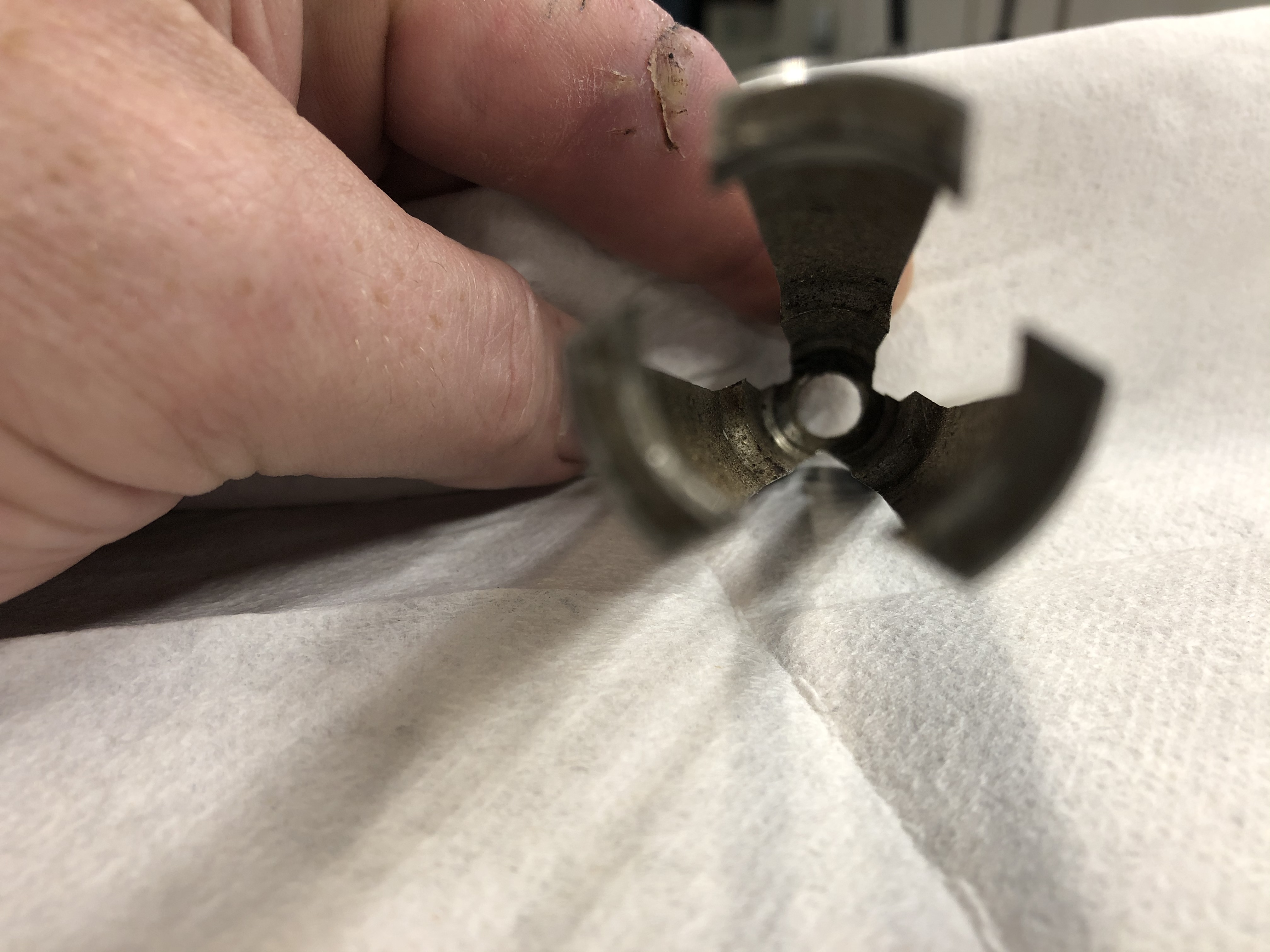

    A buddy of mine brought this to me his dad and grandfather were always working on Mausers it’s a mostly complete set of 3 extractors. I always wondered how they made them this really shows how it was done in the days before CNC machines. Seeing it tells me exactly how they did it but my modern thought process did not grasp it until I saw it. Now it makes sense. 4656F548-D36D-4C98-AB7F-21F4016CB0A1.jpeg B32155A5-58FD-4AFB-A86A-490883FC17EB.jpeg A1CDDA42-4D41-4E53-BBFB-3DB8075752AA.jpeg shawn


  2. leslie hetrick

    leslie hetrick AH Enthusiast

    Joined:
    Jan 27, 2018
    Messages:
    439
    Video/Photo:
    311
    Likes Received:
    712
    Location:
    pa. u,s.A.
    Member of:
    several sporting clubs
    Hunted:
    several
    thanks for posting the pictures, I have ofter wondered how it was done and thought is was something like that. I just put the right extractor(shell,s feed out of the magazine and follower that has the bolt stop when empty in my custom big game rifle in 35 whelen.


  3. Wyatt Smith

    Wyatt Smith AH Fanatic

    Joined:
    May 9, 2019
    Messages:
    550
    Video/Photo:
    6
    Likes Received:
    581
    Location:
    Pike county
    Very interesting. I would have thought each extractor stared from its own piece


  4. CTDolan

    CTDolan AH Elite

    Joined:
    Mar 16, 2015
    Messages:
    1,454
    Video/Photo:
    18
    Likes Received:
    1,267
    Location:
    Minnesota
    Unless you're Ruger and investment cast each separately. ;)


  5. leslie hetrick

    leslie hetrick AH Enthusiast

    Joined:
    Jan 27, 2018
    Messages:
    439
    Video/Photo:
    311
    Likes Received:
    712
    Location:
    pa. u,s.A.
    Member of:
    several sporting clubs
    Hunted:
    several
    yes, but ruger was very late to the game, the mauser boys were at it in the 1890,s.:whistle:

    Velo Dog likes this.

  6. Scrumbag

    Scrumbag AH Fanatic

    Joined:
    Jul 13, 2016
    Messages:
    539
    Video/Photo:
    25
    Likes Received:
    268
    Member of:
    BASC, SCI
    Hunted:
    Europe
    How interesting!


  7. Tokoloshe Safaris

    Tokoloshe Safaris SPONSOR Since 2017 AH Fanatic

    Joined:
    Apr 8, 2016
    Messages:
    536
    Video/Photo:
    74
    Likes Received:
    709
    Location:
    Milibizi, Zimbabwe
    Member of:
    Life Member Safari International
    Hunted:
    Zimbabwe, South Africa, Tanzania
    I love learning and you just taught me something new!


  8. Shawn.54

    Shawn.54 AH Fanatic

    Joined:
    Jul 25, 2016
    Messages:
    686
    Video/Photo:
    10
    Likes Received:
    618
    Location:
    USA western pa
    Member of:
    NRA
    I’m a machinist by trade and that is probably the last way I would have thought of making claws but once I saw it and thought how it was done 80-120 years ago it’s genius.
    Shawn

    CAustin and adzhoo like this.

  9. Shootist43

    Shootist43 AH ENABLER GOLD SUPPORTER AH Legend

    Joined:
    Apr 25, 2015
    Messages:
    4,825
    Video/Photo:
    22
    Likes Received:
    3,968
    Location:
    Grosse Ile, Michigan
    Member of:
    NRA
    Hunted:
    Michigan, Texas, Missouri, Limpopo Province South Africa
    The "Kraut's" reputation for engineering and craftsmanship didn't start yesterday. :rolleyes::rolleyes:

    CAustin likes this.

  10. Shawn.54

    Shawn.54 AH Fanatic

    Joined:
    Jul 25, 2016
    Messages:
    686
    Video/Photo:
    10
    Likes Received:
    618
    Location:
    USA western pa
    Member of:
    NRA
    I always wondered why Mauser used metric for cartridges but threads per inch in their manufacturing turns out that for some reason they could not get German machines so imported them from the US. Any one else have any history on this.
    Shawn


  11. Hunter4752001

    Hunter4752001 AH Veteran

    Joined:
    Sep 30, 2018
    Messages:
    101
    Likes Received:
    144
    Location:
    Australia
    Every article I've read on Mauser production indicated that at the time, the British produced the best machine tools and that is what Mauser used. The British machines used Imperial calibrations and imperial leadscrews. This was also the period when the best specification for threads was the Whitworth system hence why original Mauser threads are 55 degree included angle.


  12. Shawn.54

    Shawn.54 AH Fanatic

    Joined:
    Jul 25, 2016
    Messages:
    686
    Video/Photo:
    10
    Likes Received:
    618
    Location:
    USA western pa
    Member of:
    NRA
    I’m going to have to do some digging the article I was reading said that Peter Paul Mauser was not in political favor. I don’t doubt the information you have given. There may have multiple reasons.
    Shawn


  13. CAustin

    CAustin AH ENABLER BRONZE SUPPORTER AH Ambassador

    Joined:
    May 7, 2013
    Messages:
    13,399
    Video/Photo:
    220
    Likes Received:
    9,606
    Member of:
    Courtney Hunting Club, NRA Life Member, SCI Kansas City Chapter
    Hunted:
    South Africa, KwaZulu Natal, Kalahari, Northwest, Limpopo, Gauteng, APNR Kruger Area. USA Georgia, South Carolina, Arkansas, New Mexico, North Carolina and Texas
    Thanks for sharing Shawn. Did you ever finish the rifle you were building before you were out of commission for a period?


  14. Shawn.54

    Shawn.54 AH Fanatic

    Joined:
    Jul 25, 2016
    Messages:
    686
    Video/Photo:
    10
    Likes Received:
    618
    Location:
    USA western pa
    Member of:
    NRA
    Not out of commission completely but out of energy at the end of the day I’m having trouble breathing and no energy I work 10 hour shifts with hour drive on each end. Weekend is time to cut firewood and recover. So I didn’t get much done fast shot it a couple times before and found a serious flaw in my sights. When I got the globe front sight I messed with it until I got a comfortable sight picture but my rear sight was made before I settled on front then turned out to be to short. Hopefully I will get to shoot it this weekend with rear sight 2.0 a complete redesign and made of steel. The good news is my breathing trouble which in neither heart or lung connected may be caused by medicine I was taking. I’m off it now and was to that it may not take 2-4 weeks to get out of my system. When my buddy gets another gun to blue he is going to blue it for me he doesn’t fire up the tanks until he has 2-3 to do at once.
    Shawn

    CAustin and Wyatt Smith like this.

  15. CAustin

    CAustin AH ENABLER BRONZE SUPPORTER AH Ambassador

    Joined:
    May 7, 2013
    Messages:
    13,399
    Video/Photo:
    220
    Likes Received:
    9,606
    Member of:
    Courtney Hunting Club, NRA Life Member, SCI Kansas City Chapter
    Hunted:
    South Africa, KwaZulu Natal, Kalahari, Northwest, Limpopo, Gauteng, APNR Kruger Area. USA Georgia, South Carolina, Arkansas, New Mexico, North Carolina and Texas
    shawn hope you feel better!
