Hi all

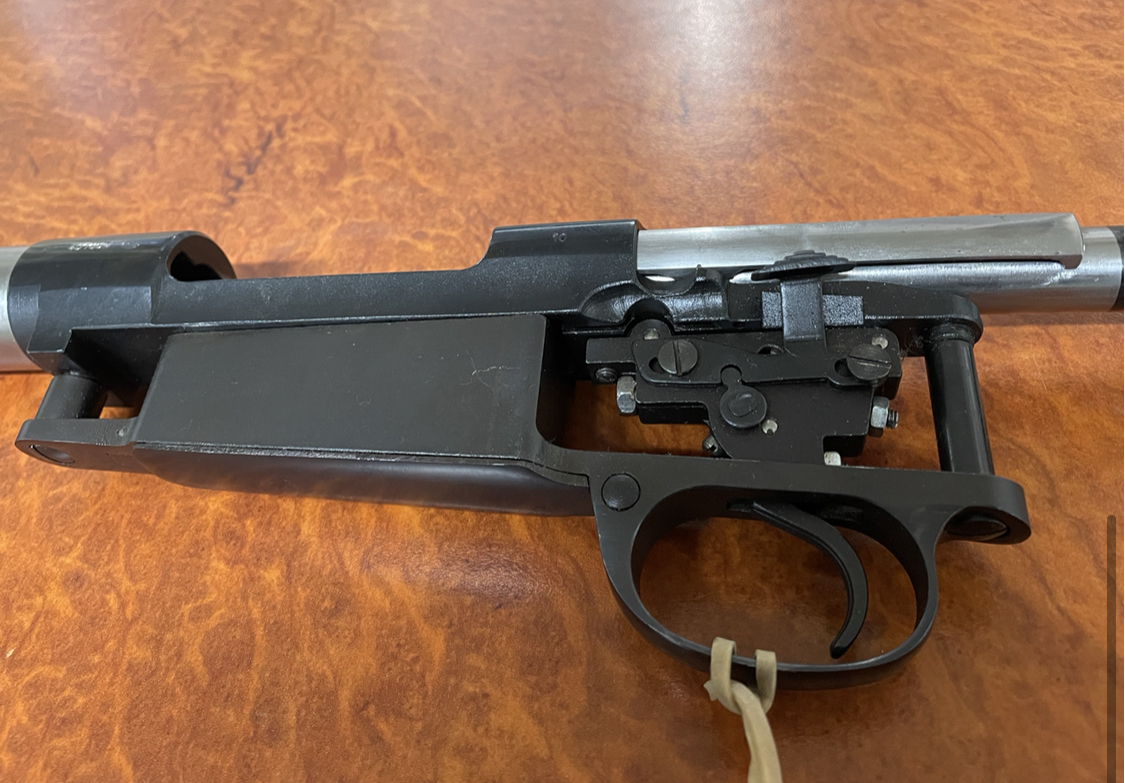

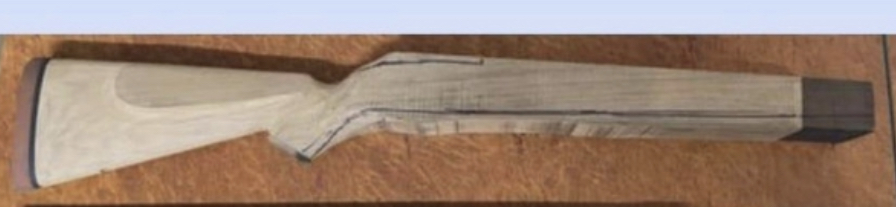

I just purchased a 500 Jeffery project that is maybe 20% complete. It’s a new barrelled action and stock blank. It has not been opened up at all.

has anyone got and detailed pictures of a single stack Schuler magazine? I’m interested to see how the feed lips actually work. I’ve seen the video of the 3 shot jeffery feeding. But it doesn’t show the feed lips clearly.


Hunter-Habib

AH veteran
Joined
Jul 8, 2021
Messages
146
Reaction score
316
Media
23
Hunted
Zambia , Namibia , Kenya , Mozambique , Zimbabwe
I pulled some photos off the internet . I don’t know how helpful this will be , though .

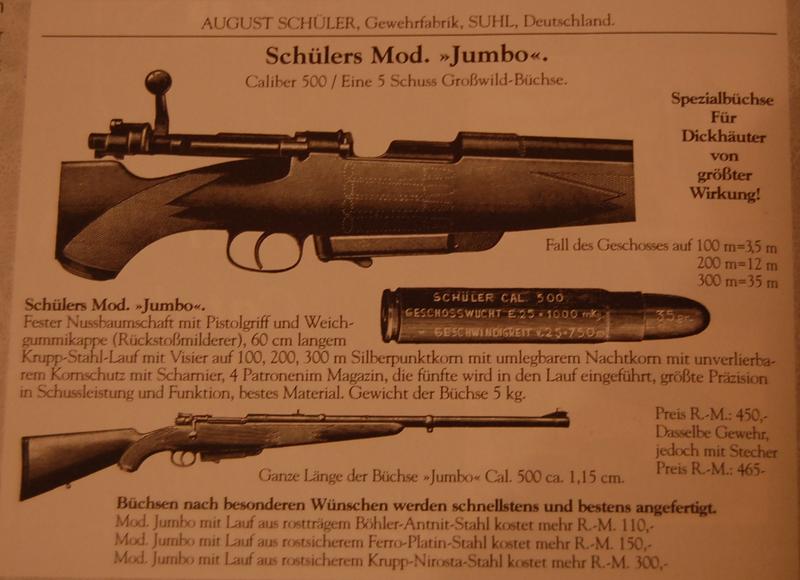

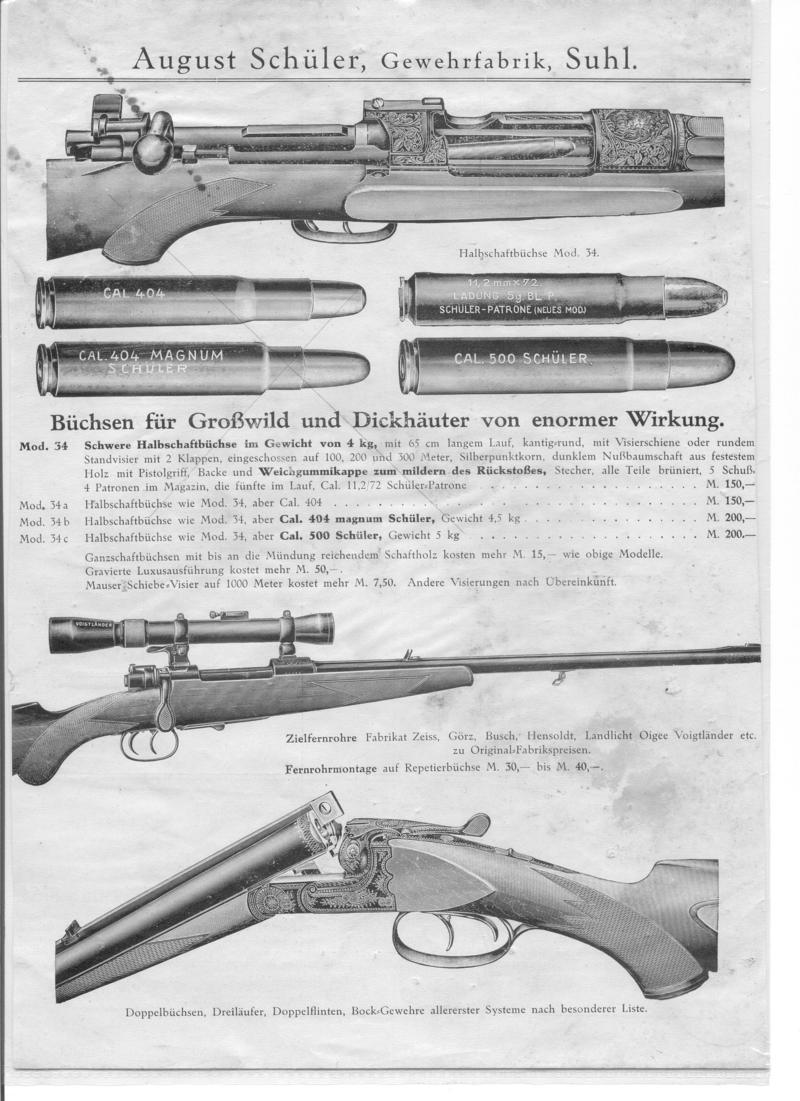

These two are German pre-World War II advertisements of the .500 Schuler .


This is an original German August Schuler Model “ Jumbo “ in .500 Schuler .


Standard length Mauser action with 3 round magazine capacity .

@xausa will be able to shed more light on this , because he’s an extremely competent gunsmith who worked with the .500 Jeffery and .505 Gibbs before .


xausa

AH senior member
Joined
Mar 17, 2021
Messages
65
Reaction score
201
Media
11
"@xausa will be able to shed more light on this , because he’s an extremely competent gunsmith who worked with the .500 Jeffery and .505 Gibbs before ."

Thanks for the compliment, H-H, but I'm not a gunsmith. I'm an 82 year old retired lawyer with an enormous curiosity about big bore rifles and a history of working with top of the line gunsmiths.

My .500 Jeffrey is built on a BRNO 602 action with a normal zig-zag magazine. I can't bear to look at the in line magazine rifles, mainly because I can't imagine how one would carry one with one hand at the normal place, the balance point.


John Telford

AH enthusiast
Joined
Apr 25, 2020
Messages
329
Reaction score
509
Location
Pretoria/Maun/Sacramento
Media
16
Member of
Phasa ,SA Wingshooters, Botswana Tourism (HATAB), Pretoria Arms and Ammunition Association PAAA.
Hunted
South Africa , Botswana,
You learn something new everyday! Never heard of a 404 magnum Schuler before! Looks like it also has a rebated rim like the .500. So can we assume it is a necked down .500 Schuler? This must be one of the rarest rifles out there.


John Telford

AH enthusiast
Joined
Apr 25, 2020
Messages
329
Reaction score
509
Location
Pretoria/Maun/Sacramento
Media
16
Member of
Phasa ,SA Wingshooters, Botswana Tourism (HATAB), Pretoria Arms and Ammunition Association PAAA.
Hunted
South Africa , Botswana,
Nic
I pulled some photos off the internet . I don’t know how helpful this will be , though .

These two are German pre-World War II advertisements of the .500 Schuler .
View attachment 414998View attachment 415000

This is an original German August Schuler Model “ Jumbo “ in .500 Schuler .
View attachment 414999

Standard length Mauser action with 3 round magazine capacity .

@xausa will be able to shed more light on this , because he’s an extremely competent gunsmith who worked with the .500 Jeffery and .505 Gibbs before
Nice rifle ! Is it yours?


Bert Reynolds

AH senior member
Joined
May 30, 2019
Messages
61
Reaction score
48
Thank
I pulled some photos off the internet . I don’t know how helpful this will be , though .

These two are German pre-World War II advertisements of the .500 Schuler .
View attachment 414998View attachment 415000

This is an original German August Schuler Model “ Jumbo “ in .500 Schuler .
View attachment 414999

Standard length Mauser action with 3 round magazine capacity .

@xausa will be able to shed more light on this , because he’s an extremely competent gunsmith who worked with the .500 Jeffery and .505 Gibbs before .
Unfortunately not was I was after. Was hoping for some pictures of the mag box and feed lips.

Last edited by a moderator:

John A Flaws

AH senior member
Joined
Jul 1, 2017
Messages
71
Reaction score
262
Location
California
Media
95
Hunted
South Africa
I own an original August Schuler in 500 Schuler. I have attached photos of the magazine box, ramp, rails, and follower. The follower was made for the 500 and much different than standard Mauser follower. There is a clip on the right side of the rail that keeps the 500 rounds from popping out of the magazine. Similar to the clips used by Westley Richards on the 425 WR but Westley used clips on both sides of the rails. I am not much of a photographer but the clip can be seen in one of the top down pictures. I hope this will be useful.


Last edited by a moderator:

Wishfulthinker580

AH veteran
Joined
Jun 23, 2021
Messages
156
Reaction score
212
I own an original August Schuler in 500 Schuler. I have attached photos of the magazine box, ramp, rails, and follower. The follower was made for the 500 and much different than standard Mauser follower. There is a clip on the right side of the rail that keeps the 500 rounds from popping out of the magazine. Similar to the clips used by Westley Richards on the 425 WR but Westley used clips on both sides of the rails. I am not much of a photographer but the clip can be seen in one of the top down pictures. I hope this will be useful.
That is a great old rifle


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
4,643
Reaction score
8,125
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,622
Articles
4
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia
That is a stunning rifle and the pic of the clip prefectly shows how it works to hold the cartridge against the underside of the opposite rail and from "popping out". Simple 22 LR technology but extremly effective and how I made a 303 Lee Enfield magazine hold shortened 405 Win cartridges (400 lee Speed) in a single stack formation.


Hunter-Habib

AH veteran
Joined
Jul 8, 2021
Messages
146
Reaction score
316
Media
23
Hunted
Zambia , Namibia , Kenya , Mozambique , Zimbabwe
Nic

Nice rifle ! Is it yours?
Unfortunately not . If I ever own a .500 caliber rifle , it’s going to be the .505 Gibbs . But don’t get me wrong . I’ve got absolutely nothing against the .500 Jeffery .


Bert Reynolds

AH senior member
Joined
May 30, 2019
Messages
61
Reaction score
48
I own an original August Schuler in 500 Schuler. I have attached photos of the magazine box, ramp, rails, and follower. The follower was made for the 500 and much different than standard Mauser follower. There is a clip on the right side of the rail that keeps the 500 rounds from popping out of the magazine. Similar to the clips used by Westley Richards on the 425 WR but Westley used clips on both sides of the rails. I am not much of a photographer but the clip can be seen in one of the top down pictures. I hope this will be useful.

View attachment 415746View attachment 415747View attachment 415748View attachment 415749View attachment 415750View attachment 415751
Thank you. This was just what I was hoping for. It looks like very simple method to achieve feeding as they are still using 1 on the feed rails. As you can see I still have a lot of work ahead of me. I paid almost nothing for the project. I plan to make a new bottom metal and follower myself, have the barrel recontoured to a stepped profile and fitted with a 1/4 rib.


Last edited by a moderator:

Bert Reynolds

AH senior member
Joined
May 30, 2019
Messages
61
Reaction score
48
That is a stunning rifle and the pic of the clip prefectly shows how it works to hold the cartridge against the underside of the opposite rail and from "popping out". Simple 22 LR technology but extremly effective and how I made a 303 Lee Enfield magazine hold shortened 405 Win cartridges (400 lee Speed) in a single stack formation.
View attachment 415759Did you just use 1mm spring steel?


Bert Reynolds

AH senior member
Joined
May 30, 2019
Messages
61
Reaction score
48
I am happy to have been helpful. Please keep us posted on your progress. I cannot wait to see the finished product.
It will be a slow process as I’m also building a 404 Jeffery and an 8x68 for a pair to take on safari once Covid disappears. These 2 were already underway, then I seen the 500 for sale and couldn’t resist.

If I could see a photo of the the magazine open showing the the top of the magazine would be great.


Von Gruff

Gold supporter
AH legend
Joined
May 5, 2009
Messages
4,643
Reaction score
8,125
Location
south Otago, New Zealand
Website
www.vongruffknives.com
Media
1,622
Articles
4
Hunting reports
Australia/NZ
3
Hunted
New Zealand, Austaralia

Bert Reynolds

AH senior member
Joined
May 30, 2019
Messages
61
Reaction score
48
Bert, I hope this is what you were looking for. Why can't I have a guy living next door to me that builds his own rifles.

View attachment 415941View attachment 415942View attachment 415943View attachment 415944View attachment 415945

I use the term building loosely. I’ll pay someone much smarter than me to do most of the work. I will build the magazine and sights myself. But opening the action, feeding, stockwork etc will go to someone else.

Thanks so much for the pics!


John A Flaws

AH senior member
Joined
Jul 1, 2017
Messages
71
Reaction score
262
Location
California
Media
95
Hunted
South Africa
My pleasure, I want to see the final product. That includes your 404 Jeffery I have one of those as well. I am planning to have a 9.3x62 built on a commercial 98 action I have currently cambered in 8x57. It is some small German Guild Gun, but I forget the maker. I am always interested in other gun projects. Especially big bores.


Bert Reynolds

AH senior member
Joined
May 30, 2019
Messages
61
Reaction score
48
My pleasure, I want to see the final product. That includes your 404 Jeffery I have one of those as well. I am planning to have a 9.3x62 built on a commercial 98 action I have currently cambered in 8x57. It is some small German Guild Gun, but I forget the maker. I am always interested in other gun projects. Especially big bores.



Bert Reynolds

AH senior member
Joined
May 30, 2019
Messages
61
Reaction score
48
My pleasure, I want to see the final product. That includes your 404 Jeffery I have one of those as well. I am planning to have a 9.3x62 built on a commercial 98 action I have currently cambered in 8x57. It is some small German Guild Gun, but I forget the maker. I am always interested in other gun projects. Especially big bores.
My 9.3x62. Left hand sako Bavarian. It’s a very nice rifle to shoot considering it’s throwing 250 grains of lead at a good velocity.
