Ok... so I bought a "project gun". A Whitworth Mauser .458 Win Mag. There seems to be some slight pitting on the barrel and the Tupperware stock looks to have been painted with a rattlecan. The bore apparently is mint despite all the other issues... so I m hoping for a diamond in the rough here. If I need to I will rebarrel it but I am hoping that isn't necessary.

The first order of business will be to TIG weld up the holes in the side of the rear portion of the action where the peep is installed, then sand everything back to bare metal and get as many of the pits out as possible. Then I will give it a rust blue. I typically do about 5-10 applications and carding before finally soaking for a few days in ATF.


Once the rust bluing is done, I am going to send the rifle off the gentry custom and have one of their 3 position M70 styled safeties installed.

From there I will be fitting and installing an English walnut classic sporting stock from Richards Microfit Stocks. That will be finished in oil and checkered (Might go with Fleur de Lis but we will see how the mood strikes me after the stock is finished.

A set of nice steel scope bases will follow that.

I will be slicking up the action as well when it is apart.

Now... keep in mind that I am not made of money, but is there anything else anyone would suggest to give this rifle a classic big game rifle look and feel?


gizmo

Sponsor
Since 2015
AH ambassador
Reviews
2
Joined
Jun 26, 2014
Messages
7,117
Reaction score
11,758
Location
Texas
Website
www.rockinggranch.com
Media
1,743
Articles
6
Hunting reports
Africa
6
USA/Canada
8
Europe
1
Member of
NRA, DSC, SCI, Exotic Wildlife Association, Texas Taxidermy Association Life Member, National Taxidermy Association, TTHA,DUCKS UNLIMITED
Hunted
Namibia-Khomas Highlands, Romania, South Africa- Kalahari , Eastern Cape, USA, Fished Brazil, Mexico, USA
Very cool, have you thought of reaming it out to a 458 Lott. You get the best of both worlds.


CoElkHunter

AH legend
Joined
Nov 3, 2018
Messages
3,750
Reaction score
5,111
Location
Colorado
Media
20
Nice rifle and project. I picked up the same rifle awhile ago. The action/barrel are mint and feeds everything from the magazine, but the walnut stock needs some work. Mine needs sights/barrel band. I don’t see anything else on yours that you haven’t mentioned that would be beneficial? The bluing/wood are going to look great on your rifle and the three position safety is also a plus.


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Very cool, have you thought of reaming it out to a 458 Lott. You get the best of both worlds.
I thought about it but it is a standard large ring mauser and I dont know how much meat that will leave in the action.


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Nice rifle and project. I picked up the same rifle awhile ago. The action/barrel are mint and feeds everything from the magazine, but the walnut stock needs some work. Mine needs sights/barrel band. I don’t see anything else on yours that you haven’t mentioned that would be beneficial? The bluing/wood are going to look great on your rifle and the three position safety is also a plus.

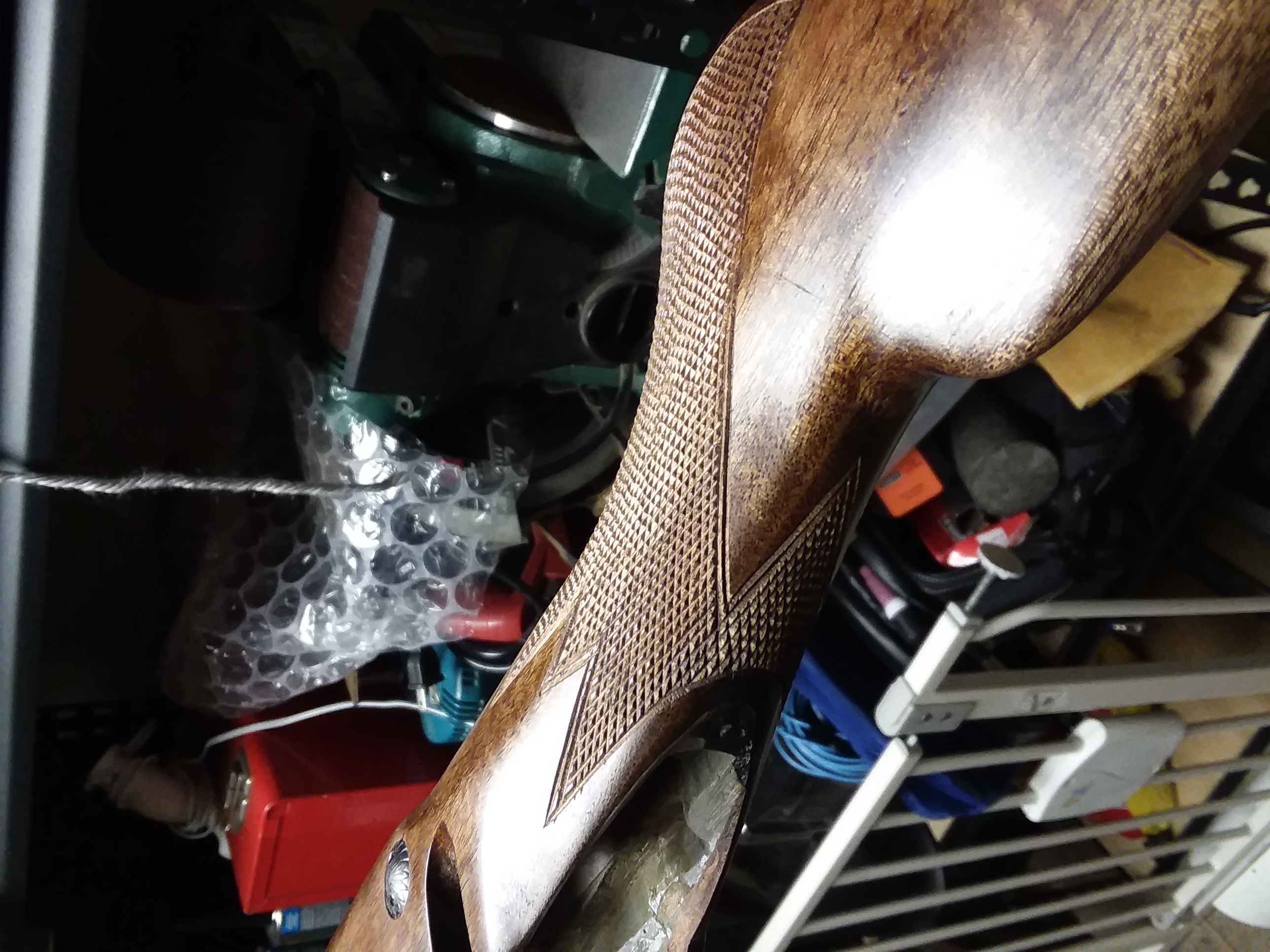

Bluing and checkering always take me a while to finish out butso far, I havent been disappointed when I don't rush it. I did wraparound on my old .375 h&h before I sold it. It probably took me three weeks to finish working on it here and there but I think it came out pretty good. I may do this on the whitworth as it is such a classic look


CoElkHunter

AH legend
Joined
Nov 3, 2018
Messages
3,750
Reaction score
5,111
Location
Colorado
Media
20
Bluing and checkering always take me a while to finish out butso far, I havent been disappointed when I don't rush it. I did wraparound on my old .375 h&h before I sold it. It probably took me three weeks to finish working on it here and there but I think it came out pretty good. I may do this on the whitworth as it is such a classic lookView attachment 405419
Beautiful! Your quite the craftsman.


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Beautiful! Your quite the craftsman.
It was an attempt at some sweat equity into the firearm before I sold it and it worked! I got $300 more than I paid for it with then investment of a little time, elbow grease and tung oil. Plus it is really fun to watch something plain jane transform into something really unique as you work on it.


mdwest

AH legend
Joined
Mar 20, 2016
Messages
2,448
Reaction score
6,192
Location
DFW
Media
48
Articles
1
Hunting reports
Africa
3
Mex/S.Amer
1
Member of
DSC Life Member
Hunted
USA, South Africa, Argentina, Peru
If you decide you want to get rid of that rattle can stock, let me know what you'd like for it... Im looking for a beater mauser stock for a project Im working on..

Turning your sows ear into a silk purse will be a fun project.. I always have a great time on those sort of things..


CBH Australia

AH legend
Joined
Feb 10, 2019
Messages
2,039
Reaction score
2,945
Location
NSW Australia
Media
17
Hunting reports
Africa
1
Member of
Sporting Shooters Association Australia, Africa Hunting website!!!
Hunted
Australia and now South Africa
I like "the look" of a Barrel Band sling swivel on a big bore rifle.
Watching eagerly to see the end result.


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
If you decide you want to get rid of that rattle can stock, let me know what you'd like for it... Im looking for a beater mauser stock for a project Im working on..

Turning your sows ear into a silk purse will be a fun project.. I always have a great time on those sort of things..

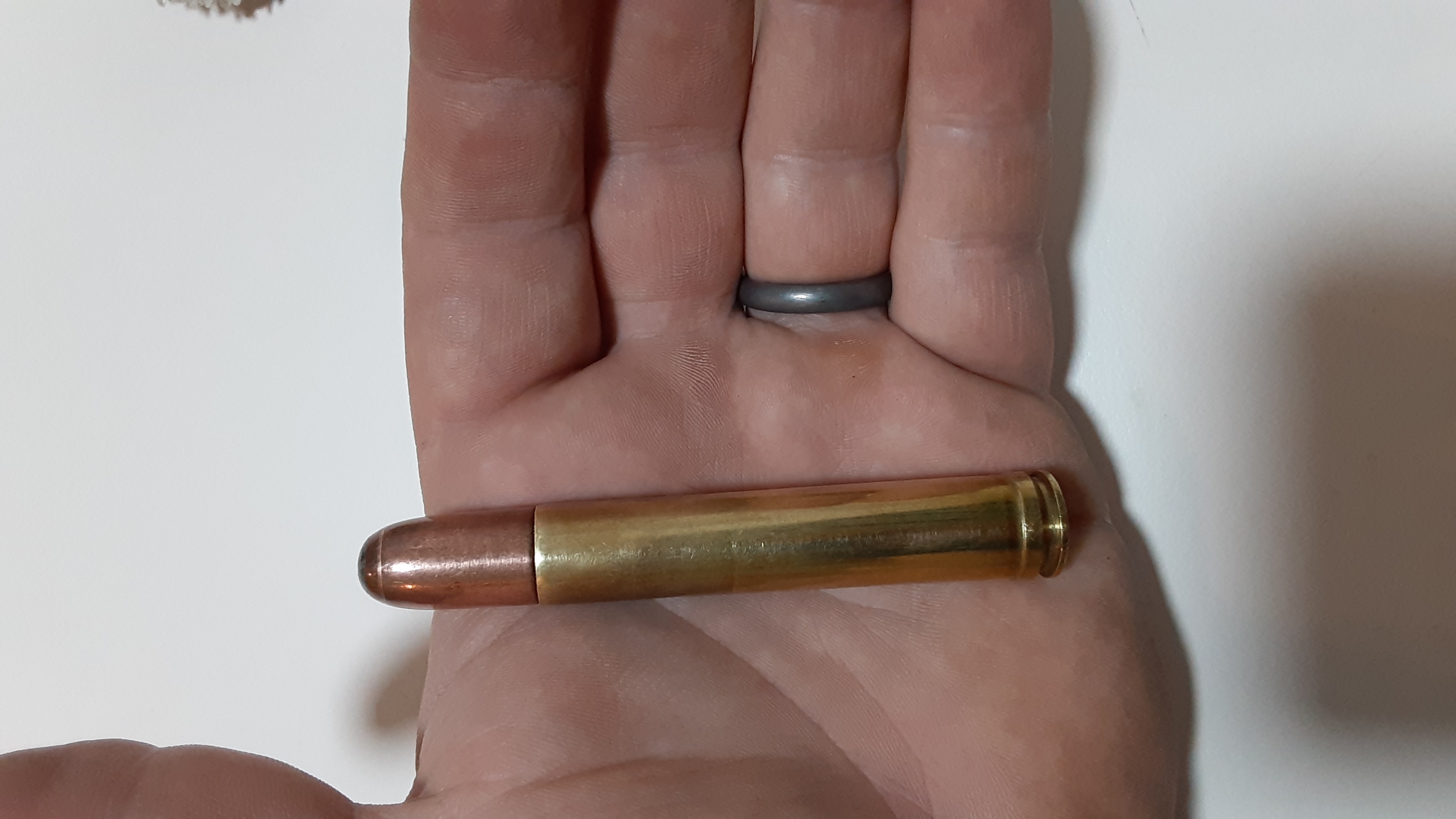

I only had 1 500 grain .458 bullet so I loaded it up with some varget and I just wanna try the rifle with the stock that is on it. But when I swap it for the walnut one, you pay the shipping and you can have the old one


John Wasmuth

AH veteran
Joined
Aug 10, 2016
Messages
113
Reaction score
220
Location
Mountain Home, Texas
Media
2
Hunting reports
USA/Canada
1
I only had 1 500 grain .458 bullet so I loaded it up with some varget and I just wanna try the rifle with the stock that is on it. But when I swap it for the walnut one, you pay the shipping and you can have the old oneView attachment 405422
If for some reason he doesn’t buy the stock let me know and I will.


rinehart0050

Gold supporter
AH legend
Joined
May 24, 2015
Messages
2,500
Reaction score
3,197
Media
397
Articles
6
Hunting reports
Africa
3
USA/Canada
1
Australia/NZ
2
Hunted
Zimbabwe (Omay), New Zealand, South Africa (NWP, Limpopo, Eastern Cape); USA (NE, NC, MD, AZ, TX)
I like the sound of your plans! Have you considered QD for the scope mounts so that it can be fired open sight?

Also, if you want to fancy it up, an ebony tip on the stock or metal grip cap might look nice.


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
I like the sound of your plans! Have you considered QD for the scope mounts so that it can be fired open sight?

Also, if you want to fancy it up, an ebony tip on the stock or metal grip cap might look nice.

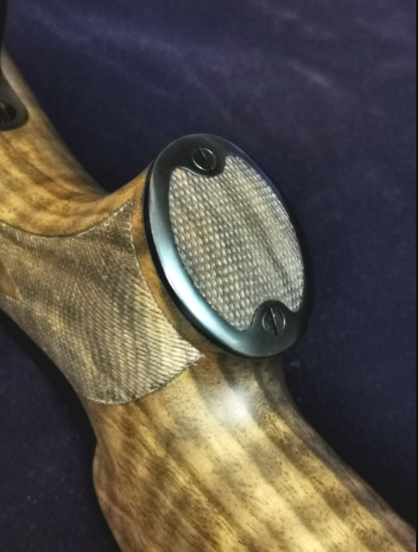

I actually have some black Wenge I may add to the forend. The metal Grip cap is also a likely possibilty. I may get one of the inset ones and then checker the bottom of the grip cap as well like these:


rinehart0050

Gold supporter
AH legend
Joined
May 24, 2015
Messages
2,500
Reaction score
3,197
Media
397
Articles
6
Hunting reports
Africa
3
USA/Canada
1
Australia/NZ
2
Hunted
Zimbabwe (Omay), New Zealand, South Africa (NWP, Limpopo, Eastern Cape); USA (NE, NC, MD, AZ, TX)
I actually have some black Wenge I may add to the forend. The metal Grip cap is also a likely possibilty. I may get one of the inset ones and then checker the bottom of the grip cap as well like these:
View attachment 405425
Very nice!


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Very nice!
Haha like I said, a silk purse from a sow's ear. I have to be careful that I don't drop $2,000 dollars trying to turn a $700 Whitworth into a Rigby... But when I am done, I can brag that I own a "British big bore express rifle built on a Mauser action"!

Alas, in a not so British caliber... but I have to confess... I am an Anglophile when it comes to rifles. I think the classic turn of the 20th century British rifles were some of the most beautiful and functional guns ever made. They had a level of taste that was subtle... a subtlety that completely eluded Roy Weatherby with his garish high gloss plastic covered stocks, horrendous inlay, sharp accentuated protuberances and unnaturally high cheek pieces.

The British excelled at making rifles that were gorgeous to behold but not so much that you were afraid to take them hunting, throw them in a horse scabbard or a trucks rifle rack and go get some game with them.

Last edited:

ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
So I picked up the rifle today... it isnt in horrible shape... but it is definitely sow's ear material. Bore is bright and shiny though! I will take some pictures later when I get a free moment. I want to shoot it a couple times as-is and then the sanding, bluing, filing, TIG welding, more sanding, oiling and checkering can begin. I have a new bolt handle on the way I will weld it on to give it a staight down 90° to the stock angle instead of the swept back one that all Whitworths have. Then the gentry safety will go in.


Badboymelvin

AH enthusiast
Joined
Dec 5, 2013
Messages
288
Reaction score
833
Location
Geelong, Victoria, Australia
Media
22
Articles
2
Hunting reports
Australia/NZ
1
What a great project! Am watching with interest.
Also its great to see another .458 Win mag out there! It really is a great round and don't let anyone tell you otherwise...
If you're after any loads let me know as I have a few good ones using 480 & 550gn Woodleigh projectiles.
As l said, watching with interest and good luck with it. Can't wait to see how it turns out (y)

Russ


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada

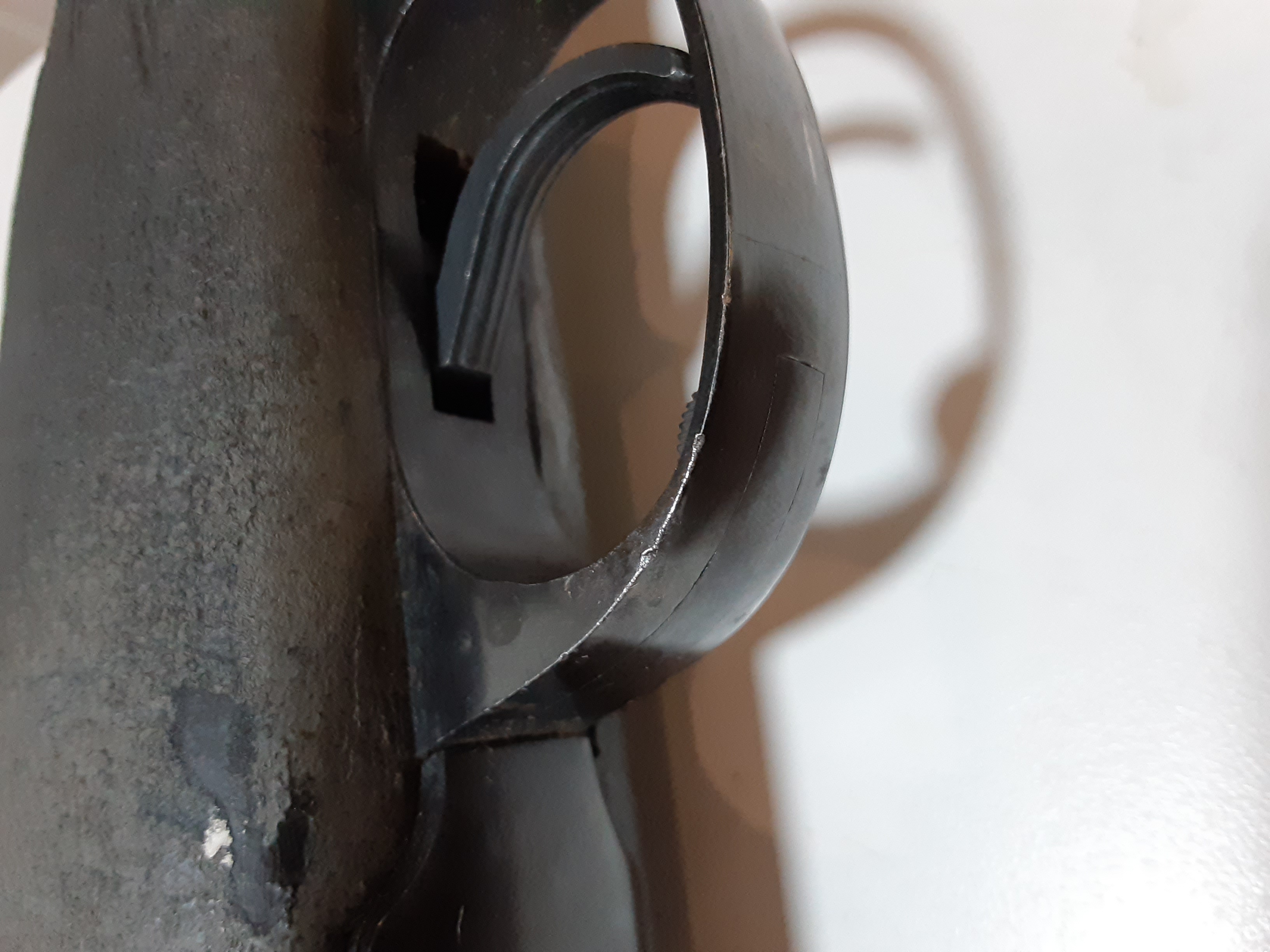

So I got an in depth look at the rifle. Pulled it apart and it actually isn't that bad... oh it has some pits in the bluing and some issues with a bit of a rough action but the barrel is crisp and bright. Like most Whitworths, the rear "express" sight leaves are one step above being made from electrical box punch outs, but the gun is definitely a diamond in the rough. After all... it's a mauser!

So I polished up the bolt. It had a little surface rust on it. If you've never taken 600 grit sandpaper to a
firearm, its very liberting! Polishing the estractor to run smooth.


Or a diamond file. In this case working on the follower to smooth over the chamfer where the bolt runs over to smooth up the interaction between it and the bolt. The rest of the follower was smoothed up to make its travel easier up and down the magazine well.

Last edited:

ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,227
Reaction score
1,679
Location
Adirondack Park, NY, USA
Media
44
Articles
2
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
So I ran a couple dummy rounds through the gun hard after I cleaned up the bolt and follower and it feeds flawlessly. So I pulled the peep off the back of it as the next step. Fortunately it wasnt seized and came right out. Word to the wise, hollow ground, flat head screw drivers of the correct size, will save you a lot of stripped or buggered up screws.

As a side note, if anyone is interested in a williams micrometer peep sight for a commercial mauser, PM me I will make you a really sweet deal.
