458 Win Mag vs 458 Lott....The facts

TOBY458

AH elite
Joined
Jan 23, 2014
Messages
1,752
Reaction score
2,755
Location
Madison Georgia, USA
Media
178
Articles
2
Hunting reports
Africa
3
I read a lot of debates on this subject, so I thought I'd share some findings with you, based on what my loading manuals have to say.
I hear the Lott is way better than the WM because of the 300fps advantage.
My findings show only a max of 143fps difference with top loads in each. And most average loads show less than 100fps difference.

The other argument is the Lott doesn't have the problem of compressed loads.
Take a look at the load densities. They are almost identical in this department with top loads.

Here's what my manuals have to say.

As you can see, not a huge difference in velocity between the two. The gap begins to widen a little more with Barnes mono metal bullets. Also note the very similar load densities. The Lott takes quite a bit more powder (more recoil) to attain only a small real world advantage.


Top loads for WM vs top loads for Lott.

Nosler 500gr. Partition
WM 2092fps 68gr H335 LD 108%.
Lott 2209fps 79gr RL15 LD 109%
115fps difference.

Swift 500gr A Frame
WM 2116fps 69gr H335 LD 110%
Lott 2233fps 80gr IMR4064 LD 105%
117fps difference.

Swift 450gr A Frame
WM 2292fps 77gr H4895 LD 105%
Lott 2378fps 84gr H4895 LD 103%
86fps difference.

Barnes 500gr TSX
WM 2040fps 67gr TAC LD 105%
Lott 2183fps 76.5gr TAC LD 103%
143fps difference.

Barnes 450gr TSX
WM 2242fps 73.5gr TAC LD 105%
Lott 2366fps 81.5gr TAC LD 101%
124fps difference.


Don458

AH veteran
Joined
Mar 6, 2018
Messages
140
Reaction score
108
Location
Long Island NY
Media
4
Member of
NRA USPSA Brooklyn schuetzen corp

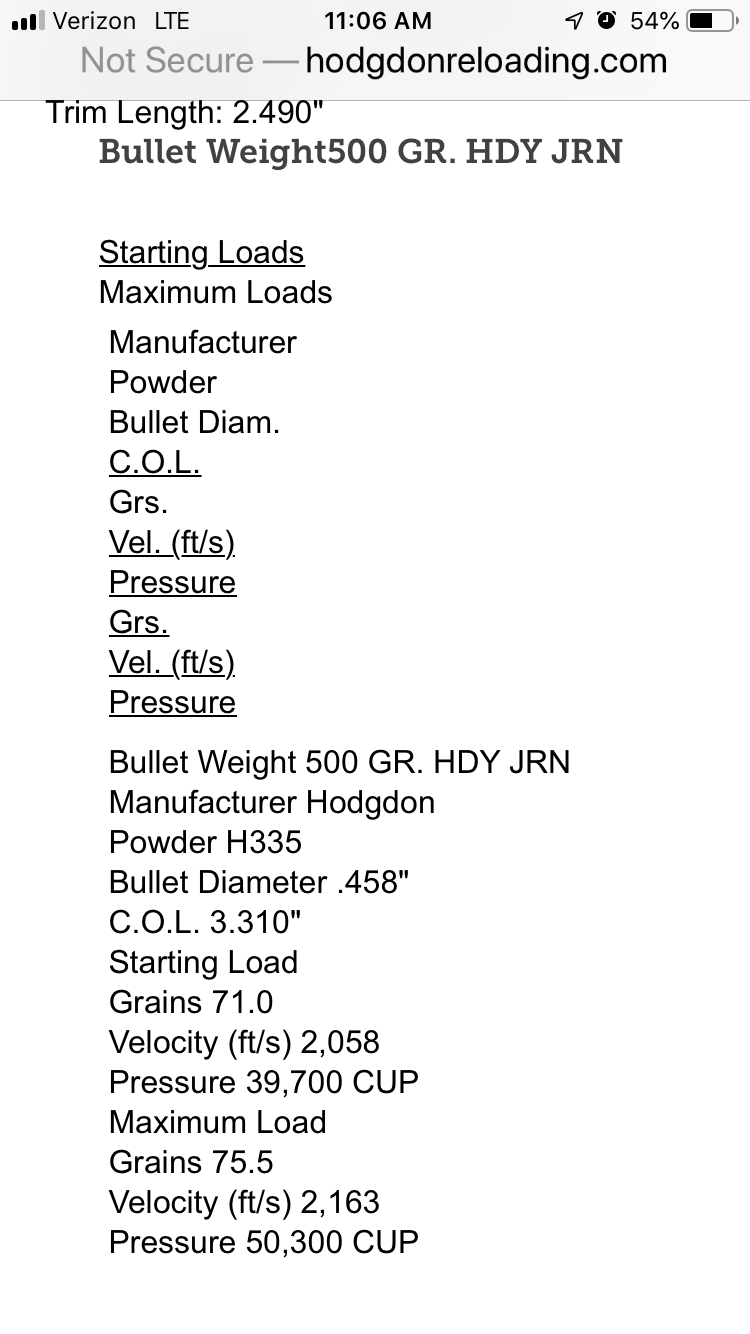

Here is the data I have been following take in mind that this is not a Compressed load ! I have tested this in 90 degree weather with no problems. 2160 fps av with 500 gr horn jrn


HWL

AH elite
Joined
Aug 29, 2016
Messages
1,008
Reaction score
1,539
Location
Germany
Media
189
Hunted
RSA, Namibia, Germany, Austria, Norway
I calculated this load with QuickLoad….

It developes 78607 psi……..and 2311 fps….. 24" barrel

Not sure I want to have this in hot temperatures, Africa has to offer.


HWL


Don458

AH veteran
Joined
Mar 6, 2018
Messages
140
Reaction score
108
Location
Long Island NY
Media
4
Member of
NRA USPSA Brooklyn schuetzen corp
I calculated this load with QuickLoad….

It developes 78607 psi……..and 2311 fps….. 24" barrel

Not sure I want to have this in hot temperatures, Africa has to offer.


HWL
How can this be ? Chronograph shows 2150 -2160 fps constantly. I am not arguing i am asking. ? I have fired approximately 200+ of theses load with no pressure problems or signs .And no extraction problems whatsoever. I also have a 450gr barnes solid load with re 7 that avg 2260 fps . Area i shoot is a sand pit , probably not on the levels of Africa but on a 90 +degree day it is brutal. I always try to imitate situations I may be shooting in .


TOBY458

AH elite
Joined
Jan 23, 2014
Messages
1,752
Reaction score
2,755
Location
Madison Georgia, USA
Media
178
Articles
2
Hunting reports
Africa
3
I wonder why evertime rifle pressure gets mentioned, outdoor temperature is mentioned as well. With today's powder, there isn't much to worry about in regards to ambient temperature. Also, if you're hunting in SA, the temp is usually very mild. I'm sure it gets scorching hot in some parts of Africa during summer, but how much hotter does it get there than it does in some parts of the USA?


Don458

AH veteran
Joined
Mar 6, 2018
Messages
140
Reaction score
108
Location
Long Island NY
Media
4
Member of
NRA USPSA Brooklyn schuetzen corp
I guess it’s been pounded in our heads for so long . I am also getting use to a kind of temperature that I may encounter, if I ever get over there (which looks pretty good now) I would not want my physical condition hinder me so I practice in extremes, also raising heart rates . But again my question about velocity? How can it be ?? ⬆


Don458

AH veteran
Joined
Mar 6, 2018
Messages
140
Reaction score
108
Location
Long Island NY
Media
4
Member of
NRA USPSA Brooklyn schuetzen corp
I guess it’s been pounded in our heads for so long . I am also getting use to a kind of temperature that I may encounter, if I ever get over there (which looks pretty good now) I would not want my physical condition hinder me so I practice in extremes, also raising heart rates . But again my question about velocity? How can it be ?? ⬆
How can i get this chrono readings consistently


HWL

AH elite
Joined
Aug 29, 2016
Messages
1,008
Reaction score
1,539
Location
Germany
Media
189
Hunted
RSA, Namibia, Germany, Austria, Norway
How can this be ?
I have absolutely no idea…..

The only message one can have is to be very carefully…

Do you have any chance to check the load in a pressure barrel?


HWL


PeteG

AH elite
Joined
Jan 20, 2012
Messages
1,320
Reaction score
1,387
Media
68
Articles
1
Hunting reports
Africa
1
@spike.t can I shoot your 458lott through my chronograph and check the actual speed for comparison?


spike.t

Sponsor
Since 2013
AH ambassador
Joined
Sep 12, 2010
Messages
9,147
Reaction score
7,070
Website
www.takerireservezambia.com
Media
332
Articles
6
Hunting reports
Africa
3
Member of
sci int, basc,wpaz
Hunted
zambia, tanzania, zimbabwe,Mozambique ,hungary, france, england

TOBY458

AH elite
Joined
Jan 23, 2014
Messages
1,752
Reaction score
2,755
Location
Madison Georgia, USA
Media
178
Articles
2
Hunting reports
Africa
3
How can this be ? Chronograph shows 2150 -2160 fps constantly. I am not arguing i am asking. ? I have fired approximately 200+ of theses load with no pressure problems or signs .And no extraction problems whatsoever. I also have a 450gr barnes solid load with re 7 that avg 2260 fps . Area i shoot is a sand pit , probably not on the levels of Africa but on a 90 +degree day it is brutal. I always try to imitate situations I may be shooting in .
If you look at the loads I listed, 75.5 gr of H335 is quite a bit more powder than the Swift or Nosler take for their 500gr max loads, and those loads are already running 110% LD. How deep do you seat your bullets?


ldmay375

AH veteran
Joined
Nov 8, 2011
Messages
126
Reaction score
108
Media
26
Toby, from the manuals and reading that I have done, 100-150fps difference is what I would expect. That is with standard cartridge lengths and factory barrel chambers/throats.
I have a 458 Win and a Lott. The Winchester is in an Interarms and the the Lott in a CZ that has had some work by AHR. Both set in the safe, perhaps if they were stainless I would have more interest. I prefer the more compact package of the 458 Winchester.
I suppose it boils down to if one wants that extra 100-150 fps. Or wants the Lott for Winchester velocities at slightly less load densities.
My intent was to shoot 400 grain monolithic bullets in both for here in Alaska. I wanted the extra 100 fps. I lost interest after using the 416 Ruger with 350 grain TSX.
I look at the Lott compared to the Winchester as I do the 340 Weatherby compared to the 338 Winchester. I think the average fps difference is about the same 100-150 fps. There is a difference, but does it matter for my use.


I read a lot of debates on this subject, so I thought I'd share some findings with you, based on what my loading manuals have to say.
I hear the Lott is way better than the WM because of the 300fps advantage.
My findings show only a max of 143fps difference with top loads in each. And most average loads show less than 100fps difference.

The other argument is the Lott doesn't have the problem of compressed loads.
Take a look at the load densities. They are almost identical in this department with top loads.

Here's what my manuals have to say.

As you can see, not a huge difference in velocity between the two. The gap begins to widen a little more with Barnes mono metal bullets. Also note the very similar load densities. The Lott takes quite a bit more powder (more recoil) to attain only a small real world advantage.


Top loads for WM vs top loads for Lott.

Nosler 500gr. Partition
WM 2092fps 68gr H335 LD 108%.
Lott 2209fps 79gr RL15 LD 109%
115fps difference.

Swift 500gr A Frame
WM 2116fps 69gr H335 LD 110%
Lott 2233fps 80gr IMR4064 LD 105%
117fps difference.

Swift 450gr A Frame
WM 2292fps 77gr H4895 LD 105%
Lott 2378fps 84gr H4895 LD 103%
86fps difference.

Barnes 500gr TSX
WM 2040fps 67gr TAC LD 105%
Lott 2183fps 76.5gr TAC LD 103%
143fps difference.

Barnes 450gr TSX
WM 2242fps 73.5gr TAC LD 105%
Lott 2366fps 81.5gr TAC LD 101%
124fps difference.


Red Leg

Lifetime bronze benefactor
AH ambassador
Joined
May 19, 2009
Messages
5,336
Reaction score
13,056
Location
Texas Hill Country
Media
261
Articles
5
Hunting reports
Africa
2
USA/Canada
3
Mex/S.Amer
1
Europe
3
Member of
SCI DSC life memberships / NRA Patron Life
Hunted
Mexico, Namibia, RSA, Germany, Austria, Argentina, Canada, Mozambique, Spain, US (15 states)
Do not worry about African heat anymore than you do Texas or Arizona heat. It is a vestigial concern from the time when Brit’s took cordite loads to Africa.


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
5,596
Reaction score
5,333
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Just for giggles I ran the following through my QuickLoad program. 458 WM w/a 24" barrel using a 500 gr Swift A Frame and 69 Grs. of H335 powder: 97.4% LD, 75,329 PSI (P-Max is 62,366), 2211 FPS. Something seems to be amuck here guys. Toby's question re. seating depth need to be considered.


Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
6,084
Reaction score
6,799
Location
Colorado
Media
229
Hunting reports
Africa
3
USA/Canada
3
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
Not sure how valid QuickLoads is vs real world testing. IE, my 375 H&H 250 gr load is a couple of grains below Barnes manual max. According to QuickLoads it is way over max pressure. It has never shown any of the standard over pressure indications and I have shot it near 30F and 95F extremes. Of course every rifle is a bit different dimensionally as well as structurally.


Don458

AH veteran
Joined
Mar 6, 2018
Messages
140
Reaction score
108
Location
Long Island NY
Media
4
Member of
NRA USPSA Brooklyn schuetzen corp
If you look at the loads I listed, 75.5 gr of H335 is quite a bit more powder than the Swift or Nosler take for their 500gr max loads, and those loads are already running 110% LD. How deep do you seat your bullets?
For the Hornady 500 gr rn interlock COL is 3.318” which feeds great in my rifle I am using 76.5 grs of H335 I probably can seat out to 3.340” as stated in manual , but this is working fine . I don’t believe that the quick load data is correct as this is a verified load from Hornady


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
5,596
Reaction score
5,333
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
QuickLoad has its' limitations for sure. For some calibers and powders it is spot on, for others maybe not as good.
