450 Rigby vs 460 Weatherby

Ray B

AH legend
Joined
Aug 19, 2016
Messages
2,732
Reaction score
3,281
Location
WA St, USA
Media
77
Hunting reports
USA/Canada
1
According to what I've read, Roy Weatherby was looking for an improvement over his 375 Weatherby when he saw the 416 Rigby case and concluded that it would be a great starting point. A belt was added and it was necked up to .375 to become the 378 Weatherby. Further expansion to .458 yielded the 460 Weatherby, so indirectly, the 460 Weatherby could be considered a .460/416 Rigby.

Also, according to what I've read, the owner of Rigby concluded that he wanted a 458 caliber rifle based on their 416 Rigby cartridge. So a .458/416 Rigby was made and it was called the 450 Rigby.

So, other than having a belt/or not and having a shoulder versus a double radius, is there a significant difference between the 460 Wby and the 450 Rigby?


matt85

AH legend
Joined
Jan 7, 2014
Messages
2,666
Reaction score
1,989
Location
WA, USA
Media
28
Hunted
USA, South Africa, and Namibia
your not going to see a big difference in performance between the cartridges. if i was asked to pick one i would pick which ever one had the most reliable source of brass for.

no offense intended but i disagree with calling the 460 WBY a 460/416 Rigby. while the 460 WBY is based off the 416 Rigby dimensions, it is significantly different and you cannot make 460 WBY brass from 416 Rigby brass. however you could call the 450 Rigby a 416/450 Rigby (parent bore is first) as its simply a necked up 416 Rigby.

-matt


Ray B

AH legend
Joined
Aug 19, 2016
Messages
2,732
Reaction score
3,281
Location
WA St, USA
Media
77
Hunting reports
USA/Canada
1
while the 460 WBY is based off the 416 Rigby dimensions, it is significantly different

-matt


Other than the differences that I noted (belt and radius shoulder) what are these "significant" differences?


Lbarr265

AH veteran
Joined
Aug 3, 2017
Messages
123
Reaction score
149
Media
2
Other than the differences that I noted (belt and radius shoulder) what are these "significant" differences?

Double radius shoulder would be the biggest one. It’s a hallmark of a Weatherby round, I can’t think of any others that do that.

Saami specs for the two show the shoulder is significantly different.





Ray B

AH legend
Joined
Aug 19, 2016
Messages
2,732
Reaction score
3,281
Location
WA St, USA
Media
77
Hunting reports
USA/Canada
1
So as noted, what aspects of the cartridge excluding the belt and shoulder are significantly different?


Lbarr265

AH veteran
Joined
Aug 3, 2017
Messages
123
Reaction score
149
Media
2
So as noted, what aspects of the cartridge excluding the belt and shoulder are significantly different?

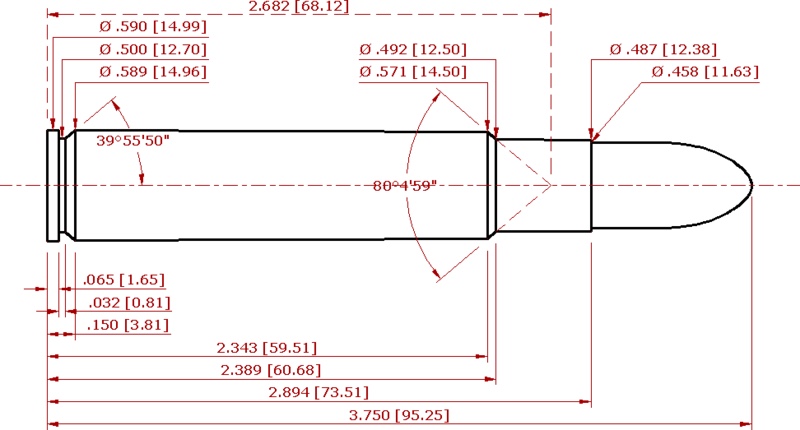

As you can see in the diagrams I attached the width before and after the shoulder, and the base, gives the weatherby a more significant taper. The weatherby also has about 4 1/2% more case capacity. Part of this is caused by the taper and part is caused by the shoulder ending farther forward than on the rigby


lwaters

Bronze supporter
AH elite
Joined
May 20, 2011
Messages
1,978
Reaction score
2,050
Location
Manhattan Kansas
Media
117
Articles
1
Hunting reports
Africa
4
USA/Canada
1
Australia/NZ
1
Member of
SCI
Hunted
Texas,Namibia,Kansas, Missouri, Wyoming, Colorado, Idaho, South Africa, New Zealand
I read an article of Jack O' Connor where he used 460 Weatherbye cases to reload a 416 Rigby by turning the belt of the case on a lay.


IvW

AH legend
Joined
Dec 20, 2016
Messages
3,353
Reaction score
6,362
Location
South Africa
Media
62
Articles
3
Hunting reports
Africa
1
Member of
BASA, CHASA
Hunted
South Africa, Zimbabwe, Mozambique, Botswana, Namibia,Zambia
Chamber pressure: 450 Rigby max 58 000 psi, 460 Weatherby 65 000 psi.

Recoil: The recoil is so severe on the 460 that it comes factory fitted with a muzzle brake.

Headspace: 460 headspaces on the belt and the 450 on the shoulder.

Barrel twist: 460, 1:16 so firing heavier caliber bullets or the standard 500 gr at lower velocity may cause stabilisation issues. The 450 Rigby can shoot 550 gr bullets at modest velocity without this issue due to a tighter barrel twist.

Bullet performance: @ 2700 fps many standard bullets cannot hold up to the 460's velocity, increasing the chances of wounding.

Penetration: The same 500 gr solid from 450 Rigby @2300 fps will out penetrate the same bullet from a 460 @ 2700 fps.

Action: 460 Weatherby, only available from Weatherby, uses a push feed action, a no no on a DG rifle.

Accuracy: Due to the huge amount of recoil, most people just cannot shoot the 460 accurately enough. It will slowly beat you until you give up.

Extraction: Due to the tight tolerances of the chambers on the 460, as well as high operating pressures, extraction of spent cases are an issue.

I could continue but overall the 450 Rigby makes a lot more sense as a DG cartridge than what a 460 Weatherby does.

The biggest significant difference would be that the 450 Rigby is a good choice for African DG and the 460 Weatherby is a rather poor choice.


flatwater bill

AH elite
Joined
Jun 16, 2013
Messages
1,874
Reaction score
2,787
Media
24
Hunting reports
Africa
4
Asia/M.East
1
Member of
NRA endowment member/Life member
Hunted
NAMIBIA, RSA, KYRYG, KAZAKSTAN, MOZAMBIQUE,MEXICO, BOLIVIA, PERU, BRAZIL, ARGENTINA, CANADA, NEW ZEALAND, AUSTRALIA, SPAIN,
LvW...............a good summary probably explaining why the big Wby never really caught on in Africa. A custom rifle could be ordered in this caliber that would address many of the shortcomings listed above. ..................but there might still be better choices........FWB


Baz 500

AH member
Joined
May 25, 2018
Messages
45
Reaction score
97
Media
6
I had a 460 Weatherby for nearly 30 years, and put through it approximately 250 rounds through it,( 124 grns 4350 500 grn Hornady sp's) and I have hunted cape buff with a 500 nitro, "but for pure unadulterated raw power "on the likes of scrub bulls, there is "nothing" I have seen that will match one for power. One bull in particular ran out of a dry river bed and crossed in front of me at about 20 yds, I hit it on the shoulder, and according to my mate, absolutely blew it of his feet, it also broke both shoulders with a soft point. Actually Dr Ray will verify a shot I did on a Brumby some years ago at approx. 300 metres, and flattened it. They are also not that bad to shoot contrary to what a lot of people say.
Cheers Baz.


IvW

AH legend
Joined
Dec 20, 2016
Messages
3,353
Reaction score
6,362
Location
South Africa
Media
62
Articles
3
Hunting reports
Africa
1
Member of
BASA, CHASA
Hunted
South Africa, Zimbabwe, Mozambique, Botswana, Namibia,Zambia
I had a 460 Weatherby for nearly 30 years, and put through it approximately 250 rounds through it,( 124 grns 4350 500 grn Hornady sp's) and I have hunted cape buff with a 500 nitro, "but for pure unadulterated raw power "on the likes of scrub bulls, there is "nothing" I have seen that will match one for power. One bull in particular ran out of a dry river bed and crossed in front of me at about 20 yds, I hit it on the shoulder, and according to my mate, absolutely blew it of his feet, it also broke both shoulders with a soft point. Actually Dr Ray will verify a shot I did on a Brumby some years ago at approx. 300 metres, and flattened it. They are also not that bad to shoot contrary to what a lot of people say.
Cheers Baz.

The one thing that not only matches it but beats for consistency and reliability is my 500 Jeff loaded with 570 gr Rhino bullets @ 2350 fps. I have stopped Rhino, Elephant, Cape buffalo and Male Lion on many occasions only ever needing one shot. Some as close as 7 yards. Talk about flattening or switching everything off instantaneously I have never used or seen All in a recoil manageable rifle that takes 4 rounds, is 100% reliable and has never ever let me down.

The 500 NE with 570 gr bullets @2100 fps is a fine DG stopping rifle but the 500 Jeff with above load flattens them everytime.

With all due respect, I know Scrub bulls can be tough, but they sure ain't Cape Buffalo! As for Brumbies, well it is a horse and I would immagine using a 500 Jeff on one would have the same flattening effect. 300 meters is a long way out there and shots like that on DG are not taken.

The 460 Weatherby with full power loads is a beast to shoot and the recoil is not manageable at least by the normal man out there.

Weatherby rifles have issues(I know, I own one that use to be a 460 Weatherby out of their custom shop). It only takes two in the mag. It has a stupid allen key bolt right below the bolt, that secures the firing pin and is part of the safety mechanism, this needs to be kept tight, otherwise the rifle either fires when you take it off safe or it does not fire at all. Mine did that and it is a real confidence breaker as well as a huge no no on a DG rifle. It is a push feed action which is also not desirable. Weatherby are not held in high regard as DG back up rifles.

Horses(or brumbies) for courses but I for one will never use a 460 Weatherby again and I will also not encourage anybody else to do so, too many bad experiences with them on DG.

A 340 Weatherby for long range plainsgame may be the lone exception.


8x68

AH fanatic
Joined
Mar 1, 2015
Messages
664
Reaction score
554
Location
Ontario, Canada
Media
12
Member of
OFAH, CCFR
Hunted
Canada, USA
When I was researching reloading data for my 450 (not much available in North America so I contacted PH's & Game Wardens in various parts of Africa). Karl Stumpfe basically said you have a 460 Weatherby minus about 6%. That's what I based my load data on.
This is a bit off topic. Hope its OK. Here is a target that I just shot in interesting weather conditions recently.
Rifle: CZ Safari 450 Rigby. Load is Hornady 350gr FN bullet (same as you would use in the 45/70) 123.3gr's of W760, FED 215 primers. Horneber case. Muzzle velocity is 2750fps (I don't recommend shooting a whitetail deer at 20yds with this load...yes I did. Long story!).
Computer calculated drop at 22" so the aimpoint was at the top of the board. Each penciled square is an inch.
First shot was top circle just to the right, next two were just below the circle. Three to the right were with about a 15mph crosswind (storm was coming in). Adjusted for the crosswind and hit dead centre. Then it got rainy, misty and the wind started swirling around. Shot about 8" below bullseye was next after dead centre hit. Then it got challenging to see the target. Hence the bottom left, top left shots. Target was at 300yds. Trying to see that far with a 1-4 power scope with crappy eyesight was a bit "fun" shall we say once the conditions deteriorated.


IvW

AH legend
Joined
Dec 20, 2016
Messages
3,353
Reaction score
6,362
Location
South Africa
Media
62
Articles
3
Hunting reports
Africa
1
Member of
BASA, CHASA
Hunted
South Africa, Zimbabwe, Mozambique, Botswana, Namibia,Zambia
I fail to see the point of using 350 gr Hornady bullets @ 2750fps in a 450 Rigby unless you are just plinking or fooling around.

500 gr-550 gr premium grade bullets are the way to go.


larry4831

AH fanatic
Joined
May 26, 2015
Messages
529
Reaction score
362
Media
5
Member of
NRA
I read an article of Jack O' Connor where he used 460 Weatherbye cases to reload a 416 Rigby by turning the belt of the case on a lay.
I remember reading that too, man that’s been a long time ago.


8x68

AH fanatic
Joined
Mar 1, 2015
Messages
664
Reaction score
554
Location
Ontario, Canada
Media
12
Member of
OFAH, CCFR
Hunted
Canada, USA
I fail to see the point of using 350 gr Hornady bullets @ 2750fps in a 450 Rigby unless you are just plinking or fooling around.

500 gr-550 gr premium grade bullets are the way to go.
There's always a point to something. I was just messing around. 550gr bullets are a tad heavy in my opinion. 500gr is enough bullet for the 450 Rigby. Another 50 grains doesn't really gain you anything except more recoil.


8x68

AH fanatic
Joined
Mar 1, 2015
Messages
664
Reaction score
554
Location
Ontario, Canada
Media
12
Member of
OFAH, CCFR
Hunted
Canada, USA
I forgot to add that in this part of the world we have something called moose. It would make a good moose load from 150-300yds. Given that the round would be going around 2100fps at 200yds and 1700fps at 300 yds (which rival 45/70 muzzle velocities for the same bullet) it would make a good long range moose round IMO. Bullet would have enough "giddyup" & ME to penetrate the vitals of moose. Within 150yds might be going a bit quick to expand properly, although it flattened a whitetail deer I shot with it at 20yds (long story).


IvW

AH legend
Joined
Dec 20, 2016
Messages
3,353
Reaction score
6,362
Location
South Africa
Media
62
Articles
3
Hunting reports
Africa
1
Member of
BASA, CHASA
Hunted
South Africa, Zimbabwe, Mozambique, Botswana, Namibia,Zambia
There's always a point to something. I was just messing around. 550gr bullets are a tad heavy in my opinion. 500gr is enough bullet for the 450 Rigby. Another 50 grains doesn't really gain you anything except more recoil.

Gain-sectional density, momentum, straight line penetration which are important for DG hunting....I guess for moose it makes no difference, in which case I would use a 300 with 200gr bullets. But that is just me.


Von S.

AH fanatic
Joined
Aug 26, 2018
Messages
821
Reaction score
1,204
Ray,

I like just about all rifles and calibers so to me it's a matter of choice of the guy doing the shooting.

If i am given the choice I would go with the bigger, faster most deadly thing I can get my hands on as I look for ways to shoot everything a extended ranges. That of course means that you must pick your shoots and be positive that the shot will end with one shot and the animal planting it's nose in the ground like an asteroid just hit it.
