I didn’t want to hijack the thread regarding the crimping dies:

Im started to work up some loads with Barnes banded solids, woodleigh solids, and Barnes TSX (Haven’t bought A frames yet).

In previous conversation with @Shootist43 recommends 84g of H4350. According to the Hornady manual the recommended load is “72- 79.9 max”. Barnes manuals does not list the 4350.

My question is do you more experienced 404 loaders recommend starting lower “72” as suggested by Hornady and work up? Or just load the 84 and see?


Bert the Turtle

AH fanatic
Joined
May 29, 2010
Messages
833
Reaction score
1,023
Media
4
I doubt you will find many people willing to state in writing on a public forum that you should start with a load 4g over book max.


krish

Bronze supporter
AH enthusiast
Joined
Jul 17, 2017
Messages
432
Reaction score
388
Media
17
It is assumed that 404 is used in the Tropics where it is mighty hot. So bullet manufacturers are conservative in load data. Even if it can be loaded for colder climate one cant guaranty it will not slip and mske it to Tropics. Safty first.


Proneshooter

AH veteran
Joined
Jan 22, 2017
Messages
108
Reaction score
172
Media
13
Hunted
Argentina, Zimbabwe x 3, South Africa, Wyoming, Montana, North & South Dakota, Texas
My Woodleigh manual shows a range for H4350 of 80-89 gr. with a 400 gr. soft. I shoot 82 gr. H4350 with a 400 gr. Swift A Frame. With a 400 gr. North Fork flat point solid I use 80 gr. H4350. Some manuals are more conservative than others.


Andrew Short

Silver supporter
AH fanatic
Joined
Jul 9, 2020
Messages
598
Reaction score
532
Location
Jasper Alabama
Media
8
Hunting reports
Africa
3
Mex/S.Amer
1
Member of
Lifetime member NRA
I figured I would start at 80 grains and work up. I finally received my dies and will be loading some this week. I appreciate the info!


Andrew Short

Silver supporter
AH fanatic
Joined
Jul 9, 2020
Messages
598
Reaction score
532
Location
Jasper Alabama
Media
8
Hunting reports
Africa
3
Mex/S.Amer
1
Member of
Lifetime member NRA
My Woodleigh manual shows a range for H4350 of 80-89 gr. with a 400 gr. soft. I shoot 82 gr. H4350 with a 400 gr. Swift A Frame. With a 400 gr. North Fork flat point solid I use 80 gr. H4350. Some manuals are more conservative than others.
What kind of velocity are you seeing?


ALbowhunter

AH member
Joined
Jul 4, 2019
Messages
24
Reaction score
38
Media
3
In my 404, 84 grains of H4350 for 400 gr A frames and 84.3 grains of H4350 for 400 gr Break a way solids will put each in the same hole at 50yards. I’m not certain on the velocity from my barrel, but the tables would suggest approximately 2,300fps.


ALbowhunter

AH member
Joined
Jul 4, 2019
Messages
24
Reaction score
38
Media
3
This is the table I used.


Scrumbag

AH fanatic
Joined
Jul 13, 2016
Messages
822
Reaction score
586
Media
46
Member of
BASC, SCI
Hunted
Europe
I'm going to try around 78gr of N150 when my shell holder finally turns up


HWL

AH elite
Joined
Aug 29, 2016
Messages
1,144
Reaction score
2,013
Location
Germany
Media
203
Hunted
RSA, Namibia, Germany, Austria, Norway
My question is do you more experienced 404 loaders recommend starting lower “72” as suggested by Hornady and work up? Or just load the 84 and see?

The .404 Rimless is a low pressure cartridge for a good reason.

.... it works flawlessly in hot climates.

Do not give up this feature for a few nonsens joule.....

Should you really need more power, a well loaded .404 has to offer,... go for a "bigger" cartridge.


HWL


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
5,948
Reaction score
5,993
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
Andrew, using 84 Gr. of H 4350 and 400 Gr. Swift A frames both of my 404(s) shoot under an inch. Velocity out of my CZ was 2300, 2309 & 2306 for three shots. I may have said this before but I'll say it again, with results like that, I've no need to look further. BTW that was Von Gruff's accuracy load. with the exception that he was using 400 Gr. Woodleigh bullets. I also use Norma Brass and a Federal 215 Primer.


Andrew Short

Silver supporter
AH fanatic
Joined
Jul 9, 2020
Messages
598
Reaction score
532
Location
Jasper Alabama
Media
8
Hunting reports
Africa
3
Mex/S.Amer
1
Member of
Lifetime member NRA
Andrew, using 84 Gr. of H 4350 and 400 Gr. Swift A frames both of my 404(s) shoot under an inch. Velocity out of my CZ was 2300, 2309 & 2306 for three shots. I may have said this before but I'll say it again, with results like that, I've no need to look further. BTW that was Von Gruff's accuracy load. with the exception that he was using 400 Gr. Woodleigh bullets. I also use Norma Brass and a Federal 215 Primer.

I won’t argue that that’s absolutely impressive accuracy and consistency!!! I will also be using norma brass and federal 215s. The only bullets I currently have are 400g Barnes banded solids and 400g woodleigh weld cores. I need Some A frames but this will do for practice. I’m not sure I’m confident enough in my loads to hunt DG....

Have you hunted with your hand loads?

Last edited:

Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
5,948
Reaction score
5,993
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa
I'd use the Woodleigh Weld Cores without hesitation. Yes I've hunted with my handloads. I took a SCI "Gold" Eland with a single well placed shot. The animal never moved, just collapsed. I can send you via PM a QuickLoad summation of Von Gruff's if you'd like to see it.


Andrew Short

Silver supporter
AH fanatic
Joined
Jul 9, 2020
Messages
598
Reaction score
532
Location
Jasper Alabama
Media
8
Hunting reports
Africa
3
Mex/S.Amer
1
Member of
Lifetime member NRA
I'd use the Woodleigh Weld Cores without hesitation. Yes I've hunted with my handloads. I took a SCI "Gold" Eland with a single well placed shot. The animal never moved, just collapsed. I can send you via PM a QuickLoad summation of Von Gruff's if you'd like to see it.

Impressive! That sounds great, I’d like to see it. I’m a novice reloader at best. The weld cores are difficult to find


Shootist43

Gold supporter
AH ambassador
Joined
Apr 25, 2015
Messages
5,948
Reaction score
5,993
Location
Grosse Ile, Michigan
Media
25
Hunting reports
Africa
1
Member of
NRA
Hunted
Michigan, Texas, Missouri, Limpopo Province South Africa

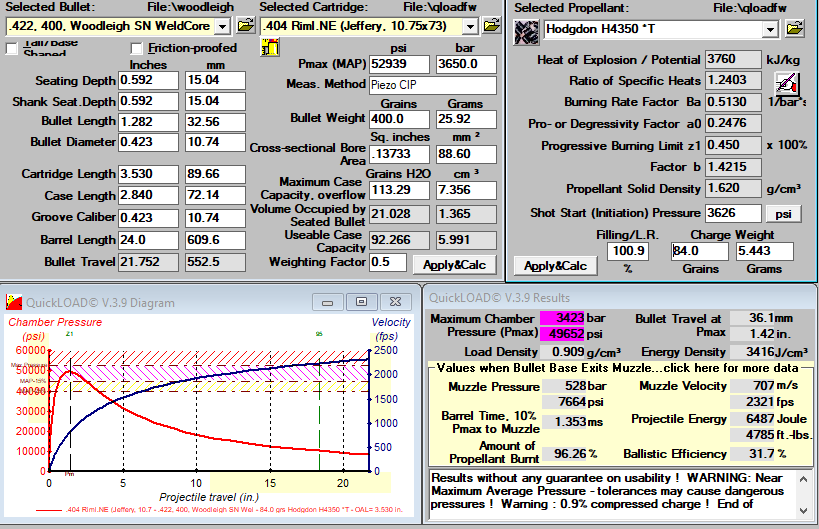

Andrew, attached is the QuickLoad simulation of the 404 Jeffery Load we've been discussing.


Andrew Short

Silver supporter
AH fanatic
Joined
Jul 9, 2020
Messages
598
Reaction score
532
Location
Jasper Alabama
Media
8
Hunting reports
Africa
3
Mex/S.Amer
1
Member of
Lifetime member NRA
Thank you!!! I’d be more than happy with a 2321 at the muzzle. I think the data from Quickload and everyone’s testimony says it all.

I’ll be setting up the new charge master and throwing some loads Friday.
