318 Wesley Richards vs 338-06 ballistics, Apples to Apples

[Jefferry404]

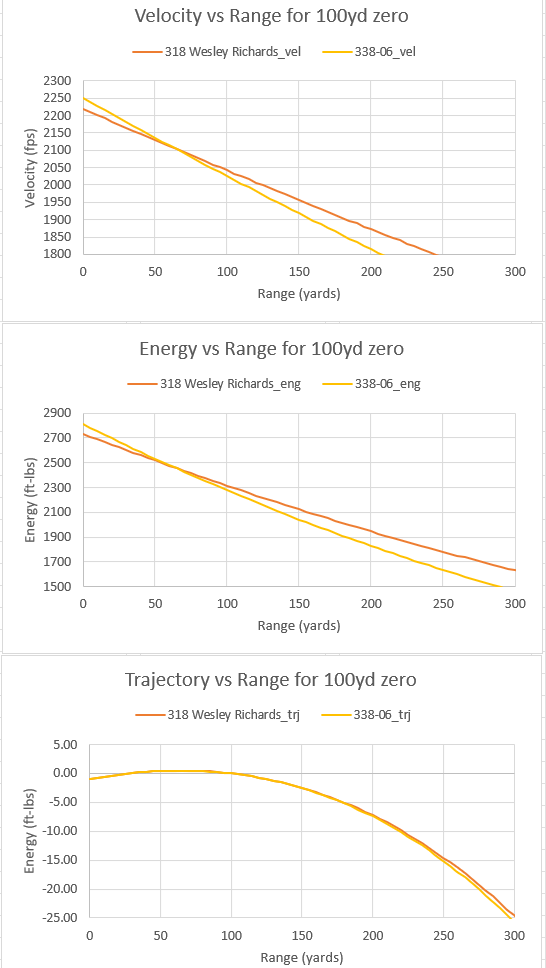

I fit QL to Hodgdon data for the 338-06 and used that for the WR. Set the WR to its max. rated pressure and set the 338-06 to the same. Woodleigh 250gn bullets for both, 24" barrel. The BC for the 338 was lower than for the 318, why the velocity drops of quicker.

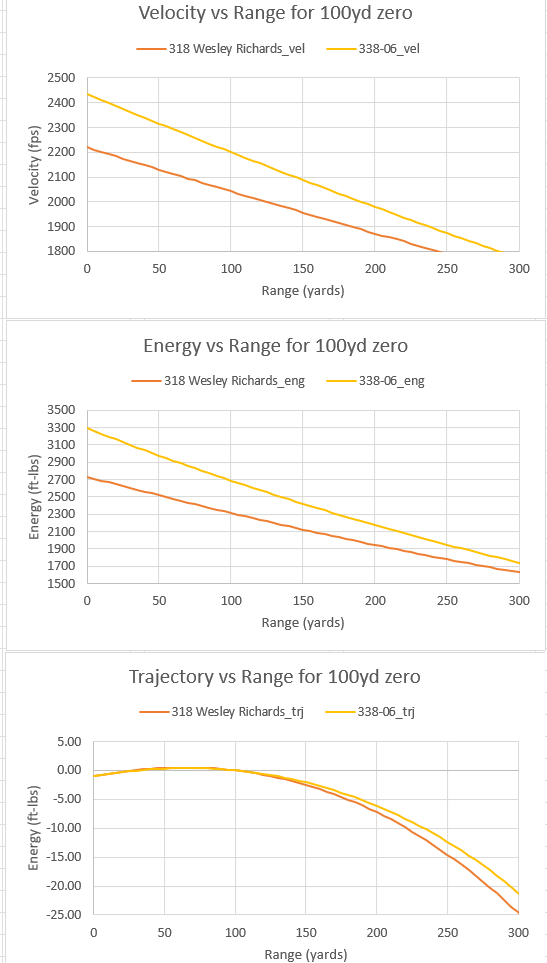

Then, because 338-06 is modern at higher pressure, here is with the 338-06 at sammi. max PSI.

For an old gal, the 318WR still looking good



[Aaron N]

I fit QL to Hodgdon data for the 338-06 and used that for the WR. Set the WR to its max. rated pressure and set the 338-06 to the same. Woodleigh 250gn bullets for both, 24" barrel. The BC for the 338 was lower than for the 318, why the velocity drops of quicker.

View attachment 735204

Then, because 338-06 is modern at higher pressure, here is with the 338-06 at sammi. max PSI.

View attachment 735205

For an old gal, the 318WR still looking good

Both will do what is asked of them, but only one does it with panache
