.257 Ackley Improved

MikeDeltaFoxtrot

AH veteran
Joined
Nov 30, 2017
Messages
137
Reaction score
135
Location
Virginia, USA
Media
24
Hunting reports
Africa
1
Member of
SCI, NRA
Hunted
USA (Alaska, Florida, North Carolina, Virginia), South Africa
A good friend of mine who is not a reloader has a nice rifle (Winchester M70) that was originally chambered in .257 Roberts, but he had it reamed out to .257 Ackley Improved. He has had it for years and as never had a good source for ammo. I am going to work up a load for him, probably using Barnes 100 gr. TSX boat tails. The Barnes manual show loads up to 3200 fps which is impressive, and will likely make a good white tail load.

I understand that typically, .257 AI brass is fire formed by shooting .257 Roberts loads in an AI chamber. In the interest or moving things along, I'd like to buy some .257 AI brass already formed. Does anyone know of a source for such?

Thanks.


Bullthrower338

AH legend
Joined
Sep 20, 2014
Messages
4,410
Reaction score
10,002
Location
Houston, Texas and Alder, MT
Media
176
Hunting reports
Africa
2
USA/Canada
1
Australia/NZ
2
Member of
Life Member Rocky Mountain Elk Foundation, NRA, Huntin' Fool, DSC and Pope and Young Club
Hunted
USA, Mexico, Canada, RSA, Australia NT, Zimbabwe
I would recommend fireforming for that particular chamber. Follow load data for the standard 257 Roberts, seat bullet out to the lands to hold case head against the bolt face. You will separate cases if there is room for movement. I use 4895 when fireforming the 257AI. I would stay away from trying to buy cases that have already been fireformed due to the deviations in chambers.
Cheers,
Cody


dchamp

AH enthusiast
Joined
Dec 9, 2015
Messages
319
Reaction score
377
Location
Bakersfield, California
Media
34
Member of
SCI
Hunted
USA, Australia, Namibia, Canada, Argentina
I don't know of anybody making AI brass for any caliber other than the .280 Remington AI. If he didn't save or doesn't have any fire formed brass then I would suggest he find a factory load that shoots well in his rifle, buy a 100 rounds, use it and then start the reloading process. There are methods for fire forming without making up fully loaded cartridges though but it will take a little research. Also you might see if you can find a copy of P.O. Ackley's Handbook for Shooters and Reloaders.

One thing I would do before getting to involved is check the head space. The neck shoulder junction is the same in the standard cartridge and the AI cartridge. When the new chamber is cut for the AI you will find that the barrel is set back a little. If not done properly will cause head space issues. Good Luck


ChrisG

AH elite
Joined
Jan 6, 2015
Messages
1,024
Reaction score
1,132
Location
Adirondack Park, NY, USA
Media
43
Articles
1
Hunting reports
USA/Canada
3
Member of
NAHC, NRA, Rocky Mtn. Elk Foundation.
Hunted
USA, Canada
Like dchamp said, no one really makes AI brass. Its allure is the fact that it is kind of a wildcat. I say kind of because Ackley Improved is more of a verb than a noun. One could almost say "I've AI'd my (insert cartridge here)." As such, you will need to fireform it. The easiest way is to buy brand new .257 Roberts brass, load about 10 grains of Blue dot into the bottom, put a cotton ball on top of that, then fill the rest of the case with cream of wheat leaving the neck mostly free and fillin it with cotton and soaking that with paraffin wax to hold the cream of wheat in place. fire these and they should blow out the shoulders nicely. try this with one load. If it doesn't fully form the shoulder, go up a little bit in the charge weight until you get nice clean shoulders. Then you have ready-to-go AI brass that is essentially brand new!


elmerfudd555

AH senior member
Joined
Mar 25, 2013
Messages
89
Reaction score
47
Bullthrower has it right. Starting loads of 4895 with bullet out against lands will fire form the cases. Strongly suggest you get a Hornady case comparator to assist in setting up your sizing die. This will keep you from excessively setting the case shoulder back each time you resize and will extend case life as well as help with accuracy.

I use the .257 100 grain TSX and TTSX extensively in my 257 WBY and love the performance.


PARA45

AH elite
Joined
Jun 15, 2010
Messages
1,648
Reaction score
2,356
Media
47
Articles
3
Hunting reports
Africa
1
USA/Canada
2
Member of
NRA LIFE MEMBER
Hunted
South Africa, Nicaragua, FL, CA, SD, GA, SC, CO

Attachments

  • Screenshot (150).png
    Screenshot (150).png
    352.2 KB · Views: 202
  • Screenshot (151).png
    Screenshot (151).png
    188.8 KB · Views: 193
  • Screenshot (152).png
    Screenshot (152).png
    95.5 KB · Views: 144
  • Screenshot (153).png
    Screenshot (153).png
    373 KB · Views: 178
  • Screenshot (154).png

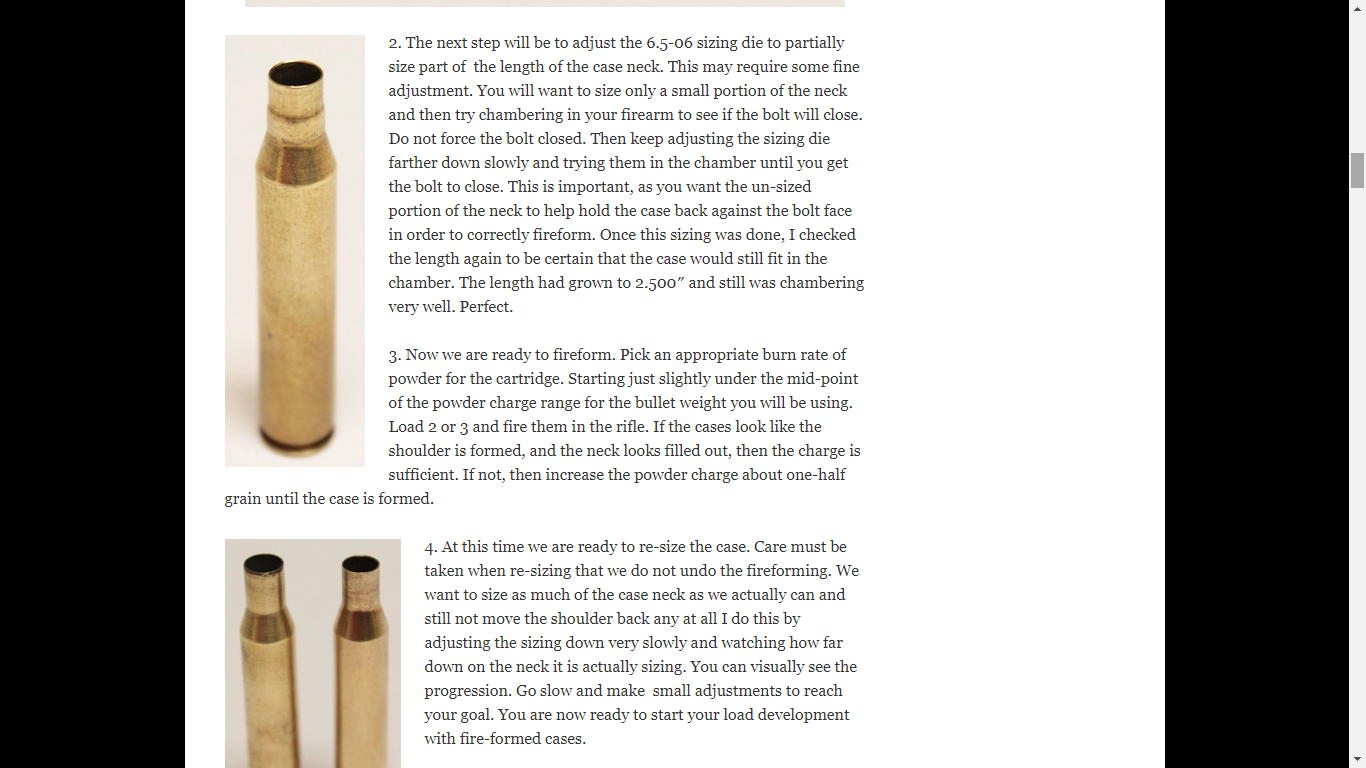

    Screenshot (154).png
    229.4 KB · Views: 178
Last edited by a moderator:

Ridgewalker

Lifetime bronze benefactor
AH ambassador
Joined
Aug 8, 2016
Messages
6,417
Reaction score
7,411
Location
Colorado
Media
231
Hunting reports
Africa
3
USA/Canada
3
Hunted
South Africa: Limpopo, Northwest; USA: Ak, Mt, Wy, Co, Ne, Ks, Nv, NM, Tx
Hopefully his chamber was reamed by using specs of what ever brand dies you have. Unfortunately there’s a risk that the dies and chambers are not identical. Historical issue with Ackley Improved cartridges. That said, if all goes well, I’d only neck size once they are fire formed. It should be an excellent deer cartridge!
I have Ackley’s books, and would be happy to email you a photo of his loads, but the powders have all changed since he loaded them. Probably not valid now.
Best of luck!


PaulT

AH elite
Joined
Apr 10, 2010
Messages
1,167
Reaction score
939
Media
150
Articles
5
Member of
S.C.I. International. Rowland Ward. Sporting shooters Association of Australia. Australian Deer Association.
Hunted
Aus. N.Z & Zim.
I have a wild-cat center-fire rifle in true .50 caliber where projectiles are limited and expensive.

Rather than shooting projectiles to fire-form cases I use a very mild dose of pistol powder held down with a wad of tissue paper then a column of corn meal is packed down in the case above the charge of pistol powder and a spit-wet wad of tissue seals the case neck.
This charge, when fired, forms my cases to within 98% of the true dimension and close enough to load with hunting loads, after-which the first true firing the case is fully formed.

I do not know if this method is applicable in your case but if it is it would be well worth investigating as it negates the need to shoot bullets down the barrel thereby limiting wear on the gun and un-necessary expense.

Worth looking in to.


Ray B

AH legend
Joined
Aug 19, 2016
Messages
2,391
Reaction score
2,651
Location
WA St, USA
Media
76
Hunting reports
USA/Canada
1
The advantage of an "improved" case over a "wildcat" case is that the improved (if done properly) can fire factory cases and by firing, forms them to the improved case, whereas a wildcat needs alteration to fit the chamber. So your friend should be able to get some 257 Roberts and fire them in the AI chamber. As noted above, he may want to avoid the possibility that the chamber was cut long and make loads where the case is held back tight against the bolt during firing. In addition to the above seating out of bullets to contact rifling methods, the one that I use is to get 7x57 brass and neck it down to .257", but do so progressively, inserting the case partially into the die, then seeing if it will chamber. At first it won't, so you remove it from the chamber and push it a little farther into the die, then try the chamber again. Keep at it until the cartridge causes slight resistance on turning the bolt handle down. the cartridge will be tight in the chamber so when fired will properly fill out to the improved chamber without stretching the web. the best type die for this is the Wilson type where bushings are used to control the diameter of the neck rather than the type that insert an expander button, then size the neck to smaller diameter, then the button is pulled out, pushing the neck back out to .257". The expander type die will work, but you are over working the brass by each time it is run into and out of the die.

As for loads, generally speaking, take any tested/published starting load for the 257 Roberts, add 5% and you have a starting load for the 257AI.

Joined
Oct 28, 2018
Messages
2,656
Reaction score
3,712
Location
Wyong new south Wales Australia
Media
6
Hunting reports
Africa
1
Member of
SSAA
Hunted
Australia
A good friend of mine who is not a reloader has a nice rifle (Winchester M70) that was originally chambered in .257 Roberts, but he had it reamed out to .257 Ackley Improved. He has had it for years and as never had a good source for ammo. I am going to work up a load for him, probably using Barnes 100 gr. TSX boat tails. The Barnes manual show loads up to 3200 fps which is impressive, and will likely make a good white tail load.

I understand that typically, .257 AI brass is fire formed by shooting .257 Roberts loads in an AI chamber. In the interest or moving things along, I'd like to buy some .257 AI brass already formed. Does anyone know of a source for such?

Thanks.
@mike Delta Foxtrot
Only way to get AI brass is to fireform it , 3,200 fps is what you can get out of a standard Roberts with H4350 and 100 grainers and 2,900+ fps with 120 grainers
Bob


Ed McGraw

New member
Joined
Feb 17, 2020
Messages
12
Reaction score
36
Location
Central Arkansas, USA
Media
1
Member of
Life Member NRA
I have been loading the 257 Roberts Ackley Improved for just over forty years now. Ray B is on the money about forming the cases. I can find a few loads that produce 3200 fps with a 100 gr bullet for the 257 Roberts AL. Ackley has a couple listed in his book published in 1962. There is one listed in the Speer 1956 Wildcat Rifle Loads manual. The 1971 Sierra Reloading manual lists eight different loads that produce 3200 fps. I have always had better accuracy running them at about 3100 fps. Sometimes it is difficult to find factory 257 Roberts cases to form into the AI. I have made hundreds of them from 30-06 brass without any issues.


RayAtkinson

AH fanatic
Joined
Mar 17, 2009
Messages
655
Reaction score
511
Location
Filer,
Media
25
Articles
1
Member of
SCI Dallas
Hunted
RSA, Botswana, CAR, Tanzania, Zimbabwe, Zambia, Mozambique, Kenya way back when, and a few others that I can't remember.
You can load and fireform for any AI...In the 257 Ack. you can shoot new 257 Roberts ammo, it fireforms to your chamber....Finding 257 brass or ammo is somewhat of a problem in itself, having been down that road, but brass can be made from 8x57, 7x57 , 6mm, and any 30-06 based case etc......
.An excellent alternative is to punch it out to a 25-06 and problem solved..


colorado

AH elite
Joined
May 8, 2011
Messages
1,105
Reaction score
1,092
Media
59
Bullthrower has it right. Starting loads of 4895 with bullet out against lands will fire form the cases. Strongly suggest you get a Hornady case comparator to assist in setting up your sizing die. This will keep you from excessively setting the case shoulder back each time you resize and will extend case life as well as help with accuracy.

I use the .257 100 grain TSX and TTSX extensively in my 257 WBY and love the performance.

I would buy a neck sizing die and neck size only. I have done this for my 270 Win for decades. Before I go hunting I go to the range and run 20 or so cartridges through the rifle with the muzzle pointed down range of course. That ensures they will feed smoothly, though I never really had any issues feeding without doing that, since all cases shrink a bit when they cool after fire forming.
