I'm visiting here to talk about the 12ga From Hell and
other developements it has led to.Nice site you folks have.
I'm with a group of experimenters passing on the years of
info and pictures to all gun nuts around the net, about
12ga From Hell and other big bores. We have posted some
round the net about our many ideas we have implemented for
12ga,10ga,8ga,4ga,28ga,20ga,16ga, and my 585HE/700HE wildcats.

The idea for the 12ga FH, and the first gun built for it,
was Rob Garnicks on another forum. In the first picture,
a heavy duty Borchardt falling block. He has gotten
1000 gr to 3000 fps in this, a high pressure action.

Then I and others joined in and set up a big variety
of guns for the case. The case, a brass case 3.85" long,
made from BMG brass expanded out with straight sides,
to take 12ga .729" dia slugs and a 12ga size rim added on.
Also we get turned brass cases from Rocky Mtn Cart of that
length and shorter. Many guys used 3.5" cases, as standard
reamers are available, and 12ga 3.5" guns are available,
so that they could shoot 3.5" plastic also. Our 3.85" chamber
and 3.5" will shoot any of the shorter cases.
In our work we found ways to get over a third more velocity
in shorter plastic and brass cases using slower powders
than regular fast shotgun powders. We reloaded fast
rifle powder, IMR 4759, IMR 4227, in larger amounts
and got 600gr hard lead slugs over 1800 fps in 24" barrels,
and were lab tested to be at or under magnum shotgun
pressures that are used in factory 3.5" loads.

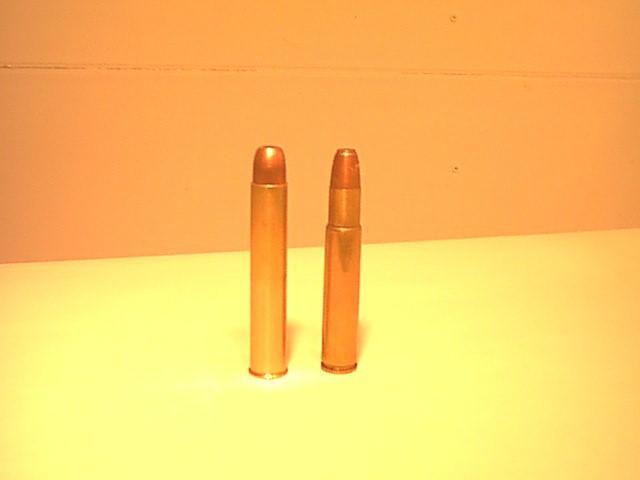

More pictures, the 2nd showing long brass 12ga FH case with
regular 12ga case. Other 12ga FH guns are next,3rd Nef Ultra
heavy barrel with length added, 4th Nef 8ga made by boring
out heavy barrel 10ga, 5th FBW falling block,my 585HE belted
case.The FBW has a 20ga 3.5" extra barrel also.
.And we also worked with 8ga,4ga, in falling blocks, 20ga,16ga
in break actions, and my wildcat 585HE,700HE in various actions.

6th picture is our big cartridges from 2 bore on down, in
order-2bore- 4ga- 8ga- 10ga- 12ga FH- 700HE--700H 3.25- 30-06..
7th picture is 4bore falling block we built on our design.
Our 4bore is 1 inch bore.We also helped in getting the barrel
threads larger in the new large MRC PH bolt action to fit our
cases like the 700H 3.25" shown in 8th picture in MRC.

9th picture is an 8bore bolt gun a guy on another forum built
from scratch.Last is Savage 210 that Bret in MN set up with
heavy barrel and a recoil reducer put into the hollow stock.
Shown with boot off so you can see the build. He has gotten
saboted 500gr slugs over 3000 in this.We will post a bunch
more info and we welcome your ideas and help. And we'll give
all the help we can to folks ..Ed Hubel





















Attachments

  • 4done.jpg
    24.1 KB · Views: 467
  • 8bolt2.jpg
    329.5 KB · Views: 476
  • 8inef.jpg
    52.6 KB · Views: 468
  • 1212.jpg
    35.1 KB · Views: 448
  • 2430DSC00694.jpg
    53.3 KB · Views: 449
  • big06.jpg
    25.7 KB · Views: 457
  • bret.jpg
    55.9 KB · Views: 484
  • fbw1pc.jpg
    75 KB · Views: 483
  • neflb.jpg
    38.7 KB · Views: 392
  • ph700gun.jpg
    52.4 KB · Views: 469
Last edited by a moderator:
Definitely creative. What type of accuracy are we talking?

The ninth picture look like a Ljutic space gun...with no to very little recoil.

I would suggest you contact Ljutic in Yakima, WA as Al used to build many proto-type shotguns and rifles.

I forgot to welcome you to AH and your first post is a good one...

Accuracy with 12ga FH NEF 3" groups at 50 yds with 600gr
full bore and some of reloaded sabot loads, with bad eyes.
My 585HE in an Enfield and MRC PH 3-4" at 100yds.

That guy built the 8ga bolt from scratch, with steel
cylinder and surplus 20mm barrel.I think is is one of the
nicest looking tactical type of guns in big bore.

Videos Youtube blowing up 6gal pail of water -"Grandpa's Cannon"
"Grandpa's First Shot" 12ga FH -- 610gr HP at 2800-3000.

We get asked about legality and whether these big cartridges
are DDs. First of all; all shotgun calibers over 50cal are exempt from
being classified as DDs under Title 18 GCA Section 921....
And it doesn't matter what exciting or promo name we call them,
the barrels are still marked for gauge. They can be called 12ga 3 Inch
Super Magnum, 12ga Goose Magnum, 12ga From hell, 12ga 3.5 Express,
12ga Hammerhead, etc, they still are a 12ga case of some length.
And length doesn't matter as long as shorter cases, with straight
sides, and same 12ga(or whatever gauge)base size fit and fire in
longer chambers. IE; 2.5, 2.75, and 3" firing in 3.5", and all of these
firing in our 3.85" longer chamber. IE; you can't take 37mm cannon
shell and neck it to 12ga and have an automatically exempt 12ga
cartridge, as other shorter 12 gauges would not fit/fire in chamber,
and you'd have to get it exempt as sporting. How-
Under the same Section any other over 50cal non-shotgun
cartridge can be classified as Exempt For Sporting Use by
applying for the exemption, like I have done for my cases,and many
others(JDJ-AHR-Etc) have done, as well as cases already sporting
from the old days. Now as for hunting rules in shotgun areas,
game depts may say that you can't use long range spitzer bullets
but must use traditional blunt slugs, for safety. Hunting rules are
varied all over the place.

More history of firsts, in our 12ga FH and big bore work.

The first gun of mine to have this case was
my Savage 210 in first picture with a regular style
heavy stock. Later changed to thumbhole stock.
I changed barrel to heavy bull barrel and
chambered it for the 12ga FH 3.85" long case.

Second picture is the first NEF 12ga Ultra that we put
the first 12ga fH case in. I only had to lengthen chamber.
The same gun now has long barrel and thumbhole stock.

Third picture is first NEF 10ga heavy barrel that we put
the 10ga FH in. Gun came with long 30" heavy barrel.

Fourth picture is the first 8ga test gun we built using the
super strong 8ga kiln cases with the belt step swaged
down. It is an Enfield that we reamed out to take the
case, like the 12ga Mauser 12ga conversions were done.
And we added extra rear bolt lugs for strength.

Fifth picture is the 1st gun my 585HE was put in.
It is an Enfield and gets 750gr bullet 2700 fps.











And in the vein of old time gun actions, of which are various falling
blocks, we like them also for the hairy big bores, like the 8bore and
4bore ones we made over the years, that are pictured above.

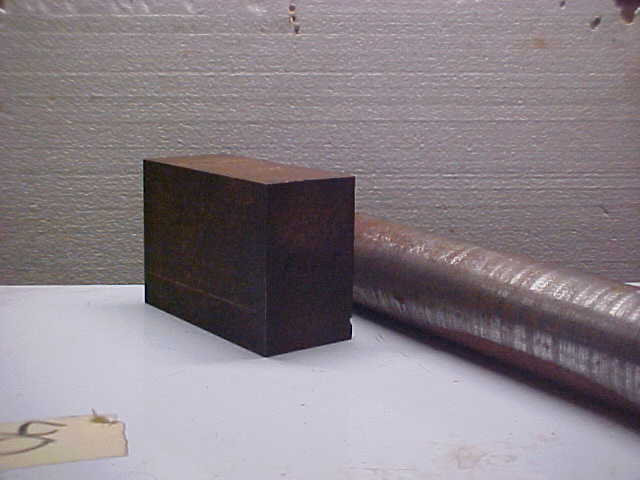

Following are 3 pictures of various parts and processes of making the
action, using easy to get small parts, lever, trigger, hammer, etc,
and the action block, breach block from steel blocks in 1st pic.

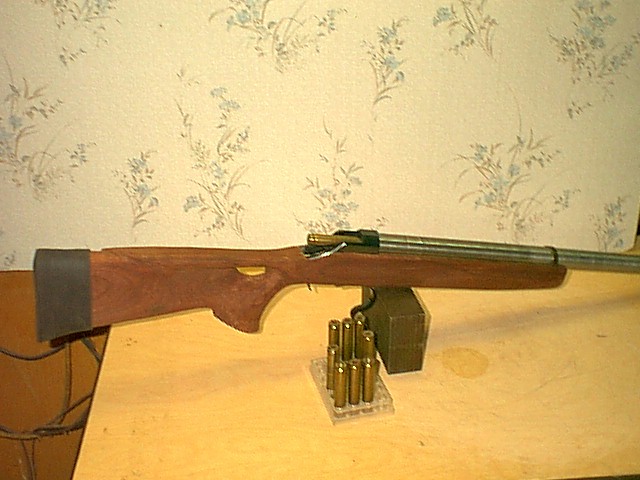

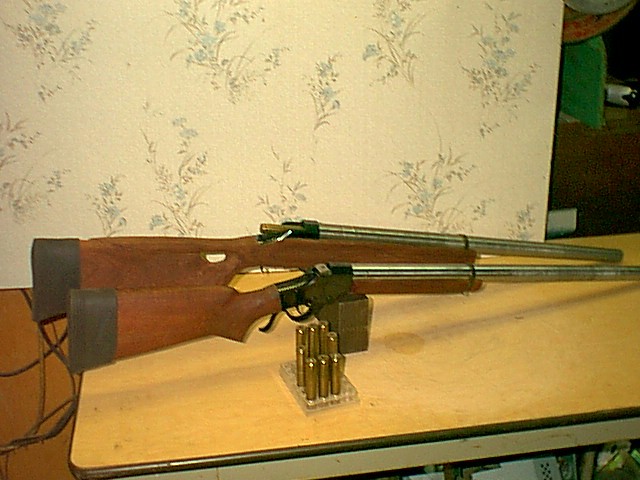

Last 2 pictures are the FBW brand falling blocks, one which is the
Model L that we adapted to the one piece stock and the other is the
smaller Model S with regular two piece stock. Both are set up with
my 585HE. I can run full pressure in the 585.

The Model L, I can switch to a 20ga barrel, 600NE barrel,
and my 700HE using moderate loads. Last pic is Model L with
thumb hole stock, and my 585HE case in the action..Ed











Attachments

  • 8en.jpg
    61.5 KB · Views: 368
  • 10gafhbg.jpg
    55.3 KB · Views: 343
  • 585enth.jpg
    54.6 KB · Views: 415
  • brchside.jpg
    24.7 KB · Views: 396
  • emptyact.jpg
    24 KB · Views: 369
  • fbw1pc.jpg
    75 KB · Views: 418
  • fbw2pc.jpg
    78.5 KB · Views: 398
  • nef.jpg
    32.4 KB · Views: 310
  • redone.jpg
    19.2 KB · Views: 432
  • stbl.jpg
    59.5 KB · Views: 394
Now some info on cases and slugs

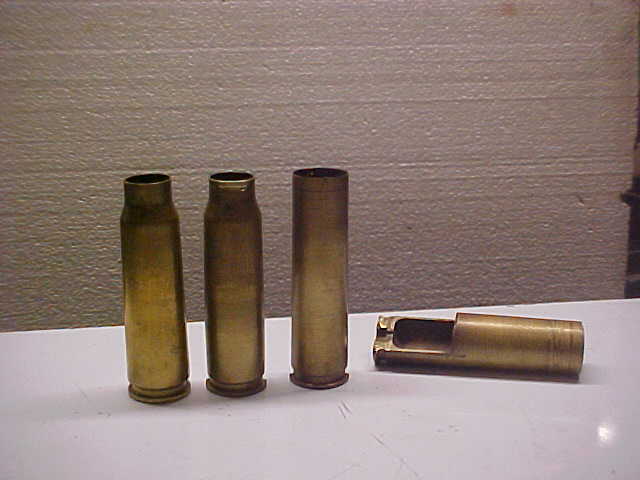

The 50 BMG brass can be made into some real
great cartridges, our 12ga FH, shown first, showing
cases with rim turned off and threaded; and the 12ga rim
pieces to be screwed on, with finished cases shown.
And 2nd making my 700HE showing original BMG case,
case with belt only, and then expanded out to 700cal.
This makes a super strong big bore case, as I have
fired some 25 times and case is still good.And
it in my big Vulcan bolt gun gets a 1000gr to 3200.

3rd picture shows our 4bore/ga case with slugs, and
the 20mm case we make them from. They match the 4bore
turned cases that are used in the Ken Owen doubles.
4th the Rocky Mtn Cartridge, 12ga turned 3.5" cases
with variety of slugs and sabots.In picture first loaded
one is BPI sabot, then 730gr Dixie, then 600gr Dixie,
then RG Henson's solid nose and his hollowpoint.
RMC can make cases any length and any gauge.
5th shows a 12ga FH and 10ga FH we made using steel
basecups taken from 12 and 10 ga cases. We turned down
bases a few thousands of the original brass cases
and epoxied the bases. Used BMG case s for 12ga and
50cal Russian for 10ga.This research came from a
another forum poster, like over half of what we do.Ed

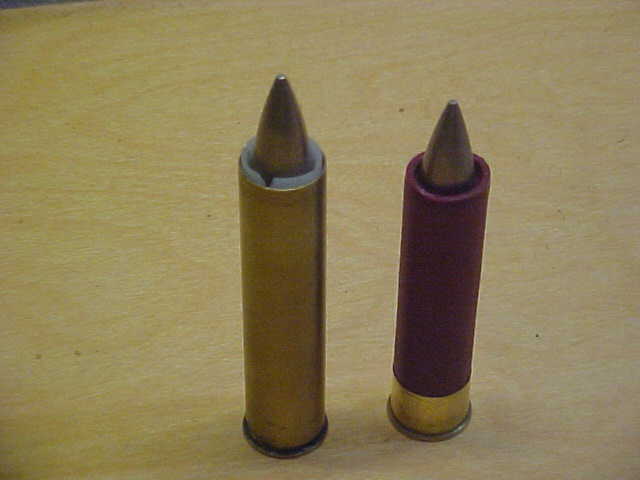

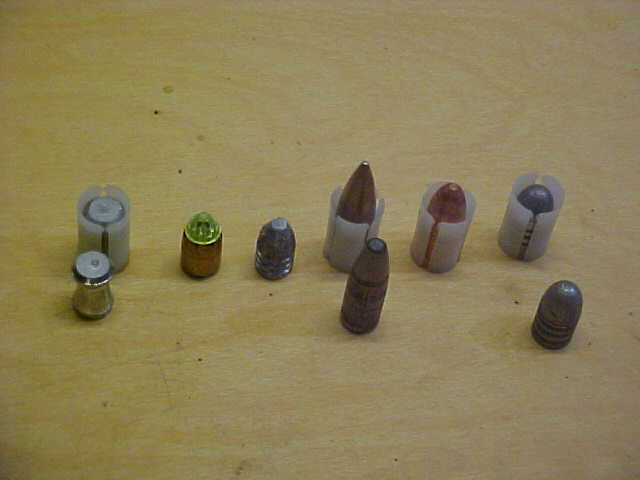

More pictures of 12ga slugs and saboted slugs.

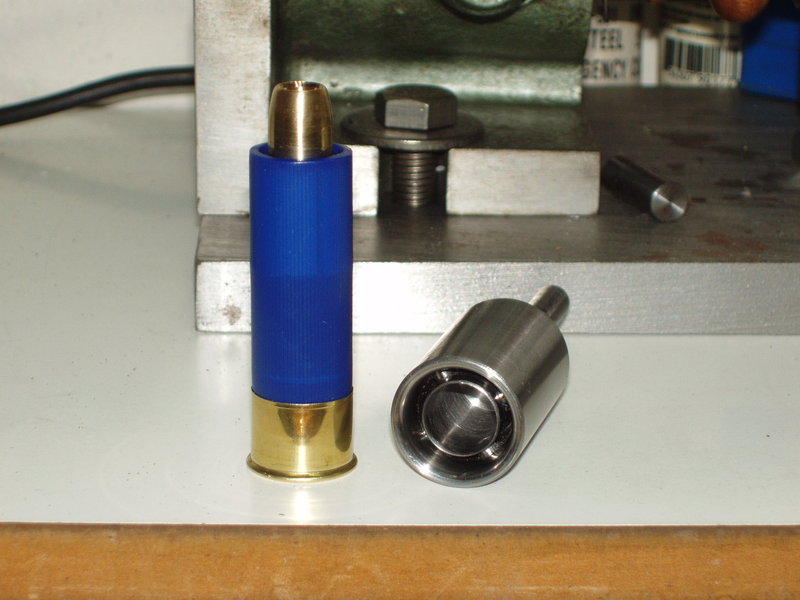

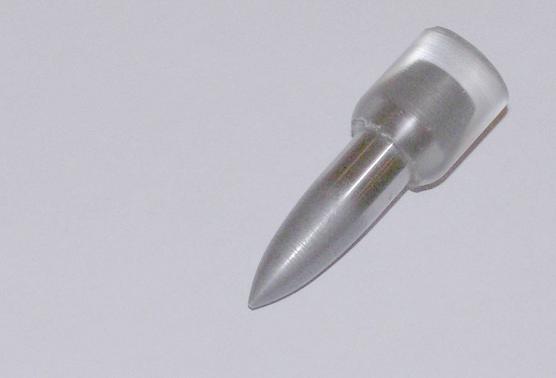

1st The US-S sabot/slug, with the green locked on base,
along with others.The US-S slug is nearly as accurate
in smoothbores, for which it is made, as sabots are
in rifled. those pictured are heavier than most other
brands of saboted slugs.

2nd a Jacketed 730gr by RG Henson and a hard,heat treated
600gr by Dixie Slugs in FL, both full bore slugs,
3rd a BPI sabot with hardcast 440gr, .504"
diameter slug. BPIs were intended to use .500" bullets
used in 500S&W, the little larger ones we use seem
little more accurate.Makes tighter fit in rifled barrels.
4th other sabots we tested , 5th brass turned slugs
and there are many other slugs/sabots we'll show..Ed











Attachments

  • 10gafhb.jpg
    37.3 KB · Views: 397
  • 12h.jpg
    29.7 KB · Views: 372
  • bpi504.jpg
    77 KB · Views: 417
  • naval.jpg
    18.3 KB · Views: 367
  • process.jpg
    16.7 KB · Views: 352
  • rmcc.jpg
    46.6 KB · Views: 286
  • sab.jpg
    45.2 KB · Views: 385
  • sht.jpg
    15.4 KB · Views: 384
  • sp.jpg
    38.5 KB · Views: 429
  • usslug.jpg
    62.2 KB · Views: 370
Quite a few have wanted doubles in our 12GA long case.
Rob is doing one on a big 10ga Zabala double,with Greener
crossbolt lock. He is replacing 10ga barrels with heavy
12ga rifled barrels, mono-blocked into the 10ga breaches
by threading them into the breach sections.
First,2nd,3rd pictures. He is now building and getting
barrel ribs done and the gun regulated.

4th picture is my 700HE in a Vulcan bolt action.
5th is the 6gal water pail from the Youtube video, atomizing.
The pail was heavy plastic, full and sealed tight.
That was 12ga 600gr hollow point slug about 3000 fps.










Shot 3.jpg


CASES-1st is comparison of 12ga FH brass cases, with ours on the
left we made using bmg brass, and 3 on the right that
are of a few we found already done in 12ga size, that is
as long as ours.RMC makes them long as ours and any length needed.

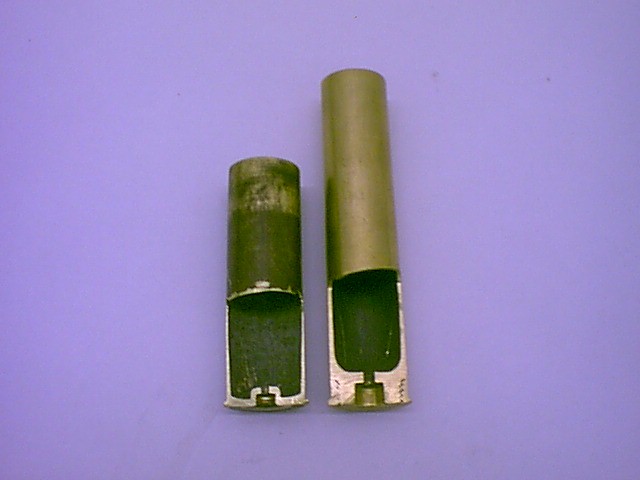

2nd is our long case next to short one.You can see how much
thicker and stronger our case is.

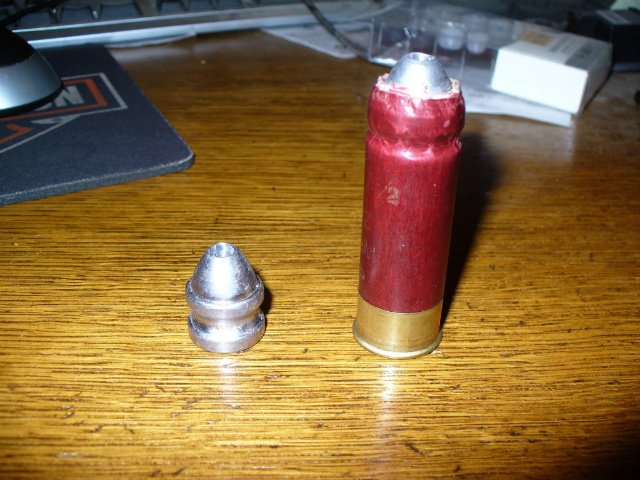

3rd is a slug made for rifled, for use in 12ga wadcup, and it
being 16ga size works in our 16ga FH case also, as shown.

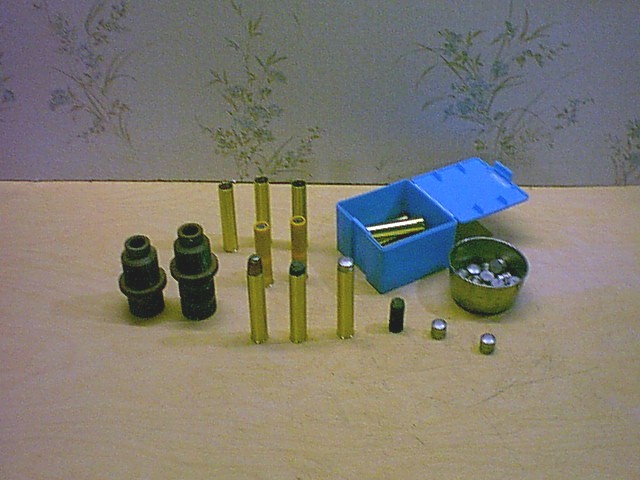

4th shows 20ga RMC cases and dies we have found for them.


5th shows 1500gr 4bore slugs a guy cast for me and cases.
These are hollowbase, as our 4 and 8 gauges on the falling
blocks, are smoothbore. Top loads with these 25-2700.Ed












Attachments

  • gregsl.jpg
    33.7 KB · Views: 383
  • helr.jpg
    46.1 KB · Views: 427
  • pc.jpg
    40.3 KB · Views: 319
  • Shot 3.jpg
    Shot 3.jpg
    40.7 KB · Views: 400
  • zacslug.jpg
    24.3 KB · Views: 386
  • 12ss.jpg
    41.1 KB · Views: 400
  • 20dies.jpg
    69.7 KB · Views: 389
  • DSC_0285.JPG
    44.6 KB · Views: 379
  • DSC_0286.JPG
    43.7 KB · Views: 371
  • DSC_0362.JPG
    59.6 KB · Views: 372
I grew up shotgun hunting and find your alterations cool and fasinating. It takes a lot of time to figure out all the different facets you have come up with in your posts.

We've worked on the 12ga FH for 6 years. It takes time.

Some more gun info about what others around the world
are doing with big bores. First is a 4bore Tula pump
gun, made in Russia. A few guys in the US have them.
They are smoothbore and .938" bore. They used a short
3" long plastic case, and we helped some of the
owners get a run of brass cases by Rocky Mtn Cartridge.
Big Al, a poster on the AR Big Bore Forums owns one.
Our 4bore case is a full 1" bore 4.05" long.
Many early 4bores for shot were set up with .935-938"
smooth bores.

Second is a bolt gun a guy in Europe did in 1" bore
using 20mm brass expanded, ending up for
headspacing, a small shoulder. It is full length like
ours, instead of shortened like other pipsqueak ones.
3rd is our big and small falling blocks, big one
the 4bore we made and other a FBW Model L in 585HE.
Both stocks need finishing in these pictures
and metal surfaces has to be finished...I'm not a
fancy, finish smith and to busy experimenting,
to get everything real fancy.

4th is a 20ga FH 3.5" chamber break action. It is a
CBC and we monoblocked in a heavy long 20ga barrel.
5th is a Mauser 12ga GEHA conversion, that had real
light barrel and cracked stock. We put the extra
Savage 12ga 24", rifled slug barrel we had in it, and
used the strong Savage plastic stock. Still has original
3" chamber and we test our slow powder 3" plastic loads.
Great load with full bore slug, is 600gr Dixie, using
90gr IMR4759, going 1800. This load was lab tested
and verified for speed and only runs plastic case, magnum
shotgun pressures.














More info on cases, first is our cases where we put in a
bushing to use shotgun primers. Also some of the guys
shorten the cases for use in 3" and shorter chambers.
Magtech makes 2.5" 12ga drawn brass cases that guys
are reloading for use in short actions, like 1887 leverguns.
2nd is 8ga plastic cases we use, the left 2 are
REM and clear is WIN. These can be gotten at BPI
and Precision Reloading. We use roll crimp on
these for slugs and sabots.
1100gr at 2000 is a good load. 9 triple ought buckshot
is a good load. Totals 630gr for the 9, goes 2500
if you want hairy load.

3rd are 8 and 10 ga hard cast slugs with hollowbases, we use.

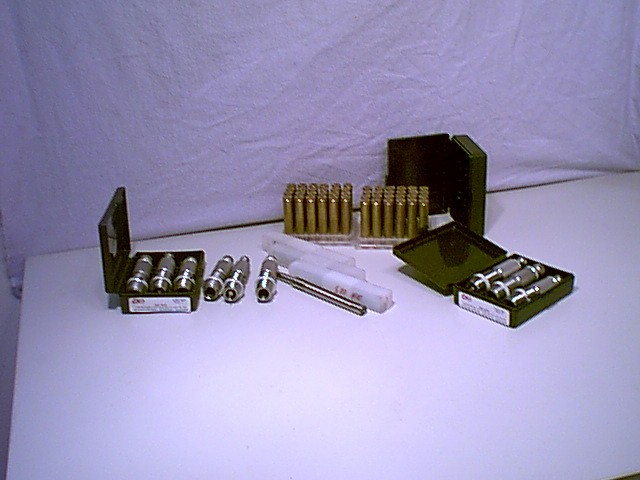

4th is some of our wildcat cartridge stuff, my 585HE cases,
die sets, and reamers. Dies are by CH4D, reamers by Manson.
5th is our 585HE in two break actions, a CBC and NEF.
Both set up by mono-blocking in 585 heavy barrels...Ed












Attachments

  • toz-123.jpg
    13.7 KB · Views: 391
  • zacslug.jpg
    24.3 KB · Views: 390
  • 8swage.jpg
    60.5 KB · Views: 402
  • 209.jpg
    41.9 KB · Views: 376
  • 585die.jpg
    61.9 KB · Views: 363
  • 810cast.jpg
    19.7 KB · Views: 368
  • bigsm.jpg
    78 KB · Views: 383
  • cbcnef585.jpg
    27.6 KB · Views: 350
  • cbco20.jpg
    22.4 KB · Views: 391
  • inchgun.jpg
    15.1 KB · Views: 388
  • mauserd.jpg
    46.8 KB · Views: 386
Some more gun info. Here is picture of a nice, large diameter
action a fellow built, for big bore use.Nice beautiful machine
work, He put a 700 short case in it. He called it 700WTF.
It would do 12ga, 16ga, 20 ga, etc.

Second is the 8 bore we just made on falling block. It is
chambered for now for the 8ga 3.3" heavy duty plastic
case that we use. That we get by swaging the belt down on
the new 8ga kiln cases, that BPI and Precision Reloading sell.
The chamber fires old original 8ga cases also, but a regular
kiln load not swaged, won't chamber, a safety factor for guns not
as strong as the falling block. Guys in the UK gave me the idea
of swaging down the belt on kiln cases, as they did it
to get cases for their old 8ga doubles.

Third is the Savage 210 we put a 700 cal barrel in and made it
a 700NE. The 700 NE has same rim diameter as 12ga, but a
smaller base, ,020" smaller, Handles the loads fine, as its
factory loads are the same as our top loads in the Savage
with RMC 3.5 brass cases. Before that I had my 700H 3.25"
belted case in it. Worked great.

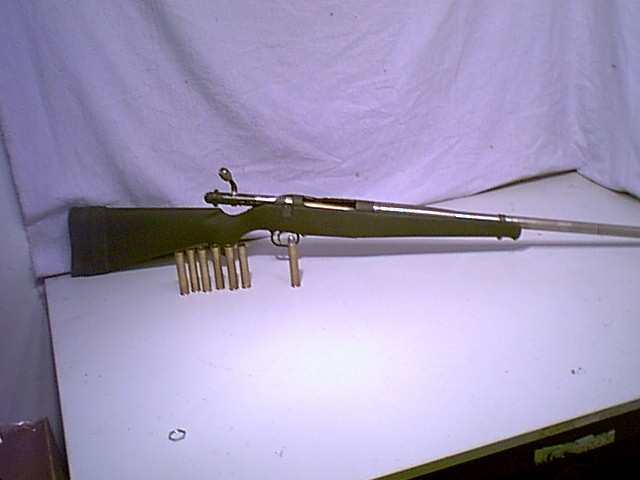

4th- we made a 28ga FH, a brass case 3.25" long that
RMC made for us. The chamber still fits and fires shorter
28ga plastic cases.Here is one in picture with a 505 Gibbs to show
the size and potential. I put first one in a Mossy 695 bolt gun
with a heavy rifled barrel. The 28ga rifled is same groove
diameter as the 550 magnum, so same diameter slugs work.

5th are couple of our 12ga FH cases guys shortened for
short actions, less recoil. Left are 2 inches,right 2.25"
and some have shortened them to 2.5" for use in
guns that will feed loaded 3" plastic. The 3" loaded plastic
and 2.5" brass with slug are about 2.7" overall..
If you folks have questions we'll help if we can.Ed
















Attachments

  • 2inch12.jpg
    55.7 KB · Views: 358
  • 8gafb.jpg
    25.4 KB · Views: 393
  • 28fhg.jpg
    30.5 KB · Views: 381
  • 585die.jpg
    61.9 KB · Views: 282
  • jaction.jpg
    62 KB · Views: 398
  • matt700.jpg
    70.7 KB · Views: 361
What we are doing in getting more power from shotgun calibers
isn't super new or completely novel, most just
modernizing and improving older ideas..

In the early days; in my Greener's book he states that
gun with a rifled choke section of the barrel, called
12ga paradox shotgun/rifles, with slugs, heavier powder
charges than shot loads, could hold what amounted to
about 5 inch pattern at 100 yds.

And still had over 1800 ft lbs energy at 100yds.
And that is with guns with lighter, thinner barrels
than we have today, so our work is a good extension
of what the early big bore guys did.

And then 4bore for guys liking a big challenge, 4th picture.
Thanks to rattler on 24hr forum for the first 4 pics.











Continuing-Many have success with all kinds of high-power slug designs and
with extra power, have pushed the reliable range of 12ga slugs/bullets
from 75 yds to 150+ yds. Even in the old days. Here is picture from a 1926
Manton catalog showing, 1st picture, many brass case old time slug loads.
Notice the 20 bore and 12 bore ones with pointed slugs, seems
as ideas to hotrod 20s and 12s are old hat, not quite as strong as 12ga FH
but as strong as some factory hotrod loads now ....We can do more
now due to better guns, powder selection, and accumulated research.
Picture #1 from lancaster and CptCurl.

2nd picture is from the Greener book, of double 8ga elephant guns.

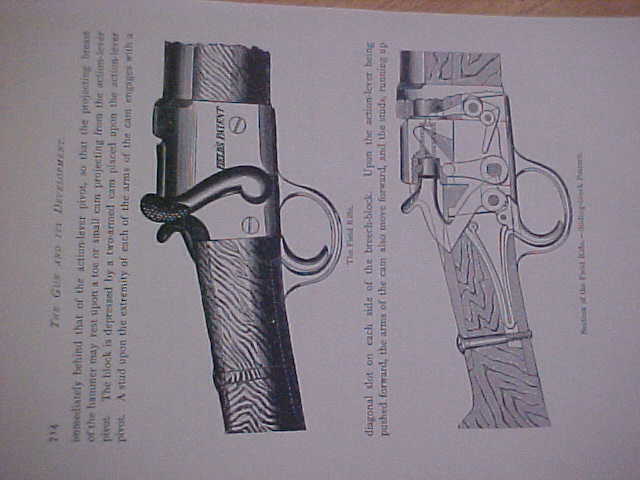

2rd is picture of an early falling block for big bores
called the Field I think. Looks like some other
side levers, looks like lever works forward.

And speaking of falling blocks 4th picture is the
start or 'fixins' so to speak for the next step
up, for our 2bore. Same design as the 4 and 8
bores only wider.

We are now getting 2.25" OD barrel reamed
out to the two bore size.
And a square hole for breach block done
in that hunk of 4130 steel.Ed


http://**NOT**PERMITTED**.info/ezine/CptCurlFiles/Paradox_and_Bore_Rifles/lancaster/slug_bore_paradox_cartridges/1130013.jpg







Attachments

  • 1130013.jpg
    117.5 KB · Views: 342
  • gr2.jpg
    27 KB · Views: 343
  • gr4.jpg
    24.9 KB · Views: 362
  • IMG_1844.jpg
    95.8 KB · Views: 350
  • IMG_1845.jpg
    86.6 KB · Views: 346
  • IMG_1846.jpg
    78.5 KB · Views: 353
  • start2.jpg
    25.7 KB · Views: 326
Some more stuff from the old days---

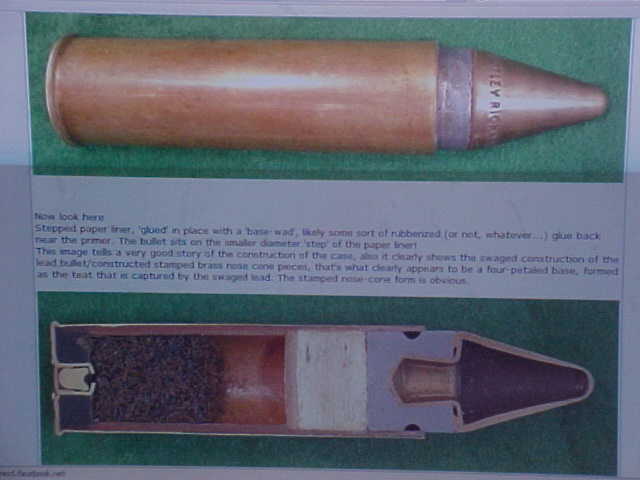

First is picture sectioned Explora case and slug, showing how
they kept weight down so that it could be stepped up in
speed in older doubles, that didn't have real heavy barrels.
These guns had short section of rifling at the end
of the barrel or shallow rifling. THis allowed more speed
than old foster slugs which flattened the trajectory,
and along with rifling spin, allowed for longer range shooting.


Second picture from Greener book here, is of older 4 and
8 gauges.And you can see videos some of these great old
guns on Youtube.

Third picture shows steps of making 4bore case, one inch bore,
from 20mm. 2nd in picture is case with base turned and swaged
to size which leaves base smaller than rim, for rimmed case.
Then 3rd case has top expanded to take 1" diameter slug.
last shows the thickness and strength of finished case.
This case matches the turned 4bore case that Ken Owen had made
for the 4bore doubles he built.

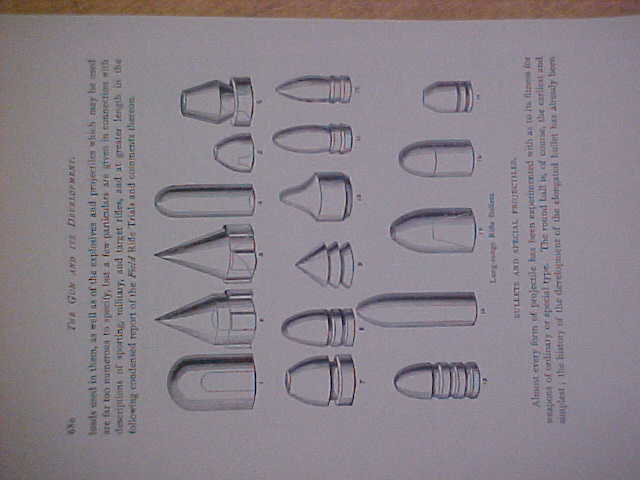

And more from the old days, here is picture of
a variety of slugs being promoted and used a century ago.
And 2nd picture Paradox cases old and new.Bottom one is a
more modern version sold by H&H for slug hunters.

3rd is what a 4bore slug, if stop framed so to speak, would
look just leaving the muzzle of the 4bore falling block
we built. Some 4bores were used in the old days but they were
poorly stocked and balanced for taming recoil. Ours with thick
pads, thumbhole stock, proper balance with 1500gr
slug at 2000 all our guys here can handle just fine..Ed







Attachments

  • explora.jpg
    24.5 KB · Views: 361
  • gr1.jpg
    21.3 KB · Views: 317
  • gr3.jpg
    22.3 KB · Views: 330
  • make4.jpg
    28.6 KB · Views: 338
  • parcases.jpg
    15.7 KB · Views: 335
  • phbul.jpg
    52.8 KB · Views: 356
  • start2.jpg
    25.7 KB · Views: 336
Some more slug experimenting and developement.
Here are pictures of the full bore Lee Key Slug
we had a guy cast. He took Lee Key mold and machined
it out to cast a .729" full bore slug.
The original Lee mold makes slugs smaller diameter,
so that they fit in a 12ga wadcup.
Slugs are hard cast alloy to take high speeds..
In picture is two MRC 2 5/8" brass 12ga cases with
slugs in them. These slugs with those brass cases are
being tested first in rifled barrels in a guys 1887 WIN,
where they needed short combination to feed from tube.
These slugs have real good shoulder step to
roll crimp against when used in plastic cases.

These first ones are 500 gr.The guys are reworking
another die to get the weight up to about 600gr,
that some of our the brass case guys want to use.
So many guys like the 600 gr size, but these with
the partly hollow base allows them to be longer,
for a little more stability,if used in smooth barrels.
Lee molds are not a real high price so it isn't
a bad deal to get them and change them.

Some newer slug ideas coming around. First is Brenneke,
a locked on base ounce slug, in sabot at factory speed of
16-1700 or so in 3" plastic.Really go in our 3.5" loads.
Brenekke has had full bore slugs with lock-on seal and
cushion, but this new appliction putting them in a sabot.
Picture #2


Third is Dupleks, steel slug riding on a plastic band,
penetrates very well. About 1 1/8 oz.And no steel touches
the bore only the plastic.Should have good penetration
witout breaking apart.These are front heavy will get
fair accuracy in smooth bores.











A new slug from the EU,a new 300gr US-S slug with locked
on base, discarding petals, by European Cartridge. Accurate
in smooth bores, Using the same idea as their all brass slugs
we showed above with locked on base, and discarding front petals.
Only these are mostly aluminum to get a lighter slug combo.In the
first picture.In 3" plastic they load to over 2100 with shotgun
powders. In a 3.5" plastic and our slower powders
we can get 2800. 2nd picture some results of penetration tests
in a sand bank they did. The brass centers penetrate like the
all brass ones they make.They are reporting 2" groups from regular
barreled smoothbore pumpguns at 50 yds with scope.Ed

http://**NOT**PERMITTED**.info/ezine/CptCurlFiles/Paradox_and_Bore_Rifles/elvas/US_S_Slug/p1010011dj.jpg


Attachments

  • keys2.jpg
    26 KB · Views: 339
  • Monolit_32_picture.jpg
    129.4 KB · Views: 339
  • p1010011dj.jpg
    48 KB · Views: 347
  • phbul.jpg
    52.8 KB · Views: 346
  • SS60350.jpg
    10.8 KB · Views: 325
We are always looking for way to shoot 8 and 10s
using easy to get components,cheap, without buying
loaded rounds for big bucks, if available at all.

In 8ga falling block, plastic case got 930gr hollowbase
slug to 2300, It is a slug for 10 ga that we expanded
base a little to fit tight in 8ga wadcup. On the left in
picture. At 30 yds 3" group. Just with open sight,
About like the 10ga sight bead. There is enough hollow in
the base it flies pretty good from 8ga smooth barrel.

Along same line, in my 10ga 32" smooth bull barrel with a
750 gr .69cal hollowbase Dixie MZ slug in VP100
10ga wadcup about same speed and same accuracy.
Nice to just get a box of slugs that is in stock,
and a 2 cent cent wadcup and Fed 3.5" 10ga plastic cases
and be shooting cheap.And the cases roll crimp nice
down to these slugs...



A different, interesting style, of 12ga slug, from Russia.
First picture loaded round, in plastic, roll crimped.
Second, two types of slugs they have on the same base.
Base for rifled barrel, little smaller diameter than the
front. Looks like the roll crimp locks against
the edge of the base. Neat idea, and it could have a
flat meplat slug on the front of the base like
the US-S brass slugs from Greece are on the
plastic bases, that I have here. They must use a crimping
die with a deep hollow up in the middle. We have thought
of taking a roll crimper and putting a deeper recess
in middle to load longer nose slugs further out so as to
have more room for our slower powders...

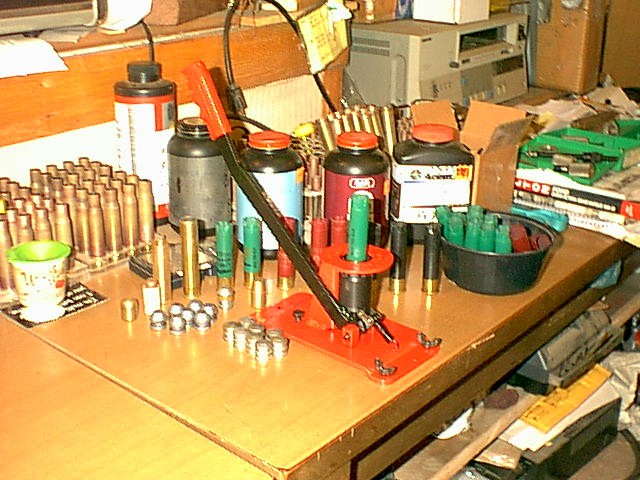

Here is picture of a great sizer for expanded plastic
cases, a MEC Super Sizer. It operates with collets. Sizes
cases better than factory. Has the power to shrink

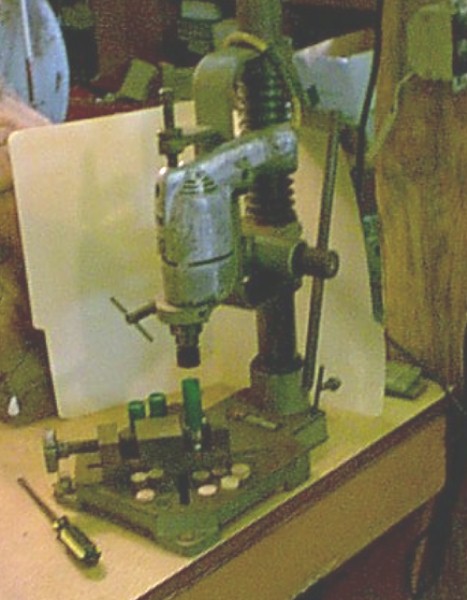

expanded basecups. 2nd picture is the roll crimper tool
in drill press, it does plastic cases as good a roll crimp
as the factory does.You can see couple we crimped
behind press base in picture...Ed





Attachments

  • 8gawad.jpg
    22.2 KB · Views: 340
  • drill.jpg
    60.4 KB · Views: 351
  • mec.jpg
    104.5 KB · Views: 321
  • rucase.jpg
    2.9 KB · Views: 269
  • ruslug.jpg
    2.8 KB · Views: 316
Here is picture of 4 long cases, top being a Rocky Mtn Cartridge
3.5" turned brass 20ga. Next a RMC 3.5" turned brass 12ga.
3rd down our 3.85" 12ga FH we made from BMG brass. Bottom
a RMC 3.85" turned brass 12ga FH case.




Next picture shows one of the old ways they locked slugs
into paper cases. Many old slugs had a wide deep groove
which made it possible to crimp that way.




Next pictures shows bullet jackets made from a copper tubing caps.
Caps are the ones they solder on to copper pipes, and they made
a die and punch to form them to a good nose shape and
size. Then they fill them from rear with lead.
Example; 1/2" cap does 700cal and 12ga with
right dies and punches.






Last the 2nd gun we put the 585HE long belted case in,
a Ruger 77 bolt action. it has a heavy 585 cal barrel,
and it is a real strong action....Ed



Attachments

  • 585ruger.jpeg
    51.4 KB · Views: 262
  • bodycrimp.jpeg
    172.5 KB · Views: 351
  • buljkt.jpeg
    20 KB · Views: 338
  • jbullet.jpeg
    37.6 KB · Views: 363
  • rip4.jpeg
    268.2 KB · Views: 278
Ross Seyfried and I get 3" LxR/LxR at 100 yards out of my William Evans paradox utilizing Ross's recreation of the standard 740 gr load. That sort of accuracy is not unusual for one of these hundred year old masterpieces of the barrel maker's art. I have killed warthog with it and would not hesitate to use it on anything up to and including eland. Tony Makris has killed buff with his Westley Richards Explora. And the Evans only weighs seven and a half pounds and throws perfect modified patterns of 1 1/8 ounce, 2.5" no. 7.5 shot with no more recoil than any other sxs bird gun.

Your work is facinating, and clearly defines the outer limit of guage performance, but utility is what I find most appealing. I am not persuaded a gun with the weight and dynamics of a crew-served weapon has a lot of practical field utility.

Here are couple more pictures of longer bullets
in sabots, loaded in plastic cases, with the
roll crimp down against the sabot. Both are
ideas tested by European Cartridge in Greece,
who make the US-S slugs. Both longer bullets
pictured have the locked on base that their
other US-S slugs have, for smooth bore accuracy.
2nd picture shows a deep hollow roll crimper
for doing slugs like these.Ed






We also had RMC make us a long brass 28ga case.
It is 3.25" long as shown in picture. They could be
3" or whatever you would want. The 550 Mag rifled barrels
are perfect bore for them, and we did one
in a Mossy 695 bolt gun, 2nd picture...Added heavy barrel.
It is shown next to a 505 Gibbs brass
case 1st picture to show that it isn't a puny case.
And chamber still fires plastic 28ga like the
new Brenekke slugs just out.Ed





Attachments

  • 28fhg.jpeg
    30.5 KB · Views: 276
  • moss28d.jpeg
    59.9 KB · Views: 360
  • pushin.jpeg
    64.1 KB · Views: 310
  • usslongnose.jpeg
    82 KB · Views: 365
First picture is an RC4 brand slug I see is available
down under. It has locked base like Brenekke.
And locked on without discarding petals, like US-S.

And 2nd picture is a group fired with RC4 slugs
by fellow on another forum from a good
double 12ga, 2 left and 2 rights at 25yds.
This shows the possibilities of working with smoothbores,
rather than not trying to make them work.

3rd picture is a discarding sabot base slug, and with
four discarding sabot carriers, with centered
penetrating solid bullet, from France.Ed










In earlier thread I mentioned the long brass 28ga case
we setup. Well here is picture of a revolving 28ga
we will try to get later on and put in heavy barrel
and longer chamber and use brass 28ga cases.Ed



Attachments

  • frsabot.jpeg
    93.9 KB · Views: 349
  • rcslug.jpeg
    45.7 KB · Views: 322
  • rctarget.jpeg
    41.8 KB · Views: 368
  • SCJ28B_011.jpeg
    40.3 KB · Views: 335
Last edited by a moderator:
Some more slug and sabot ideas folks are doing.

First is a long pointed slug with locked on base,
It goes to target with base,can work smoothbore.



Second is picture of Hexolit sabot base slug
with petals expanded, sure would make bad wound.



Third shows a variety of Gualandi slugs you can
get for reloading, and we're finding that these
locked base slugs, Brenekke/USS style slugs, are
giving good accuracy in smooth barrels which can
save when doing heavy barrels.Weights shown in
grams, get our weights in grains multiply by 15.4..Ed



Attachments

  • gualandi.jpeg
    93.9 KB · Views: 326
  • hexolit.jpeg
    57.5 KB · Views: 338
  • paraklese.jpeg
    10.6 KB · Views: 362
Here are some more sabot/slug and loading concepts.

First is Alcan 2.75" paper case with Dixie 600gr slug,
with the side of the case crimped into the relief/lube
groove of the Dixie slug.The groove in the Dixie isn't
quite as deep as the groove in the Fosbury slug shown
in earlier post, but still seems to crimp fairly tight.



Next are various slugs in 12ga REM sabots that take
57 cal slugs and bullets.Those sabots are from the REM
Accutip loadings. In picture you can see one of the
REM 385gr jkt bullets they use. Also is sabot
with 20ga cast Lyman. On right sabot with hardcast 585 cal
640gr lead bullet, the ones I use in my 585HE wildcat
case. I sized it down a little, perfect fit.
Also the .575 cal Dixie Gunworks lead slugs will do.

Also shown is a long pointed 55 Boys bullet in one,
fairly tight fit.We cut back .3" of bullet off so it
fit for length in sabot and is 750gr.



Third are 3.5" brass and plastic with the REM sabot and
the 750gr pointed slugs in them.In all the sabot work we
and others have done, trying to get accuracy and high
speeds together, maybe there is such a thing as too
much plastic. IE, sabots too thick on the sides if doing
50cal or smaller in 12ga sabots, for heavier slugs
at high speeds. Thinner sides may discard more evenly at
the greater pressures and violence of high speeds.
Thin sides may have less give so that sabot grips slug
better to impart spin in rifled use. Example in
smoothbore use is the USS slugs, where the brass slug
is .629" with thin discarding petals that have proven to
be very accurate. And with both reasonable priced sabot
offerings the last few years being undersize, accuracy
problems, etc, maybe time to try something else.

Got to find whole bunch of these sabots. Are these pictured
12ga REMs the only 58cal ones around? I can't find others,
and maybe we can find where these are made. As I have
huge numbers of the 585 slugs, which by the way I think
is best hunting combination, without extremely heavy slugs
which suffer for the speeds needed for longer range use.
It is hard lead, good for big game.And my guy can make many,
many more if needed whether for 585HE rifles
or in sabots if we can find some.ED



Attachments

  • 12ls58.jpeg
    18.7 KB · Views: 348
  • 55sabot.jpeg
    18.5 KB · Views: 331
  • alcan.jpeg
    16.7 KB · Views: 378

Forum statistics

Threads
58,092
Messages
1,247,435
Members
102,753
Latest member
Bash304






Latest posts

Latest profile posts

Embark on an unforgettable adventure with Singapore Dream Cruise. Our luxury cruises offer world-class amenities, exceptional service, and incredible destinations across Asia. Whether you're looking for a romantic getaway, a family vacation, or an exciting escape with friends, our cruises cater to every need. Enjoy luxurious staterooms, gourmet dining, and exciting onboard activities.
autofire wrote on LIMPOPO NORTH SAFARIS's profile.
Do you have any cull hunts available? 7 days, daily rate plus per animal price?

#plainsgame #hunting #africahunting ##LimpopoNorthSafaris ##africa

Top
